Fastener Specifications

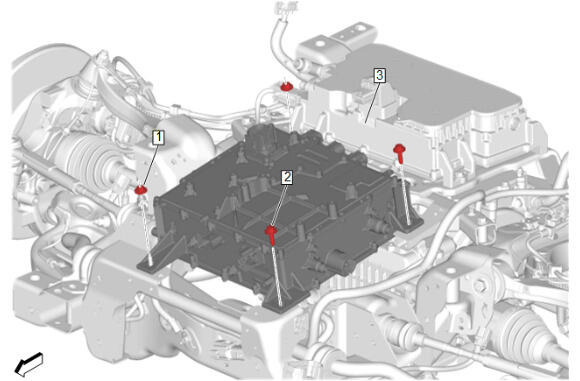

GM6654235Courtesy of GENERAL MOTORS COMPANY
Battery Charger Bolts and Nuts (K28)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Power Distribution Control Module Nut [2x] - - 22 N.m (16 lb ft) Battery Charger Replacement (K28)
2 Drive Motor Power Distribution Control Module Bolt [2x] - - 22 N.m (16 lb ft) Battery Charger Replacement (K28)
GM6304359Courtesy of GENERAL MOTORS COMPANY
Battery Charger Bolts and Nuts (K2O)

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Battery Charger Bracket Bolt [8x] - - 9 N.m (80 lb in) Battery Charger Replacement (K2O)
2 Chassis Rear Wiring Harness Bracket Bolt - - 9 N.m (80 lb in) Battery Charger Replacement (K2O)
3 Chassis Rear Wiring Harness Bracket Bolt - - 9 N.m (80 lb in) Battery Charger Replacement (K2O)
4 Drive Motor Power Distribution Control Module Nut [2x] - - 22 N.m (16 lb ft) Battery Charger Replacement (K2O)
5 Drive Motor Power Distribution Control Module Bolt [2x] - - 22 N.m (16 lb ft) Battery Charger Replacement (K2O)
GM6302619Courtesy of GENERAL MOTORS COMPANY
Battery Charger Control Module 2 Bolts @ Front Drive Motor Battery Charger Bracket

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Battery Charger Bolt [3x] - - 9 N.m (80 lb in) Battery Charger Replacement - Battery Charger Control Module 2
2 Drive Motor Battery Charger Ground Bolt [2x] - - 9 N.m (80 lb in) Battery Charger Replacement - Battery Charger Control Module 2
GM6302618Courtesy of GENERAL MOTORS COMPANY
Battery Charger Control Module 2 Bolts @ Rear Drive Motor Battery Charger Brackets

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Battery Charger Bolt [4x] - - 9 N.m (80 lb in) Battery Charger Replacement - Battery Charger Control Module 2
GM6277174Courtesy of GENERAL MOTORS COMPANY
Battery Charger Coupler Bolts @ Charge Port Housing

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Battery Charger Receptacle Bolt [4x] - - 9 N.m (80 lb in) Battery Charger Coupler Replacement
GM6277176Courtesy of GENERAL MOTORS COMPANY
Battery Charger Coupler Bolts and Nuts @ Wheelhouse Opening

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Drive Motor Battery Charger Receptacle Nut [5x] - - 9 N.m (80 lb in) Battery Charger Coupler Replacement
2 Drive Motor Battery Charger Receptacle Bolt - - 9 N.m (80 lb in) Battery Charger Coupler Replacement
3 Drive Motor Battery Charger Bolt - - 9 N.m (80 lb in) Battery Charger Coupler Replacement
4 Drive Motor Battery Charger Receptacle Bolt - - 22 N.m (16 lb ft) Battery Charger Coupler Replacement

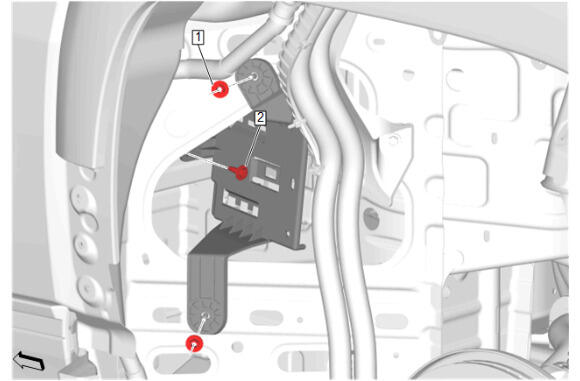

GM6654315Courtesy of GENERAL MOTORS COMPANY
Powerline Communication Module Bracket Bolt and Nuts

Callout Component Name [Component Quantity] Single Use Fastener / Component Thread Locking Adhesive Required Specification Procedure Link
Metric (English)
1 Power Line Communication Module Bracket Nut [2x] - - 9 N.m (80 lb in) Off-Board Charger Control Module Replacement
2 Power Line Communication Module Bracket Bolt - - 9 N.m (80 lb in) Off-Board Charger Control Module Replacement
