Fastener Specifications

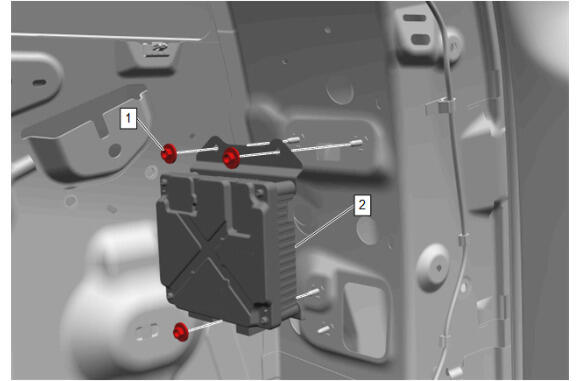

Accessory AC and DC Power Control Module
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Accessory AC and DC Power Control Module Nut [3x] | - | - | 9 N.m (80 lb in) | Accessory AC and DC Power Control Module Replacement (- 9C1) , or Accessory AC and DC Power Control Module Replacement (9C1) |

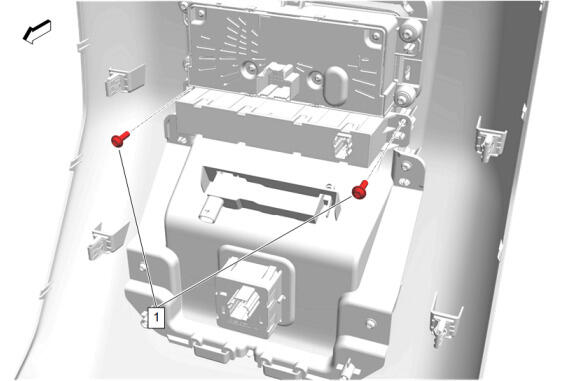

Dual Charge Only Receptacle
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Floor Console Armrest Bolt [2x] | - | - | 0.7 N.m (6 lb in) | Dual Charge Only Receptacle Replacement - Rear (DCK / D07) , or Dual Charge Only Receptacle Replacement - Rear (DCH) |

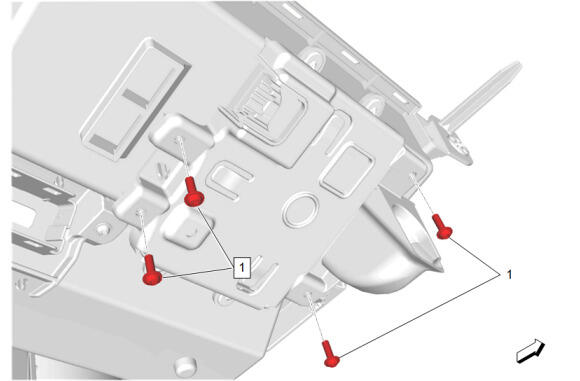

Wireless Accessory Charging Module
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Wireless Charging System Module Bracket Bolt [4x] | - | - | 1.3 N.m (12 lb in) | Wireless Accessory Charging Module Replacement (K7A and DCH) , or Wireless Accessory Charging Module Replacement (K7A and (D07 / DCK)) |
