Fastener Specifications
NOTE:
Callout items in the following chart represent components shown in graphic above.

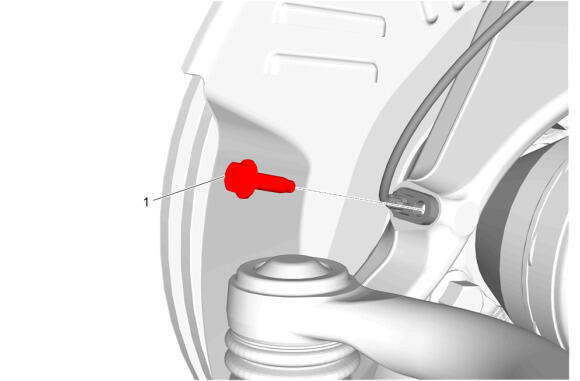

Front Wheel Speed Sensor Replacement - Left
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Front Wheel Speed Sensor Bolt | - | - | 9 N.m (80 lb in) | Front Wheel Speed Sensor Replacement (Left) |
NOTE:
Callout items in the following chart represent components shown in graphic above.

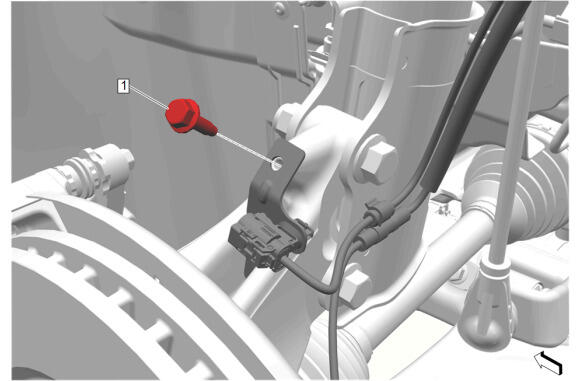

Front Wheel Speed Sensor Replacement - Left
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Wheel Speed Sensor Bolt | - | - | 9 N.m (80 lb in) | Front Wheel Speed Sensor Replacement (Left) |
NOTE:
Callout items in the following chart represent components shown in graphic above.

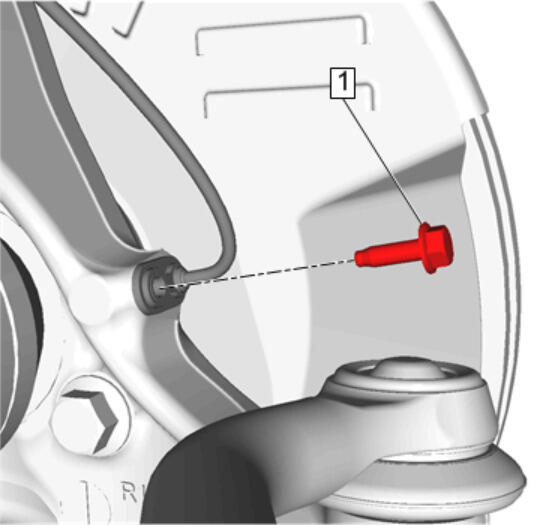

Front Wheel Speed Sensor Replacement - Right
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Wheel Speed Sensor Bolt | - | - | 9 N.m (80 lb in) | Front Wheel Speed Sensor Replacement (Right) |
NOTE:
Callout items in the following chart represent components shown in graphic above.

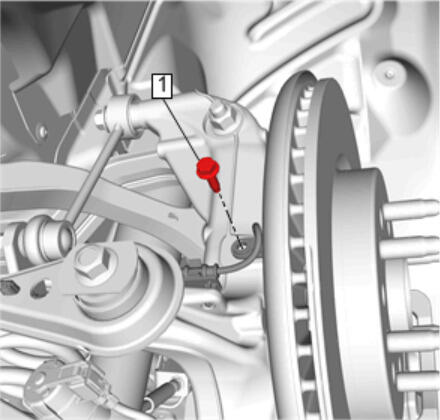

Rear Wheel Speed Sensor Replacement
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure Link |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Rear Wheel Speed Sensor Bolt | - | - | 9 N.m (80 lb in) | Rear Wheel Speed Sensor Replacement |
