Fastener Specifications
NOTE:
Callout items in the following chart represent components shown in graphic above.

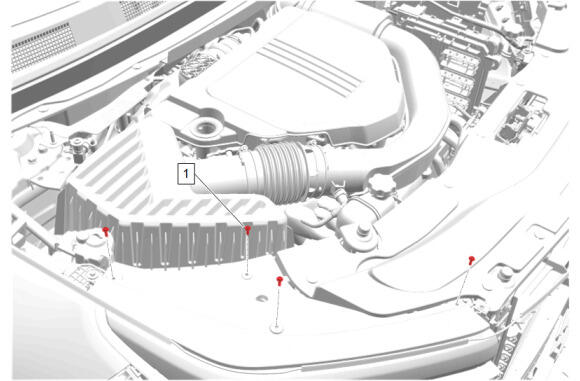

Headlamp Protective Cover
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Headlamp Protective Cover Bolt [4x] | - | - | 1.4 N.m (12 lb in) | Horn Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.

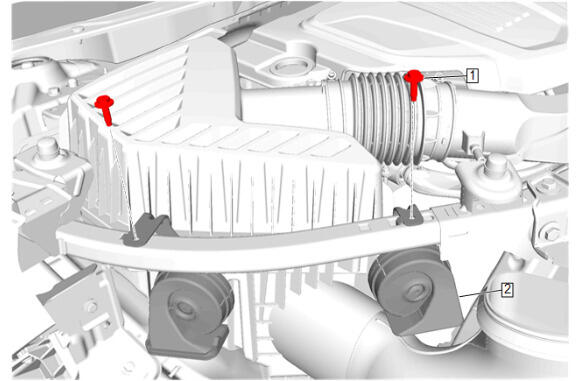

Horn
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Horn Bolt [2x] | - | - | 9 N.m (80 lb in) | Horn Replacement |
