Fastener Specifications
NOTE:
Callout items in the following chart represent components shown in graphic above.

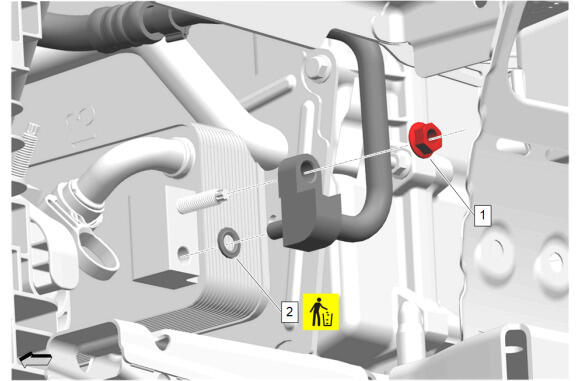

Transmission Fluid Cooler Thermal Bypass Valve - Transmission Fluid Auxiliary Cooler
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Cooler Thermal Bypass Valve Bolt | - | - | 3 N.m (27 lb in) | Transmission Fluid Cooler Thermal Bypass Valve Replacement |
| 2 | Transmission Fluid Cooler Thermal Bypass Valve Seal | Yes | - | 3 N.m (27 lb in) | Transmission Fluid Auxiliary Cooler Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.

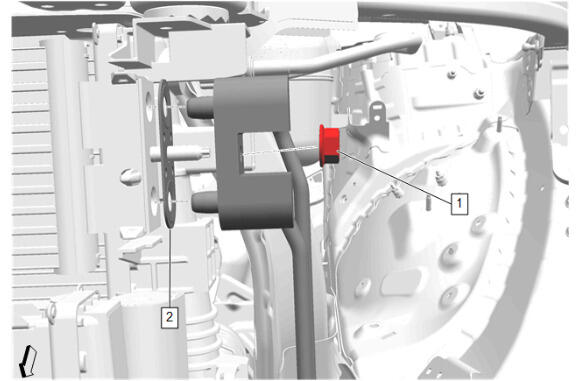

Transmission Fluid Cooler Thermal Bypass Valve - Transmission Fluid Cooler Inlet and Outlet Pipe
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Cooler Thermal Bypass Valve Bolt | - | - | 9 N.m (80 lb in) |
NOTE:
Callout items in the following chart represent components shown in graphic above.

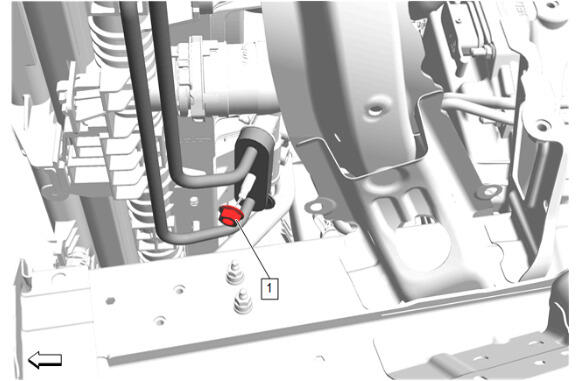

Transmission Fluid Cooler Pipe Connector - Transmission
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Cooler Pipe Connector | - | - | 35 N.m (26 lb ft) | Transmission Fluid Cooler Pipe Connector Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.

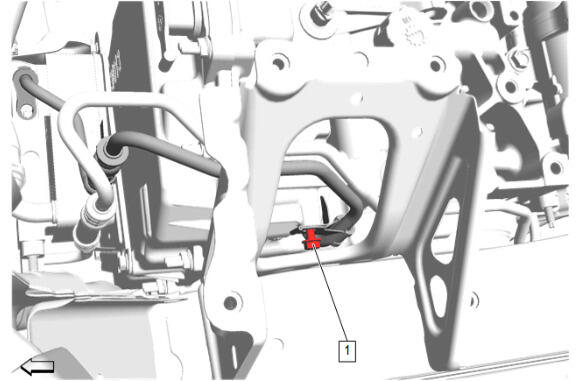

Transmission Fluid Cooler Inlet Pipe - Automatic Transmission Fluid Cooling Exchanger
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Cooler Pipe Nut | - | - | 22 N.m (16 lb ft) | Transmission Fluid Cooler Inlet Pipe Replacement |
| 2 | Transmission Fluid Cooler Pipe Seal | Yes | - | - | Transmission Fluid Cooler Inlet Pipe Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.

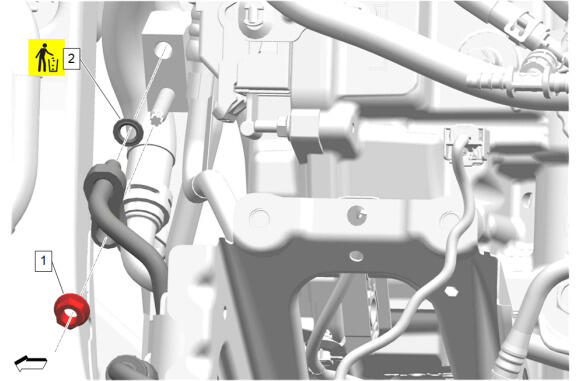

Transmission Fluid Cooler Inlet Pipe - Transmission
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Cooler Pipe Nut | - | - | 22 N.m (16 lb ft) | Transmission Fluid Cooler Inlet Pipe Replacement |
| 2 | Transmission Fluid Cooler Pipe Seal | Yes | - | - | Transmission Fluid Cooler Inlet Pipe Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.

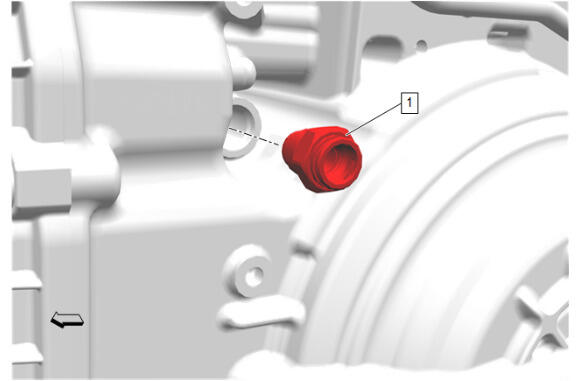

Transmission Fluid Cooler Outlet Pipe - Automatic Transmission Fluid Cooling Exchanger
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Cooler Pipe Nut | - | - | 22 N.m (16 lb ft) | Transmission Fluid Cooler Outlet Pipe Replacement |
| 2 | Transmission Fluid Cooler Pipe Seal | Yes | - | - | Transmission Fluid Cooler Outlet Pipe Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.

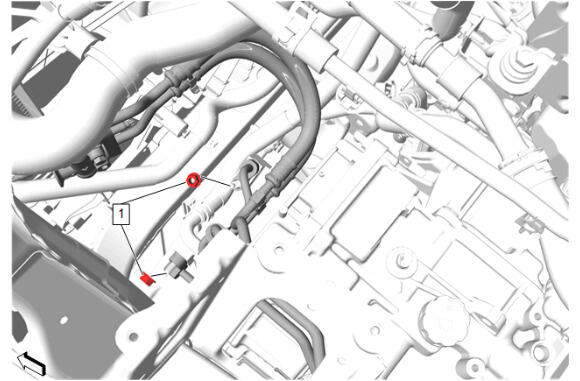

Transmission Fluid Cooler Outlet Pipe - Transmission
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Cooler Pipe Bracket Bolt | - | - | 9 N.m (80 lb in) | Transmission Fluid Cooler Outlet Pipe Replacement |
NOTE:
Callout items in the following chart represent components shown in graphic above.

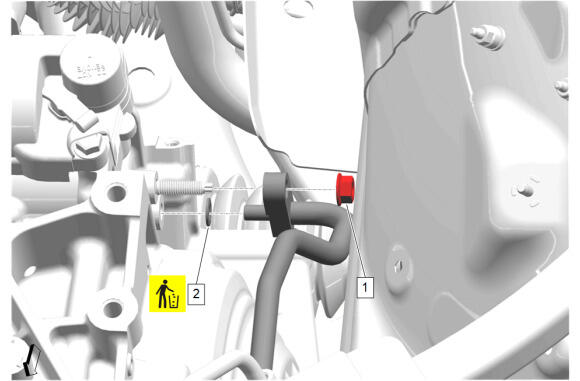

Transmission Fluid Cooler Inlet and Outlet Pipe
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Cooler Pipe Nut | - | - | 22 N.m (16 lb ft) |
NOTE:
Callout items in the following chart represent components shown in graphic above.

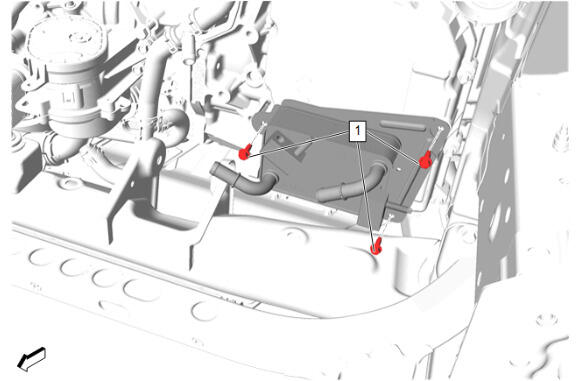

Automatic Transmission Fluid Cooling Exchanger
| Callout | Component Name [Component Quantity] | Single Use Fastener/Component | Thread Locking Adhesive Required | Specification | Procedure |
|---|---|---|---|---|---|
| Metric (English) | |||||
| 1 | Transmission Fluid Auxiliary Cooler Bolt [3x] | - | Yes | 9 N.m (80 lb in) | Automatic Transmission Fluid Cooling Exchanger Replacement |
