Installation Procedure

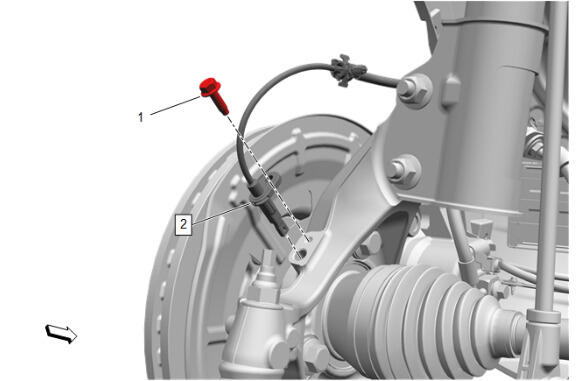

  1. GM5917836Courtesy of GENERAL MOTORS COMPANY

    Front Wheel Speed Sensor (2) @ Steering Knuckle - Install

    2. CAUTION:

    Fastener Caution

  2. Front Wheel Speed Sensor Bolt (1) @ Steering Knuckle - Install and tighten - Fastener Specifications

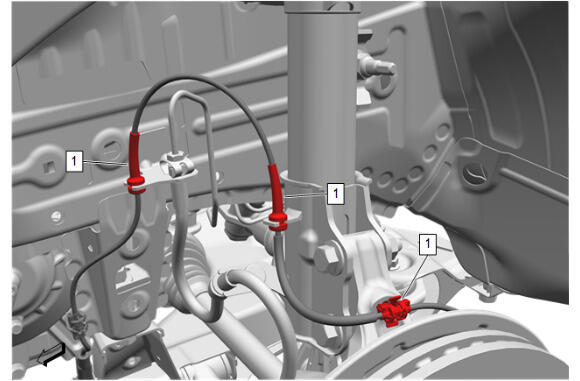

  3. GM5917835Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Retainer (1) - Secure [3x]

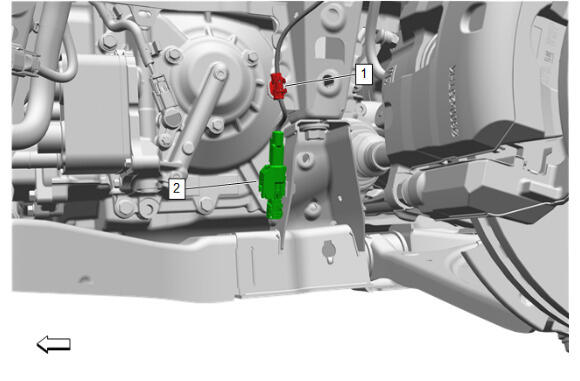

  4. GM5917834Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (2) @ Body Wiring Harness - Connect

  5. Wiring Harness Retainer (1) - Secure

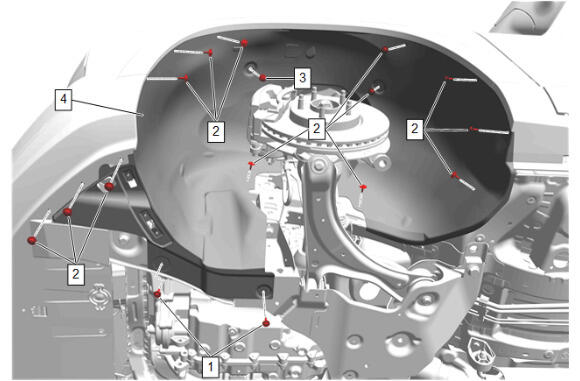

  6. GM5925333Courtesy of GENERAL MOTORS COMPANY

    Front Wheelhouse Liner (4) - Install

  7. Front Wheelhouse Liner Retainer (3) - Install
  8. Front Wheelhouse Liner Bolt (2) - Install and tighten [13x] - Fastener Specifications
  9. Front Compartment Splash Shield Bolt (1) - Install and tighten [2x] - Fastener Specifications

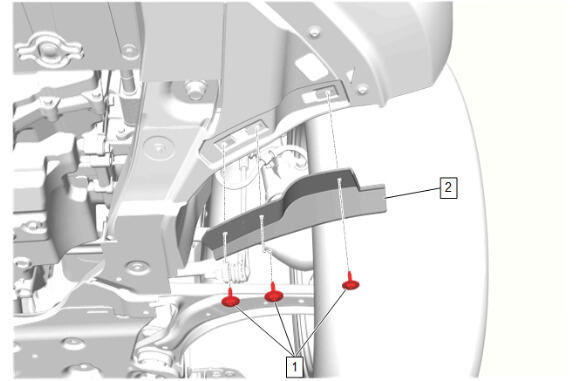

  10. GM5925332Courtesy of GENERAL MOTORS COMPANY

    Front Tire Front Air Deflector (2) - Install

  11. Front Tire Front Air Deflector Bolt (1) - Install and tighten [3x] - Fastener Specifications
  12. Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
  13. Lower the vehicle.
