Data Sensor Locations

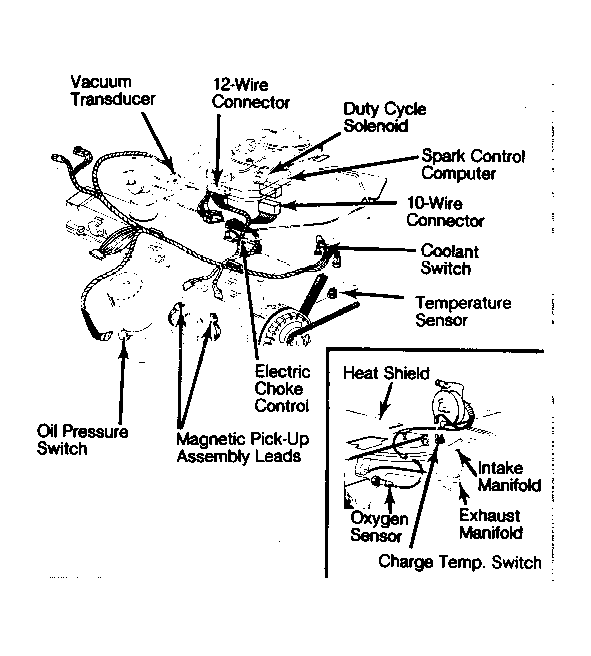

Fig 1: Location of Data Sensors on 3.7L Engines

G134

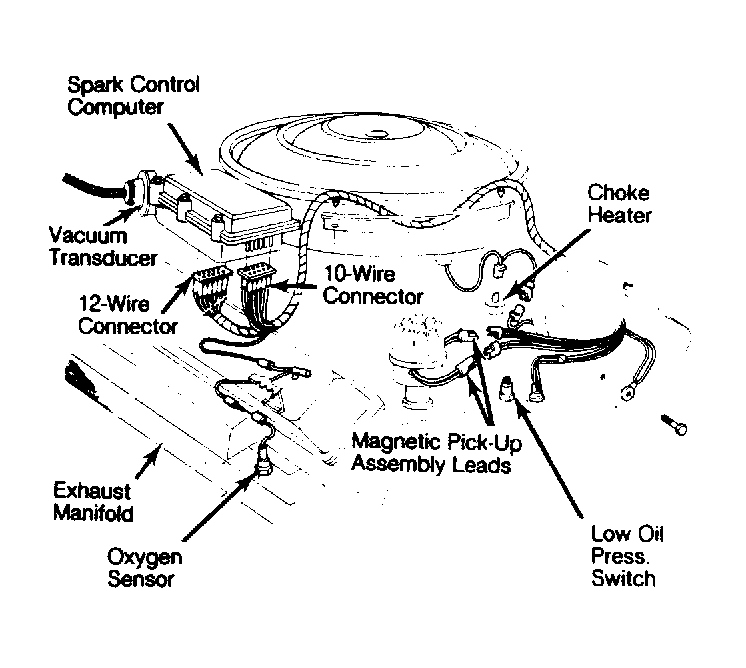

Fig 2: Location of Data Sensors on 5.2L Engine (Rear View)

G135

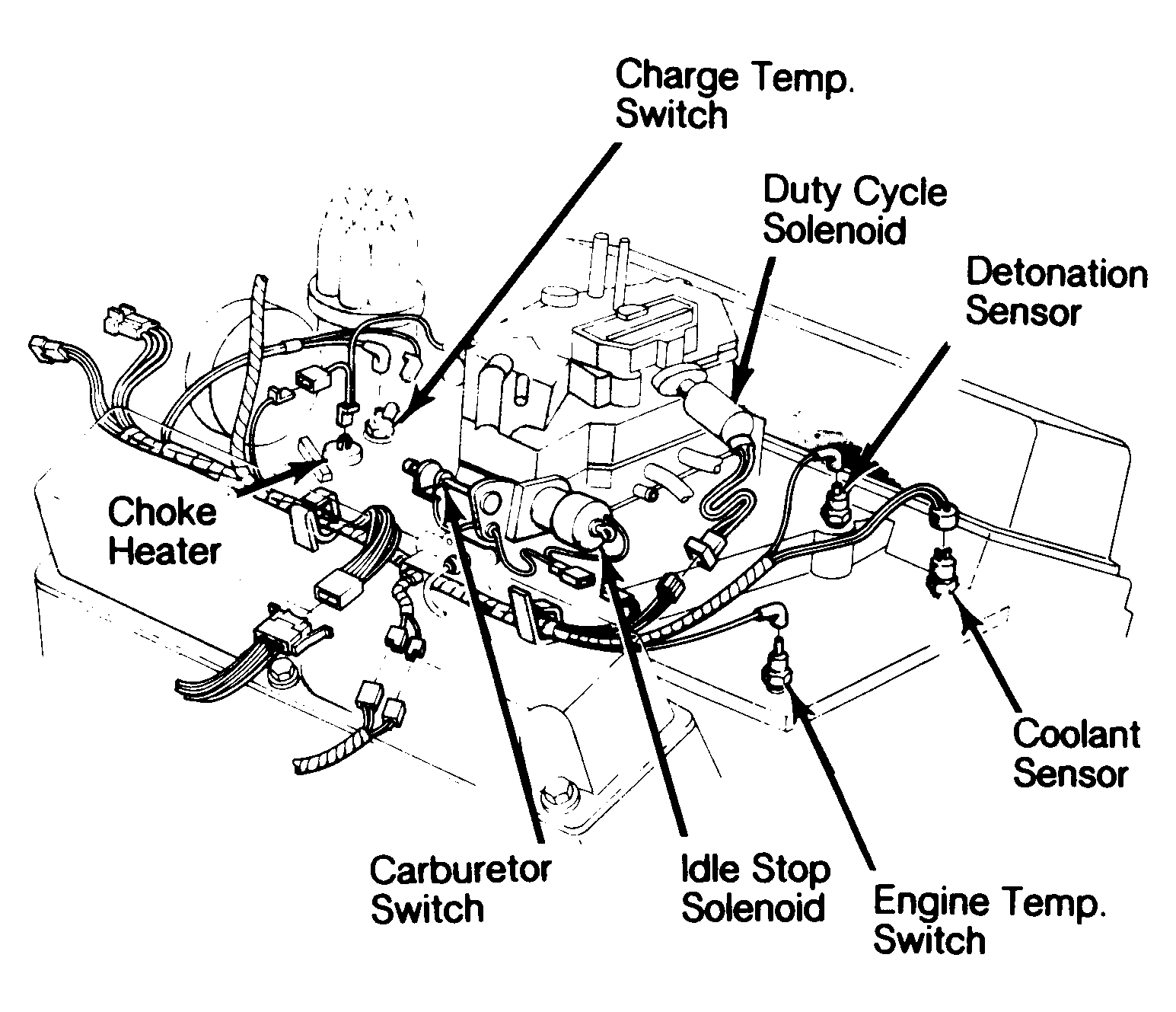

Fig 3: Location of Data Sensors on 5.2L Engine (Front View)

G137
