Module Connectors

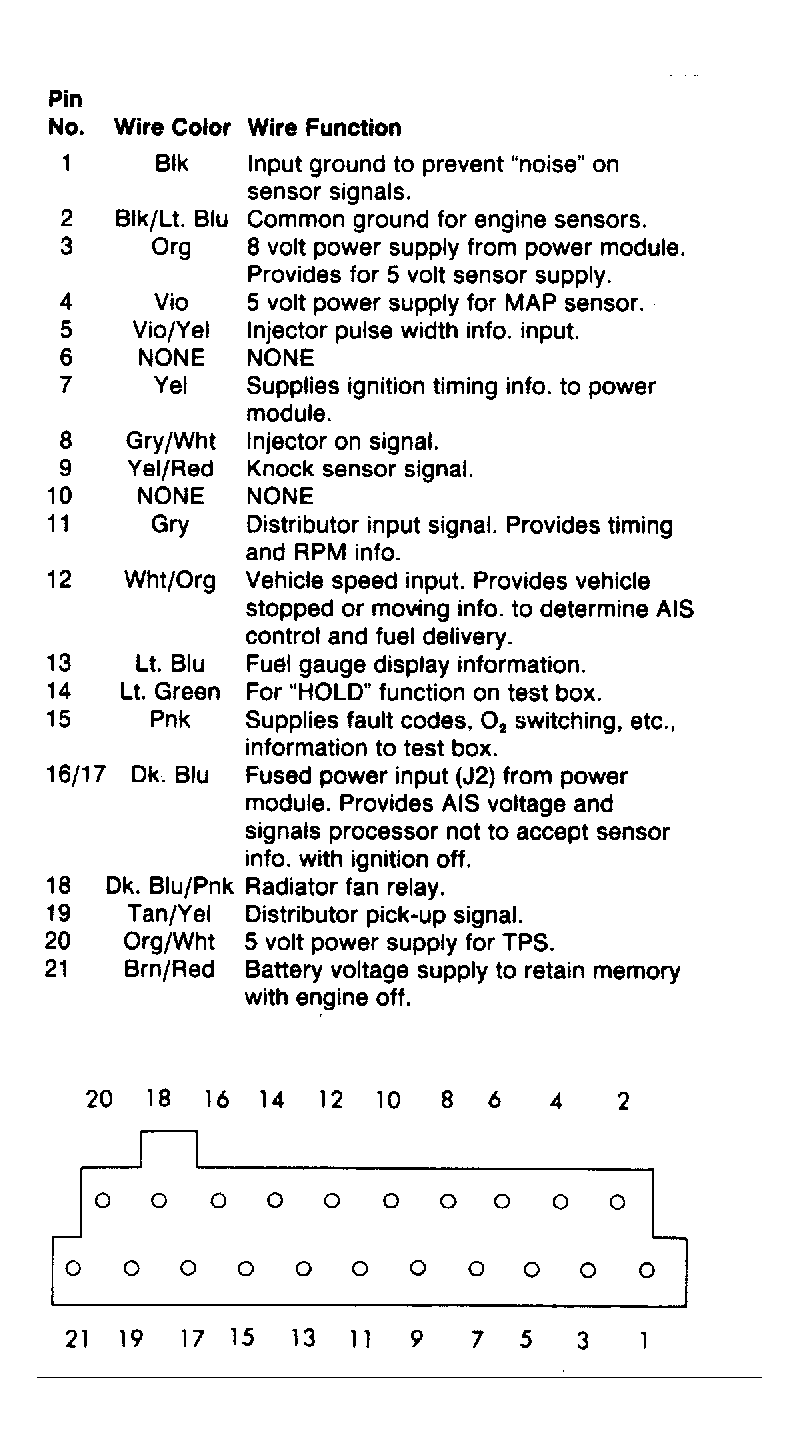

Fig 1: Logic Module Pins-Connector 1

G1604

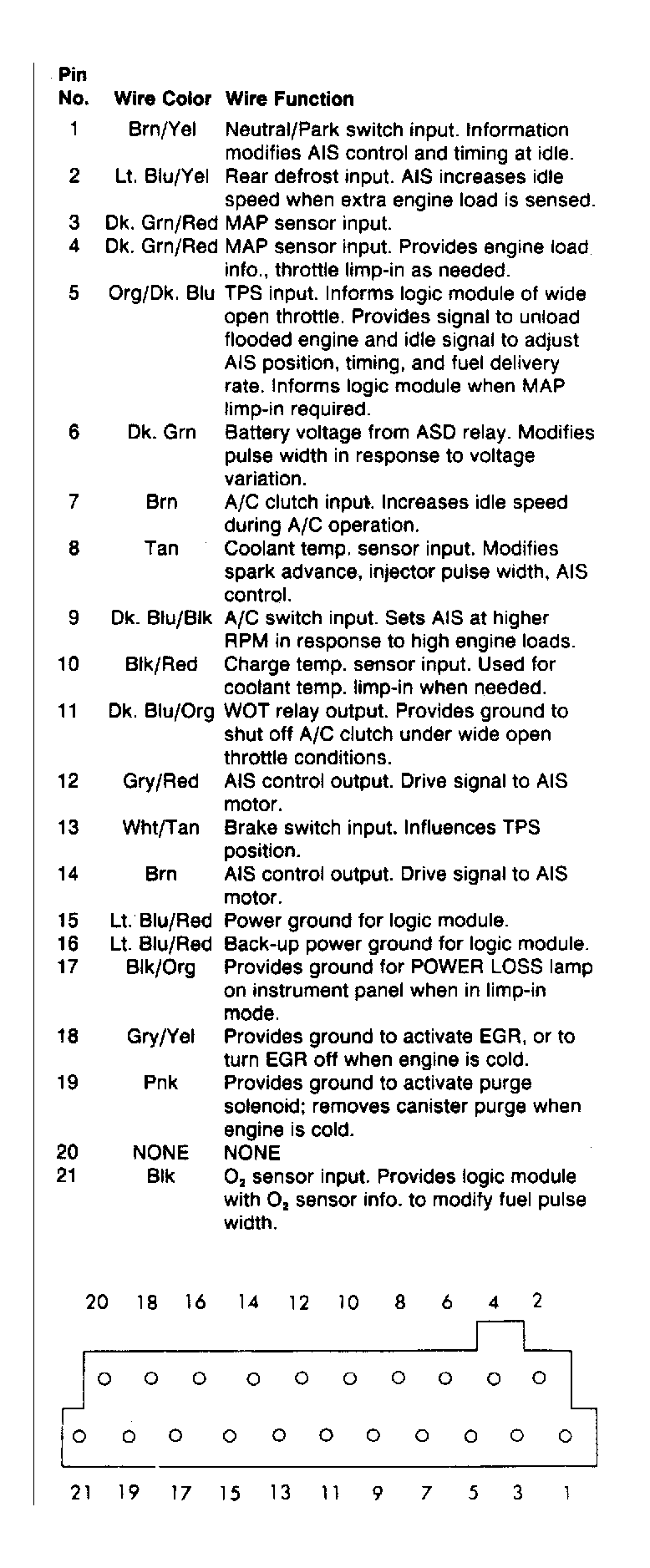

Fig 2: Logic Module Pins-Connector 2

G1605

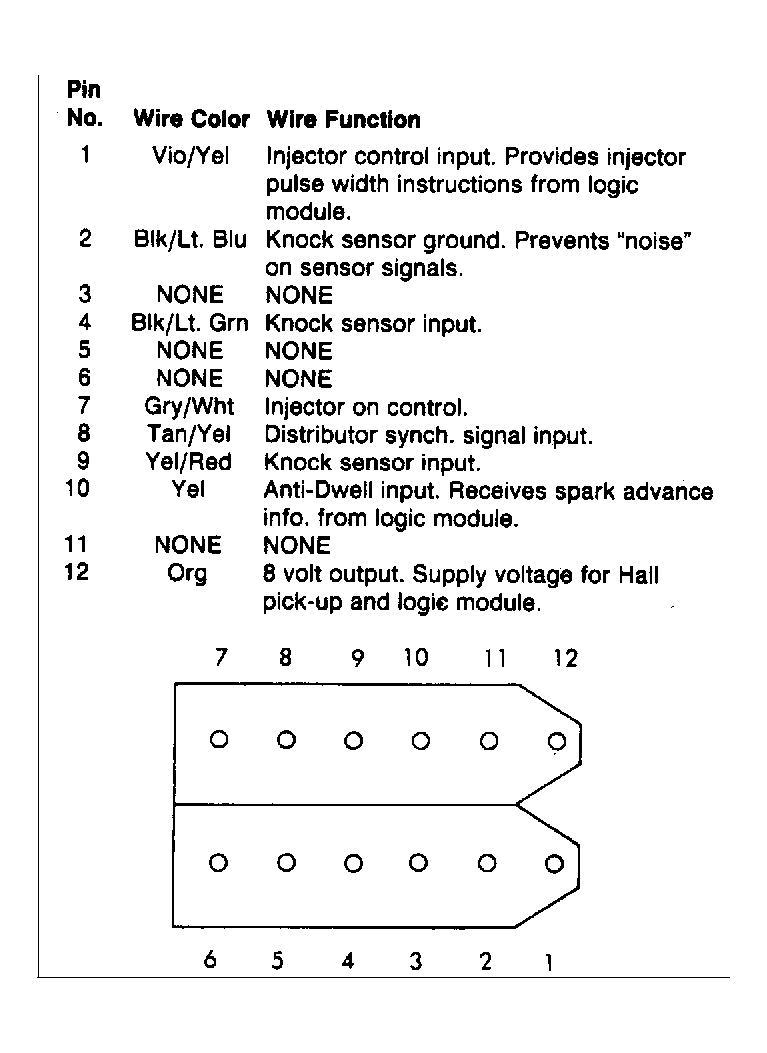

Fig 3: Power Module Pins-12-Pin Connector

G1606

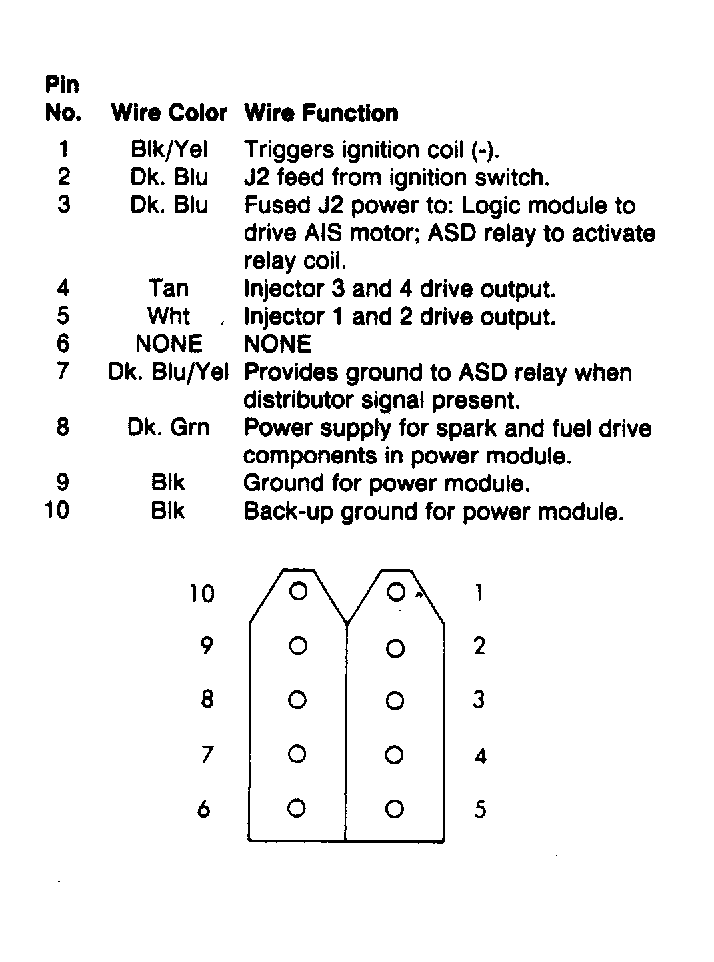

Fig 4: Power Module Pins-10-Pin Connector

G1607
