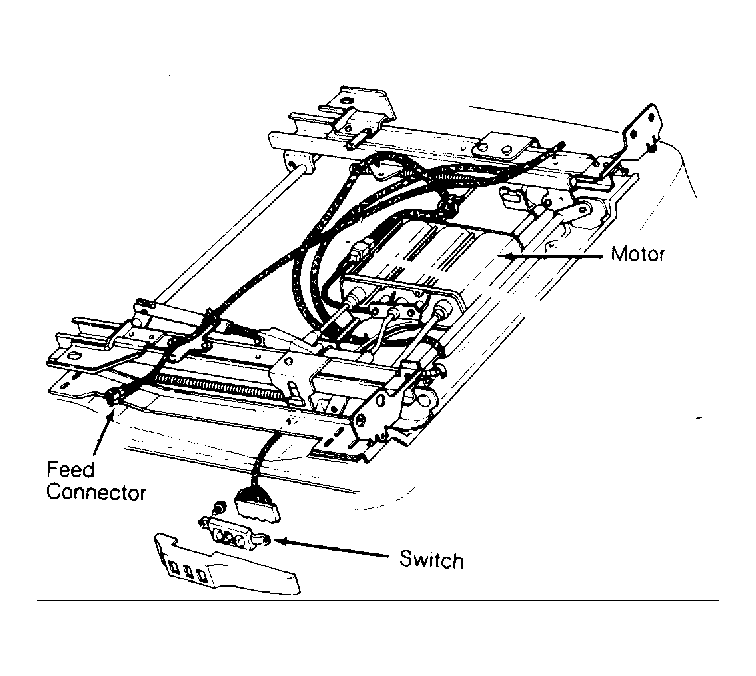

Front Motor
- Remove switch from front harness. Connect a jumper lead between Red wire terminal in center section of connector and either Red/Green or Yellow/Green connection in front section. Connect another jumper between Black terminal in center section and open connection in front section.
- If motor does not operate, reverse jumper connections in front section. If motor still does not operate, either harness or complete 3-motor assembly may be defective.
