Chrysler
>>
1985
>>
Laser Base, Automatic
>>
Repair and Diagnosis
>>
Maintenance
>>
Procedures
>>
Maintenance Information
>>
Service Point Locations
Service Point Locations

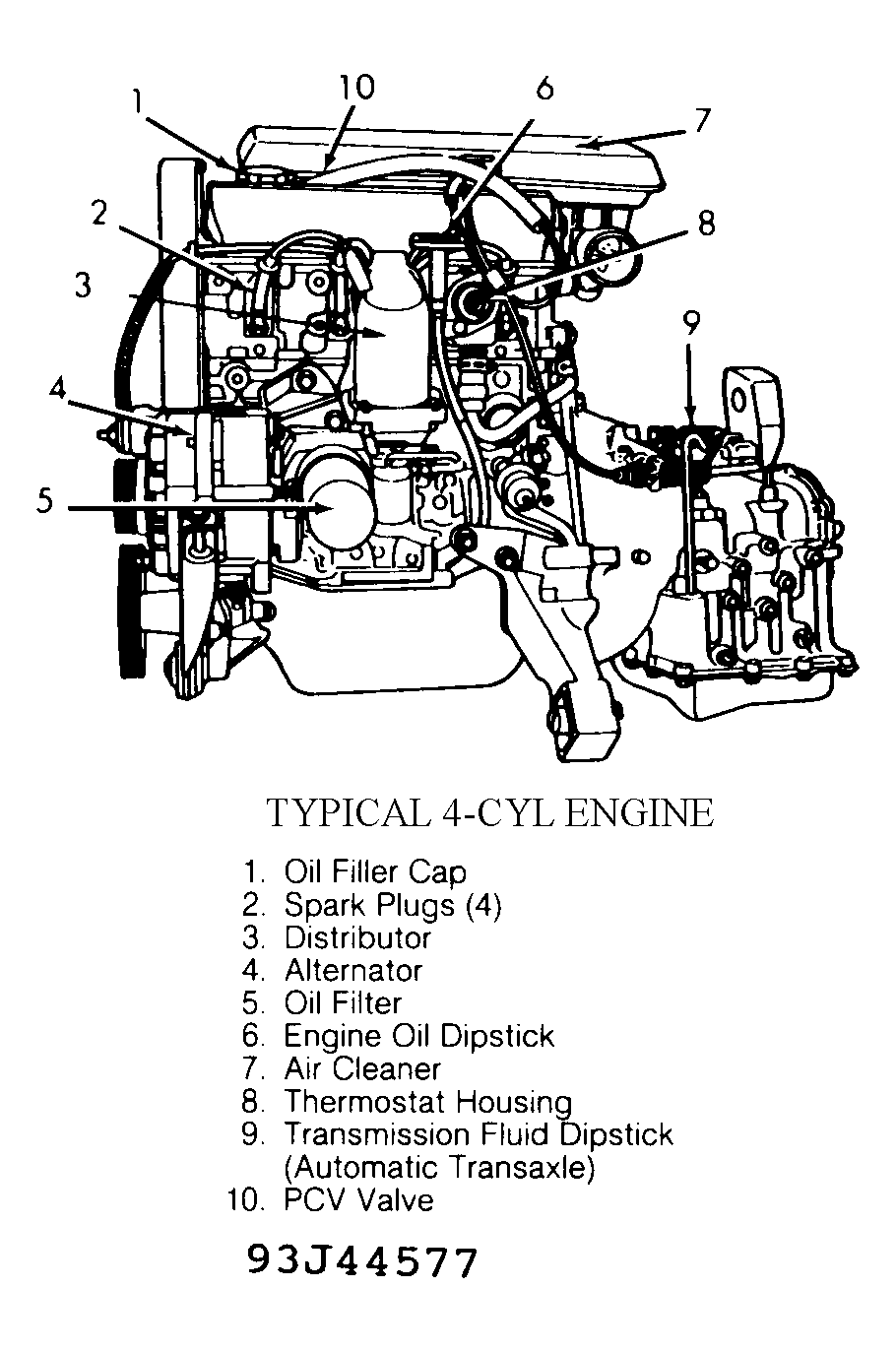

Fig 1: Engine Service Point Locations (Typical 4-Cylinder)
Courtesy of CHRYSLER CORP.

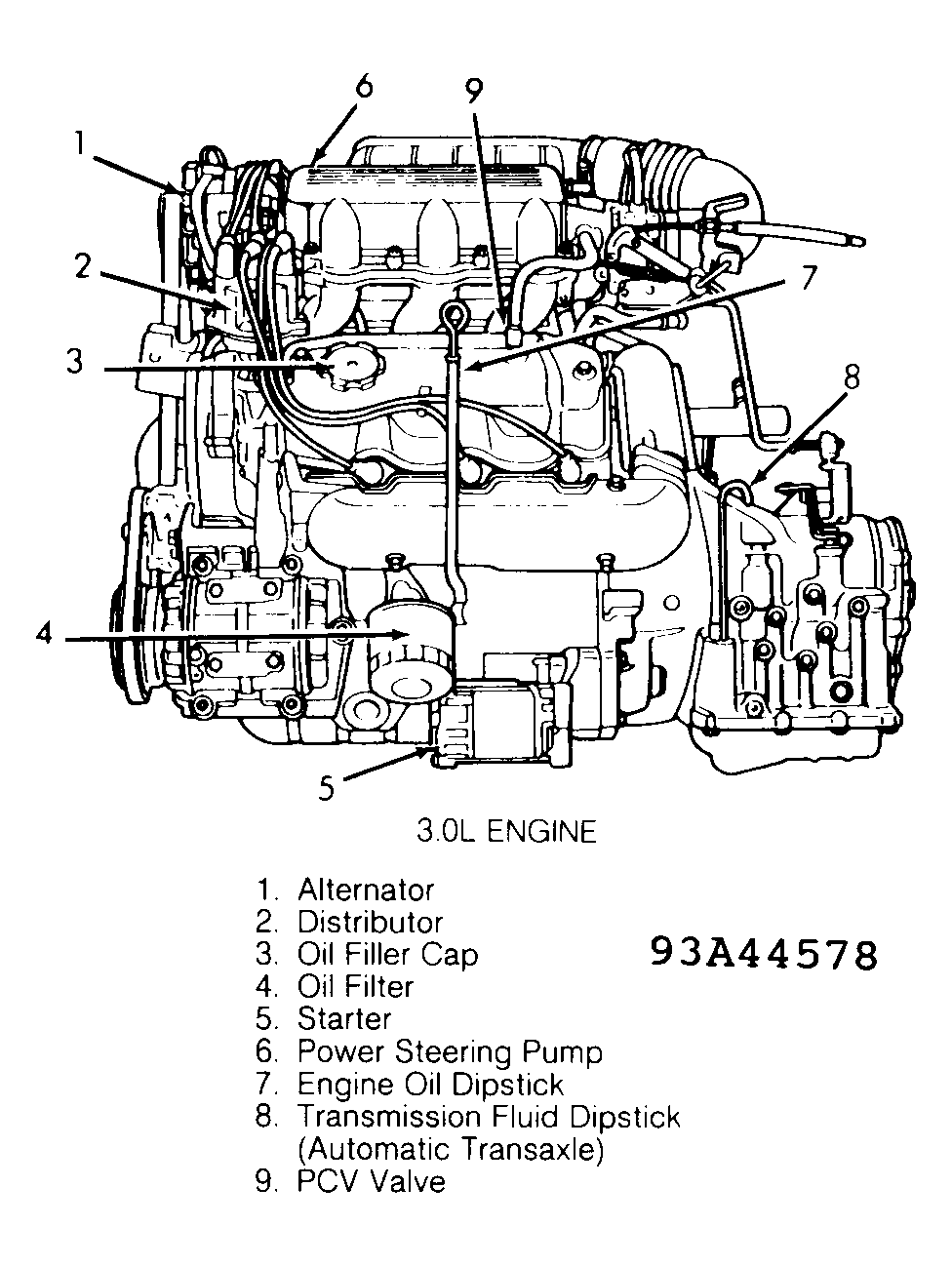

Fig 2: Engine Service Point Locations (3.0L V6)
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
