Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Automatic Seat Belt Circuit Breaker | Under left side of dash. See Figure . | |
| Fuse Block | Under left side of dash. | |
| Fusible Links | ||
| Main Fusible Link | Near positive battery terminal. | |

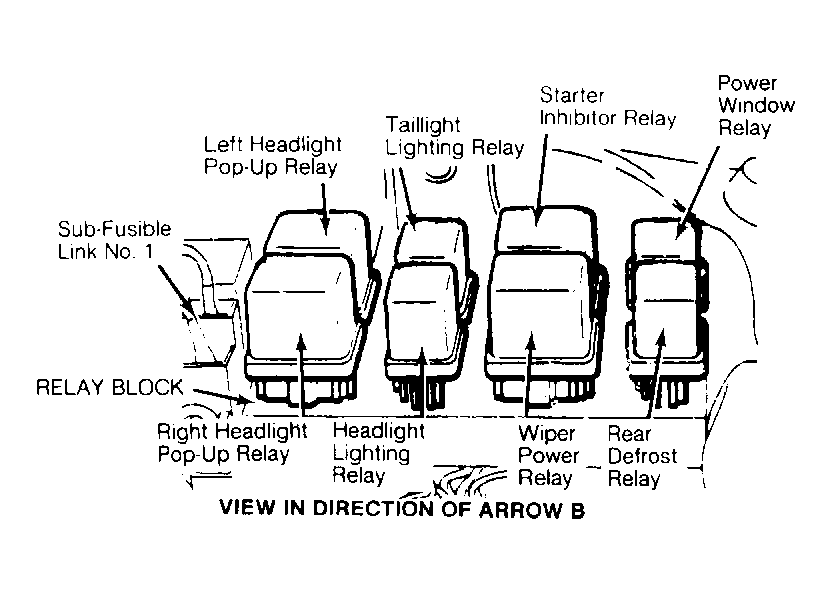

| Sub-Fusible Link No. 1 | Next to front relay block. See Figure . | |
| Sub-Fusible Link No. 2 | Near positive battery terminal. | |

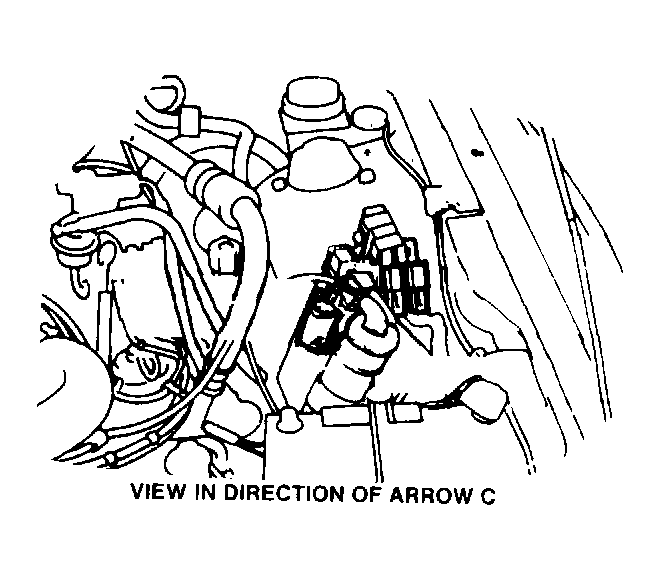

| Relay Block (Lights) | In left front corner of engine bay, behind panel. See Figure . | |
| Relay Block | ||
| Engine Compartment | On left inner fender panel. See Figure . | |

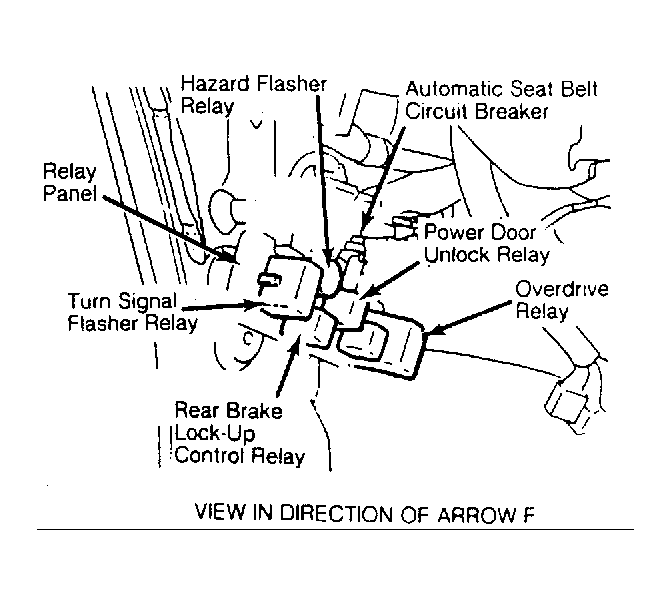

| Passenger Compartment | On left kick panel. See Figure . | |
