Remove, Overhaul & Install: Remove/Install/Overhaul: Introduction: Carburetor: Installation

To install, reverse removal procedure.

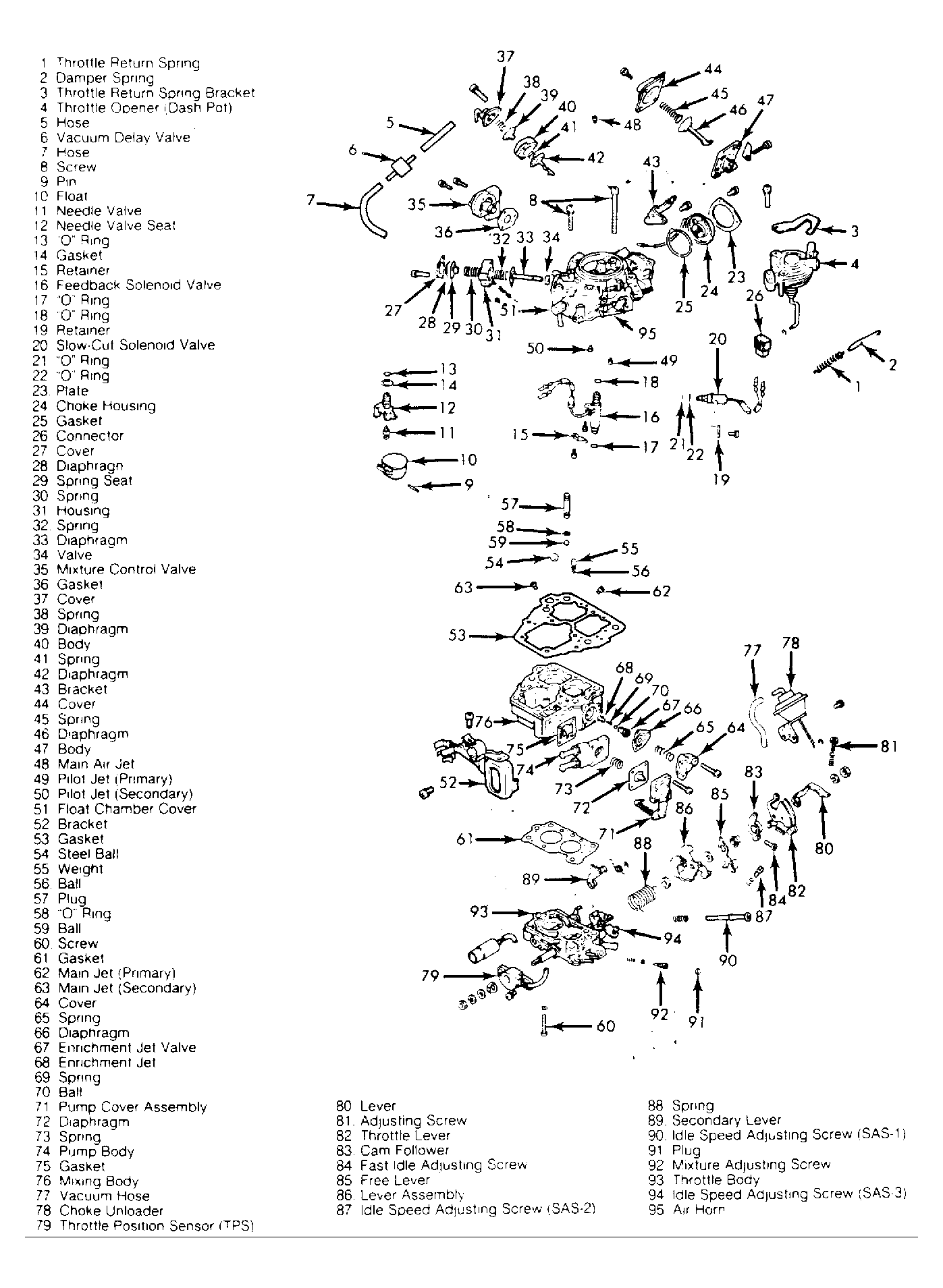

Fig 1: Mikuni DIDF 2-Barrel Carburetor

Courtesy of CHRYSLER MOTORS
