Ignition Switch

Using an ohmmeter, ensure continuity is present in proper switch positions. See Fig 1 .

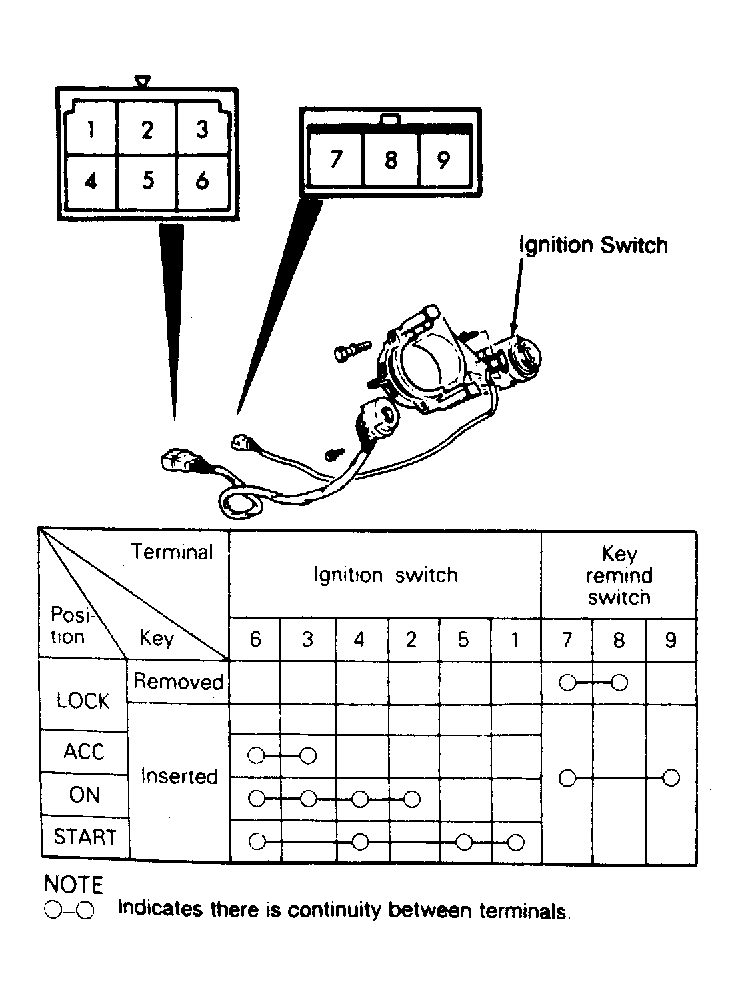

Fig 1: Checking Ignition Switch Continuity
G120137Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
