Pick-Up Coil

Using an ohmmeter, measure pick-up coil resistance. See Fig 1 . Resistance should be 920-1120 ohms.

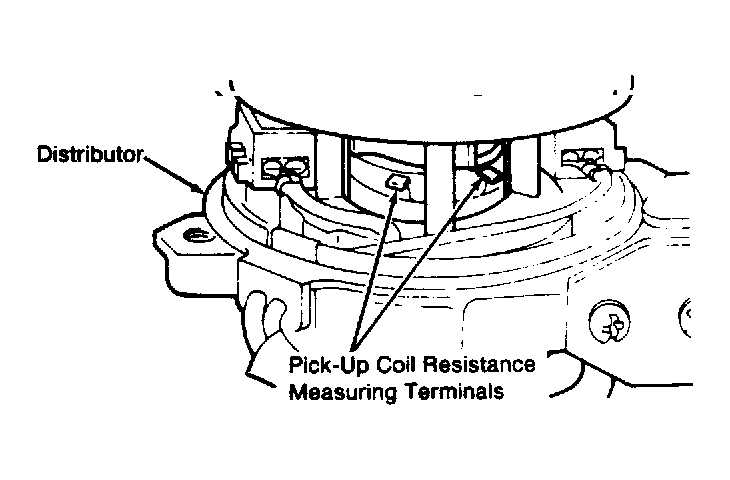

Fig 1: Pick-Up Coil Resistance Measuring Terminals
G120138Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
