Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Module | In trunk, on rear seat panel. |
| ATC Power Module | On lower right side of dash. |
| Auto. Level Control Module | In luggage compartment, on right side. |
| Body Control Module (BCM) | At right side kick panel. |
| Chime Module | Behind dash, above glove box. |
| Concealed Headlight Module | Behind dash, above glove box. See Figure . |

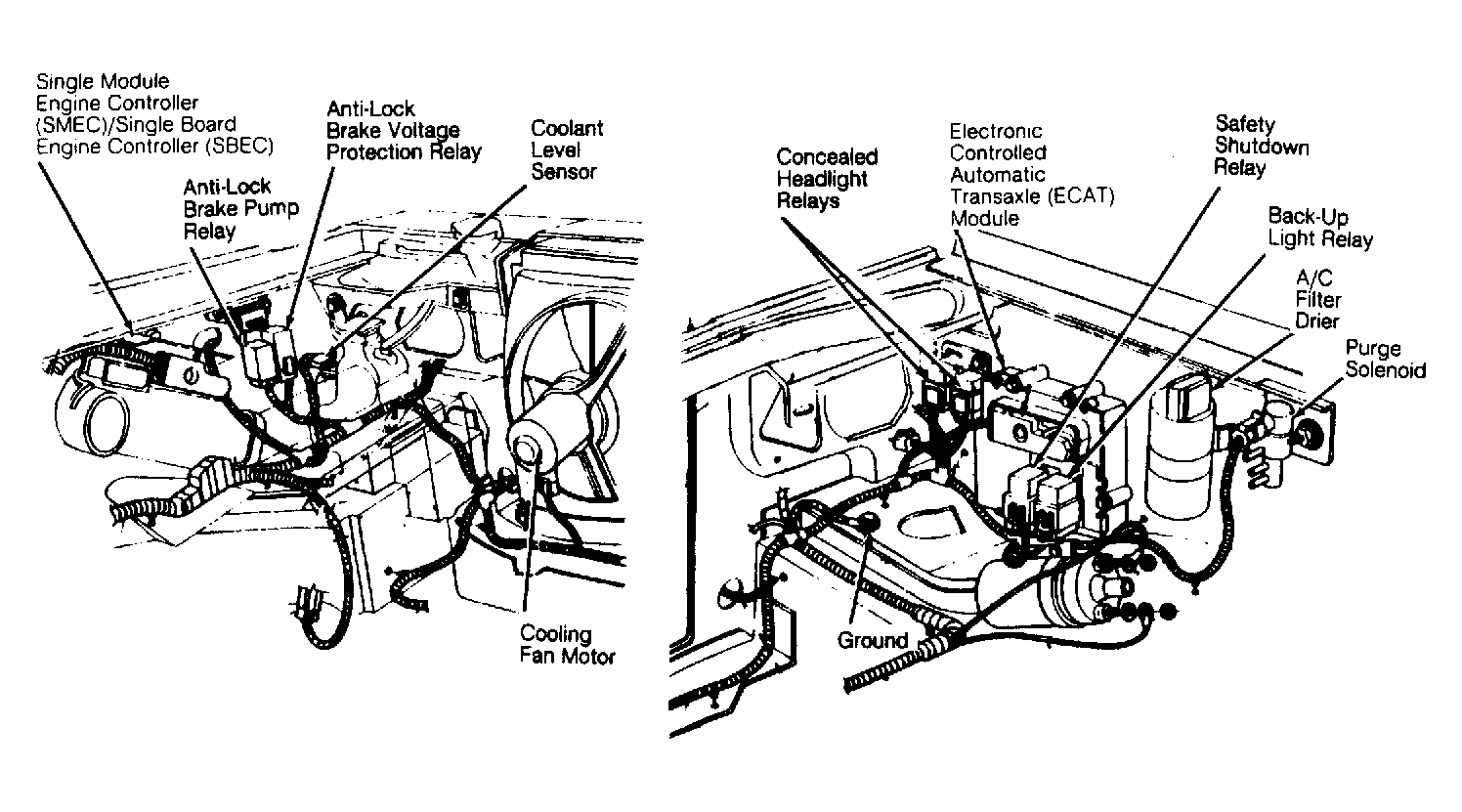

| ECAT Control Module | On right fender panel, in front of strut tower. See Figure . |
| Light Outage Module | Behind dash, above concealed headlight module. See Figure . |
| Memory Seat Module | Under seat. |
| Single Board Engine Controller (SBEC) | At left front corner of engine bay. See Figure . |
| Single Module Engine Controller (SMEC) | At left front corner of engine bay. See Figure . |
| Sun Roof Module | Under headliner, at rear of sun roof opening. |
| Theft Alarm Module | Above glove box, to right of light outage module. |
