Connector Identification

Fig 1: Headlight Switch 9-Pin Connector Terminal ID
G93J40781Courtesy of CHRYSLER CORP.

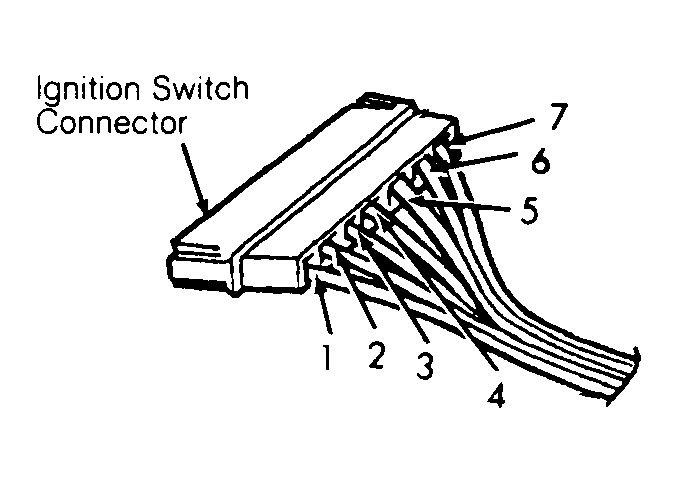

Fig 2: Ignition Switch 7-Pin Connector Terminal ID
G92E03538Courtesy of CHRYSLER CORP.
Fig 3: Instrument Cluster Black 11-Pin Connector Terminal ID
G93F40779Courtesy of CHRYSLER CORP.
Fig 4: Traveler Module 7-Pin Connector Terminal ID
G93A40782Courtesy of CHRYSLER CORP.
Fig 5: Visual Message Center Connector Terminal ID
G92A03541Courtesy of CHRYSLER CORP.
Fig 6: Electronic Instrument Cluster Blue/Red 13-Pin Connector Terminal ID
G93I40780Courtesy of CHRYSLER CORP.
