Connector Identification

CONNECTOR IDENTIFICATION DIRECTORY

Connector	See
A/C Clutch Relay	Fig 1 & Fig 2
Auto Shutdown (ASD) Relay	Fig 3 & Fig 4
Camshaft Position Sensor	Fig 5
Crankshaft Position Sensor	Fig 6
Distributor Connector (Harness Side)	Fig 7
Engine Coolant Temperature (ECT) Sensor	Fig 8
Evaporative Purge Solenoid	Fig 9
Flexible Fuel Sensor	Fig 10
Fuel Pump	Fig 11
Fuel Pump Relay	Fig 12 & Fig 13
Idle Air Control (IAC) Motor	Fig 14
Intake Air Temperature (IAT) Sensor	Fig 15
Injector Connector	Fig 16 & Fig 17
Manifold Absolute Pressure (MAP) Sensor	Fig 18
Oxygen Sensor	Fig 19
Powertrain Control Module (PCM)	Fig 20
Radiator Fan Relay	Fig 21 & Fig 22
Torque Converter Clutch Solenoid	Fig 23
Throttle Position Sensor (TPS)	Fig 24
Vehicle Speed Sensor (VSS)	Fig 25

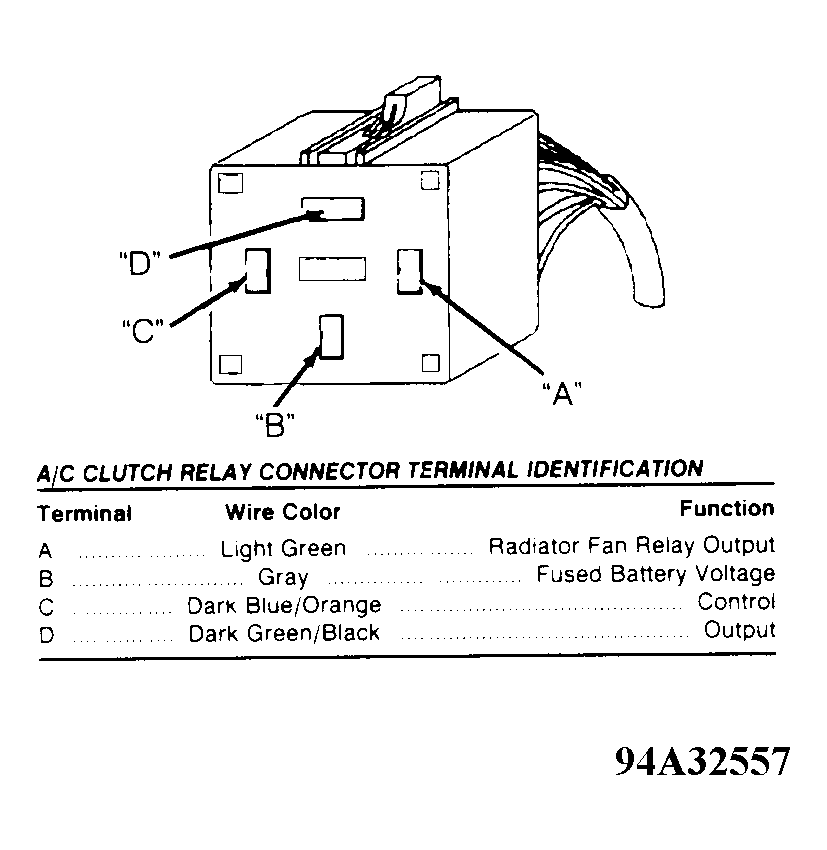

A/C CLUTCH RELAY CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
A	Light Green	Radiator Fan Relay Output
B	Red	Fused Battery Voltage
C	Dark Blue/Orange	Control
D	Dark Blue/Black	Output

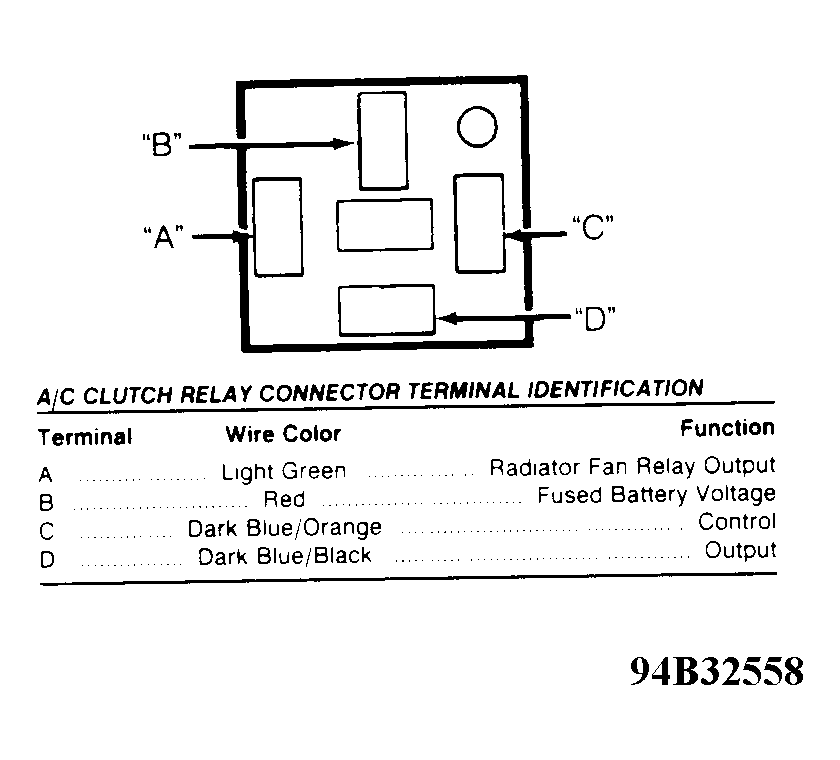

Fig 1: A/C Clutch Relay Connector Terminal ID (LeBaron Sedan)

Courtesy of CHRYSLER CORP.

A/C CLUTCH RELAY CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
A	Light Green	Radiator Fan Relay Output
B	Red	Fused Battery Voltage
C	Dark Blue/Orange	Control
D	Dark Blue/Black	Output

Fig 2: A/C Clutch Relay Connector Terminal ID (AJ Body)

Courtesy of CHRYSLER CORP.

ASD RELAY CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
A	Dark Blue	Fused Ignition Switch Output
B	Red/White	Fused Battery Voltage
C	Dark Blue/Yellow	Control
D	Dark Green/Orange	Output

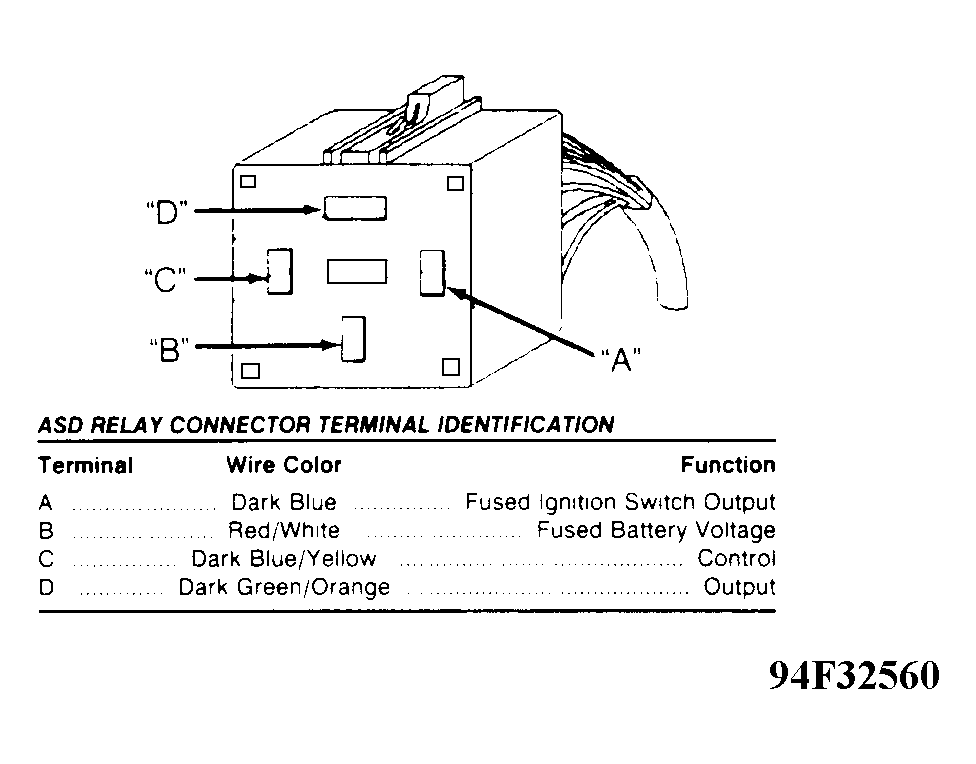

Fig 3: Auto Shutdown (ASD) Relay Connector Term. ID (AA Body)

Courtesy of CHRYSLER CORP.

ASD RELAY CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
A	Dark Blue	Fused Ignition Switch Output
B	Red/White	Fused Battery Voltage
C	Dark Blue/Yellow	Control
D	Dark Green/Orange	Output

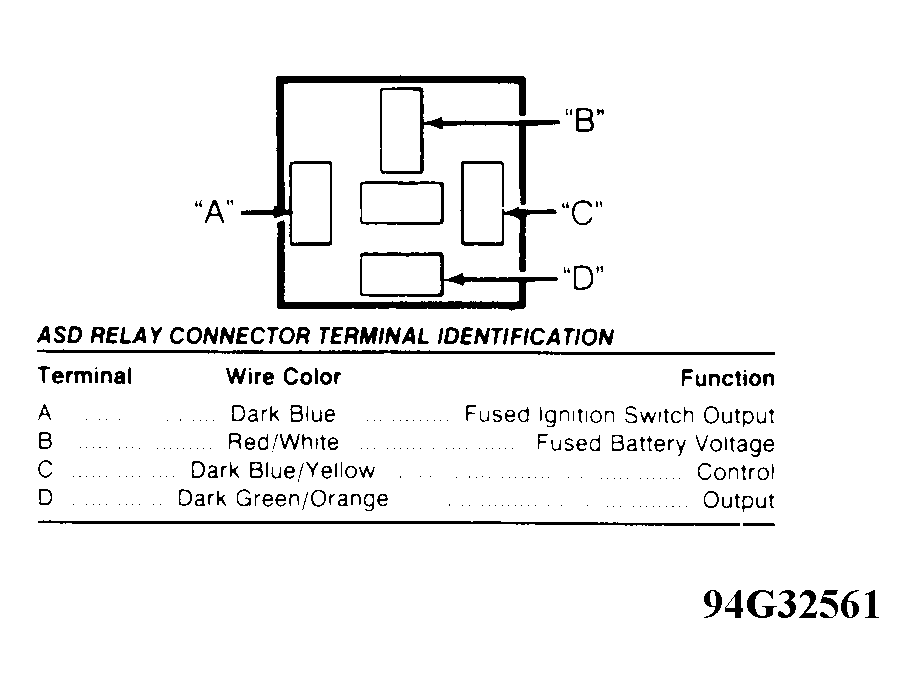

Fig 4: Auto Shutdown (ASD) Relay Connector Term. ID (AJ Body)

Courtesy of CHRYSLER CORP.

CAMSHAFT POSITION SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Orange	8-Volt Supply
2	Black/Light Blue	Ground
3	Tan/Yellow	Signal

Fig 5: Camshaft Position Sensor Connector Terminal ID

Courtesy of CHRYSLER CORP.

CRANKSHAFT POSITION SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Orange	8-Volt Supply
2	Black/Light Blue	Ground
3	Gray/Black	Signal

Fig 6: Crankshaft Position Sensor Connector Terminal ID

Courtesy of CHRYSLER CORP.

DISTRIBUTOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Gray/Black	Crankshaft Signal
2	Tan/Yellow	Camshaft Signal
3	Orange	8-Volt Supply
4	Black/Light Blue	Ground

Fig 7: Distributor Connector Terminal ID

Courtesy of CHRYSLER CORP.

ENGINE TEMP COOLANT (ECT) SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Tan/Black	Signal
2	Black/Light Blue	Ground

Fig 8: Engine Coolant Temperature (ECT) Sensor Connector Term. ID

Courtesy of CHRYSLER CORP.

EVAPORATIVE PURGE SOLENOID CONNECTOR TERMINAL ID

Terminal

Wire Color

Function

⁽¹⁾ Dark Blue

Ignition 12-Volt Feed

Pink/Black

Control

⁽¹⁾	Dark Blue/White on AA and AJ bodies with 3.0L.

Fig 9: Evaporative Purge Solenoid Connector Terminal ID

Courtesy of CHRYSLER CORP.

FLEXIBLE FUEL SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Black/Red	Signal
2	Black/Light Blue	Ground
3	Orange	8-Volt Supply

Fig 10: Flexible Fuel Sensor Connector Terminal ID

Courtesy of CHRYSLER CORP.

FUEL PUMP CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Dark Green/Black	Fuel Pump Relay Output
2	Black	Ground

Fig 11: Fuel Pump Connector Terminal ID (AA, AJ & AP Bodies)

Courtesy of CHRYSLER CORP.

FUEL PUMP RELAY CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
A	Dark Blue	Ignition 12-Volt Feed
B	Red/White	Fused Battery Voltage
C	Dark Blue/Yellow	ASD Relay Control
D	Dark Green/Black	Fuel Pump Relay Output

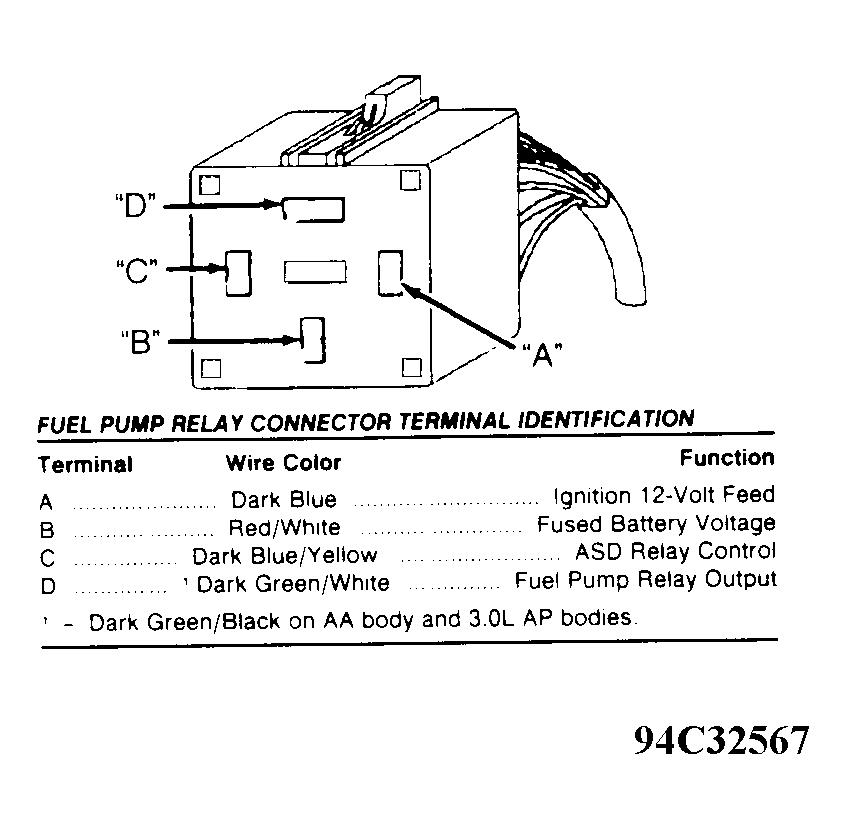

Fig 12: Fuel Pump Relay Connector Terminal ID (AA & AP Bodies)

Courtesy of CHRYSLER CORP.

FUEL PUMP RELAY CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
A	Dark Blue	Ignition 12-Volt Feed
B	Red/White	Fused Battery Voltage
C	Dark Blue/Yellow	ASD Relay Control
D	Dark Green/Black	Fuel Pump Relay Output

Fig 13: Fuel Pump Relay Connector Terminal ID (AJ Body)

Courtesy of CHRYSLER CORP.

IDLE AIR CONTROL (IAC) MOTOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Gray/Red	IAC Driver No. 3
2	Yellow/Black	IAC Driver No. 2
3	Brown/White	IAC Driver No. 1
4	Violet/Black	IAC Driver No. 4

Fig 14: Idle Air Control (IAC) Motor Connector Terminal ID

Courtesy of CHRYSLER CORP.

INTAKE AIR TEMPERATURE SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Black/Red	Signal
2	Black/Light Blue	Ground

Fig 15: Intake Air Temperature (IAT) Sensor Connector Terminal ID

Courtesy of CHRYSLER CORP.

INJECTOR CONNECTOR TERMINAL ID (INJECTOR SIDE)

Terminal	Wire Color	Function
1	White/Dark Blue	Injector Driver No. 1
2	Brown	Injector Driver No. 2
3	Yellow/White	Injector Driver No. 3
4	Light Blue/Brown	Injector Driver No. 4
5	Dark Green/Orange	ASD Output
6	**	Not Used
7	Brown/Dark Blue	Injector Driver No. 6
8	Gray	Injector Driver No. 5

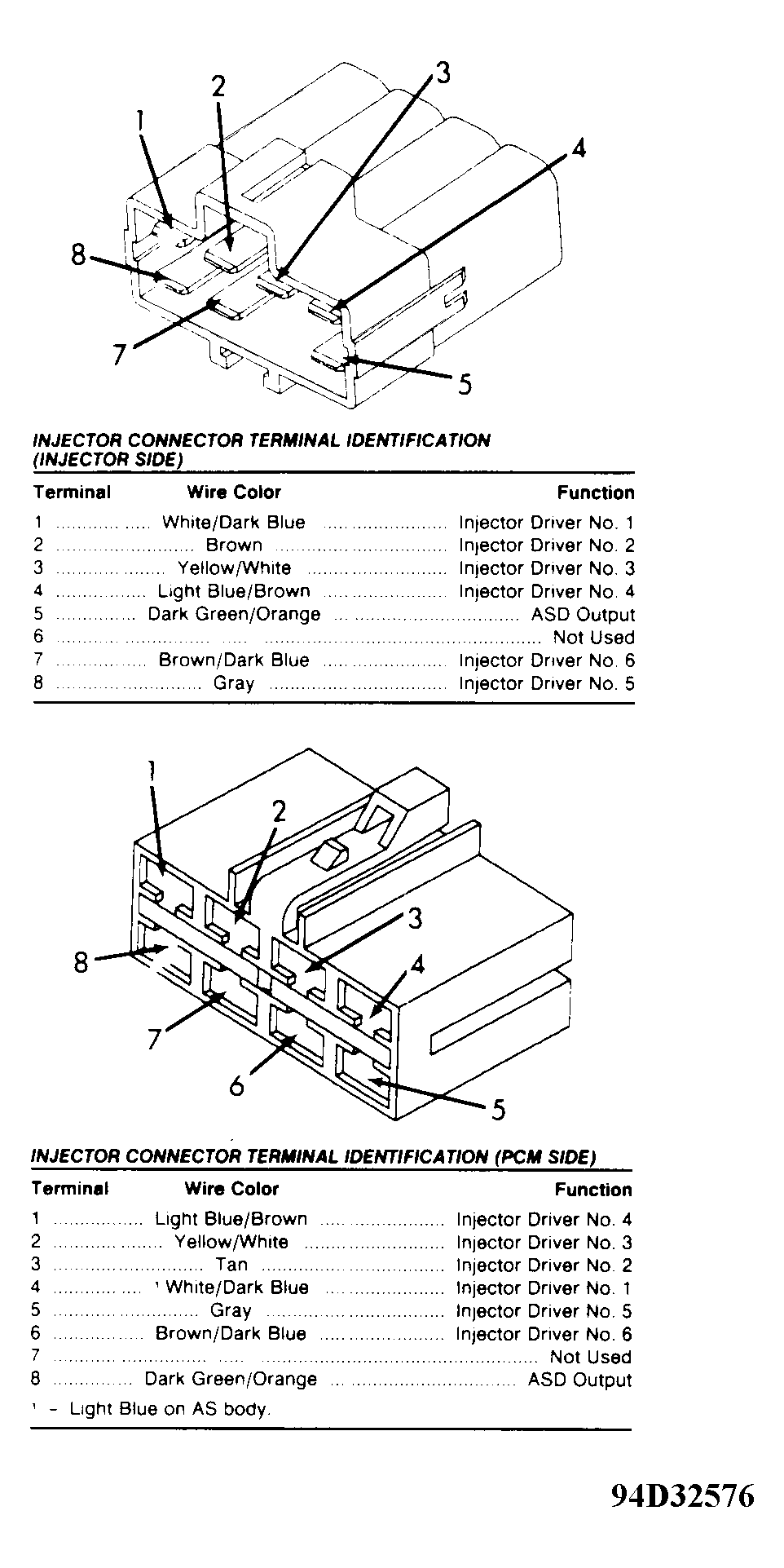

Fig 16: Injector Connector Terminal ID

Courtesy of CHRYSLER CORP.

INJECTOR CONNECTOR TERMINAL ID (PCM SIDE)

Terminal	Wire Color	Function
1	Light Blue/Brown	Injector Driver No. 4
2	Yellow/White	Injector Driver No. 3
3	Tan	Injector Driver No. 2
4	White/Dark Blue	Injector Driver No. 1
5	Gray	Injector Driver No. 5
6	Brown/Dark Blue	Injector Driver No. 6
7	***	Not Used
8	Dark Green/Orange	ASD Output

Fig 17: Injector Connector Terminal ID

Courtesy of CHRYSLER CORP.

MAP SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Black/Light Blue	Ground
2	Dark Green/Red	Signal
3	Violet/White	5-Volt Supply

Fig 18: MAP Sensor Connector Terminal ID

Courtesy of CHRYSLER CORP.

OXYGEN SENSOR CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Black/Light Blue	Sensor Ground
2	Black/Dark Green	Signal
3	Black	Heater Ground
4	Dark Green/Black	Heater Feed

Fig 19: Oxygen Sensor Connector Terminal ID

Courtesy of CHRYSLER CORP.

Fig 20: Powertrain Control Module (PCM) Connector Terminal ID

Courtesy of CHRYSLER CORP.

RADIATOR FAN RELAY CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
A	Dark Blue	Ignition 12-Volt Feed
B	Gray	Battery Voltage
C	Dark Blue/Pink	Control
D	Light Green	Output

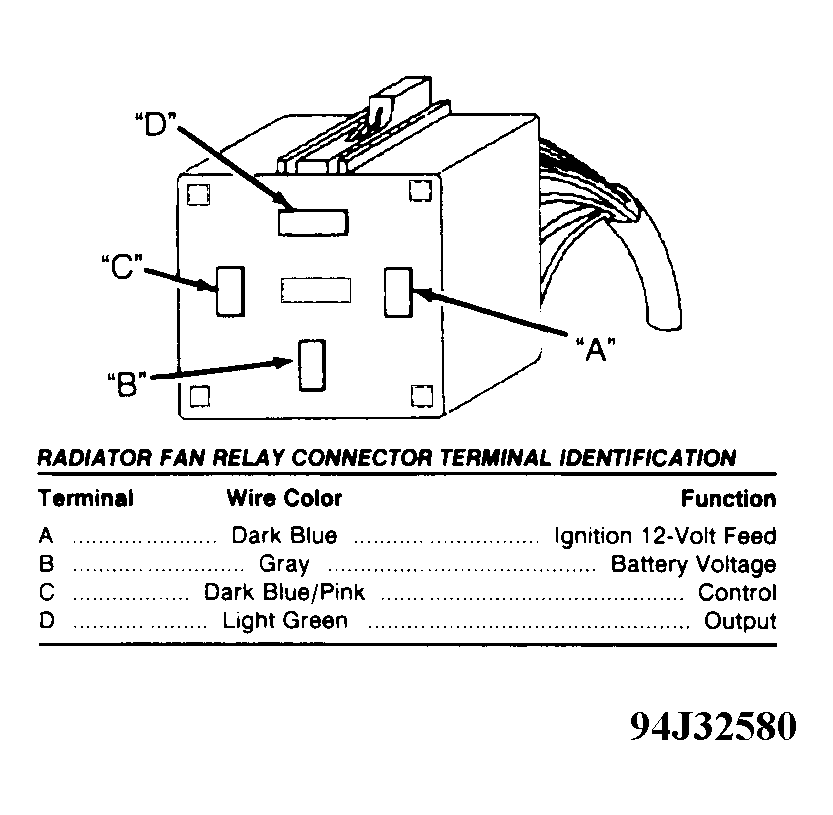

Fig 21: Radiator Fan Relay Connector Terminal ID (AA Body)

Courtesy of CHRYSLER CORP.

RADIATOR FAN RELAY CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
A	Dark Blue	Ignition 12-Volt Feed
B	Gray	Battery Voltage
C	Dark Blue/Pink	Control
D	Light Green	Output

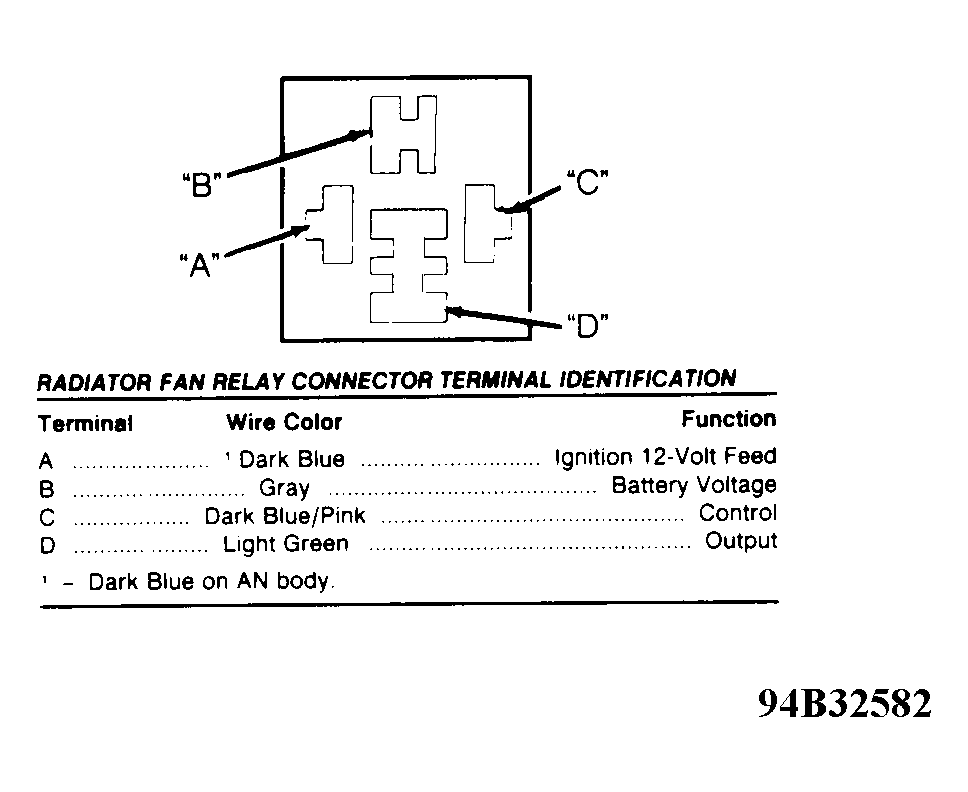

Fig 22: Radiator Fan Relay Connector Terminal ID (AJ Body)

Courtesy of CHRYSLER CORP.

TORQUE CONVERTER CLUTCH SOLENOID CONNECTOR TERMINAL ID

Terminal

Wire Color

Function

Not Used

Dark Blue

Ignition 12-Volt Feed

⁽¹⁾ Orange/Black

Control

⁽¹⁾	Orange/Light Green on AP body.

THROTTLE POSITION SENSOR (TPS) CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Black/Light Blue	Ground
2	Orange/Dark Blue	Signal
3	Violet/White	5-Volt Supply

Fig 23: Torque Converter Clutch Solenoid Connector Terminal ID

Courtesy of CHRYSLER CORP.

VEHICLE SPEED SENSOR (VSS) CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	White/Orange	Signal
2	Black/Light Blue	Ground
3	Orange	8-Volt Supply

THROTTLE POSITION SENSOR (TPS) CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	Black/Light Blue	Ground
2	Orange/Dark Blue	Signal
3	Violet/White	5-Volt Supply

Fig 24: Throttle Position Sensor (TPS) Connector Terminal ID

Courtesy of CHRYSLER CORP.

VEHICLE SPEED SENSOR (VSS) CONNECTOR TERMINAL ID

Terminal	Wire Color	Function
1	White/Orange	Signal
2	Black/Light Blue	Ground
3	Orange	8-Volt Supply

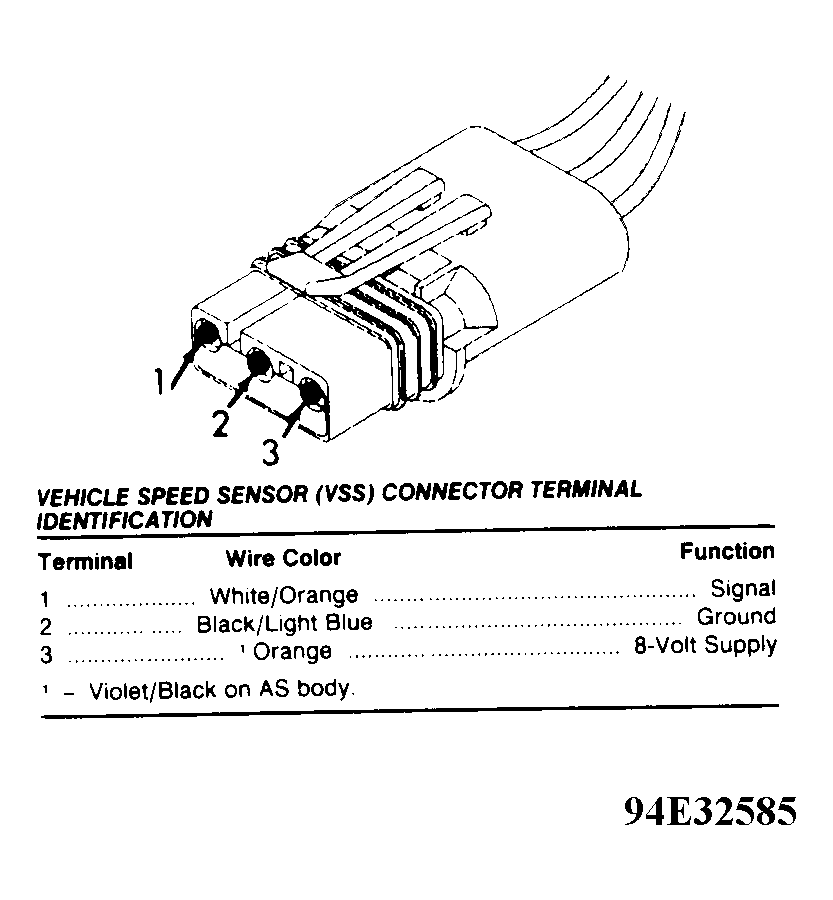

Fig 25: Vehicle Speed Sensor (VSS) Connector Terminal ID

Courtesy of CHRYSLER CORP.

CAUTION: When battery is disconnected, vehicle computer and memory systems may lose memory data. Driveability problems may exist until computer systems have completed a relearn cycle. See COMPUTER RELEARN PROCEDURES article in GENERAL INFORMATION section before disconnecting battery.
