Window Switch Test

Remove power window switch. Using an ohmmeter, check continuity between appropriate switch terminals. See appropriate WINDOW SWITCH CONTINUITY table. See Fig 1 and Fig 2 . If continuity is not as specified, replace power window switch.

WINDOW SWITCH CONTINUITY

Switch Position		Continuity Between Terminals No.
Off		2 & 10; 3 & 10; 4 & 10; 7 & 10; 8 & 10; 9 & 10; 10 & 11; 10 & 12
Up
Left Front		5 & 7; 8 & 10
Right Front		5 & 12; 10 & 11
Left Rear		3 & 10; 4 & 5
Right Rear		2 & 5; 9 & 10
Down
Left Front		5 & 8; 7 & 10
Right Front		5 & 11; 10 & 12
Left Rear		3 & 5; 4 & 10
Right Rear		2 & 10; 5 & 9
Window Lock		1 & 5

WINDOW SWITCH CONTINUITY

Switch Position	Continuity Between Terminals No.
Off	2 & 5; 3 & 4
Up	3 & 4; 5 & 6
Down	2 & 5; 3 & 6

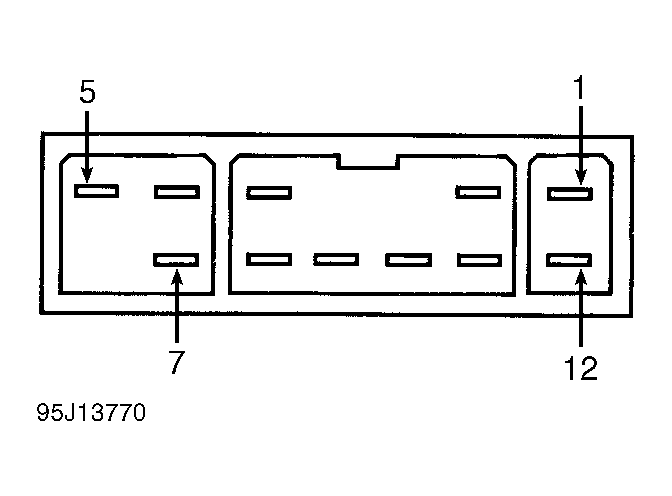

Fig 1: Identifying Master Window Switch Terminals

Courtesy of CHRYSLER CORP.

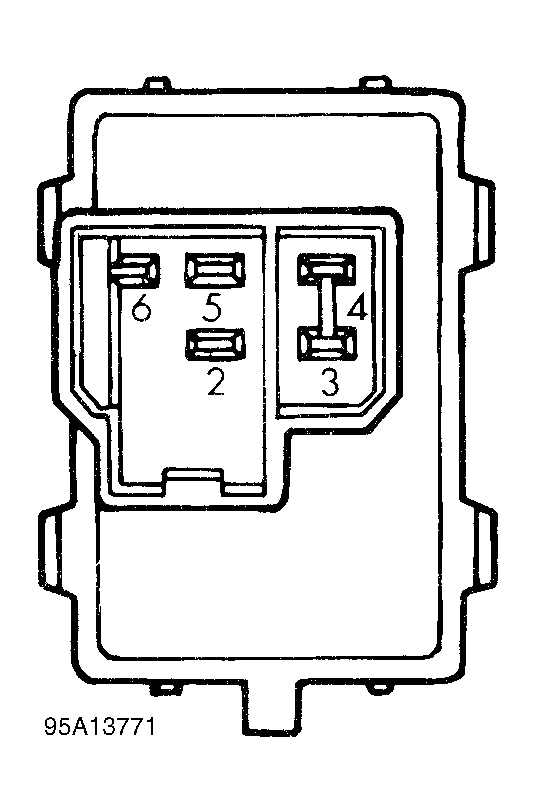

Fig 2: Identifying Passenger Window Switch Terminals

Courtesy of CHRYSLER CORP.
