Power Mirror Switch Test

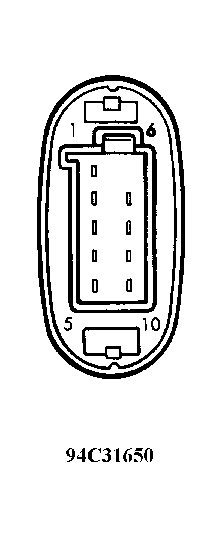

Remove power mirror switch from mounting. Disconnect wiring harness at switch connector. Using an ohmmeter, check continuity between power mirror switch terminals with switch in appropriate position. See POWER MIRROR SWITCH CONTINUITY TEST table. See Fig 1 . If results differ from table, replace switch.
POWER MIRROR SWITCH CONTINUITY TEST
| Mirror Selector Position | Mirror Angle | Continuity Between Pins No. |
|---|---|---|
| "L" (Left) | Up | 2 & 4; 4 & 7; 8 & 10 |
| "L" (Left) | Down | 2 & 8; 4 & 10; 7 & 8 |
| "L" (Left) | Left | 3 & 4; 4 & 9; 8 & 10 |
| "L" (Left) | Right | 3 & 8; 4 & 10; 8 & 9 |
| "R" (Right) | Up | 1 & 8; 2 & 4; 4 & 7 |
| "R" (Right) | Down | 1 & 4; 2 & 8; 7 & 8 |
| "R" (Right) | Left | 1 & 8; 3 & 4; 4 & 9 |
| "R" (Right) | Right | 1 & 4; 3 & 8; 8 & 9 |
