Power Mirror Switch Test
- Remove power mirror switch from its mounting position. Disconnect switch from wiring harness. In case of memory mirrors (Green 8-pin mirror switch connector and memory switch in driver's door panel), wiring disconnects from cowl top harness rather than mirror harness.

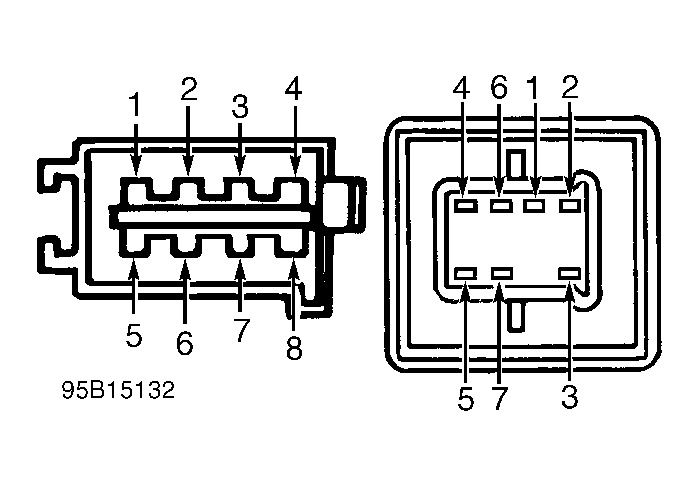

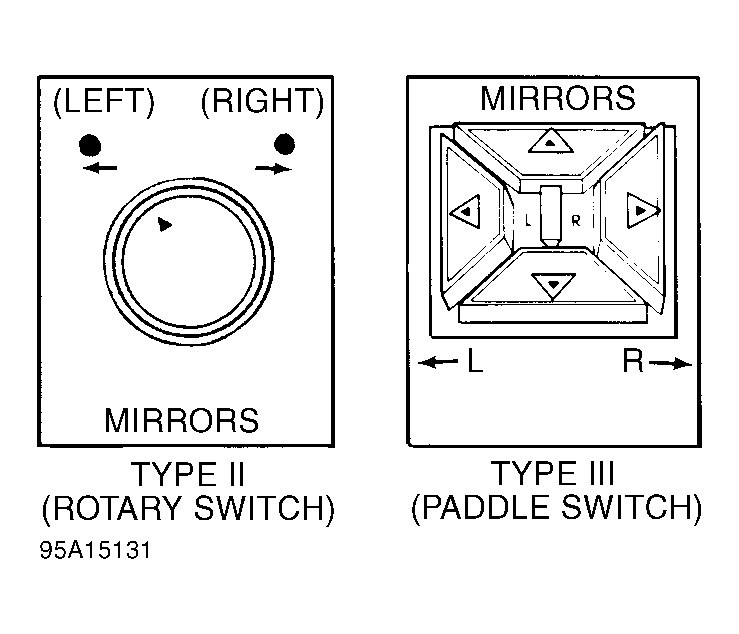

- Place mirror selector in appropriate position. See appropriate POWER MIRROR SWITCH CONTINUITY TEST table. Check for continuity between specified switch pins with mirror in position indicated. See Figure and Figure . If continuity is not as specified, replace switch.
POWER MIRROR SWITCH CONTINUITY TEST
| Mirror Angle | Continuity Between Pins No. | |
|---|---|---|
| Mirror Selector In LEFT Position | ||
| Up | 2 & 8; 3 & 4 | |
| Down | 3 & 8; 2 & 4 | |
| Left | 1 & 8; 3 & 4 | |
| Right | 3 & 8; 1 & 4 | |
| Mirror Selector In RIGHT Position | ||
| Up | 6 & 8; 7 & 4 | |
| Down | 7 & 8; 6 & 4 | |
| Left | 5 & 8; 7 & 4 | |
| Right | 7 & 8; 5 & 4 | |
POWER MIRROR SWITCH CONTINUITY TEST
| Mirror Angle | Continuity Between Pins No. | |
|---|---|---|
| Mirror Selector In LEFT Position | ||
| Up | 1 & 4; 2 & 5 | |
| Down | 1 & 3; 2 & 4 | |
| Left | 1 & 5; 2 & 4 | |
| Right | 1 & 3; 2 & 5 | |
| Mirror Selector In RIGHT Position | ||
| Up | 1 & 6; 2 & 7 | |
| Down | 1 & 3; 2 & 6 | |
| Left | 1 & 7; 2 & 3; 2 & 6 | |
| Right | 1 & 3; 2 & 7 | |
