FOGLIGHT Switch Test

Remove foglight switch. Using ohmmeter, check switch circuit continuity with switch in indicated positions. See Fig 1 . If continuity is not as specified, replace foglight switch.

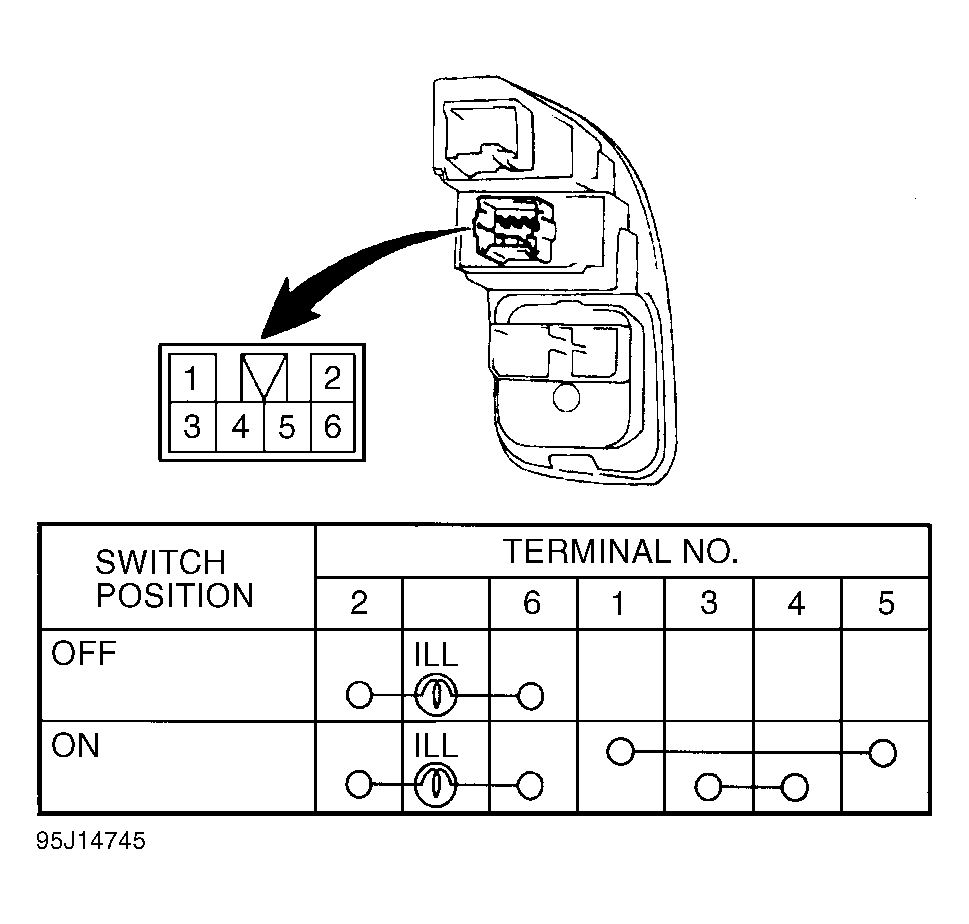

Fig 1: Testing Foglight Switch

Courtesy of CHRYSLER CORP.
