Hazard Warning Switch Test

Remove hazard switch. See INSTRUMENT CLUSTER TRIM PANEL SWITCHES under REMOVAL & INSTALLATION. Using ohmmeter, check switch circuit continuity with switch in indicated positions. See Fig 1 . If continuity is not as specified, replace hazard switch.

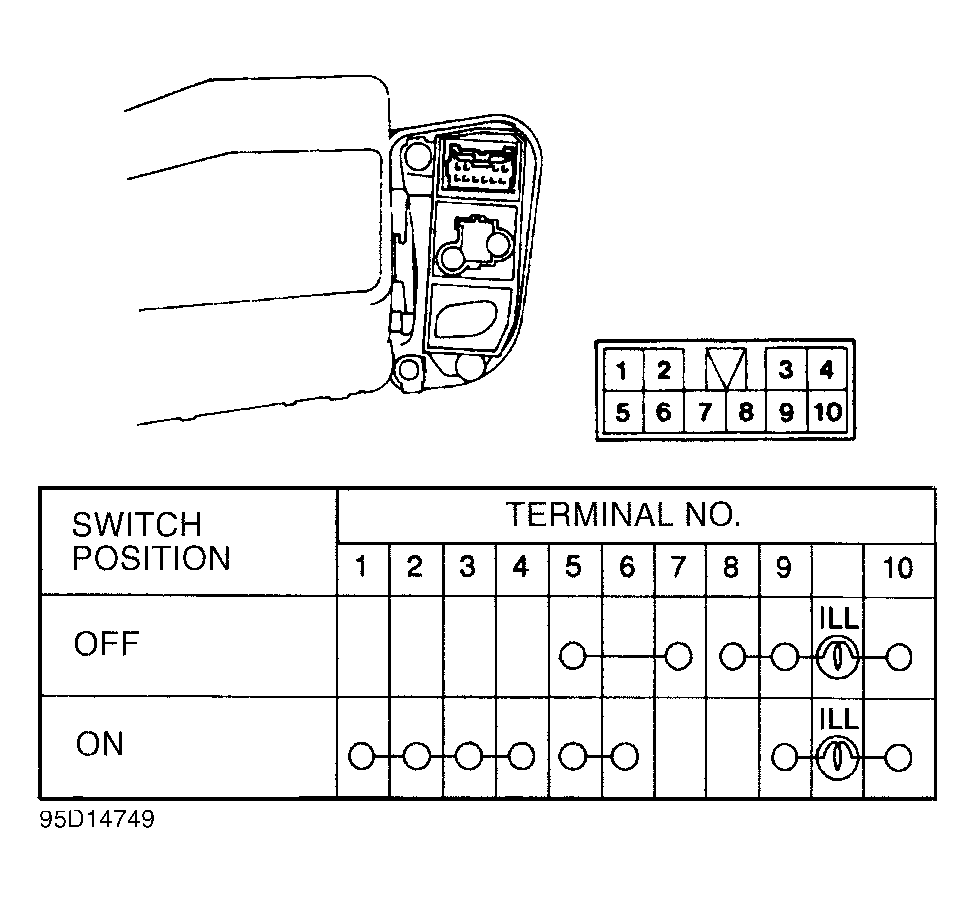

Fig 1: Testing Hazard Warning Switch
G95D14749Courtesy of CHRYSLER CORP.
