Power Mirror Motor Test

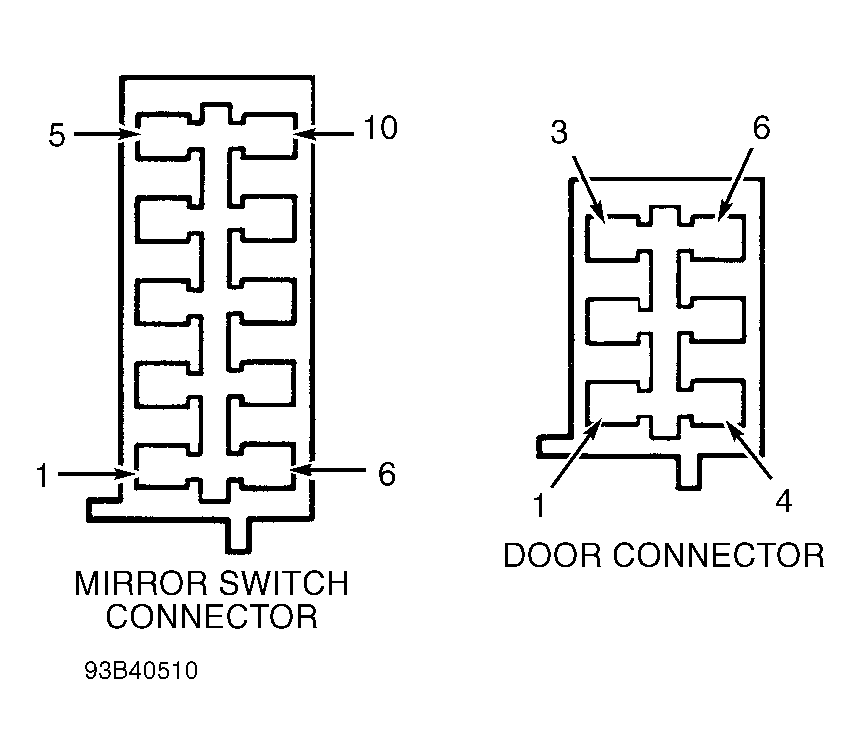

Using Trim Stick (C-4755), remove power mirror switch from mounting. Disconnect wire connector. Using 2 jumper wires, connect one to a 12-volt source and the other to a good ground. If tests do not agree with POWER MIRROR MOTOR TEST , check for open or shorted circuit, or replace mirror assembly as necessary. See Fig 1.
POWER MIRROR MOTOR TEST
| Apply 12 Volts To Pin No. |
Ground Pin No. |
Operation (Right) |
Operation (Left) |
| Switch Connector |
| 2 |
1 |
Up |
N/A |
| 7 |
10 |
" |
Up |
| 1 |
2 |
Down |
N/A |
| 10 |
7 |
" |
Down |
| 1 |
9 |
Right |
N/A |
| 10 |
3 |
" |
Right |
| 9 |
1 |
Left |
N/A |
| 3 |
10 |
" |
Left |
| Door Connector |
| 6 |
2 |
Up |
Up |
| 2 |
6 |
Down |
Down |
| 2 |
5 |
Right |
Right |
| 5 |
2 |
Left |
Left |
| 1 |
3 |
|
|
Courtesy of CHRYSLER CORP.
