Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Left Front Side Of Engine Compartment

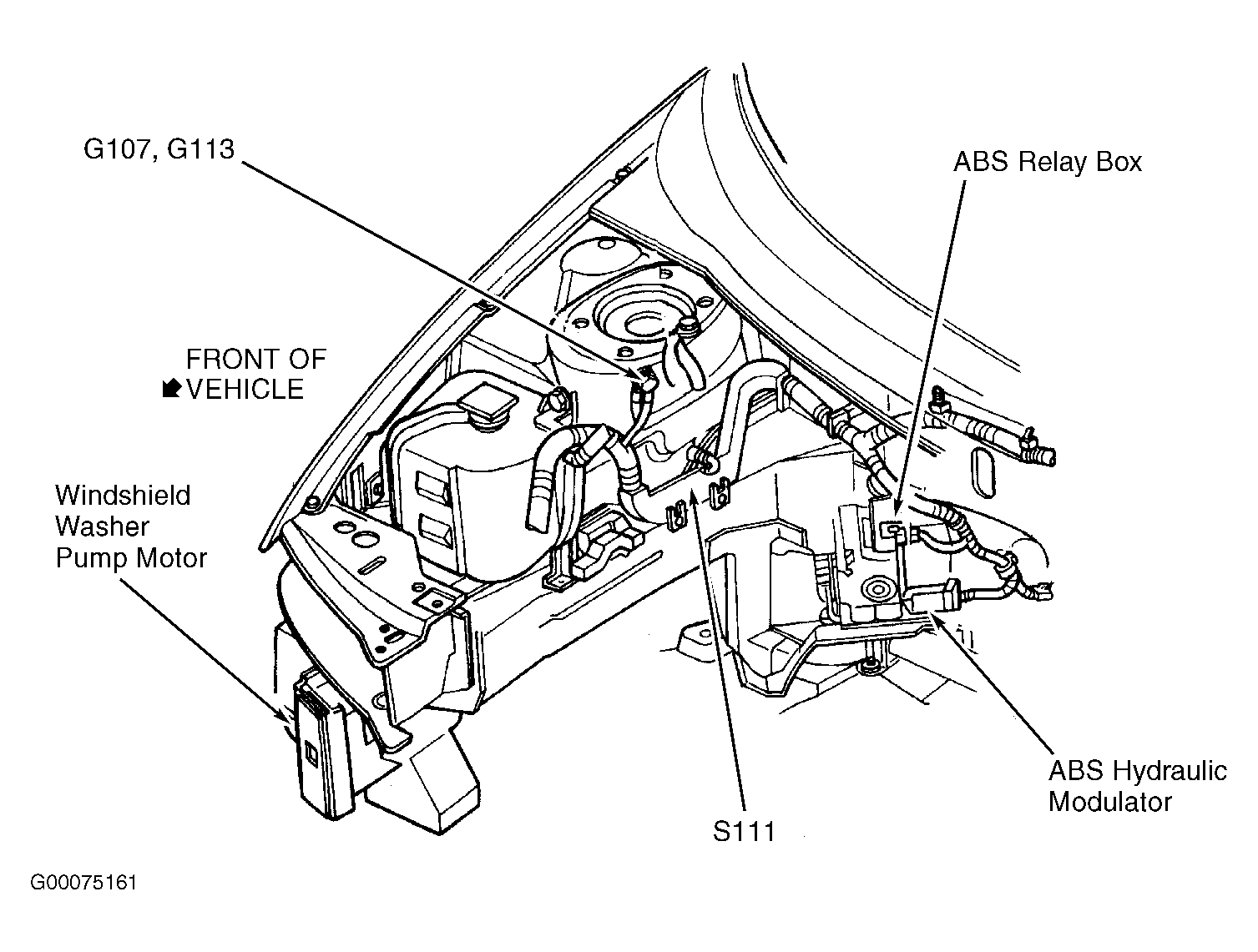

Fig 2: Locating ABS Components

Courtesy of CHRYSLER CORP.

Fig 3: Right Front Side Of Engine Compartment

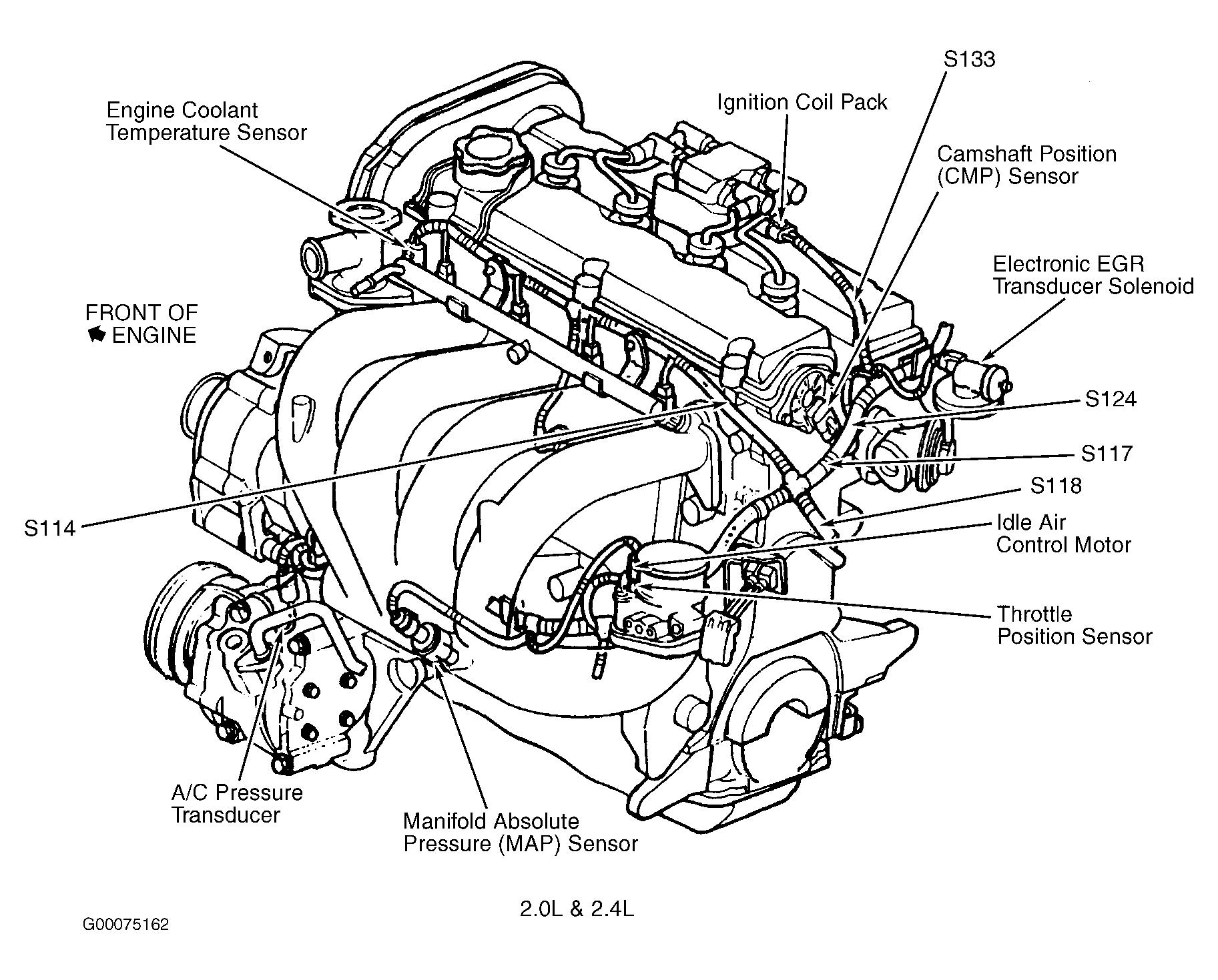

Fig 4: Left Side Of Engine (2.0L & 2.4L)

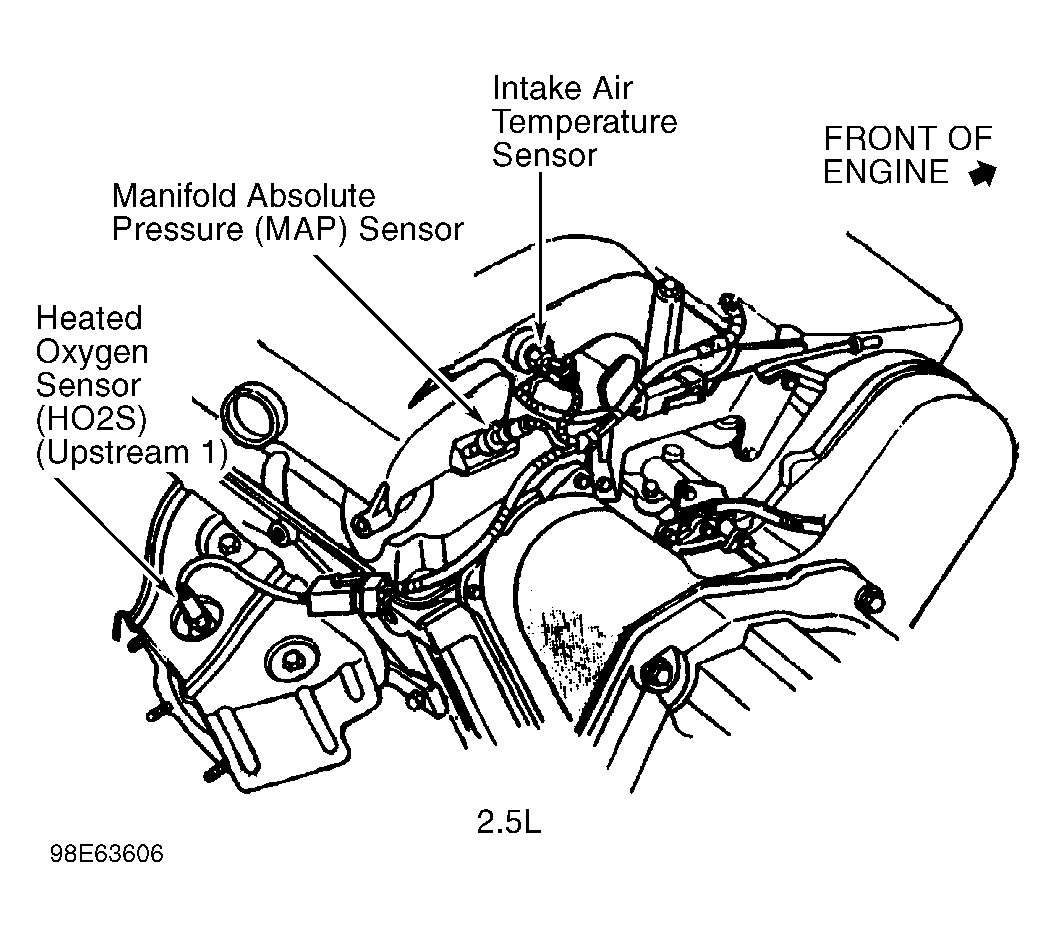

Fig 5: Left Side Of Engine (2.5L)

Fig 6: Right Side Of Engine (2.5L)

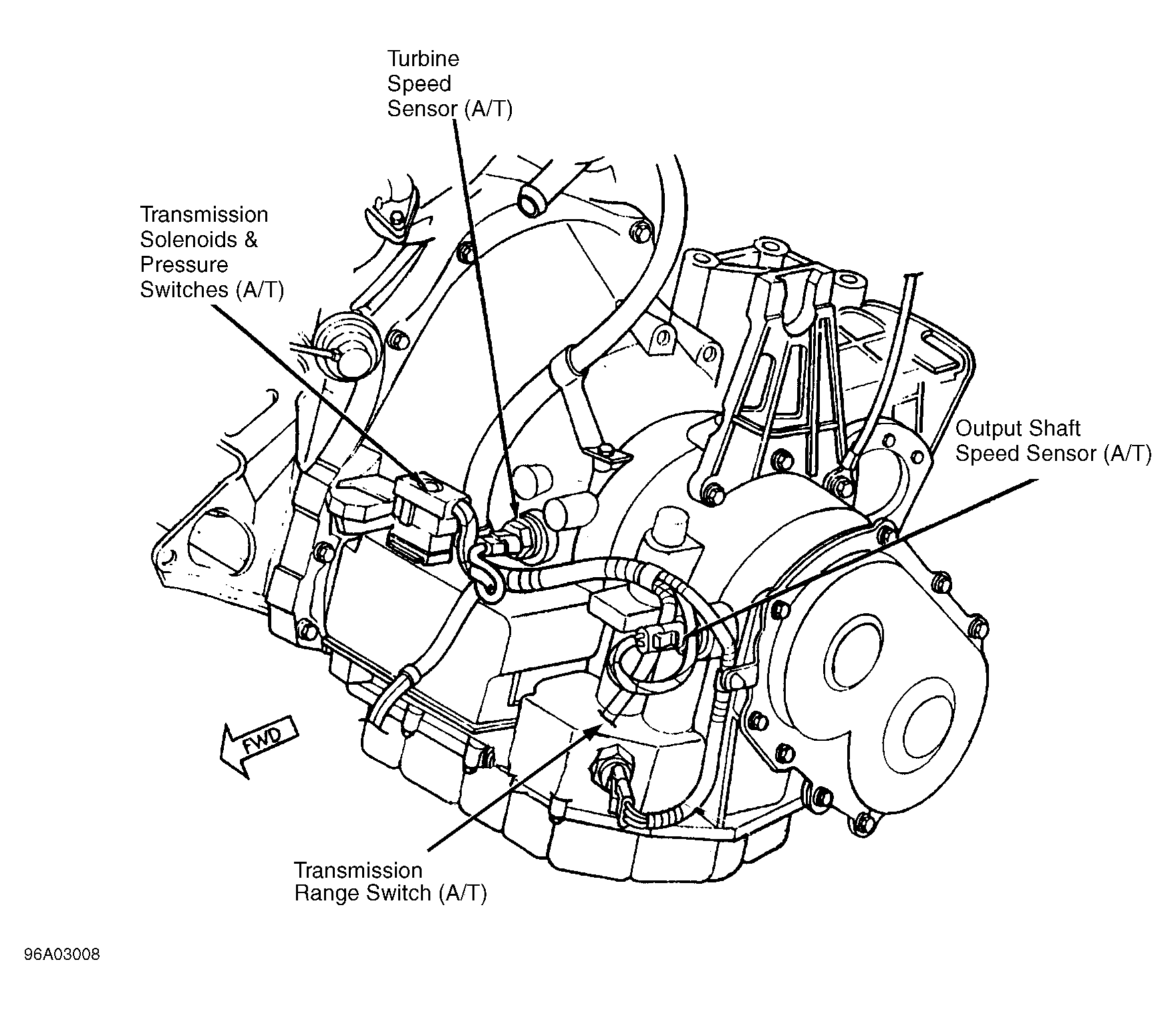

Fig 7: Transmission
