Power Mirror Switch

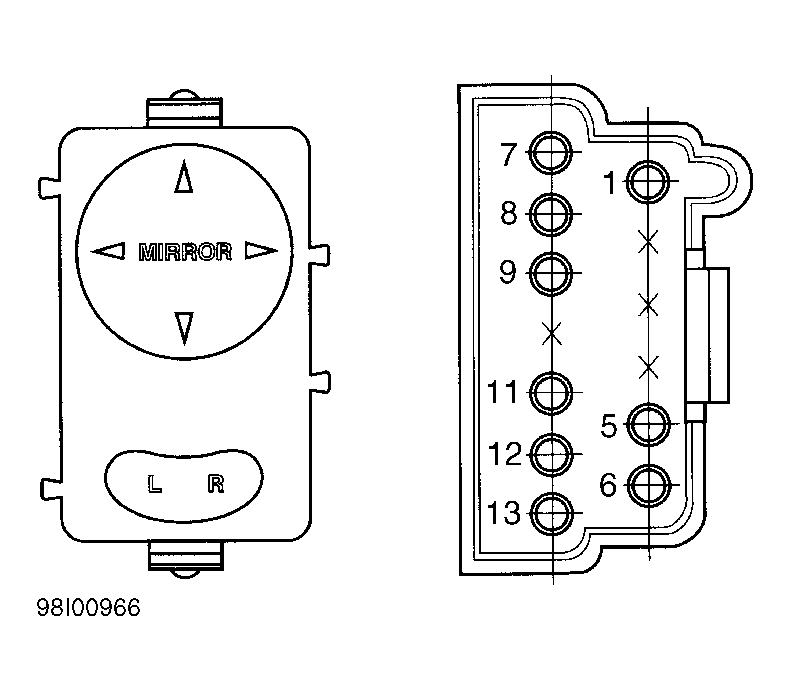

Remove power mirror switch. See POWER MIRROR SWITCH under REMOVAL & INSTALLATION. Using an ohmmeter, check continuity between power mirror switch terminals with switch in appropriate position. See POWER MIRROR SWITCH CONTINUITY TEST table. See Figure. If continuity is not as specified, replace switch.
POWER MIRROR SWITCH CONTINUITY TEST
| Mirror Selector Position | Mirror Angle | Continuity Between Terminals No. |
|---|---|---|
| "L" (Left) | Up | 1 & 9; 11 & 12; 12 & 13 |
| Down | 1 & 11; 9 & 12; 9 & 13 | |
| Left | 1 & 9; 7 & 11; 8 & 11 | |
| Right | 1 & 11; 7 & 9; 8 & 9 | |
| "R" (Right) | Up | 2 & 9; 11 & 12; 11 & 13 |
| Down | 6 & 11; 9 & 12; 9 & 13 | |
| Left | 6 & 9; 7 & 11; 8 & 11 | |
| Right | 6 & 11; 7 & 9; 8 & 9 | |
