Relay Terminal Identification

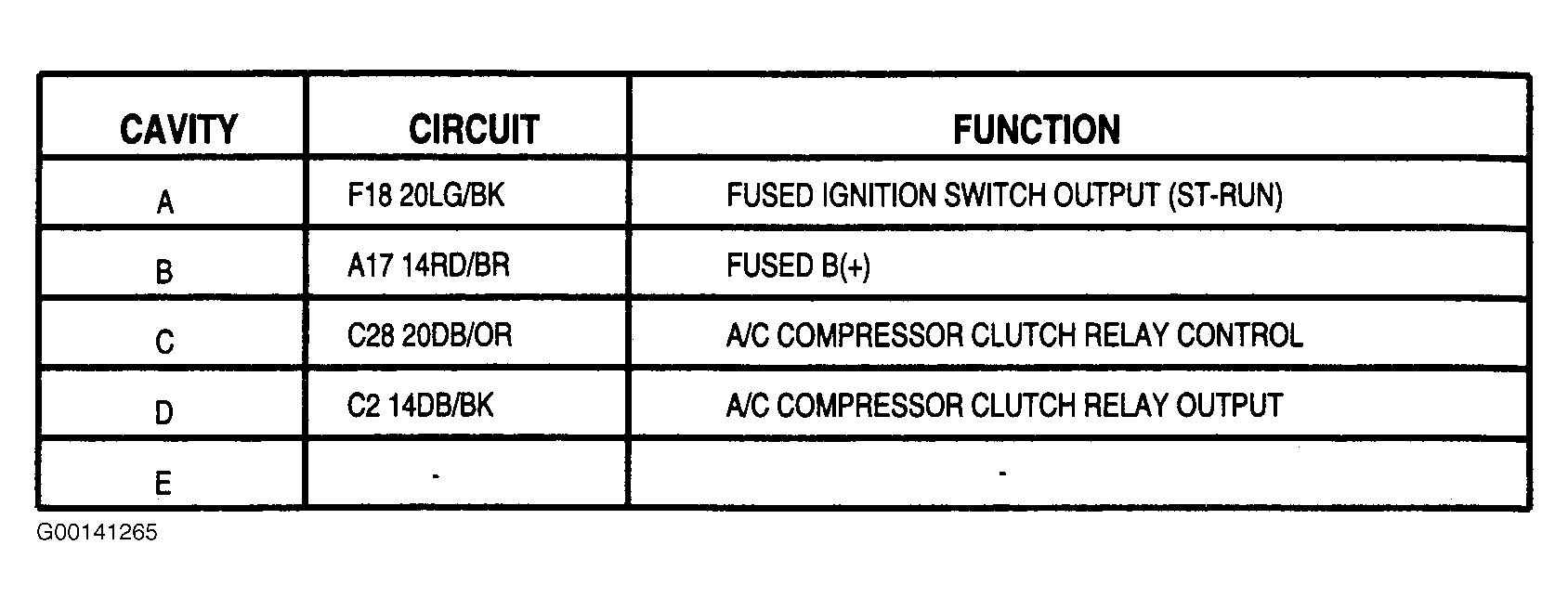

Fig 1: Identifying A/C Compressor Clutch Relay Terminals

Courtesy of CHRYSLER CORP.

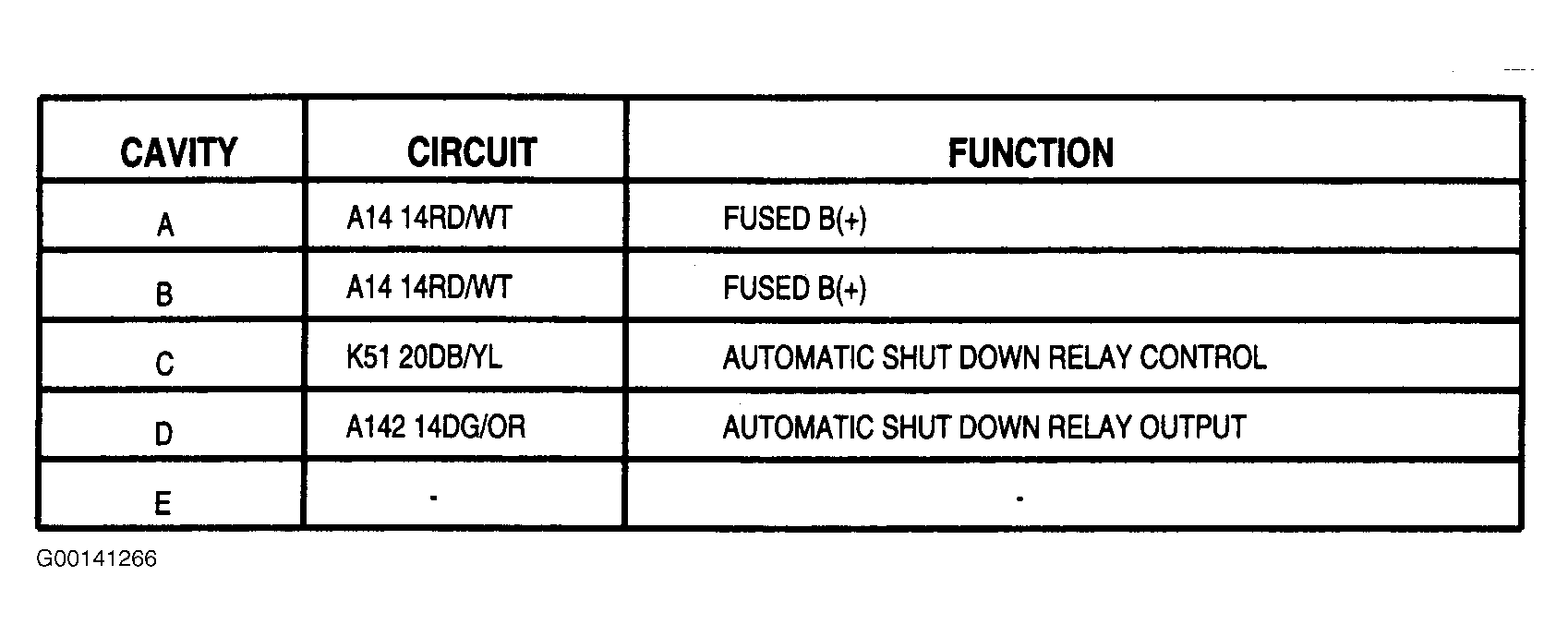

Fig 2: Identifying Automatic Shut Down Relay Terminals

Courtesy of CHRYSLER CORP.

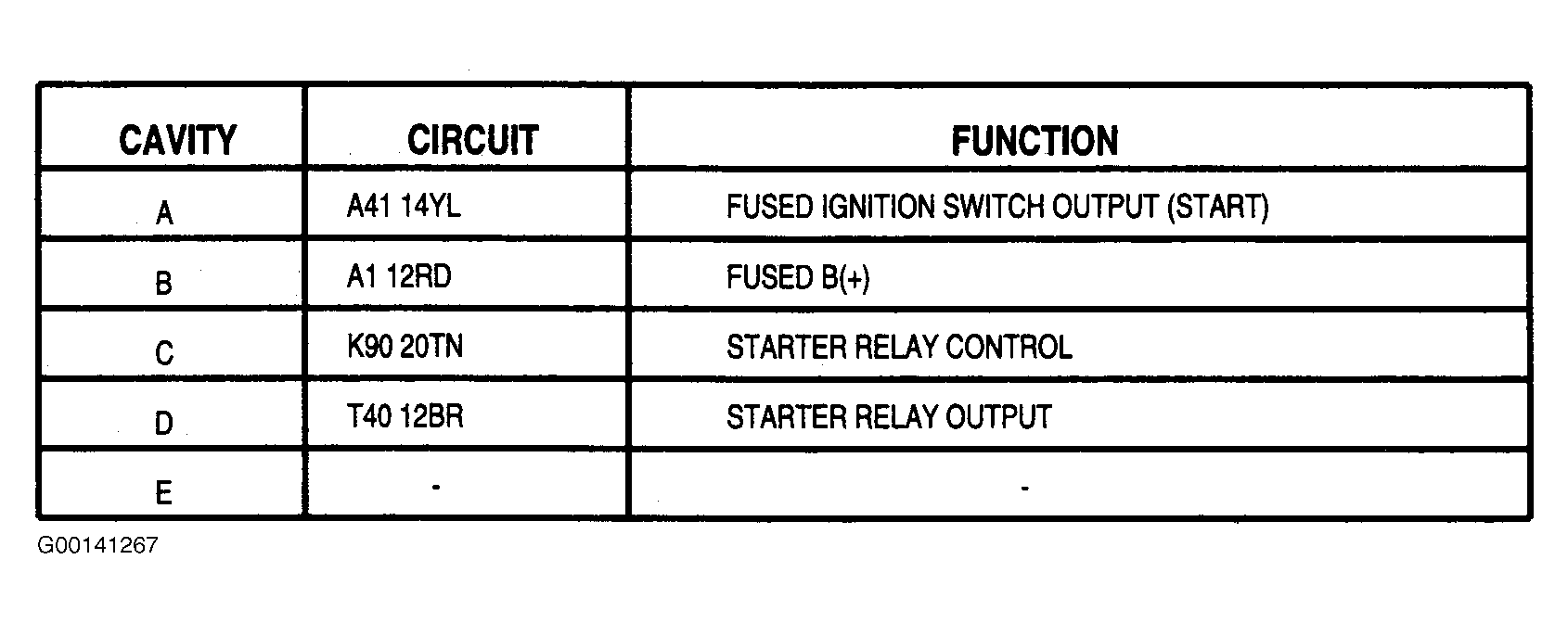

Fig 3: Identifying Engine Starter Motor Relay Terminals

Courtesy of CHRYSLER CORP.

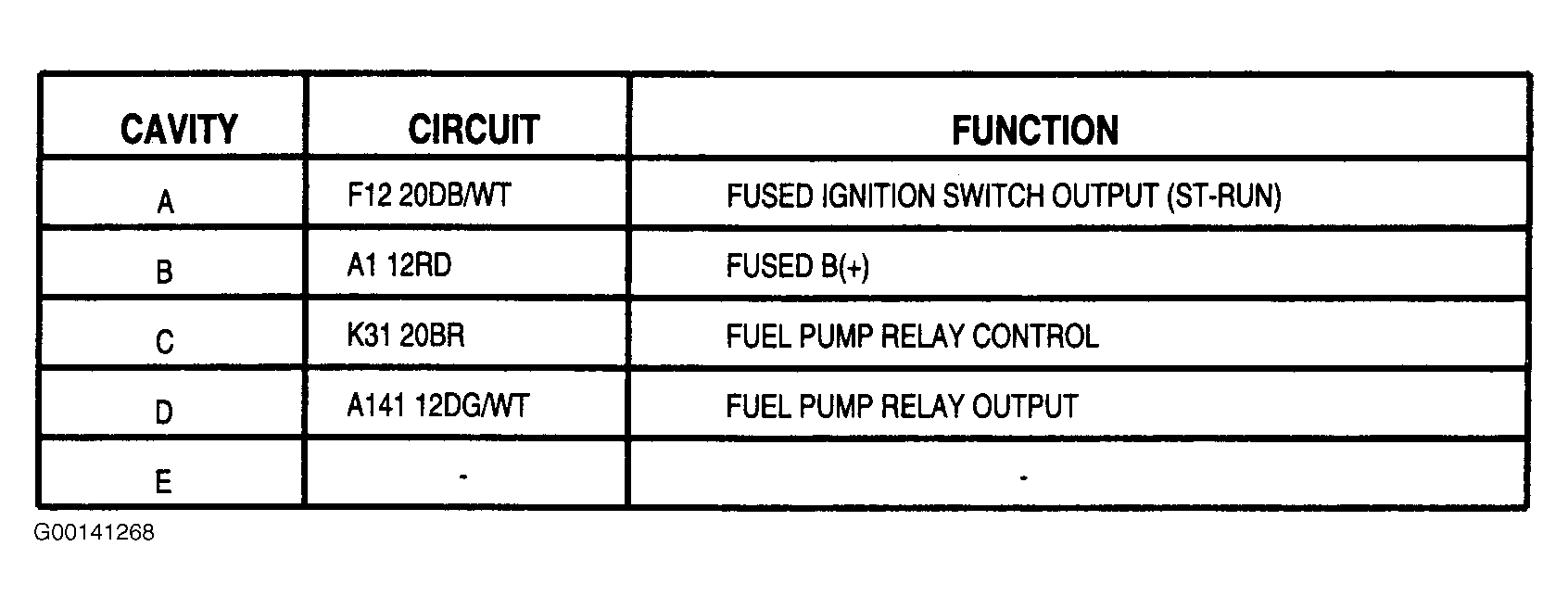

Fig 4: Identifying Fuel Pump Relay Terminals

Courtesy of CHRYSLER CORP.

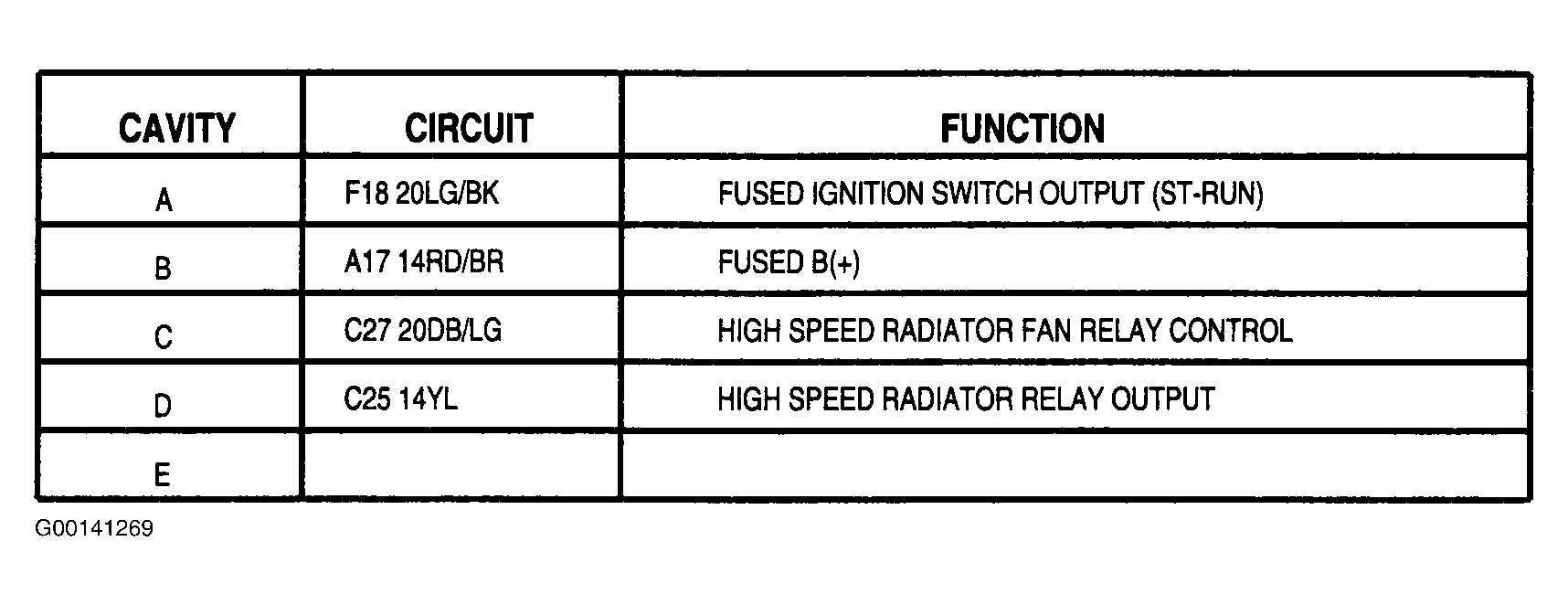

Fig 5: Identifying High Speed Radiator Fan Relay Terminals

Courtesy of CHRYSLER CORP.

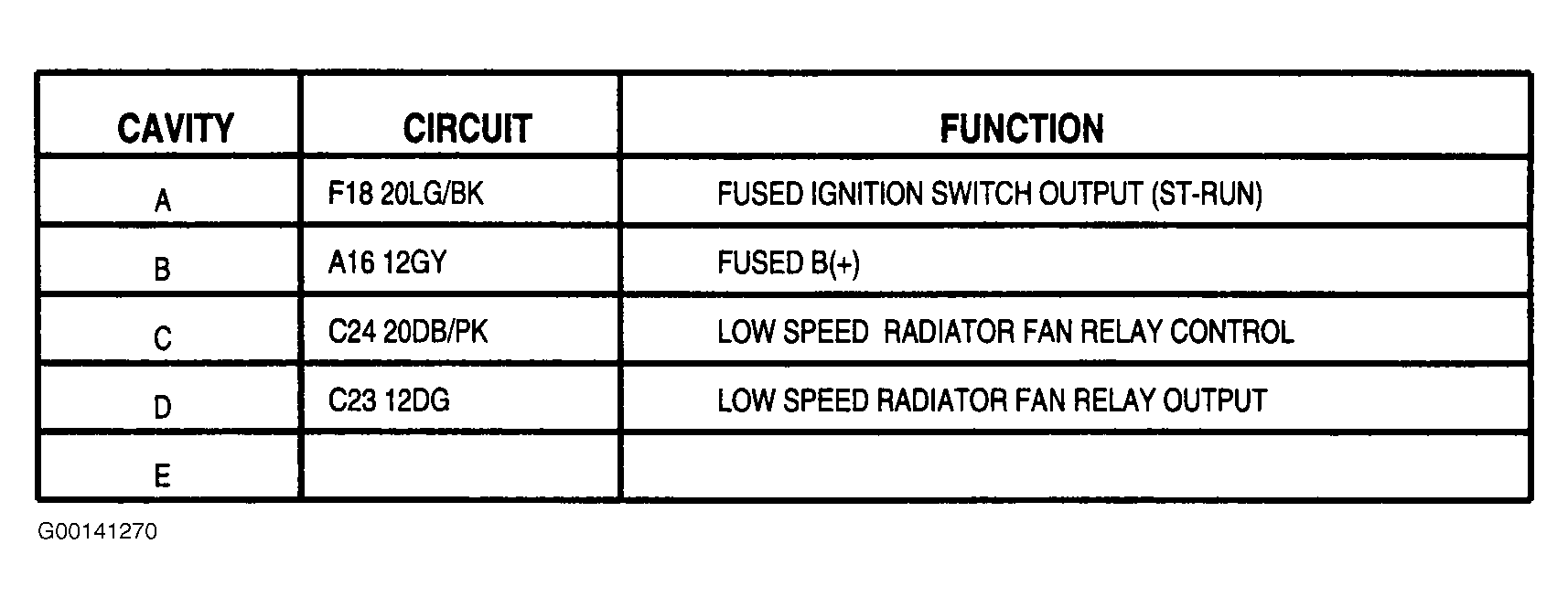

Fig 6: Identifying Low Speed Radiator Fan Relay Terminals

Courtesy of CHRYSLER CORP.

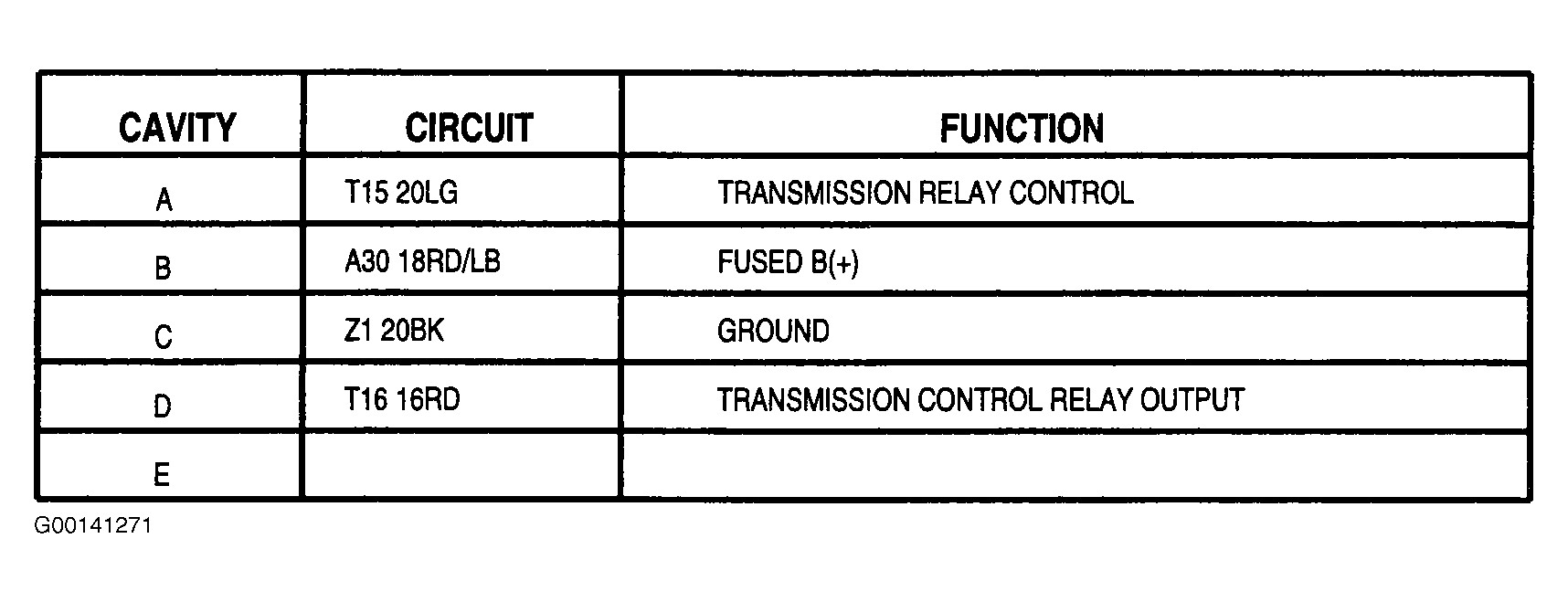

Fig 7: Identifying Transmission Control Relay Terminals

Courtesy of CHRYSLER CORP.

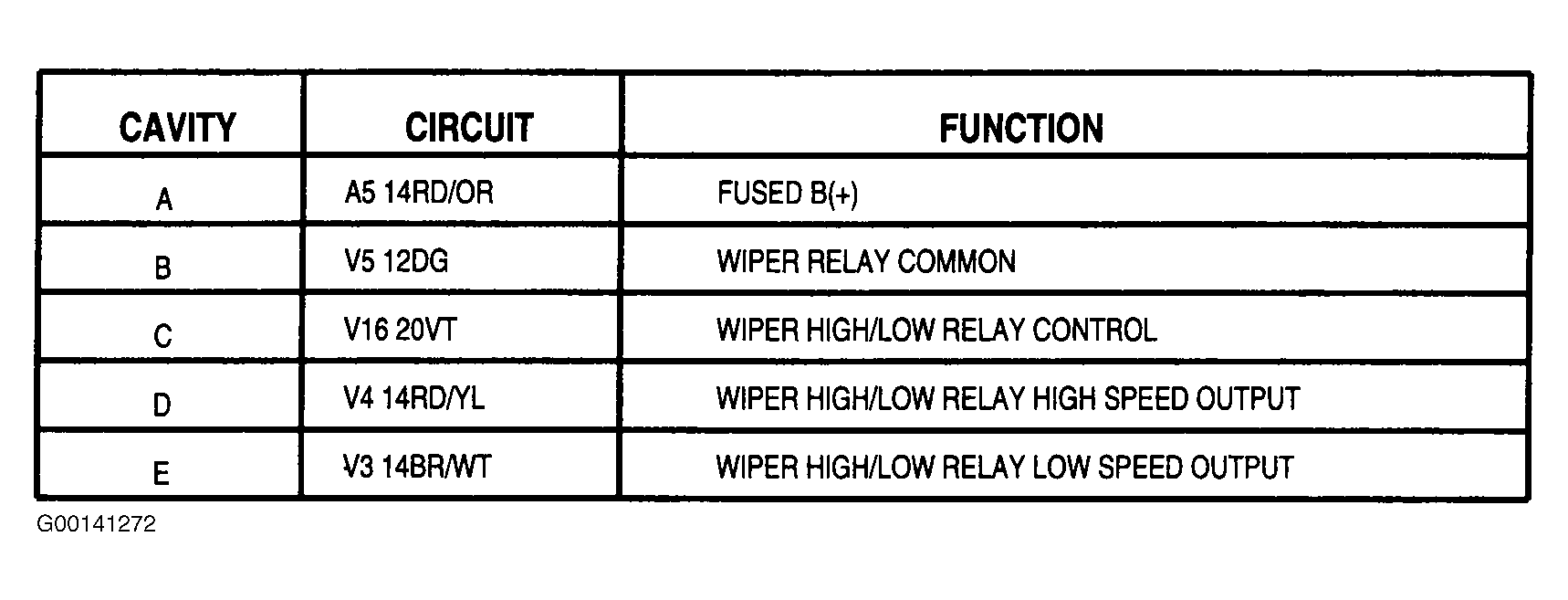

Fig 8: Identifying Wiper High/Low Relay Terminals

Courtesy of CHRYSLER CORP.

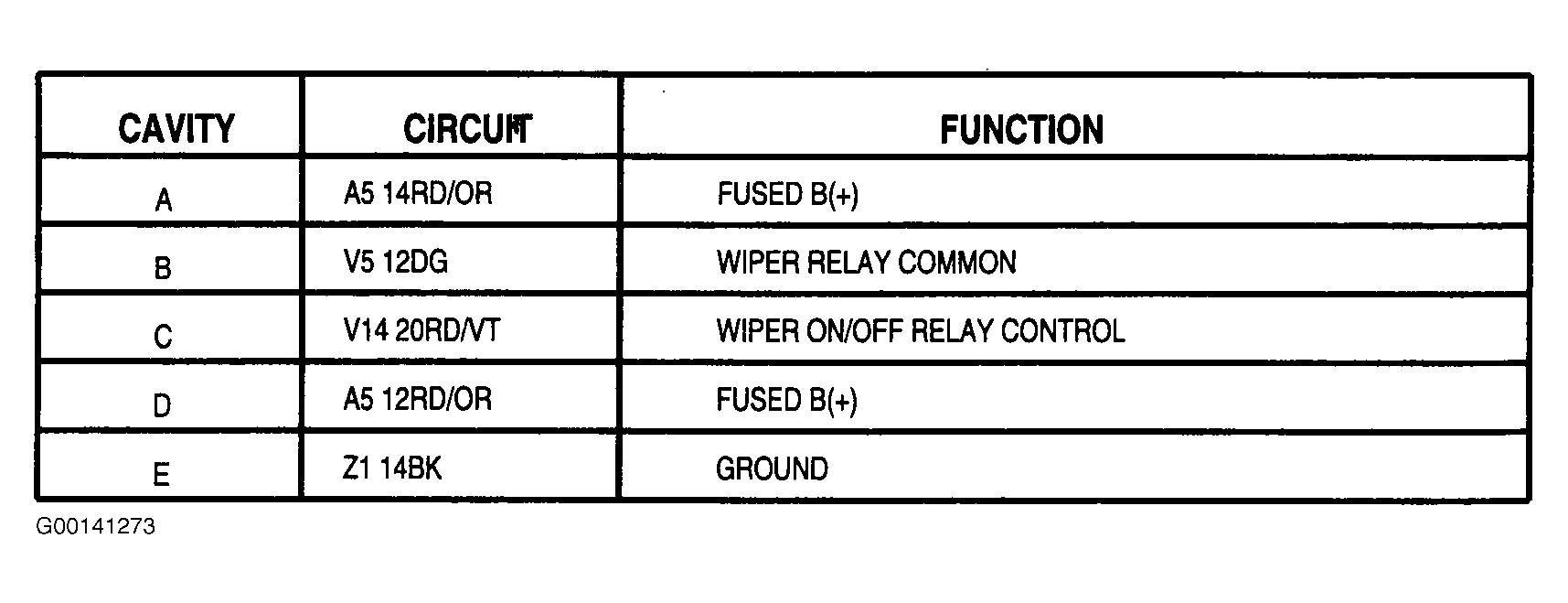

Fig 9: Identifying Wiper On/Off Relay Terminals

Courtesy of CHRYSLER CORP.
