Radiator Fan: Installation

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install radiator fan.

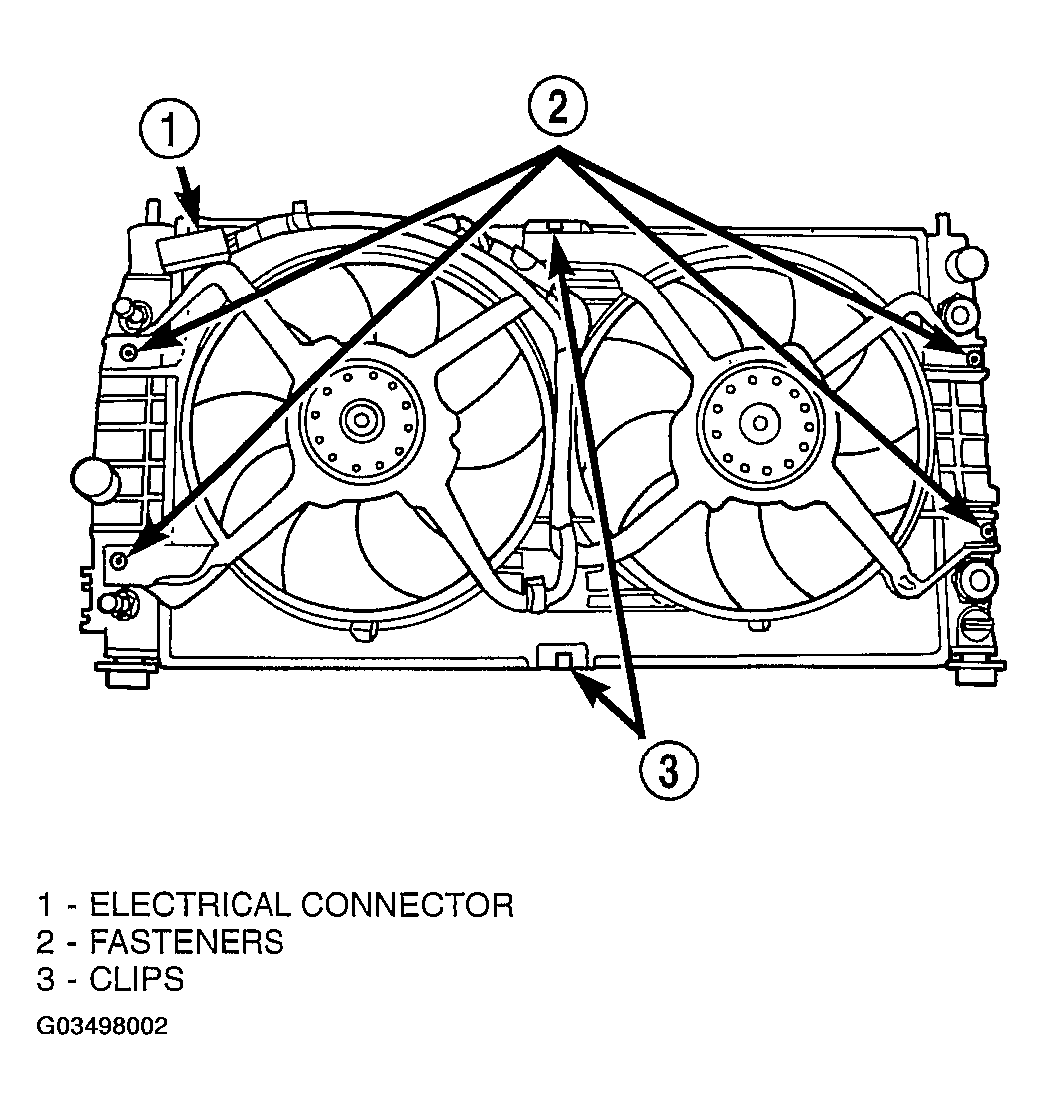

  2. Install upper clip and fasteners (Figure).
  3. Connect upper radiator hose to radiator.
  4. Connect fan motor electrical connector (Figure).
  5. Install radiator upper crossmember (Refer to GRILLE OPENING REINFORCEMENT ).
  6. Fill cooling system (Refer to STANDARD PROCEDURE ).
