Satellite Receiver Module: Removal

WARNING: This page is about a different car, the 2004 Dodge Intrepid, 2004 Chrysler Intrepid, 2004 Chrysler Concorde, and 2004 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the battery negative cable.
  2. Remove instrument panel silencer (Refer to INSTRUMENT PANEL TOP COVER ).
  3. Remove mounting fasteners (Fig 1).

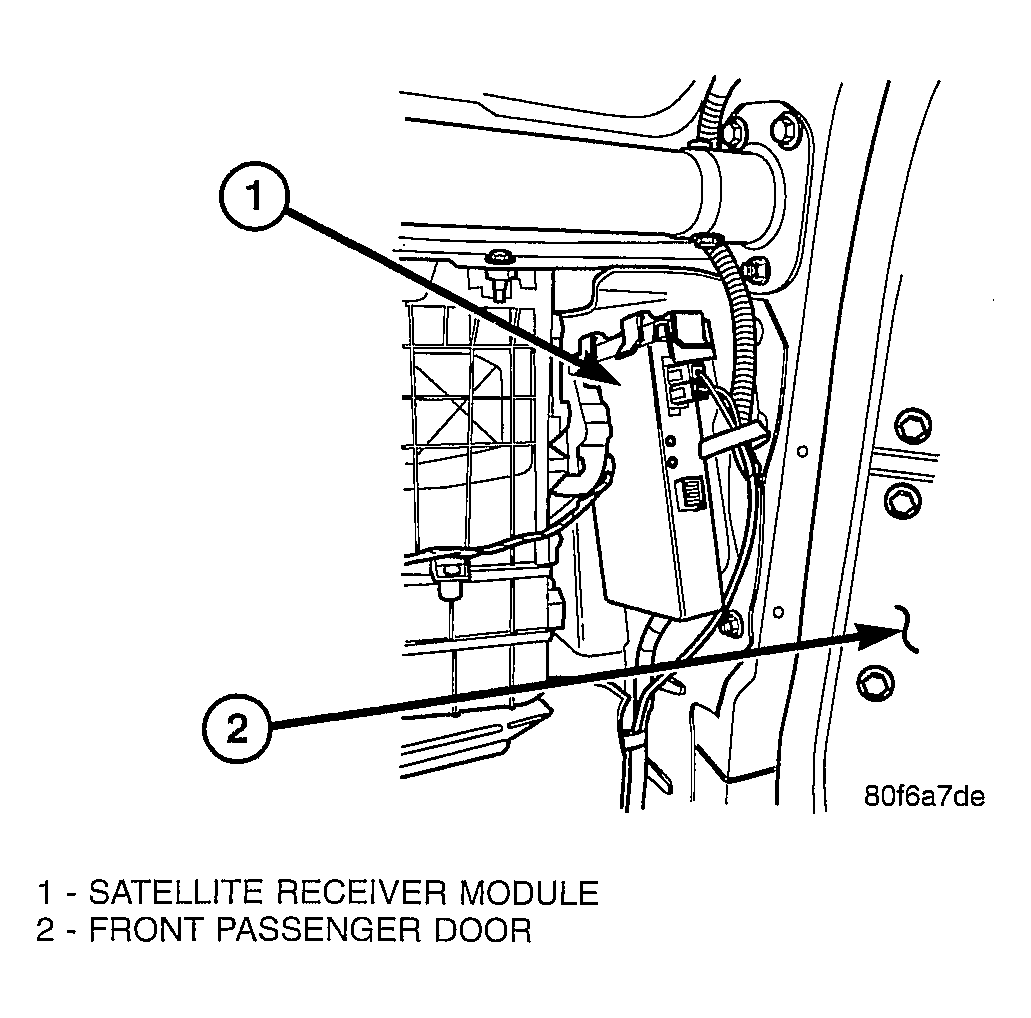

    Fig 1: Identifying Satellite Receiver Module
    G04184440Courtesy of DAIMLERCHRYSLER CORP.
  4. Pull satellite receiver module inboard, and then downward to remove from upper retaining clips.
  5. Disconnect wiring harness connectors.
  6. Remove satellite receiver module from vehicle.
