Coil Spring: Installation

To install, reverse removal procedure. Ensure all index marks are aligned during assembly.

CAUTION: Before installing upper mount, make sure correct upper mount is being installed on strut. DO NOT install right mount on left front strut or left mount on right front strut. Incorrect mount installation may cause poor vehicle ride and steering feel, and excessive front end noise. A lead or drift condition may also result.

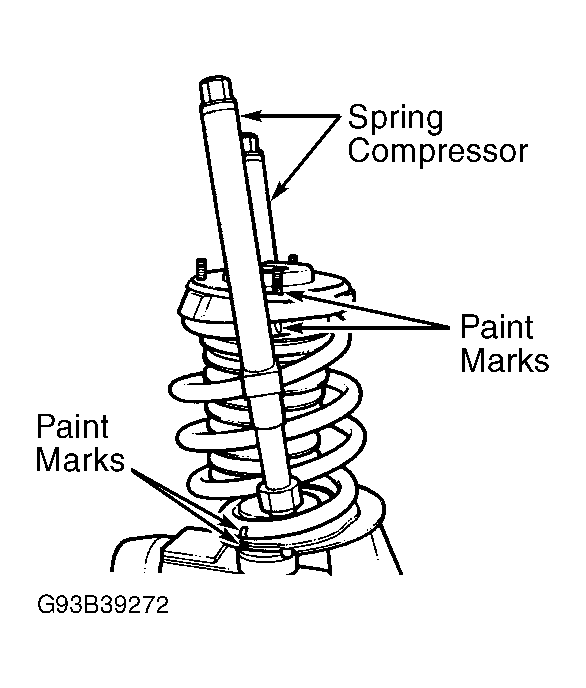

Fig 1: Compressing Coil Spring

Courtesy of CHRYSLER CORP.

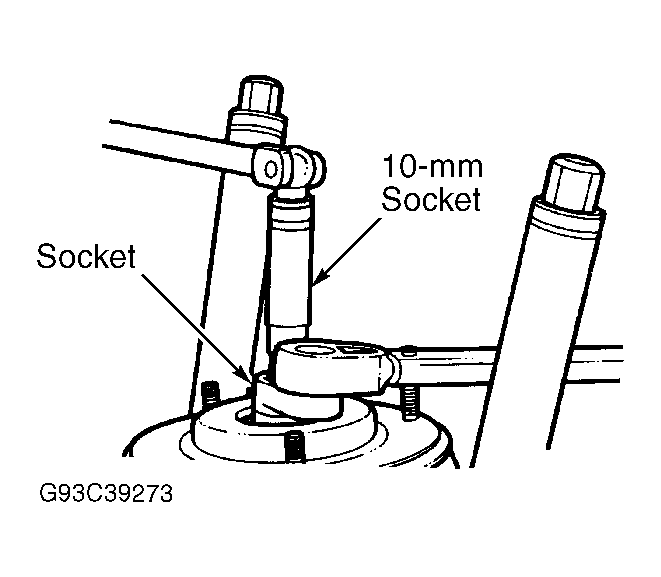

Fig 2: Removing Strut Shaft Nut

Courtesy of CHRYSLER CORP.

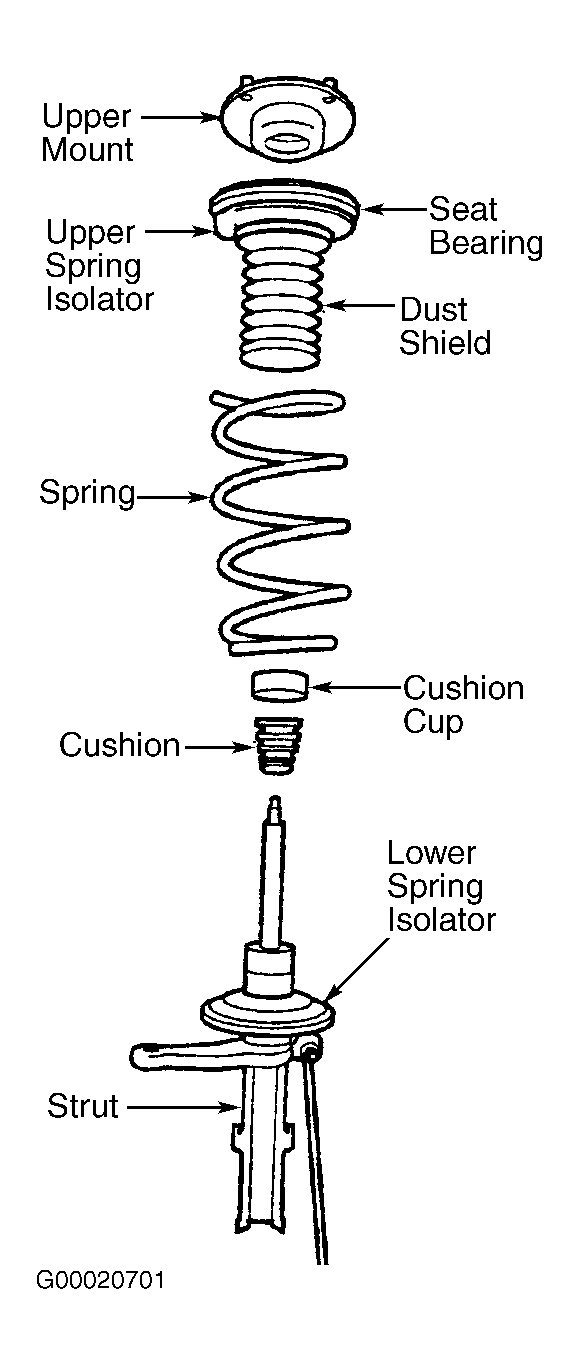

Fig 3: Exploded View Of Strut Assembly

Courtesy of CHRYSLER CORP.
