Home >> Chrysler >> 2000 >> LHS >> Repair and Diagnosis >> Engine Performance >> Mode 6 - CHRYSLER >> 2002

Mode 6 - CHRYSLER: 2002

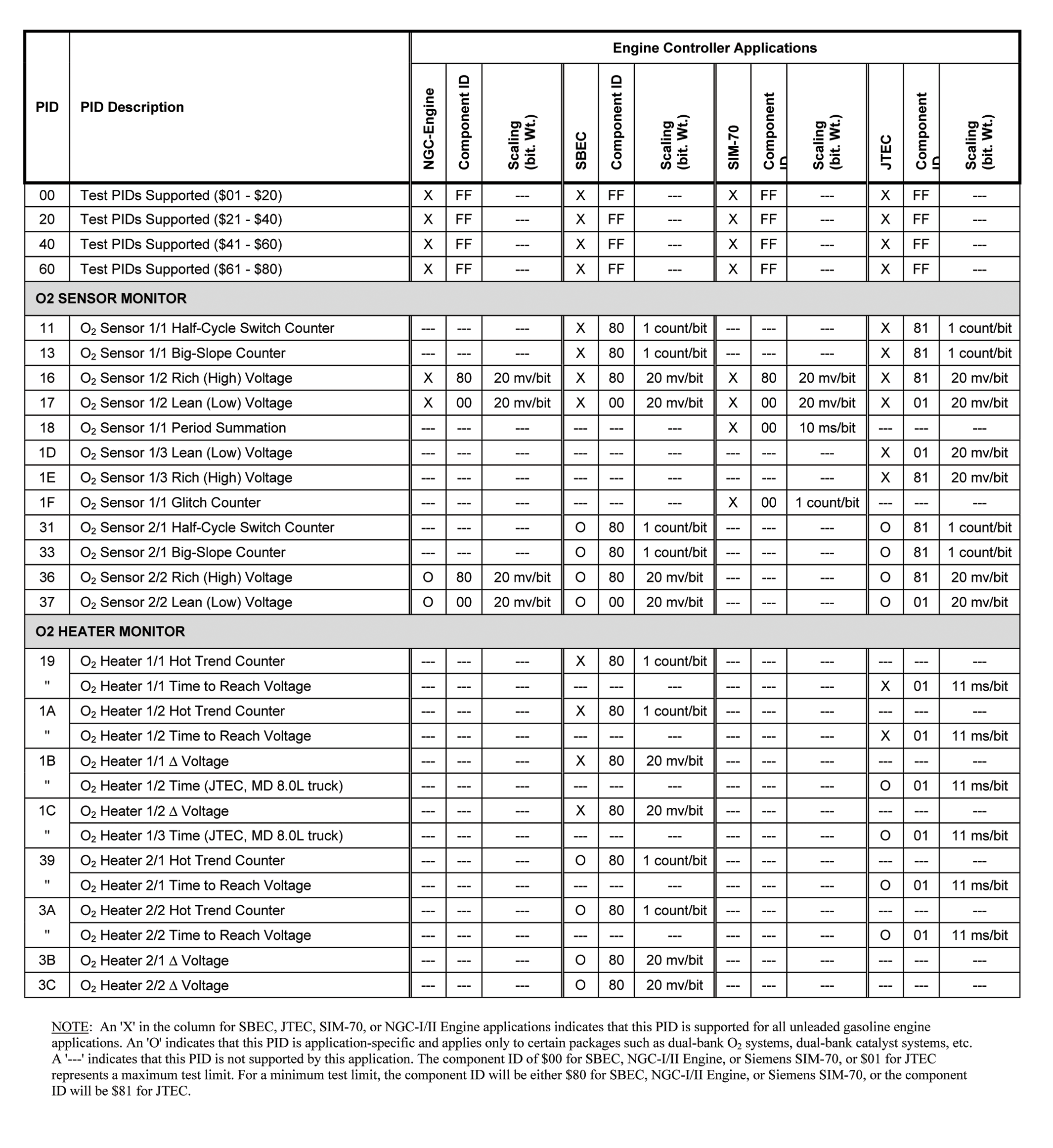

Fig 1: Mode $06 Data For SBEC, JTEC, SIM-70 & NGC Engine Controllers (1 Of 2)
G00436456Courtesy of CHRYSLER CORP.

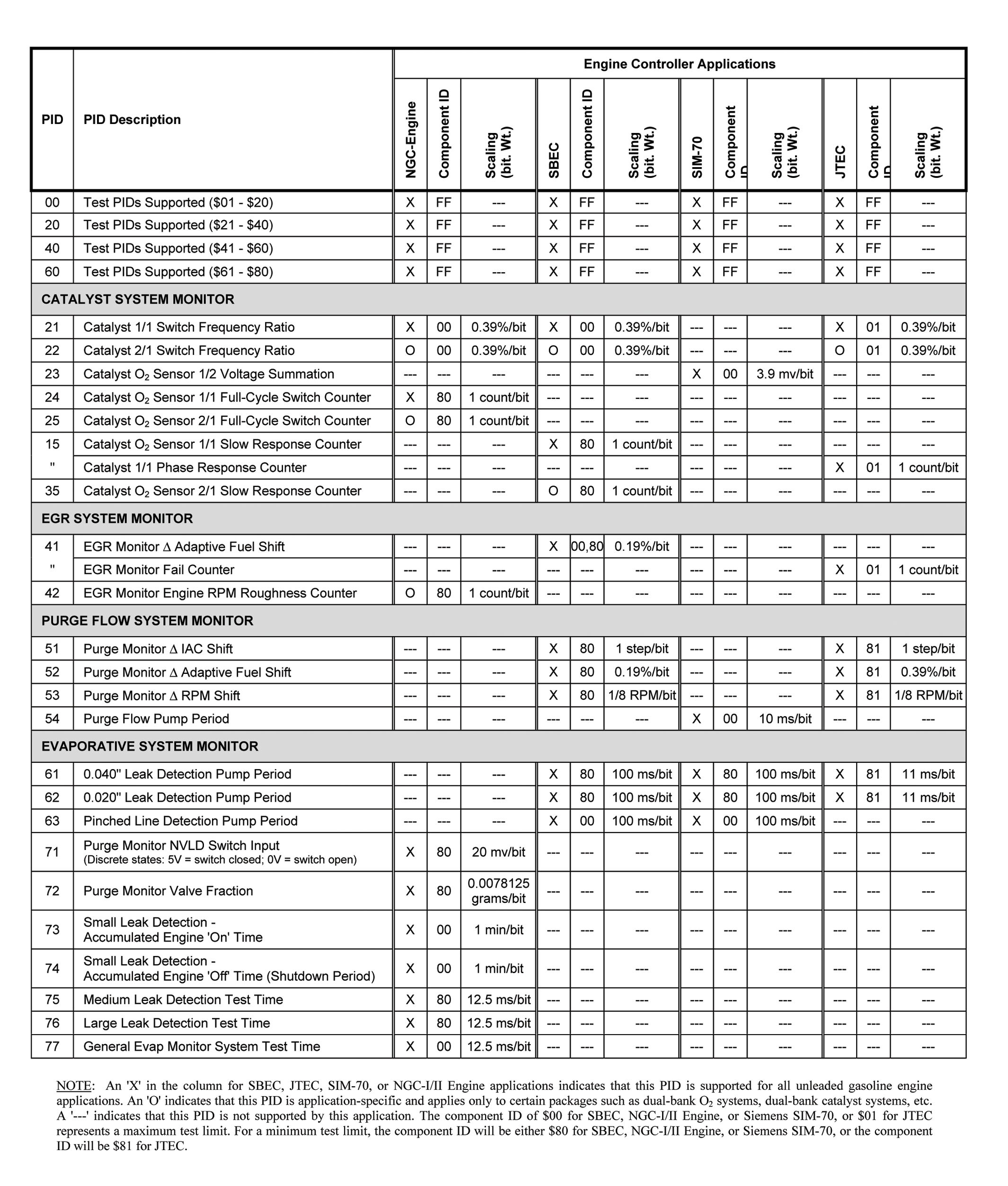

Fig 2: Mode $06 Data For SBEC, JTEC, SIM-70 & NGC Engine Controllers (2 Of 2)
G00436457Courtesy of CHRYSLER CORP.
