Component Locations

For component locations, see Fig 1 - Fig 7 .

Fig 1: Locating Data Link Connector (DLC)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: Locating Powertrain Control Module (PCM) & Transmission Control Module (TCM)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Locating Compass/Mini-Trip Computer (Sebring Convertible)

Courtesy of DAIMLERCHRYSLER CORP.

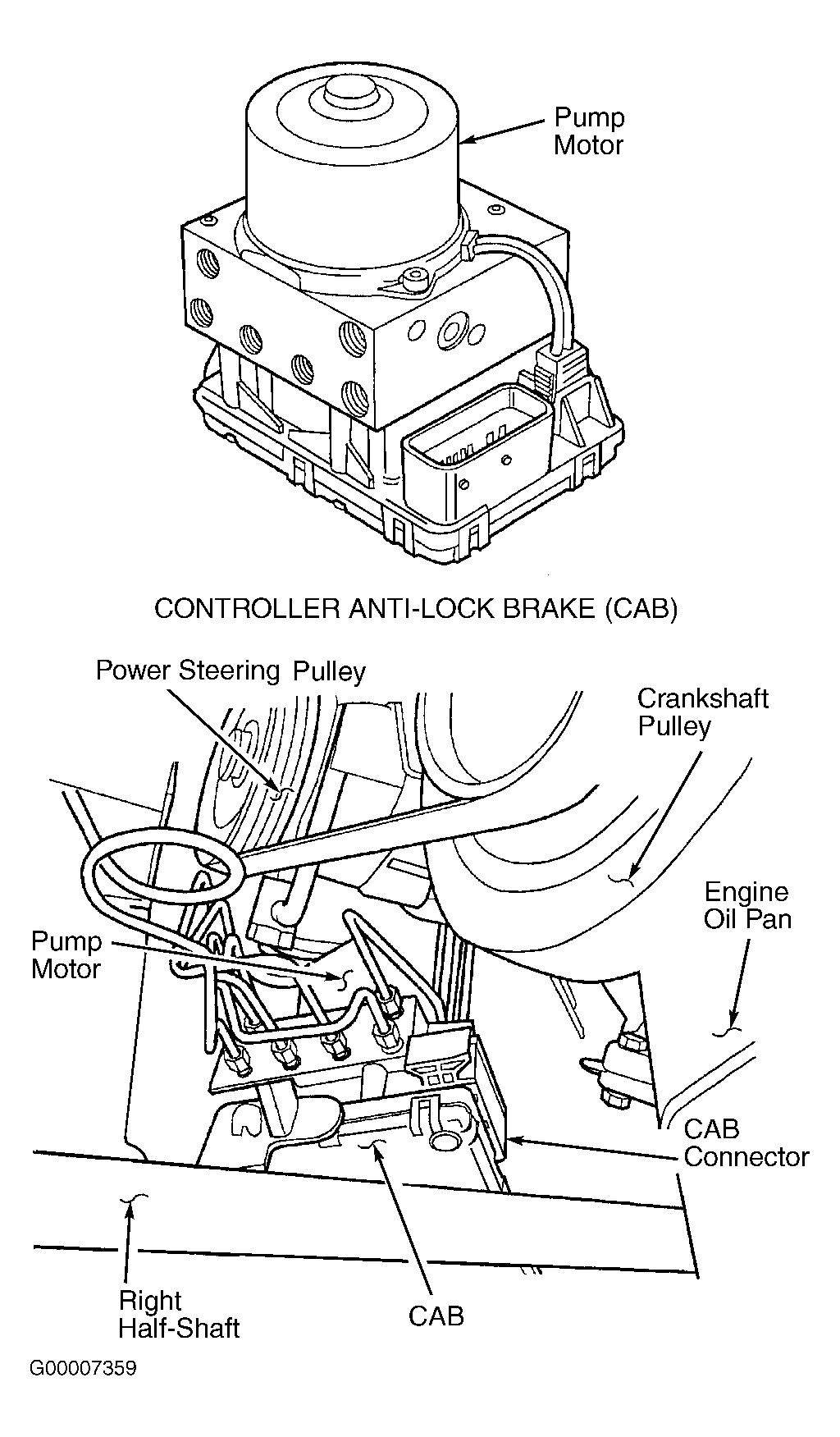

Fig 4: Locating & Identifying Controller Anti-Lock Brake (CAB) Module

Courtesy of DAIMLERCHRYSLER CORP.

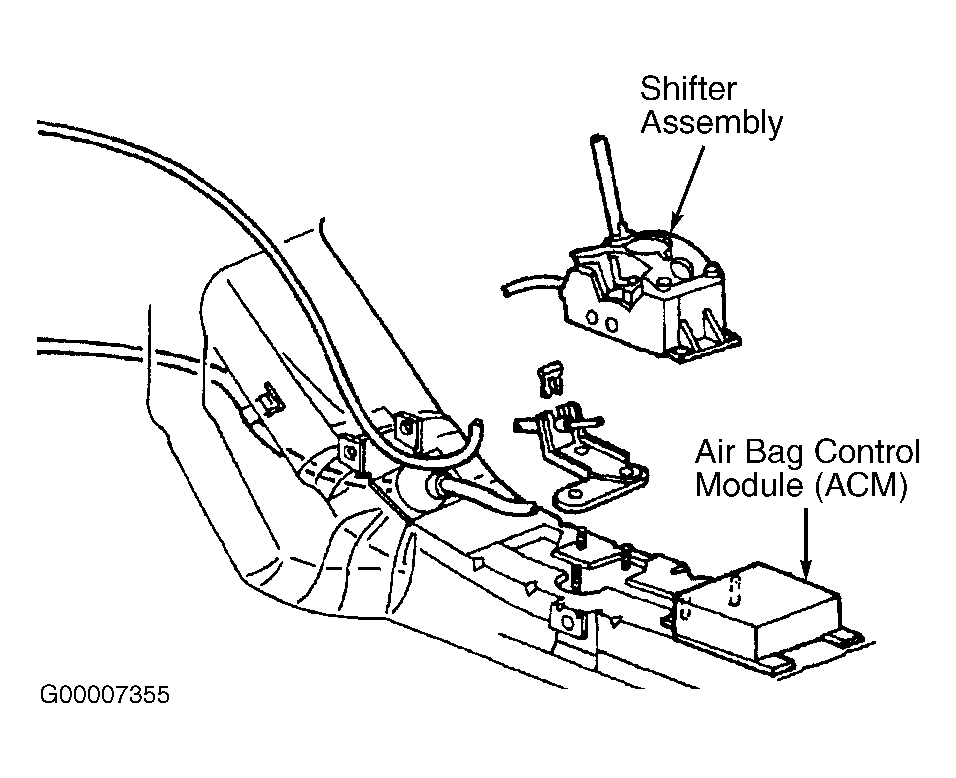

Fig 5: Locating Air Bag Control Module (ACM)

Courtesy of DAIMLERCHRYSLER CORP.

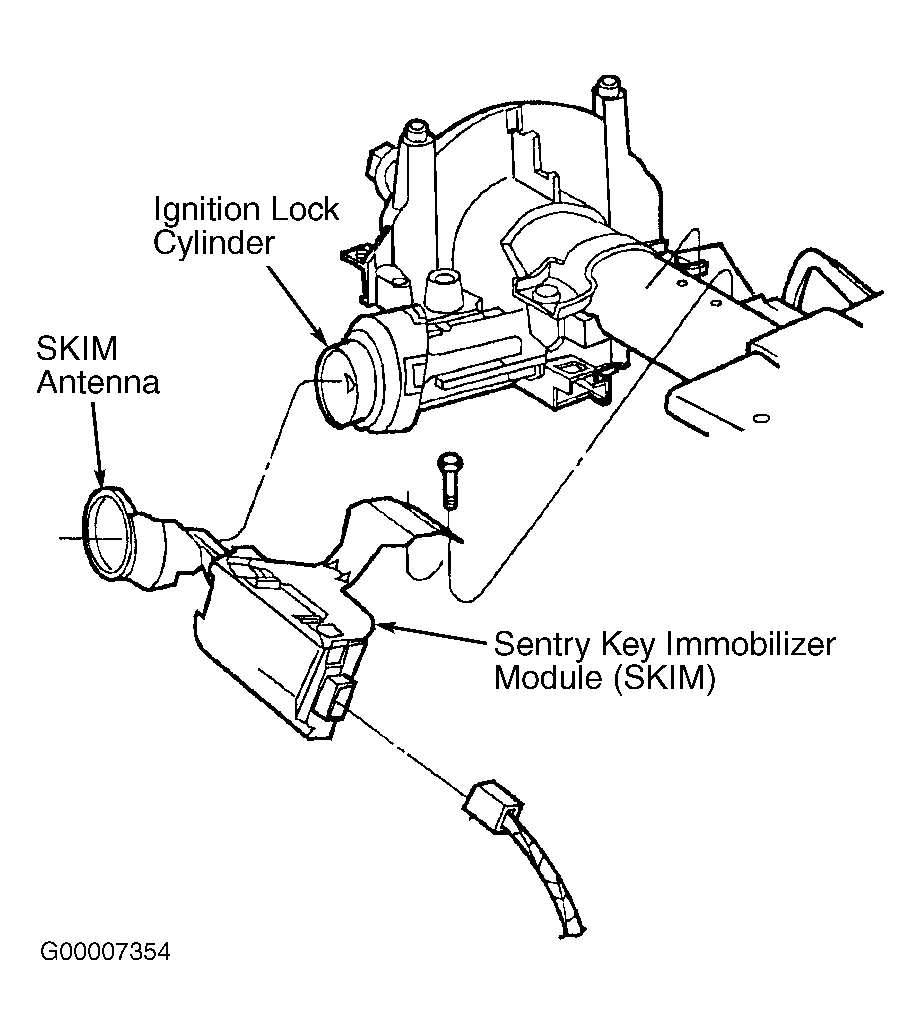

Fig 6: Identifying Sentry Key Immobilizer Module (SKIM) Components

Courtesy of DAIMLERCHRYSLER CORP.

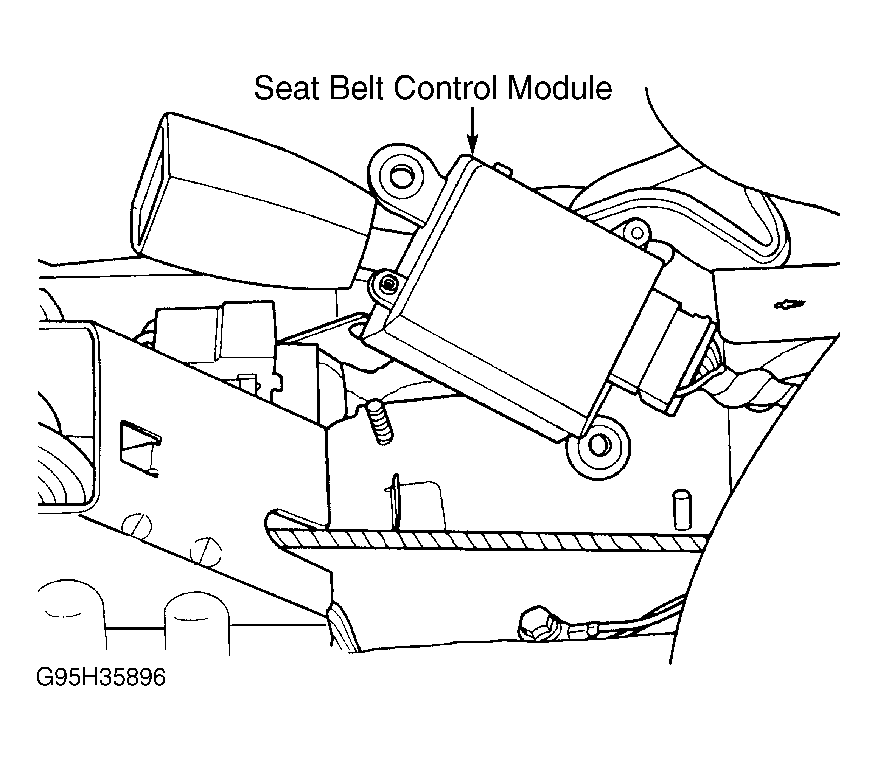

Fig 7: Locating Seat Belt Control Module

Courtesy of CHRYSLER LLC
