Component Location Graphics

NOTE: res may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Right Side Of Engine Compartment
G00074860
Fig 2: Left Side Of Engine Compartment
G00074861

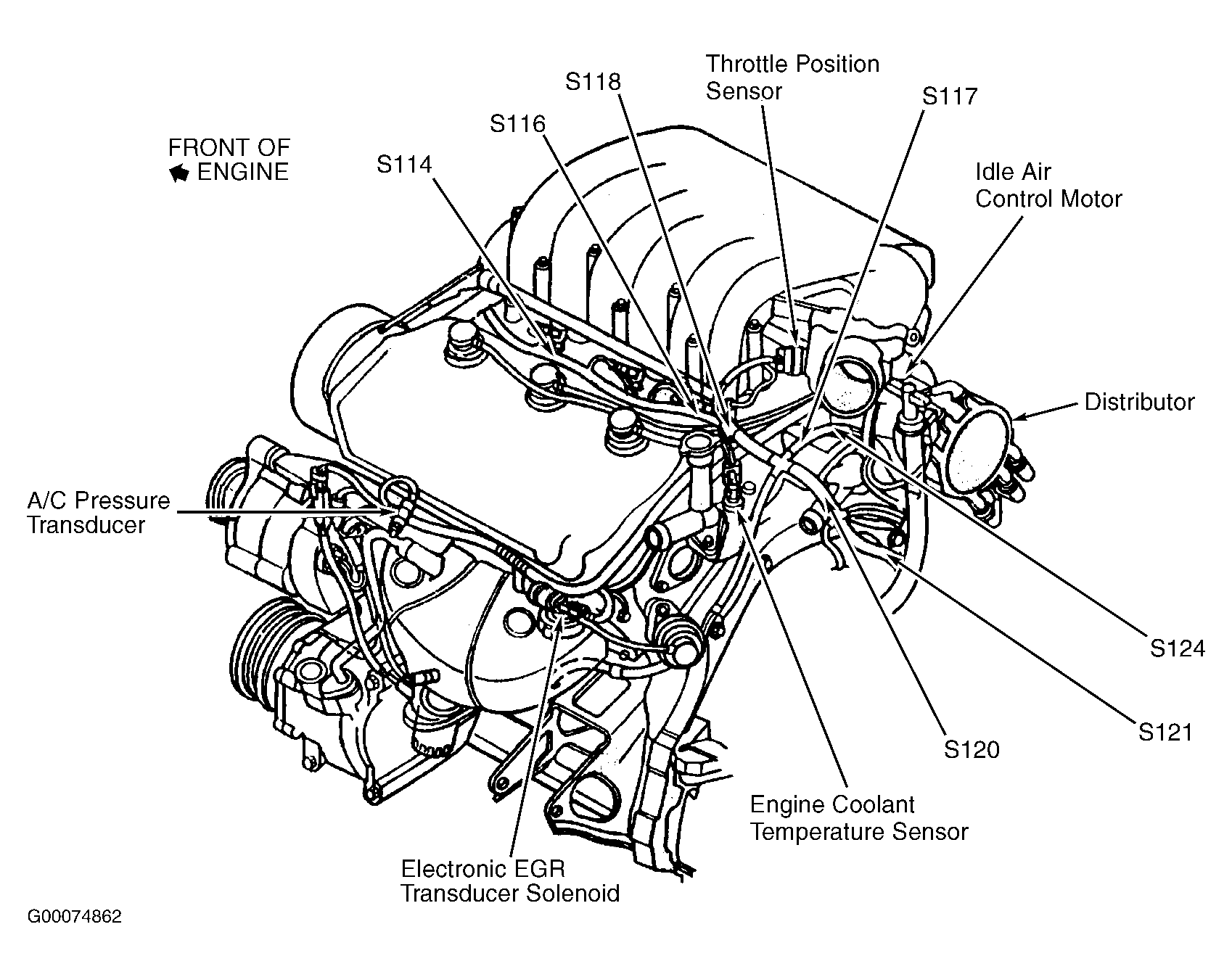

Fig 3: Top Of Engine
G00074862

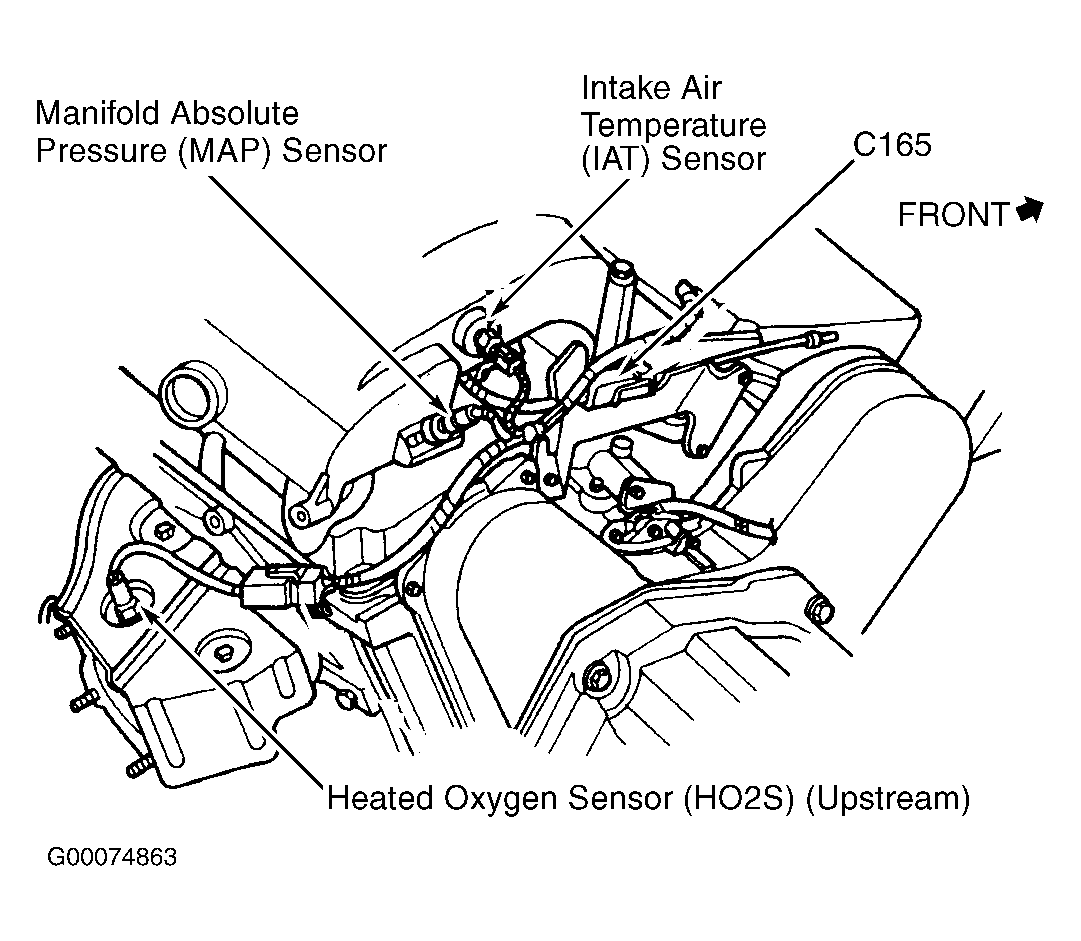

Fig 4: Front Of Engine
G00074863

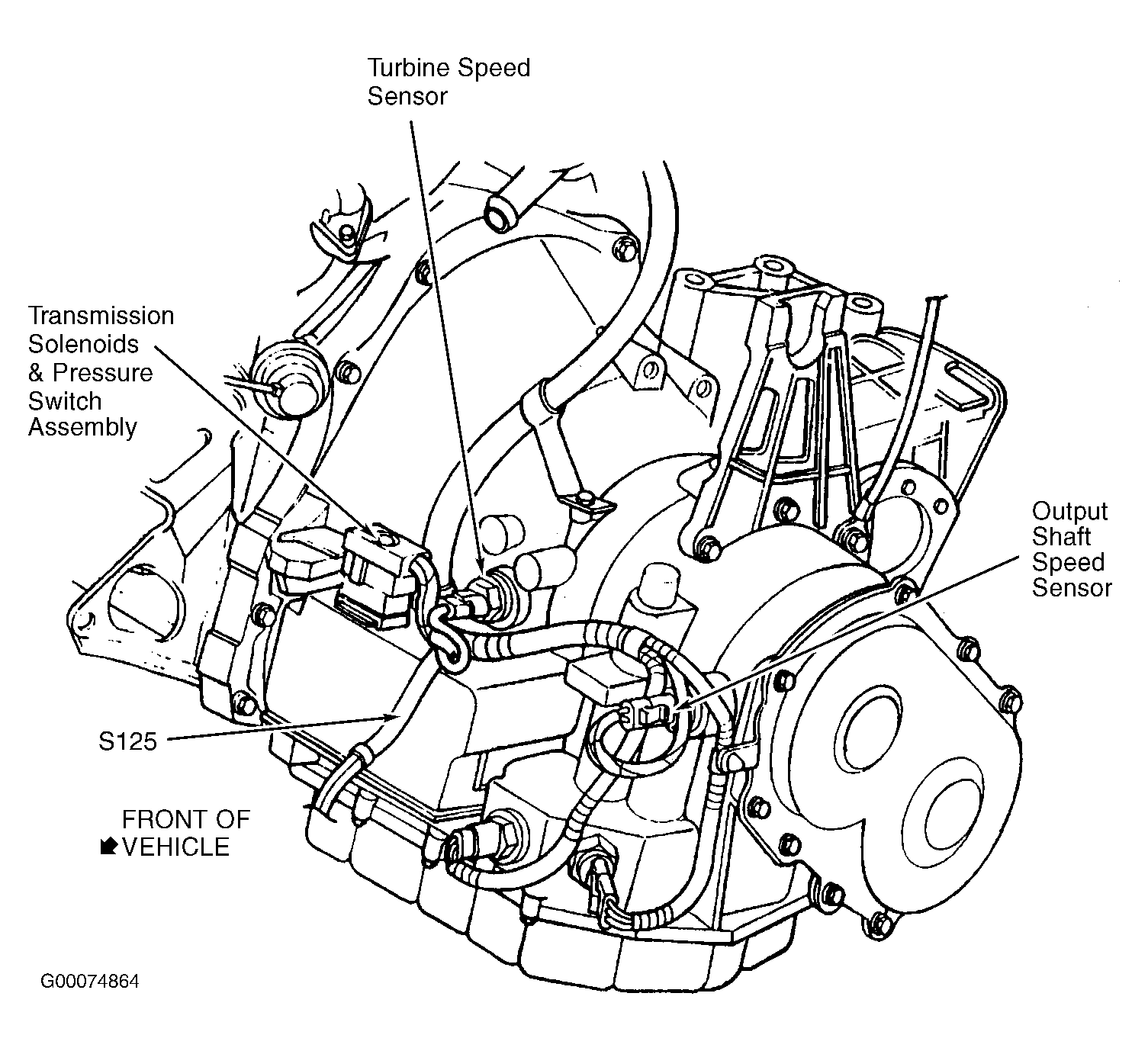

Fig 5: Left Side Of Transaxle
G00074864
