Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Right Side Of Engine Compartment

Fig 2: Left Side Of Engine Compartment

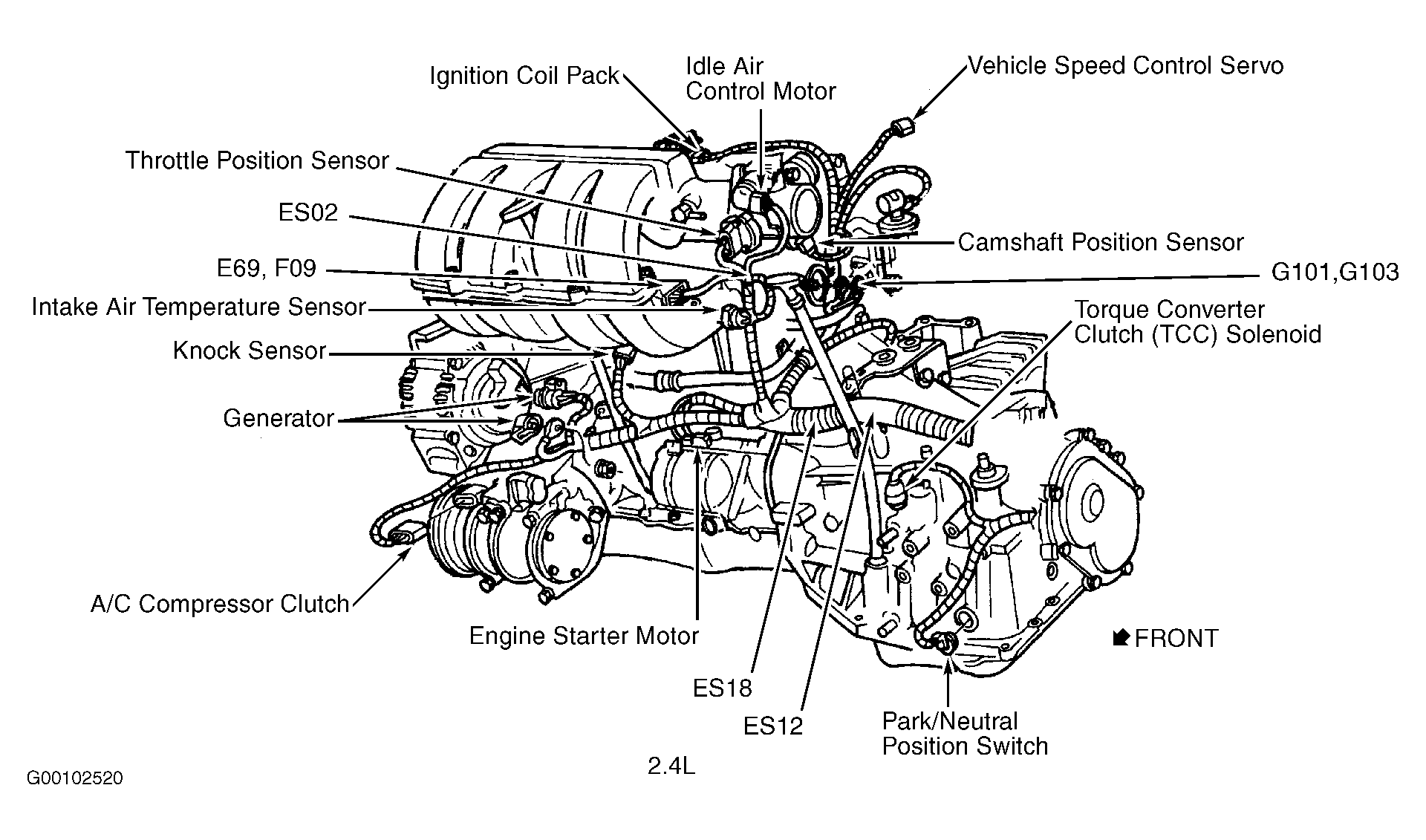

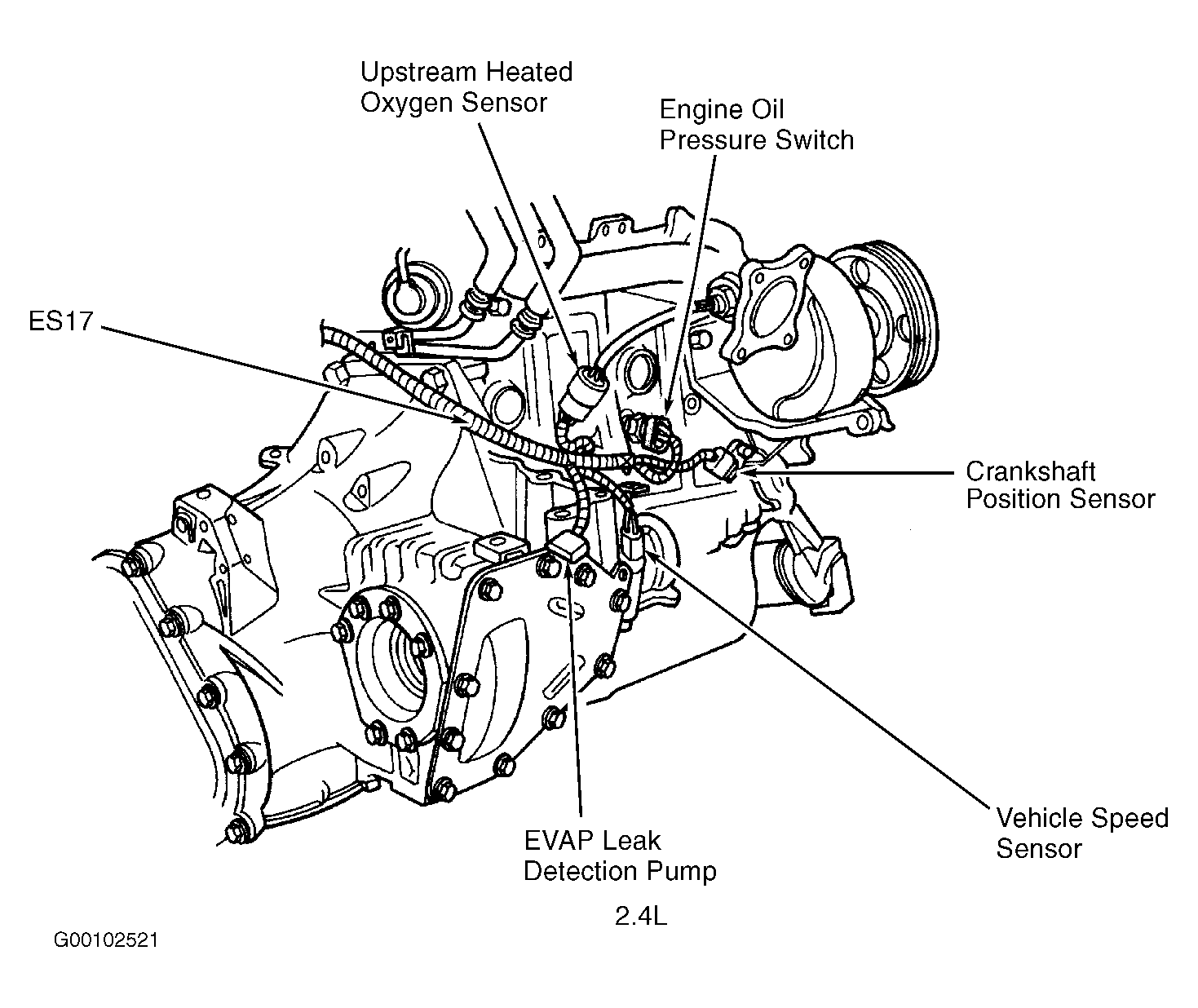

Fig 3: Left Side Of Engine (2.4L)

Fig 4: Right Side Of Engine (2.4L)

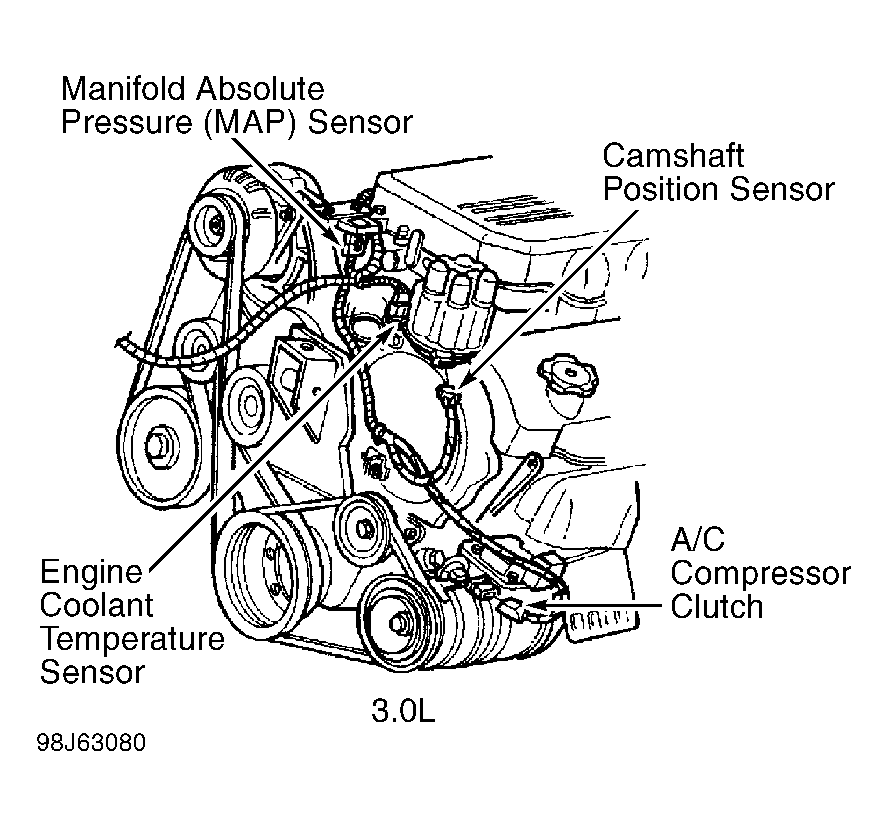

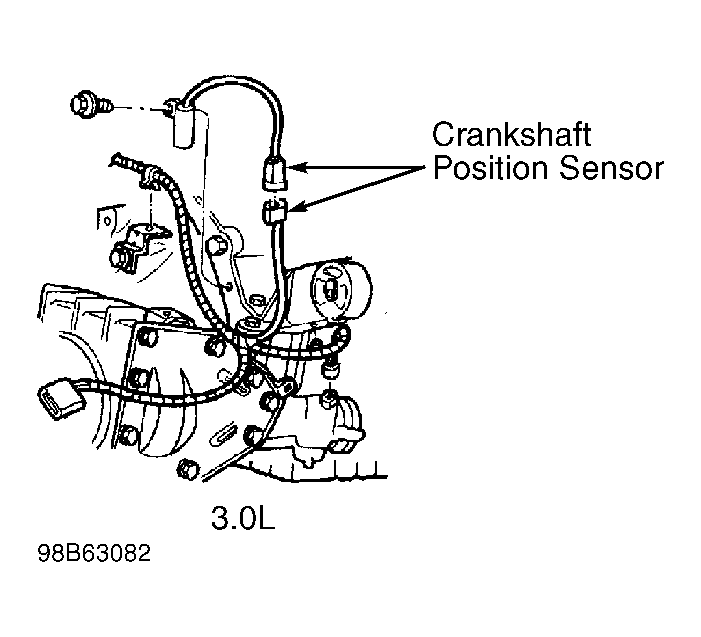

Fig 5: Front Of Engine (3.0L)

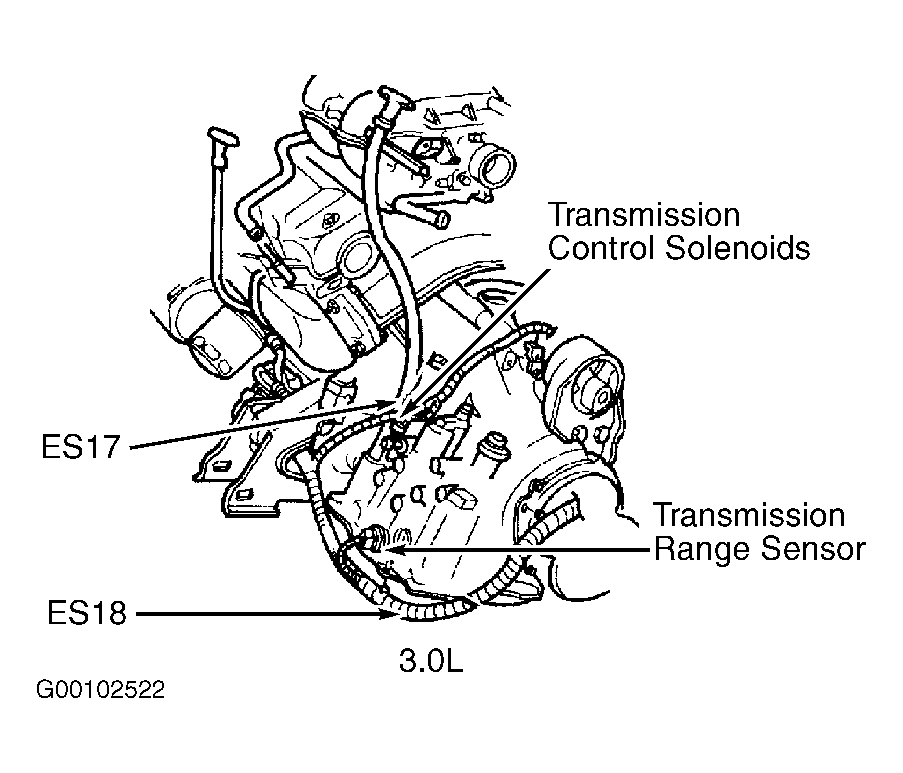

Fig 6: Engine/Transmission (3.0L)

Fig 7: Right Rear Of Engine (3.0L)

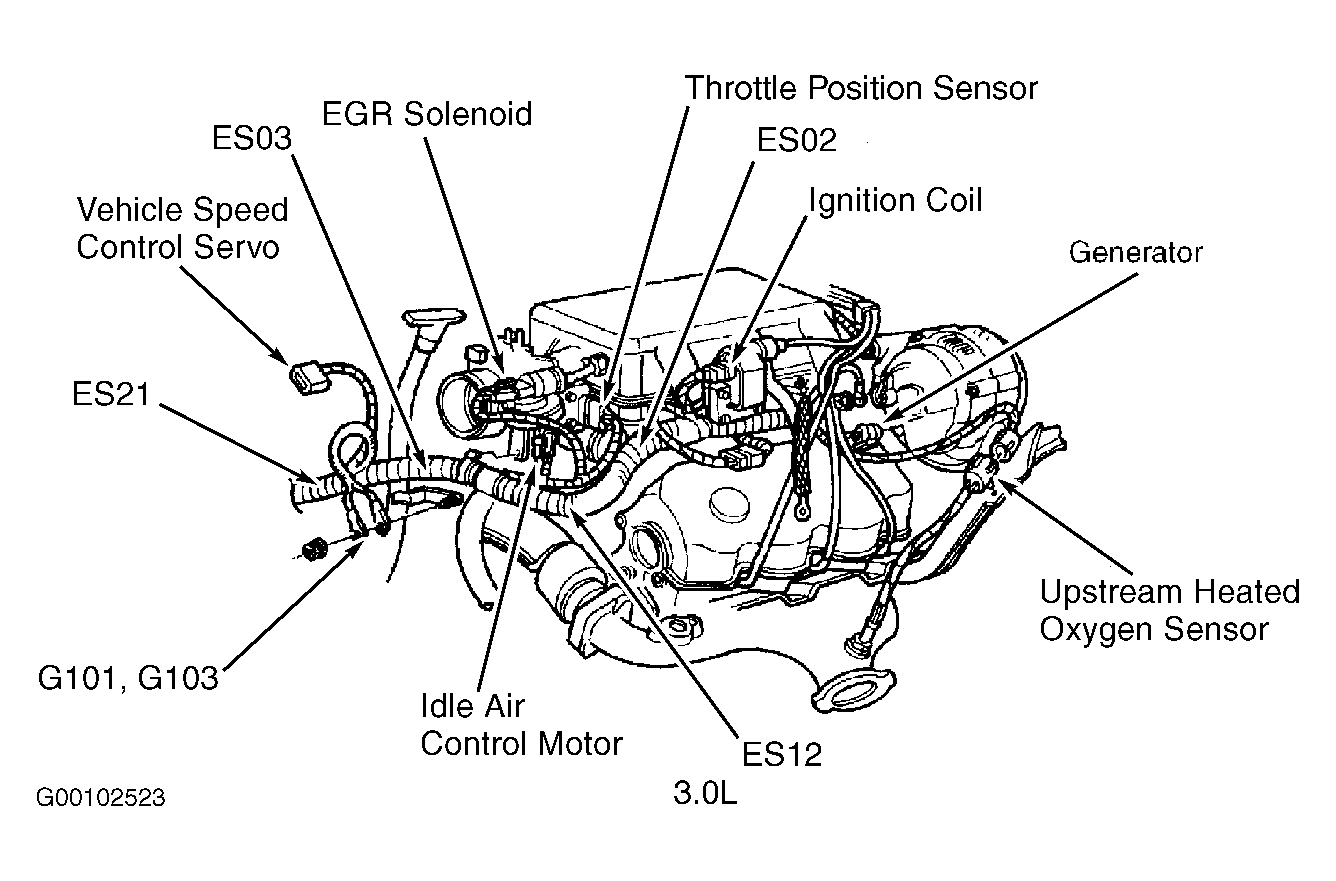

Fig 8: Top Of Engine (3.0L)

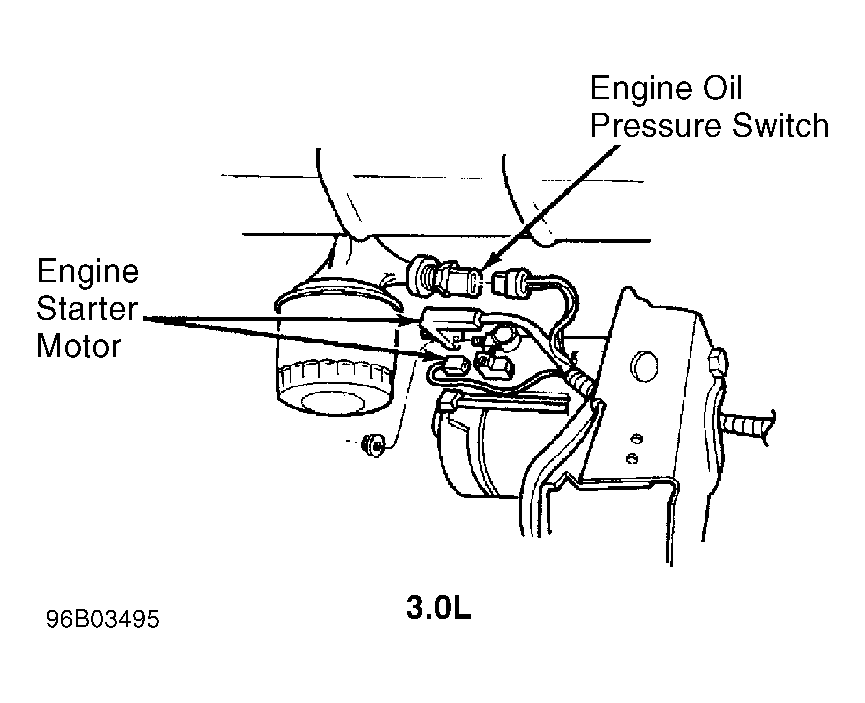

Fig 9: Lower Left Side Of Engine (3.0L)

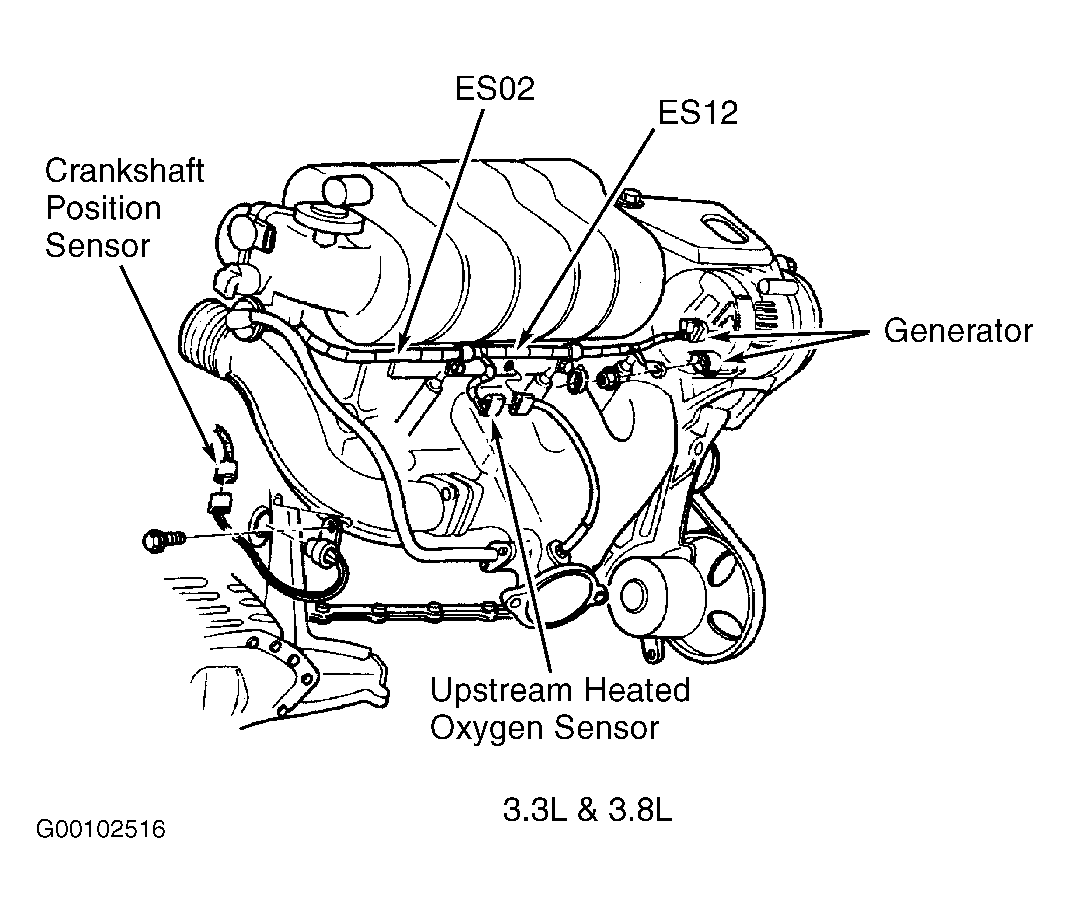

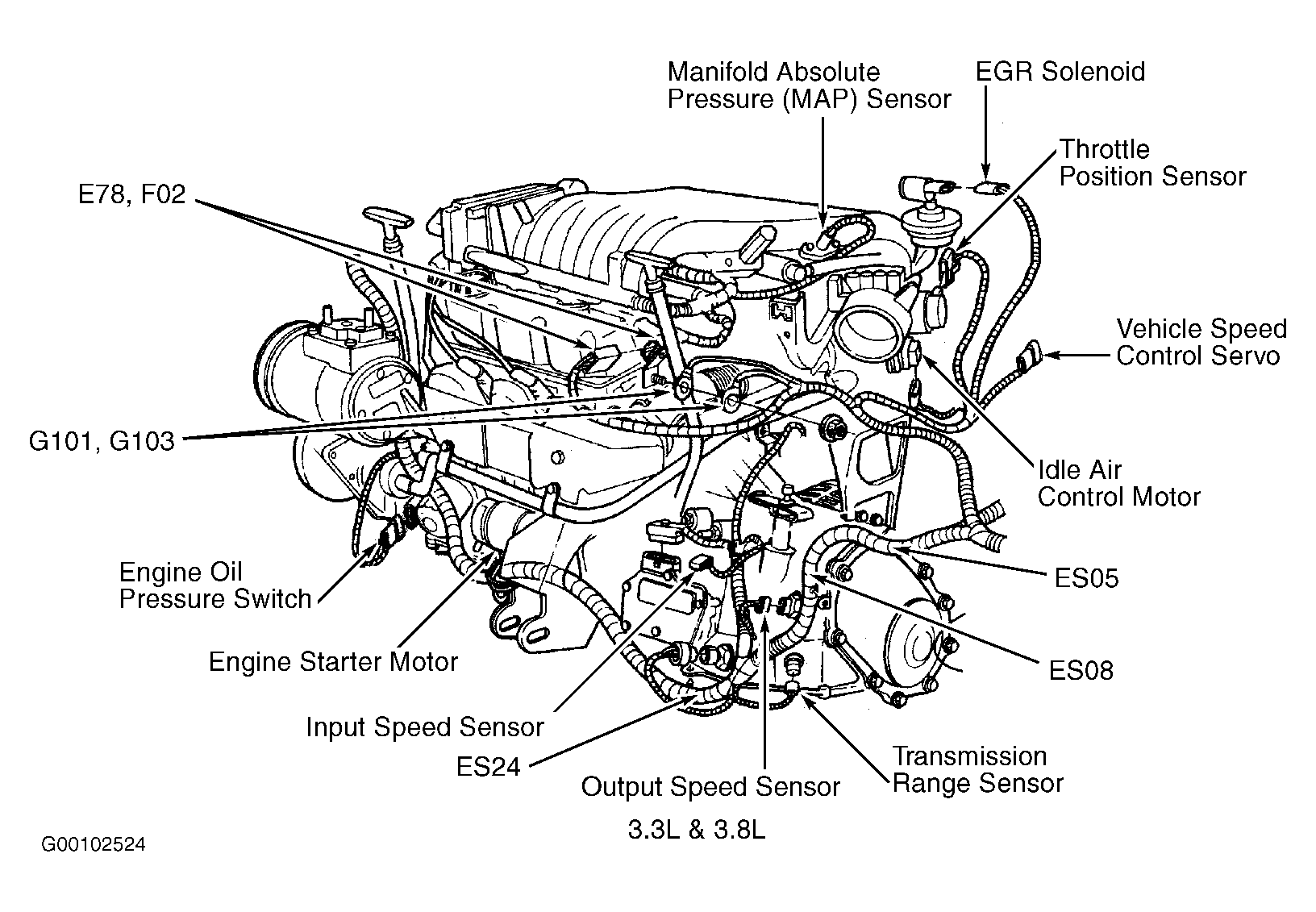

Fig 10: Left Rear Of Engine (3.3L & 3.8L)

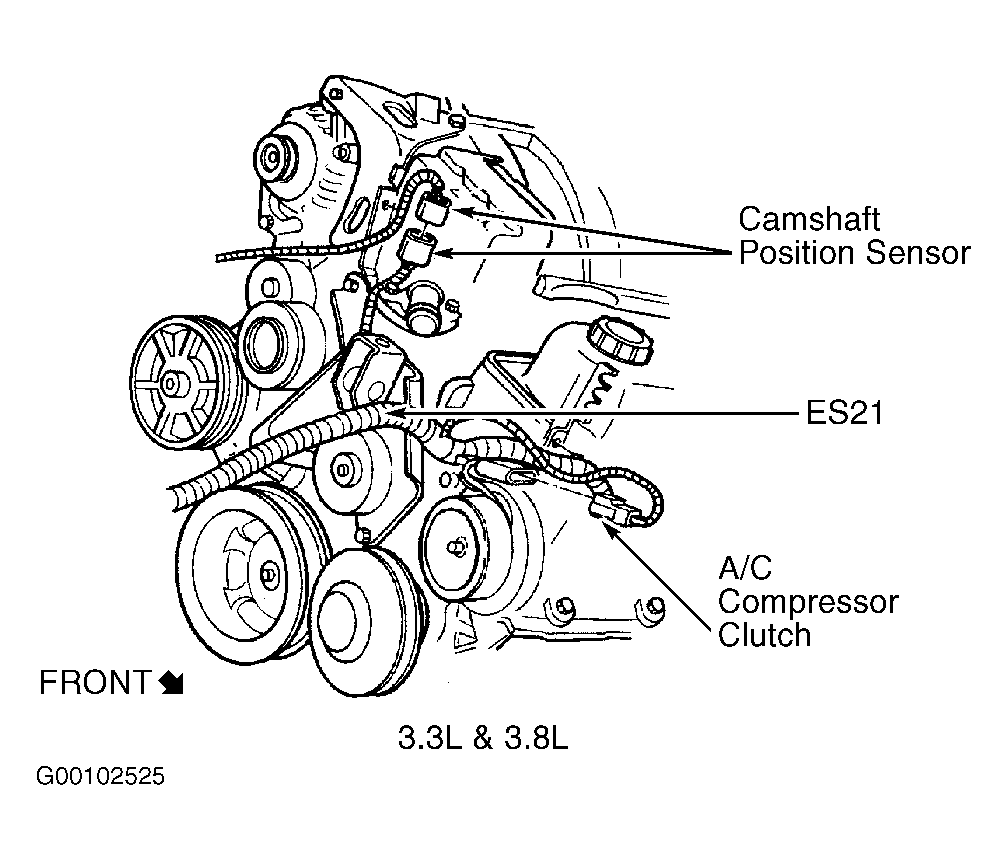

Fig 11: Front Of Engine (3.3L & 3.8L)

Fig 12: Right Side Of Engine (3.3L & 3.8L)
