Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Air Bag Control Module | Behind lower portion of dash center stack. |
| Body Control Module | On junction block, behind left side of dash. |
| Combination Flasher/DRL Module | On junction block, behind left side of dash. |
| Controller Anti-Lock Brake | Under driver side of vehicle, mounted to the front suspension cradle, attached to the hydraulic control unit. |
| Fuel Pump Module | On side of fuel tank. |
| Memory Seat/Mirror Module | Under driver's seat. |

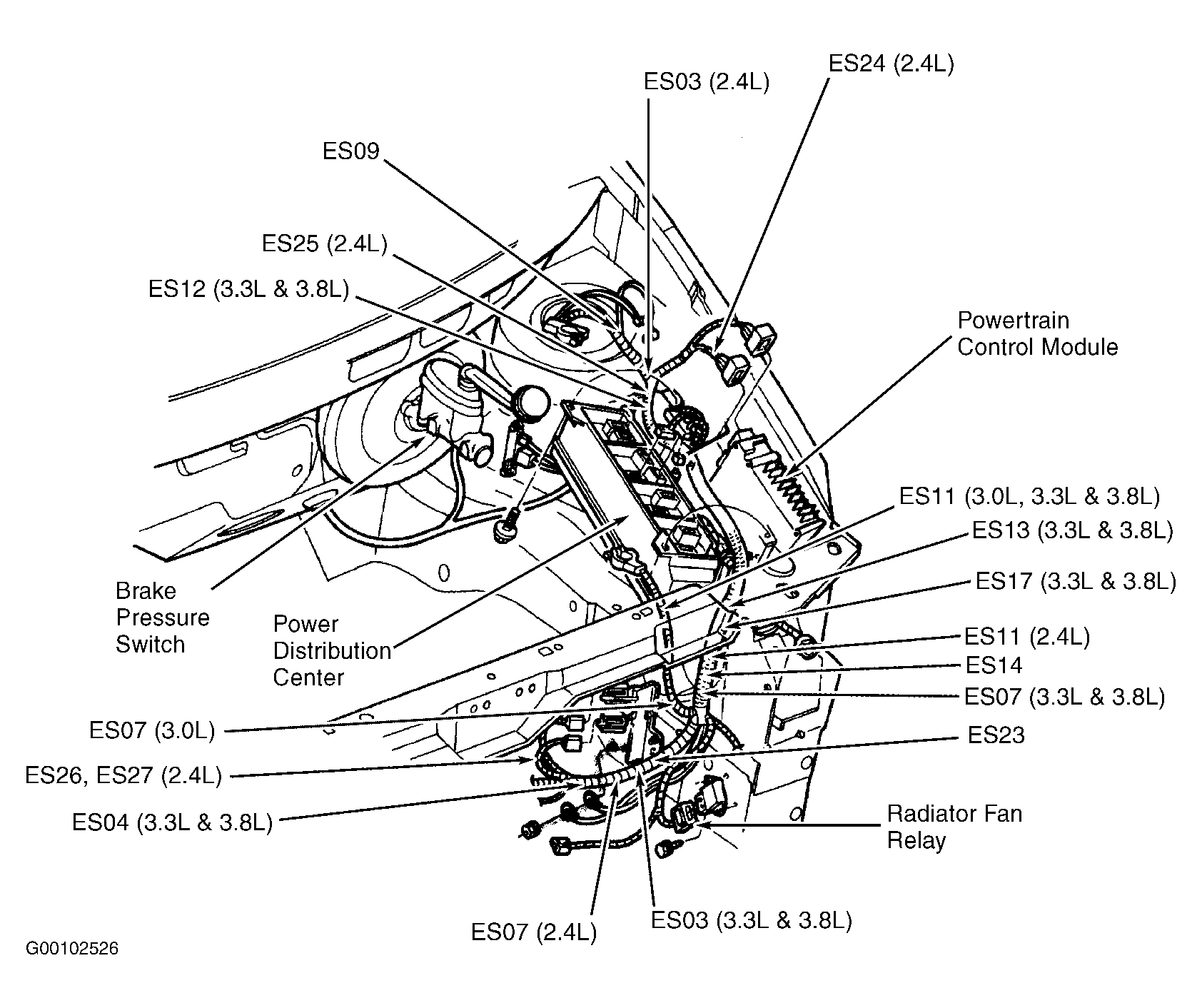

| Powertrain Control Module | Left side of engine compartment. See Figure. |
| Remote Keyless Entry Module | Under left side of dash top cover. |

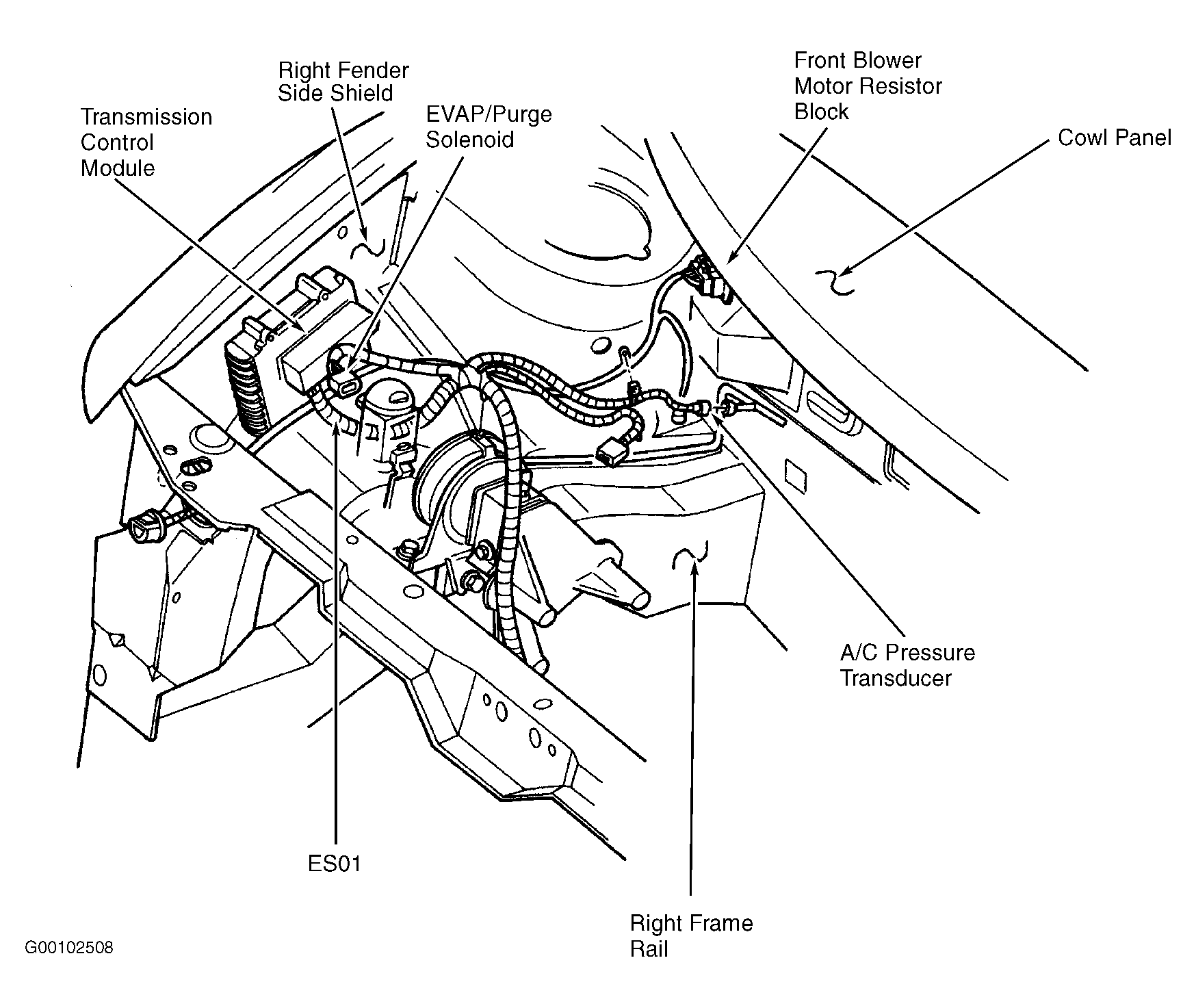

| Transmission Control Module | Right side of engine compartment. See Figure. |
