Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

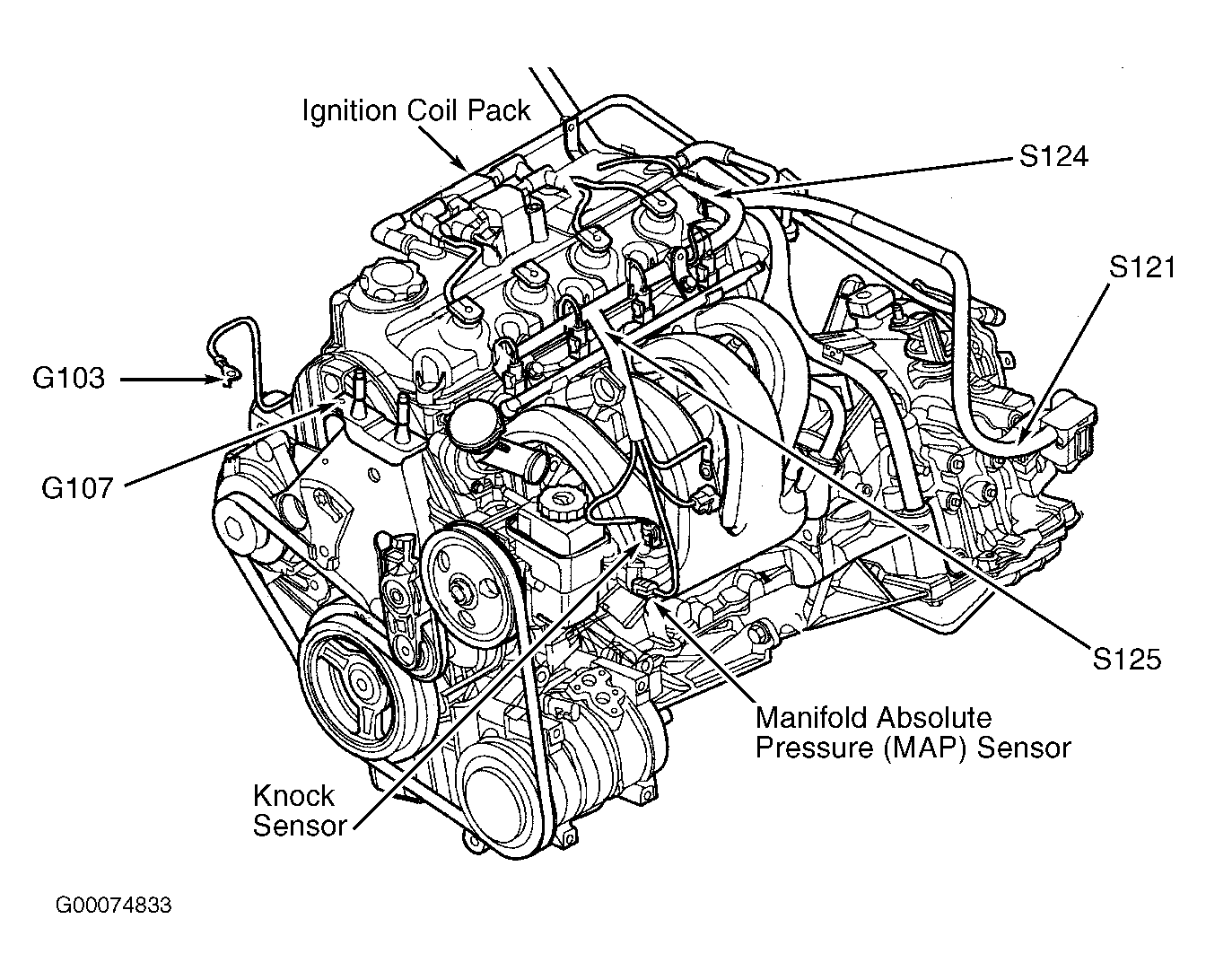

Fig 1: Left Side Of Engine
G00074833Courtesy of DAIMLERCHRYSLER CORP.
Fig 2: Transaxle
G98C63620Courtesy of DAIMLERCHRYSLER CORP.

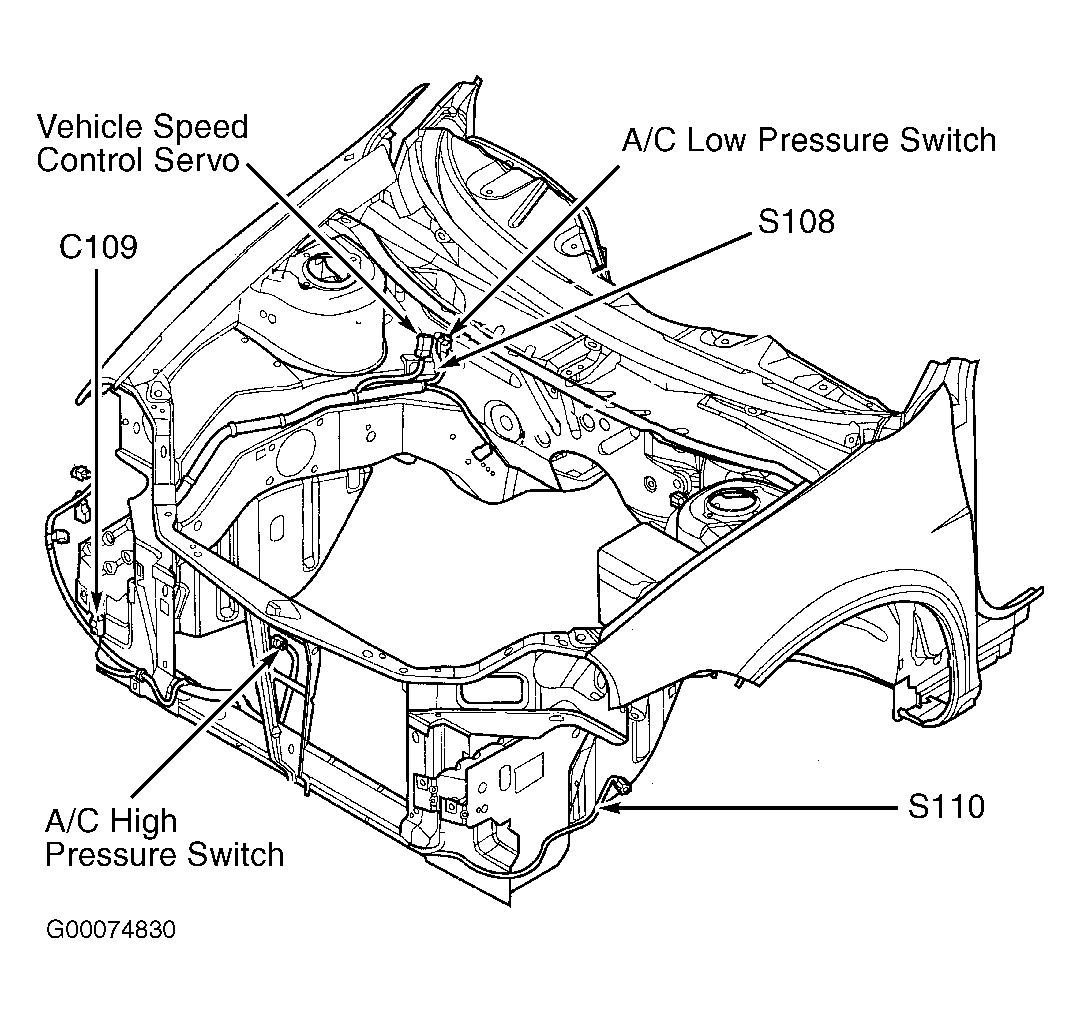

Fig 3: Rear Of Engine Compartment
G00074830Courtesy of DAIMLERCHRYSLER CORP.
Fig 4: Left Side Of Engine Compartment
G00074832Courtesy of DAIMLERCHRYSLER CORP.
