Electrical Test

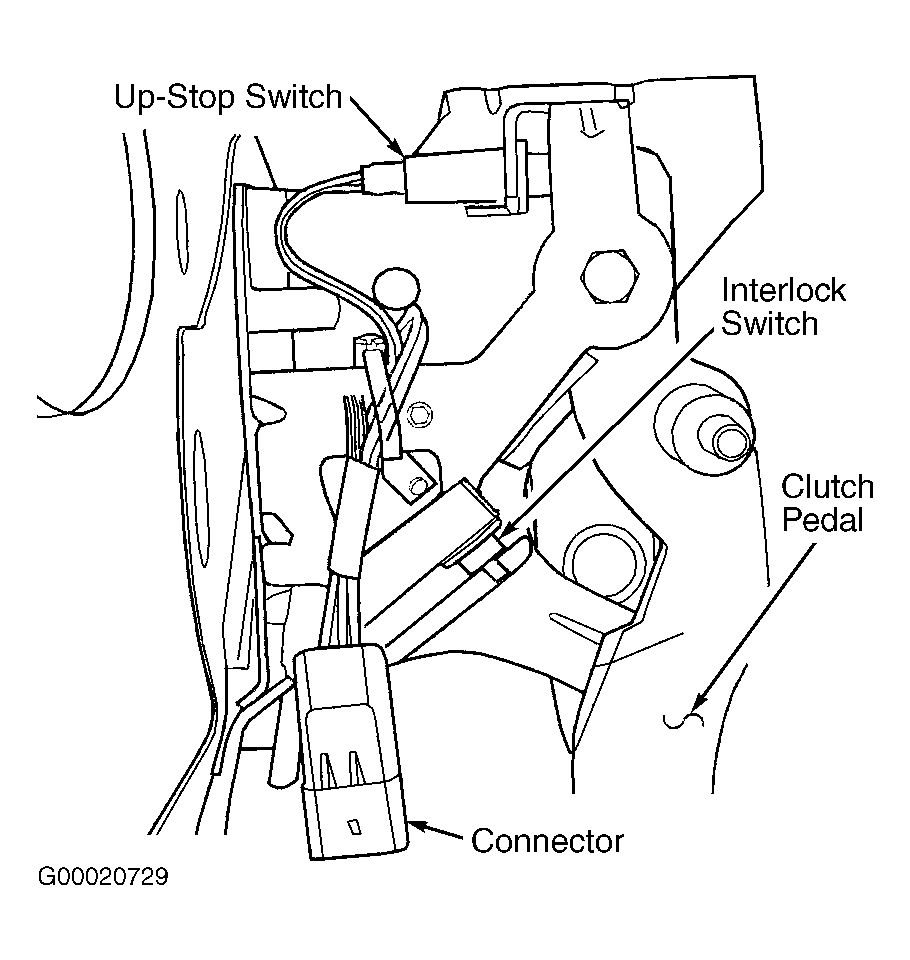

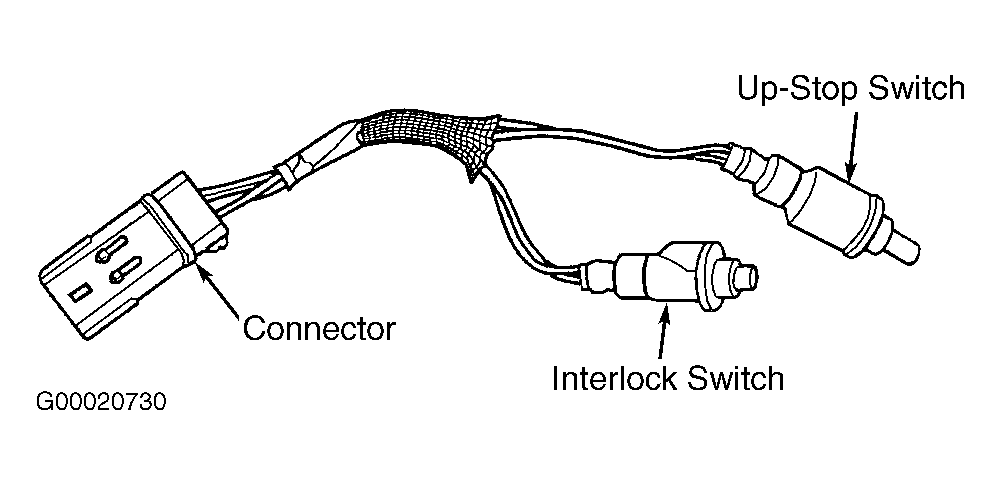

Using an ohmmeter, check for continuity between interlock switch connector terminals No. 2 and 3 with clutch depressed. See Figure and Figure . Continuity should exist. Check for continuity between switch connector terminals with clutch released. Continuity should not exist. If continuity is not as specified, replace interlock switch.
