Compass/Mini-Trip Computer

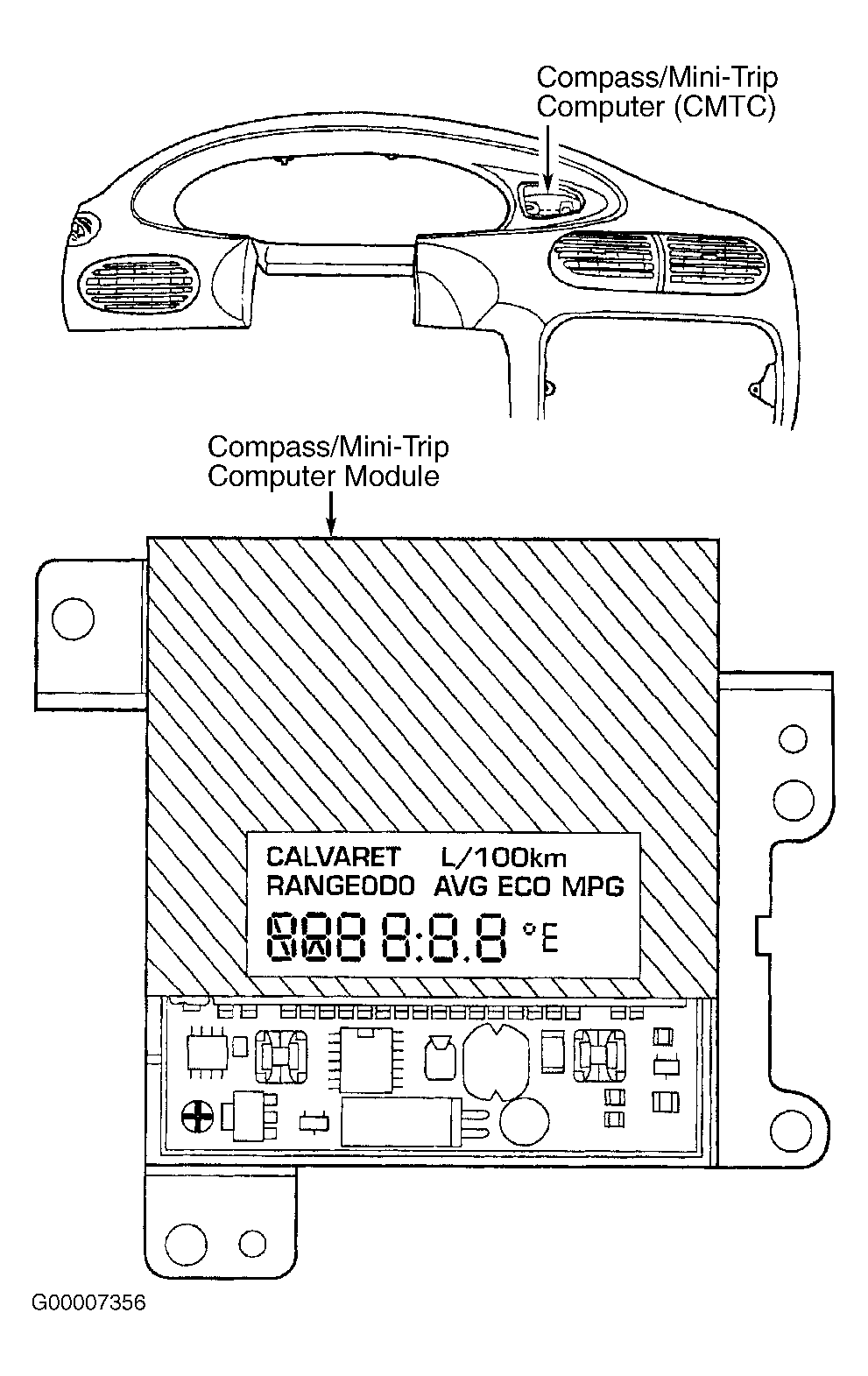

Available only on Sebring Convertible, Compass/Mini-Trip Computer (CMTC) is located on right side of instrument cluster. See Figure . This dual-function display provides a digital readout of ambient (outside) temperature and 8 primary compass readings to indicate direction in which vehicle is facing.

To calibrate CMTC, see COMPASS CALIBRATION  under PROGRAMMING. CAL will be displayed to indicate that compass is in fast calibrating mode. CAL display may be turned off after vehicle has completed 3 circles without stopping, in an area free of magnetic disturbance.
