Computer Mini-Trip Computer: Removal

  1. Remove the overhead console. See OVERHEAD CONSOLE  .
  2. Remove the mounting screws and release the map lamp wire connector from the CMTC. See Fig 1 .
  3. Remove the CMTC from the overhead console.

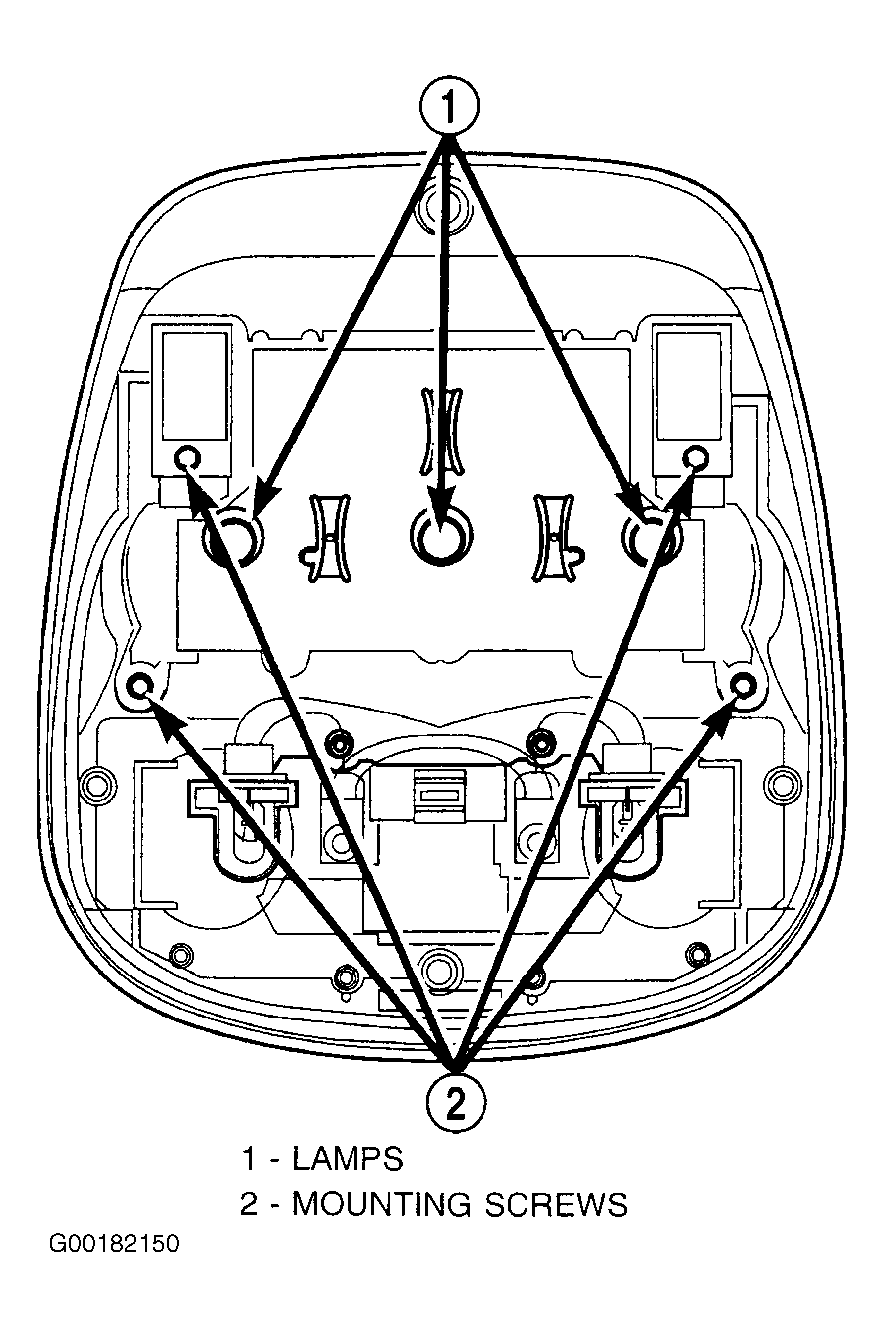

Fig 1: Removing CMTC Retaining Screws
G00182150Courtesy of CHRYSLER CORP.
