Chrysler
>>
2002
>>
Concorde LXi
>>
Repair and Diagnosis
>>
Body & Frame
>>
Body, Cab Control Systems
>>
Body Control Modules
>>
Connector Identification
Connector Identification

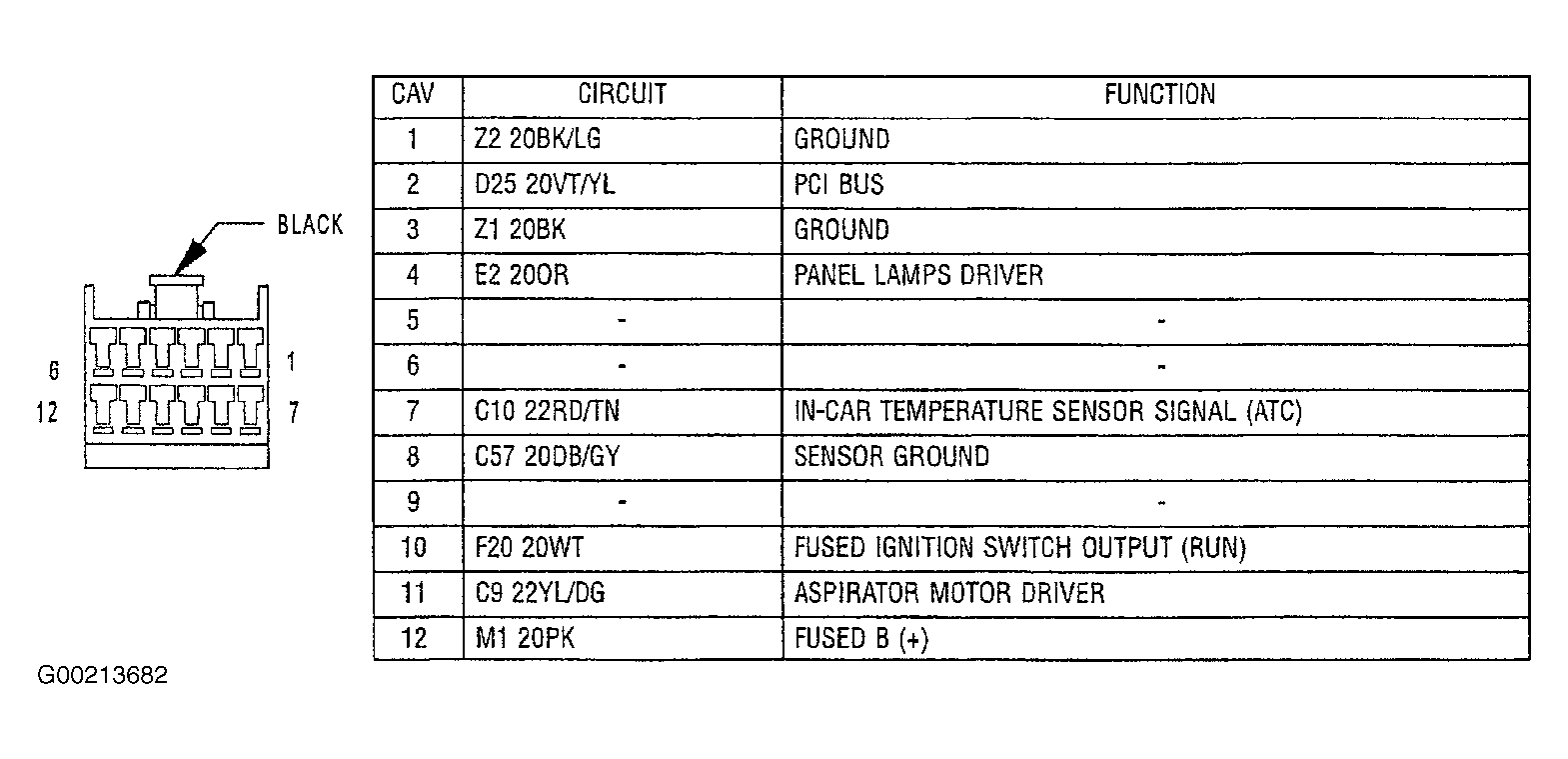

Fig 1: Identifying Automatic Temperature Control Module Connectors
Courtesy of CHRYSLER CORP.

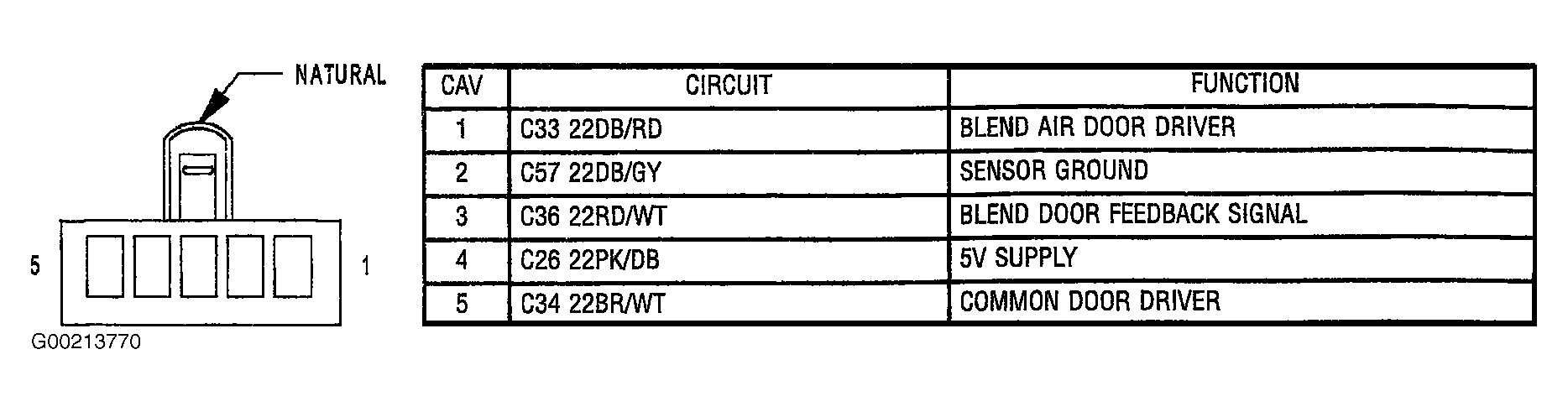

Fig 2: Identifying Blend Door Actuator Connector
Courtesy of CHRYSLER CORP.

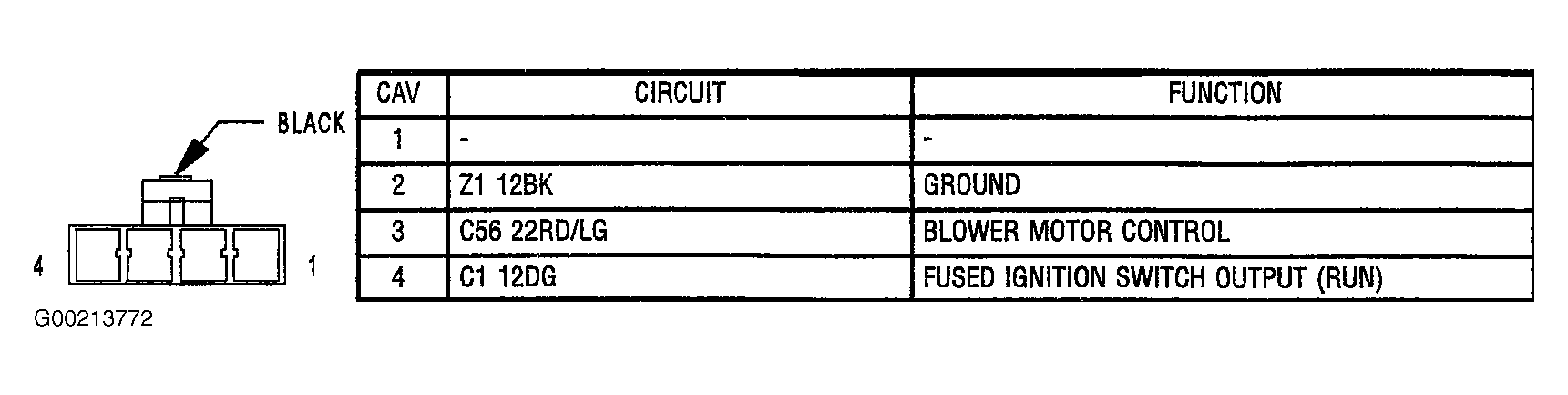

Fig 3: Identifying Blower Motor Power Module Connector
Courtesy of CHRYSLER CORP.

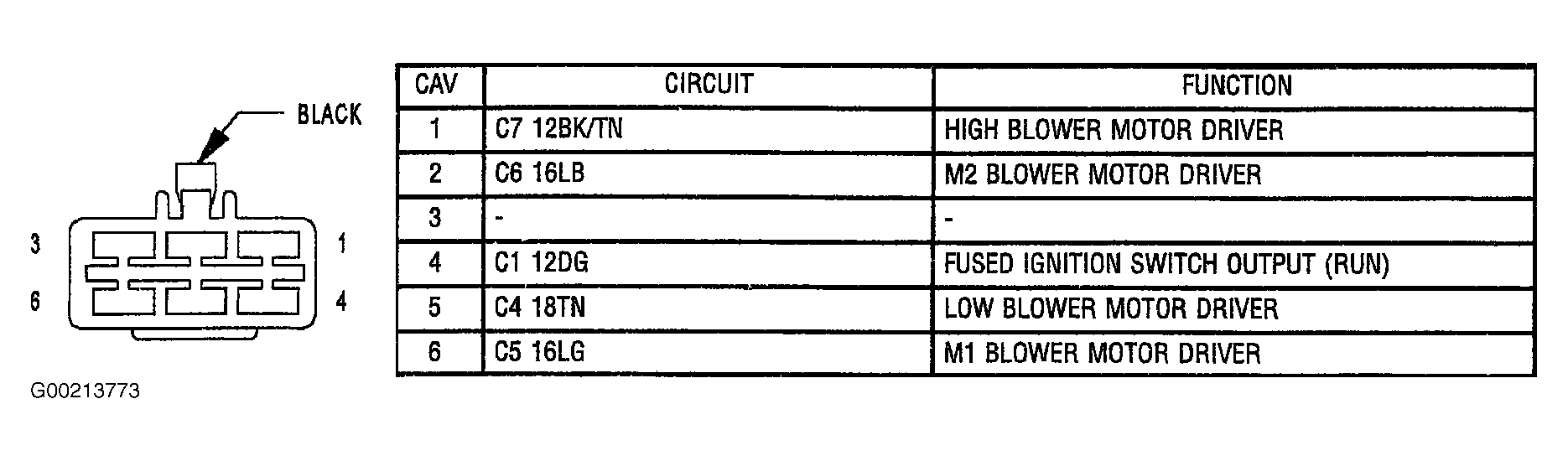

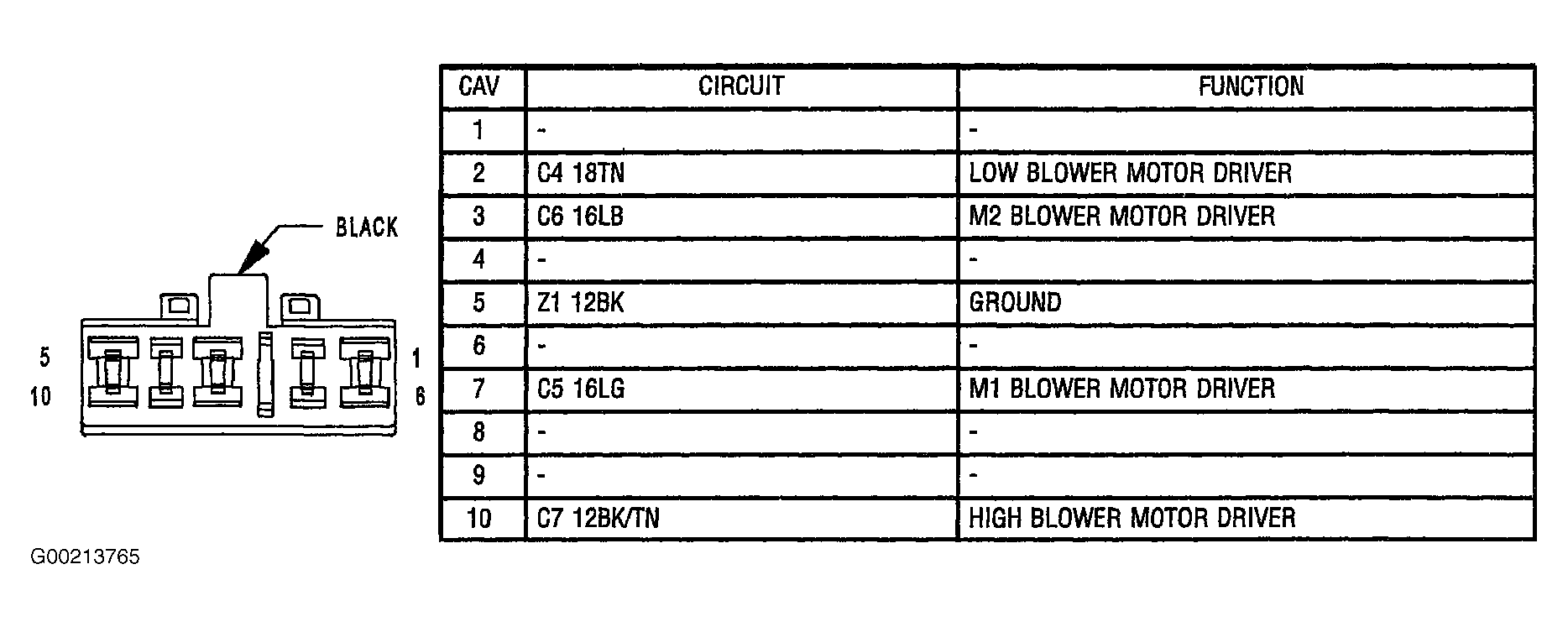

Fig 4: Identifying Blower Motor Resistor Block Connector
Courtesy of CHRYSLER CORP.
Fig 5: Identifying Body Control Module C1 Connector
Courtesy of CHRYSLER CORP.
Fig 6: Identifying Body Control Module C2 Connector
Courtesy of CHRYSLER CORP.
Fig 7: Identifying Body Control Module C3 Connector
Courtesy of CHRYSLER CORP.
Fig 8: Identifying Body Control Module C4 Connector
Courtesy of CHRYSLER CORP.

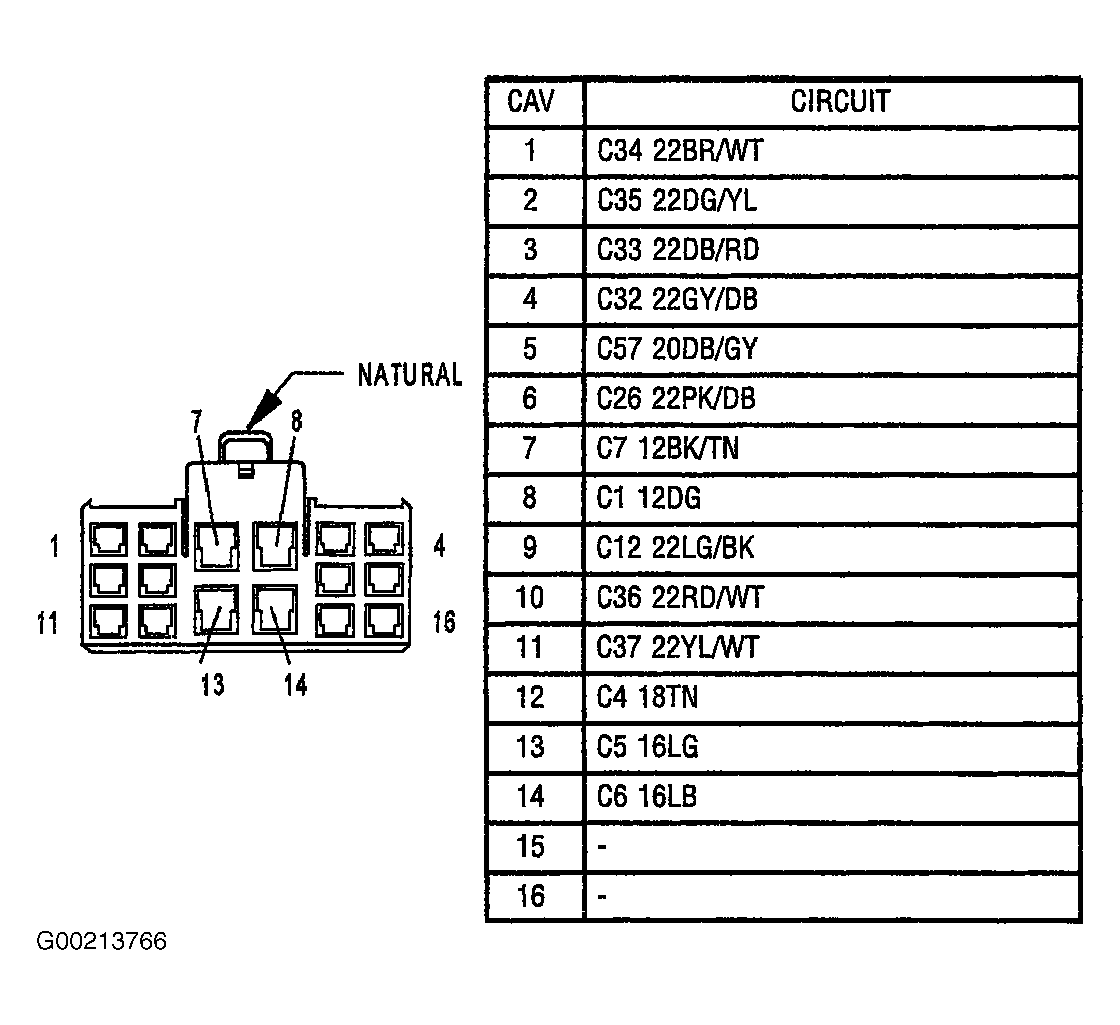

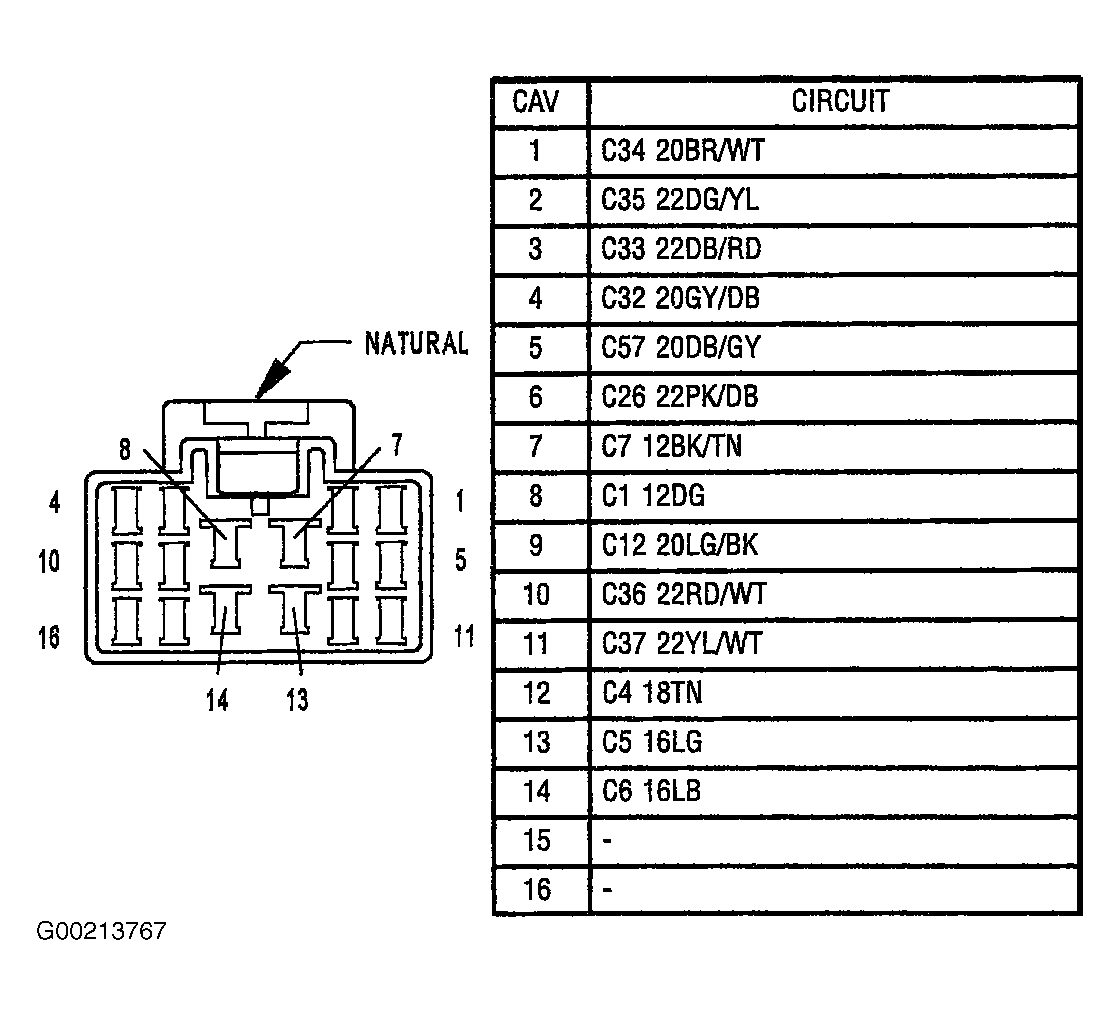

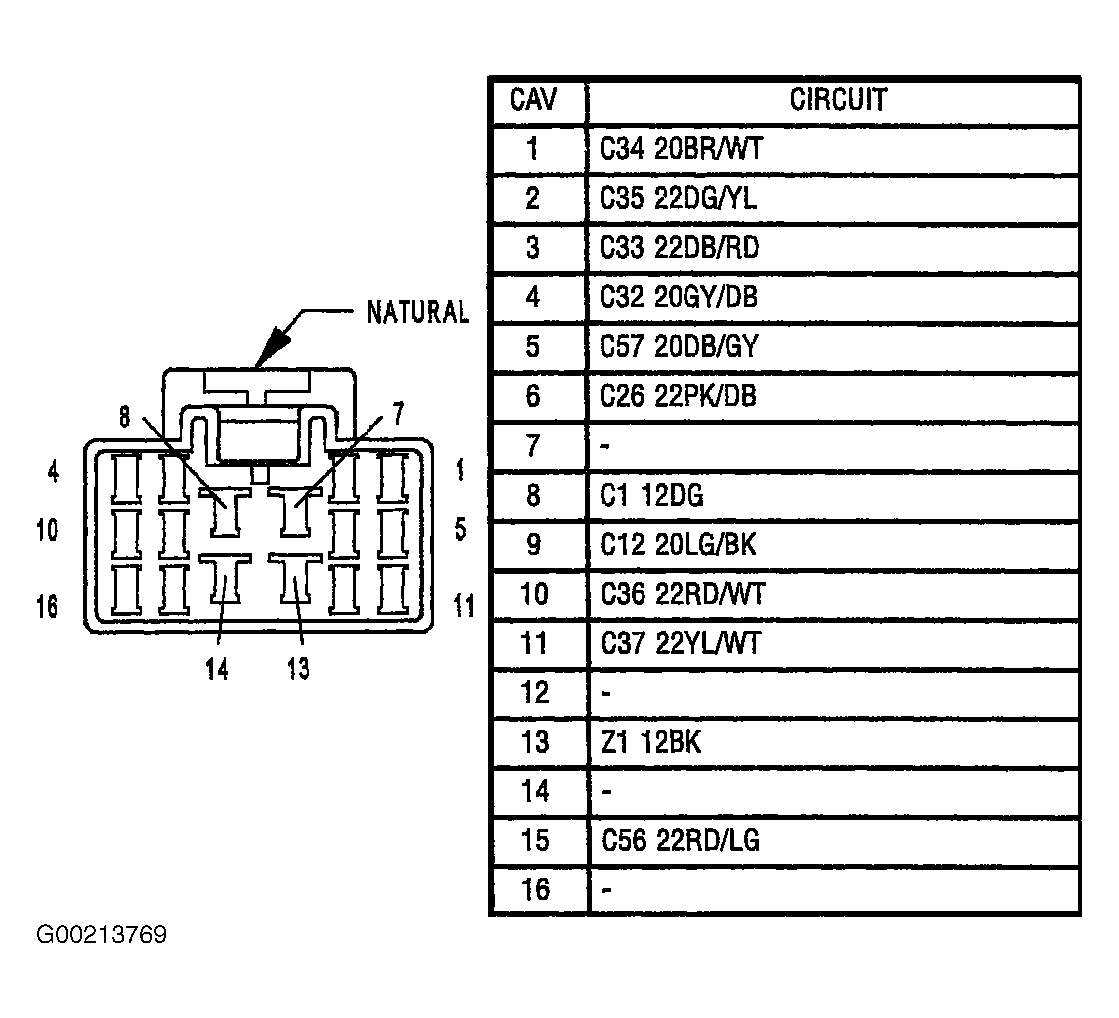

Fig 9: Identifying C202 Connector Instrument Panel Side
Courtesy of CHRYSLER CORP.

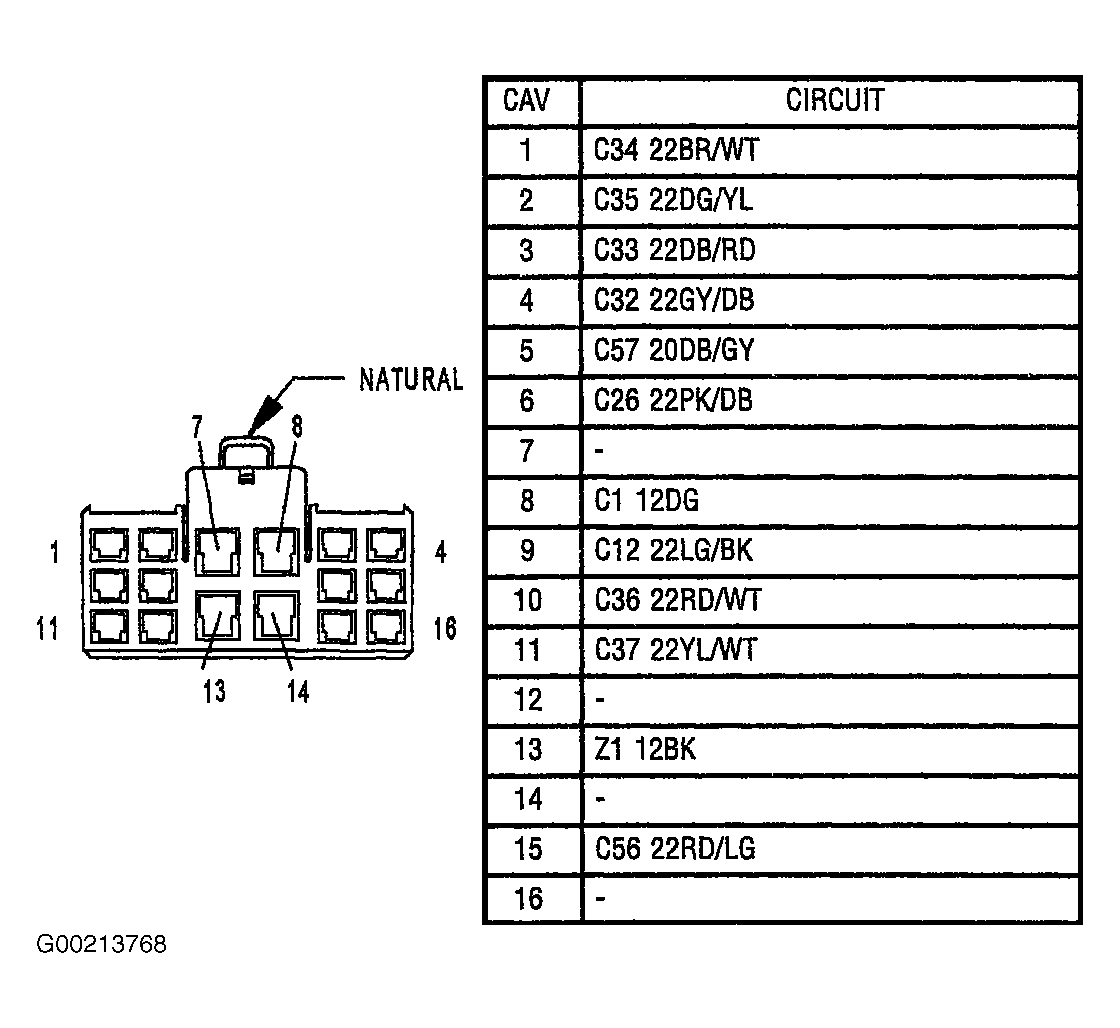

Fig 10: Identifying C202 Connector HVAC Side
Courtesy of CHRYSLER CORP.
Fig 11: Identifying C203 Connector Instrument Panel Side
Courtesy of CHRYSLER CORP.
Fig 12: Identifying C203 Connector HVAC Side
Courtesy of CHRYSLER CORP.
Fig 13: Identifying C308 Connector
Courtesy of CHRYSLER CORP.

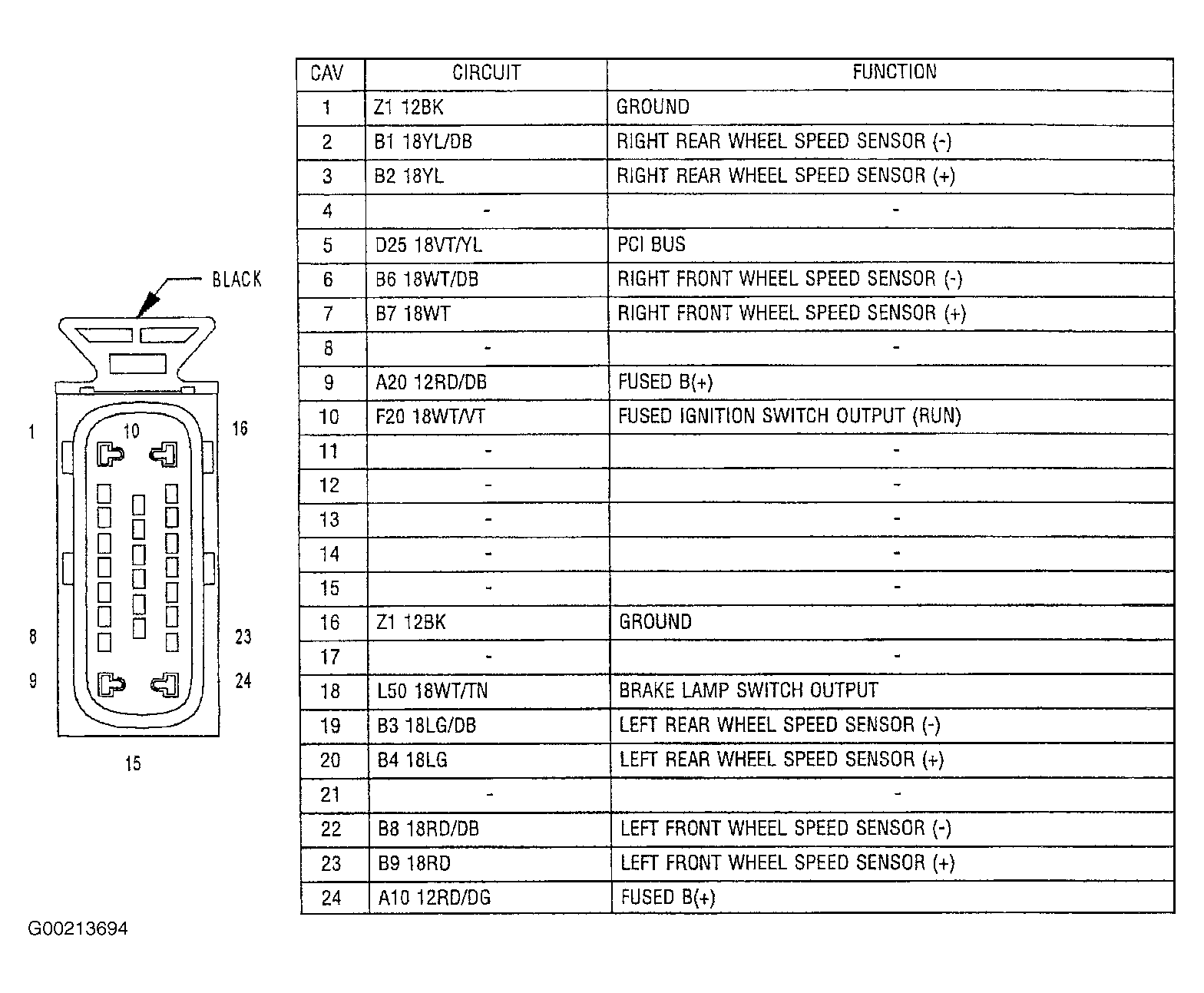

Fig 14: Identifying Controller Anti-Lock Brake Connector
Courtesy of CHRYSLER CORP.
Fig 15: Identifying Data Link Connector
Courtesy of CHRYSLER CORP.

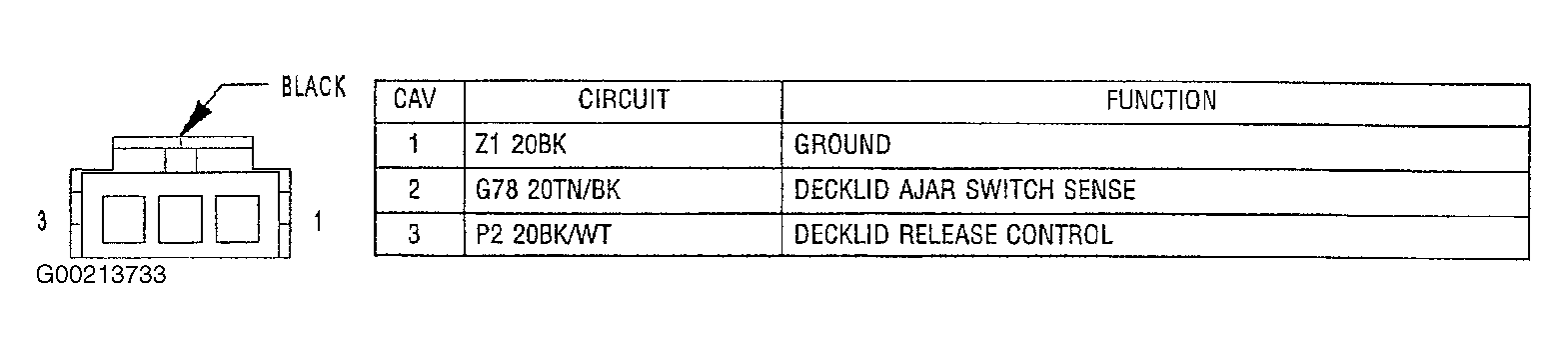

Fig 16: Identifying Deck Lid Release Solenoid/Ajar Switch Connector
Courtesy of CHRYSLER CORP.

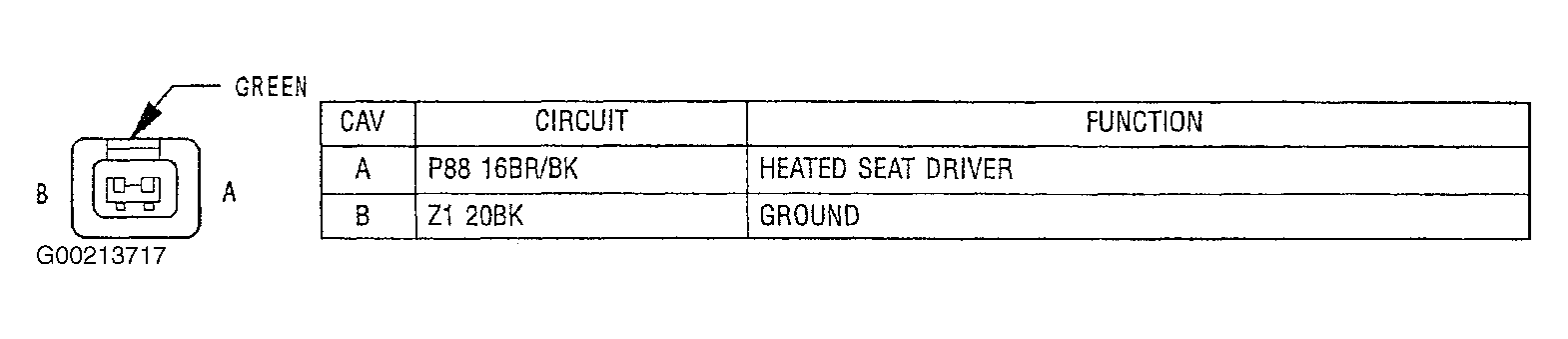

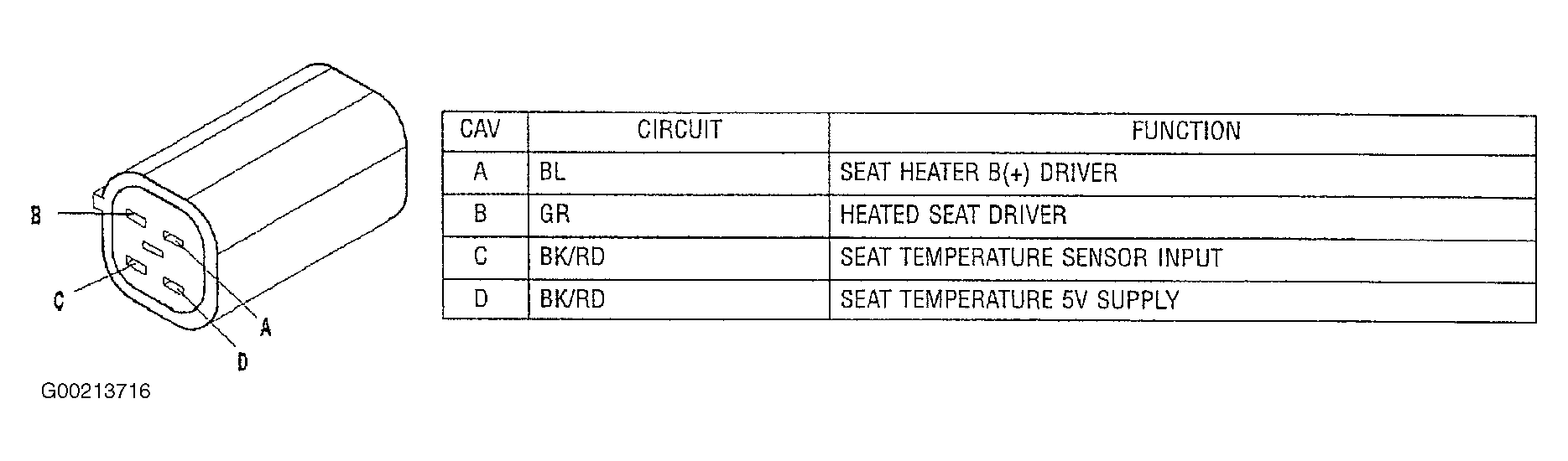

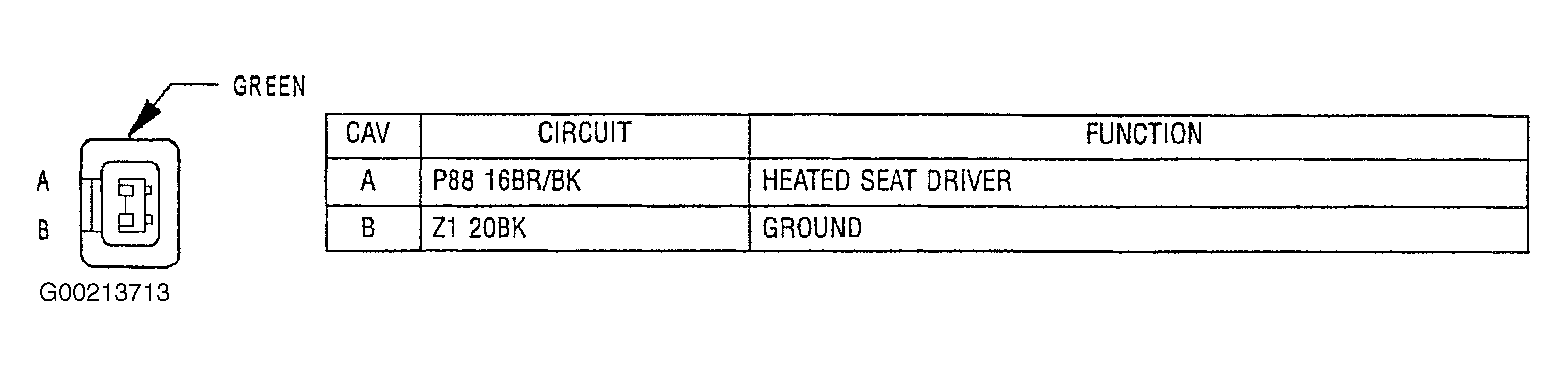

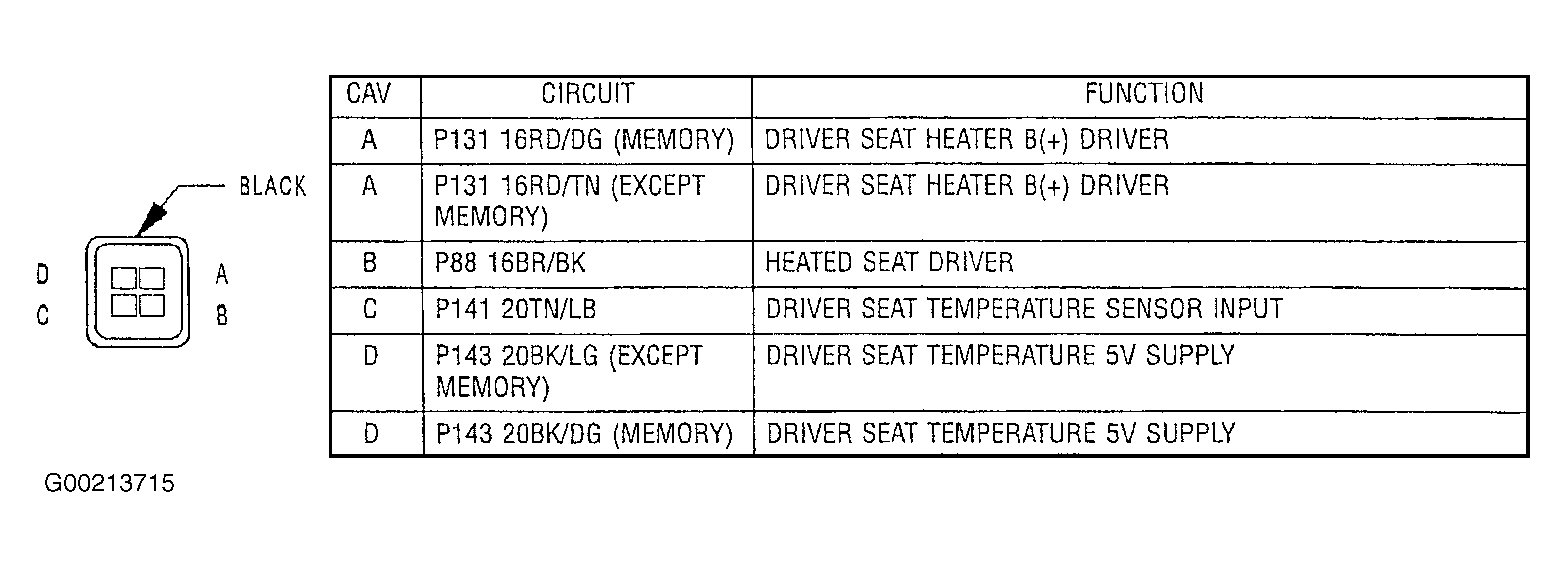

Fig 17: Identifying Driver Heated Seat Cushion Connector
Courtesy of CHRYSLER CORP.

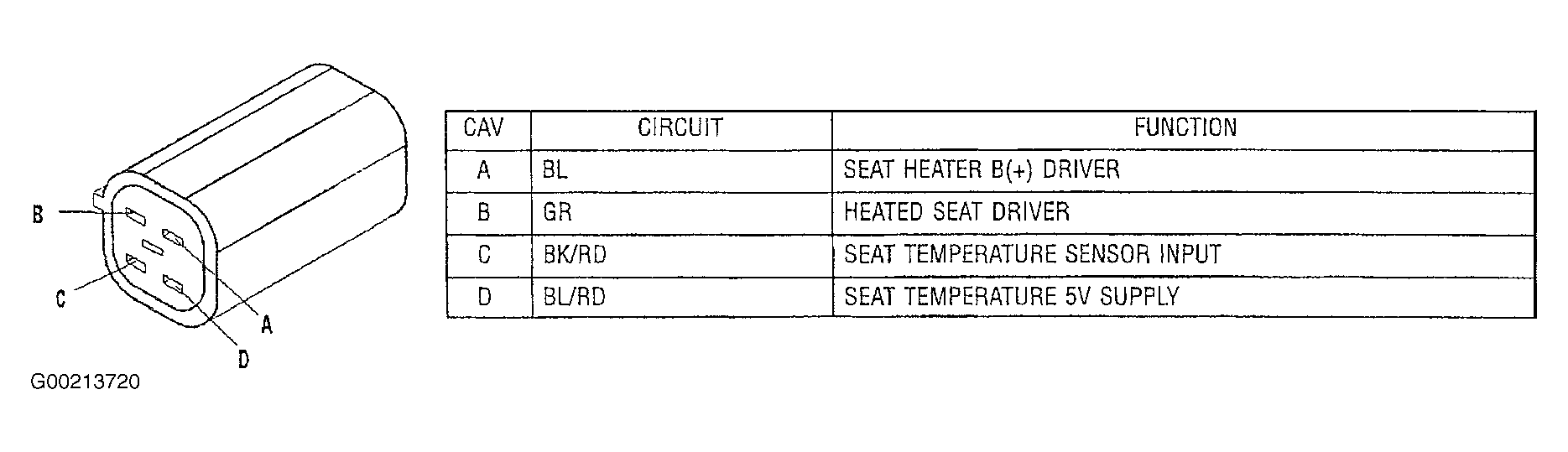

Fig 18: Identifying Driver Heated Seat Cushion (Cushion Side) Connector
Courtesy of CHRYSLER CORP.

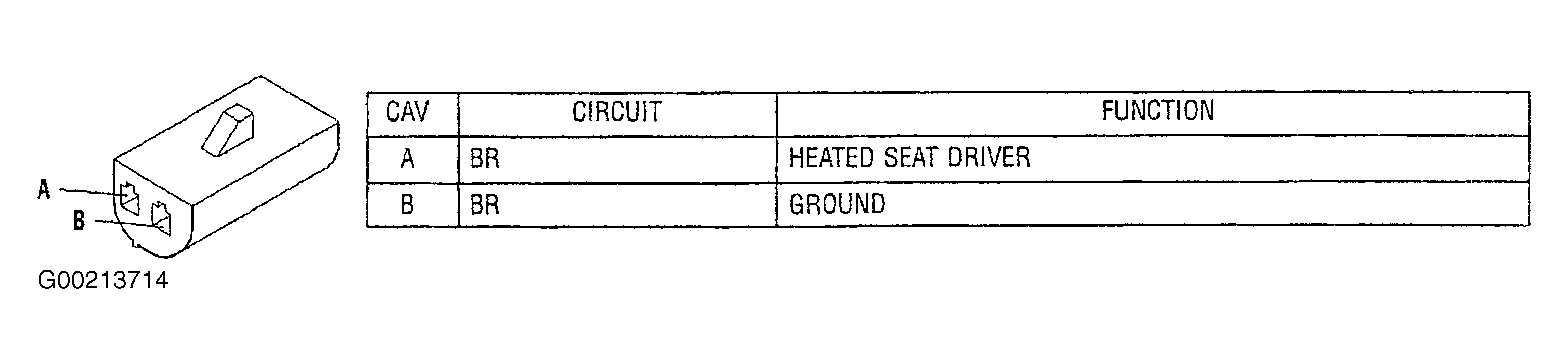

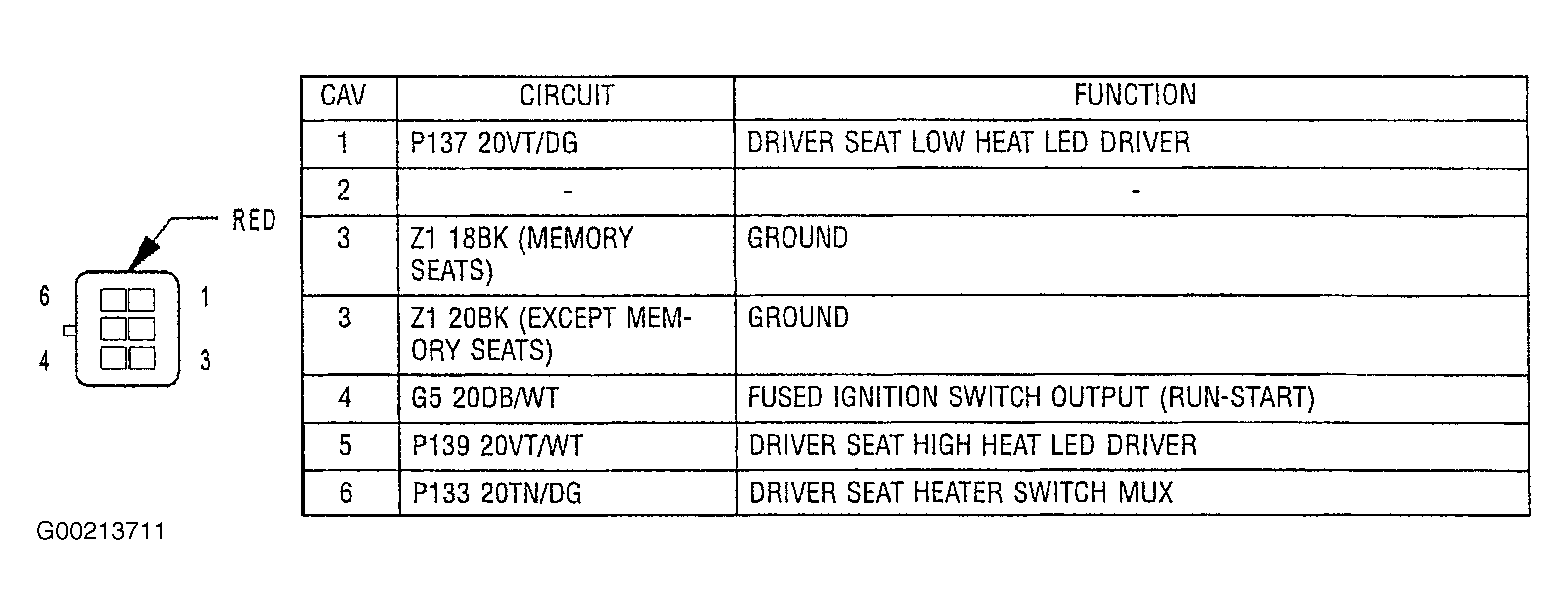

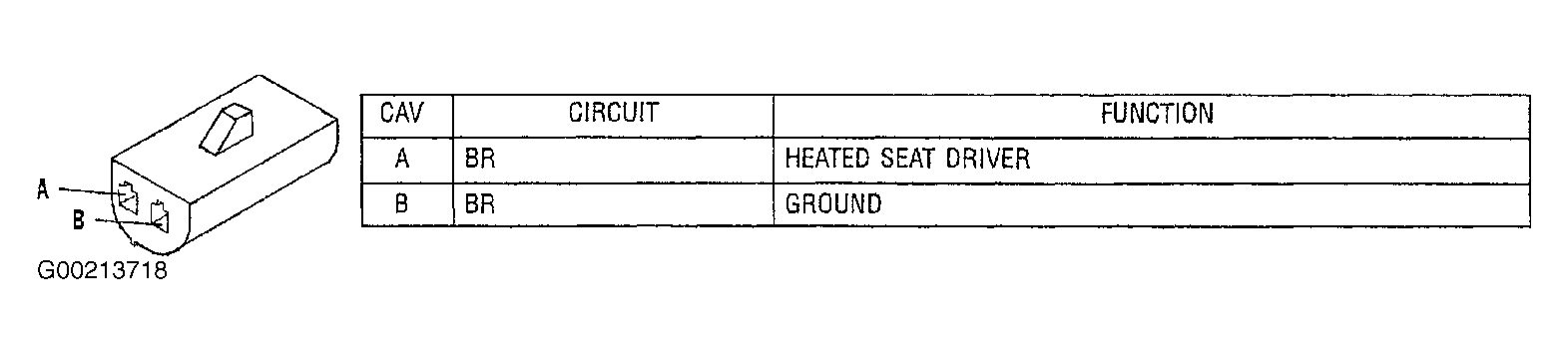

Fig 19: Identifying Driver Heated Seat Switch Connector
Courtesy of CHRYSLER CORP.

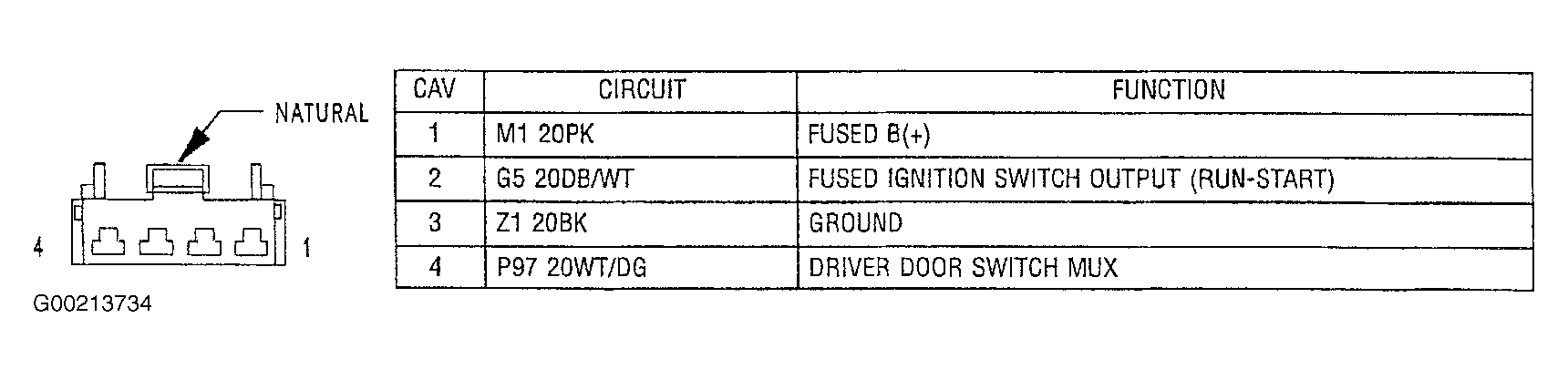

Fig 20: Identifying Power Door Lock Switch Connector
Courtesy of CHRYSLER CORP.

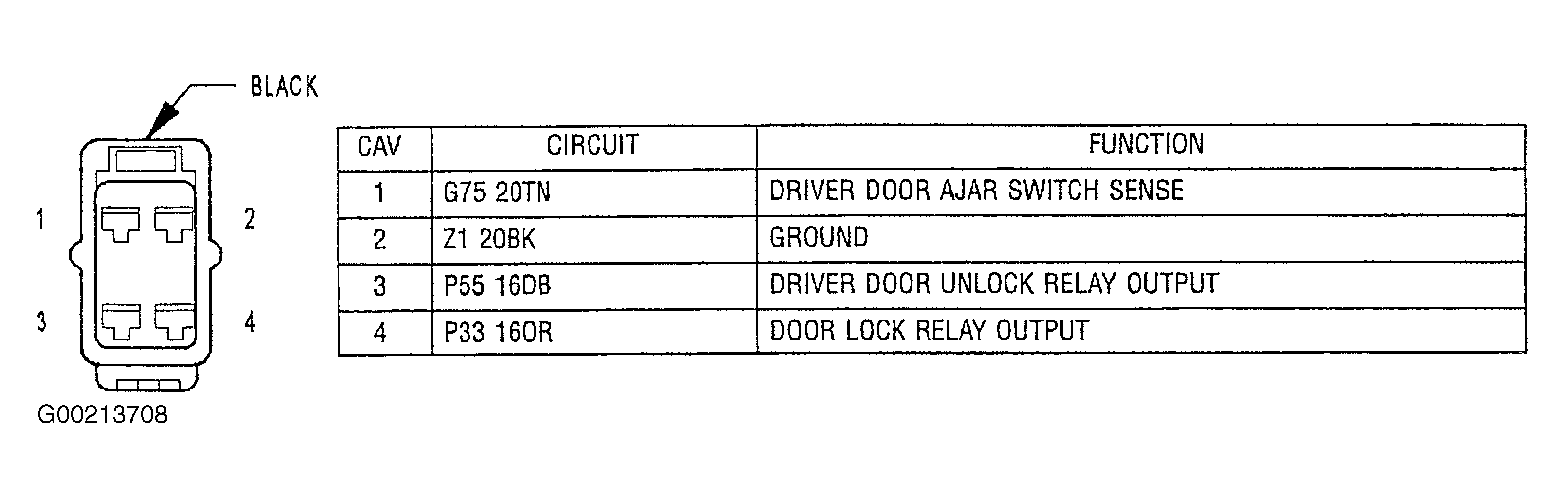

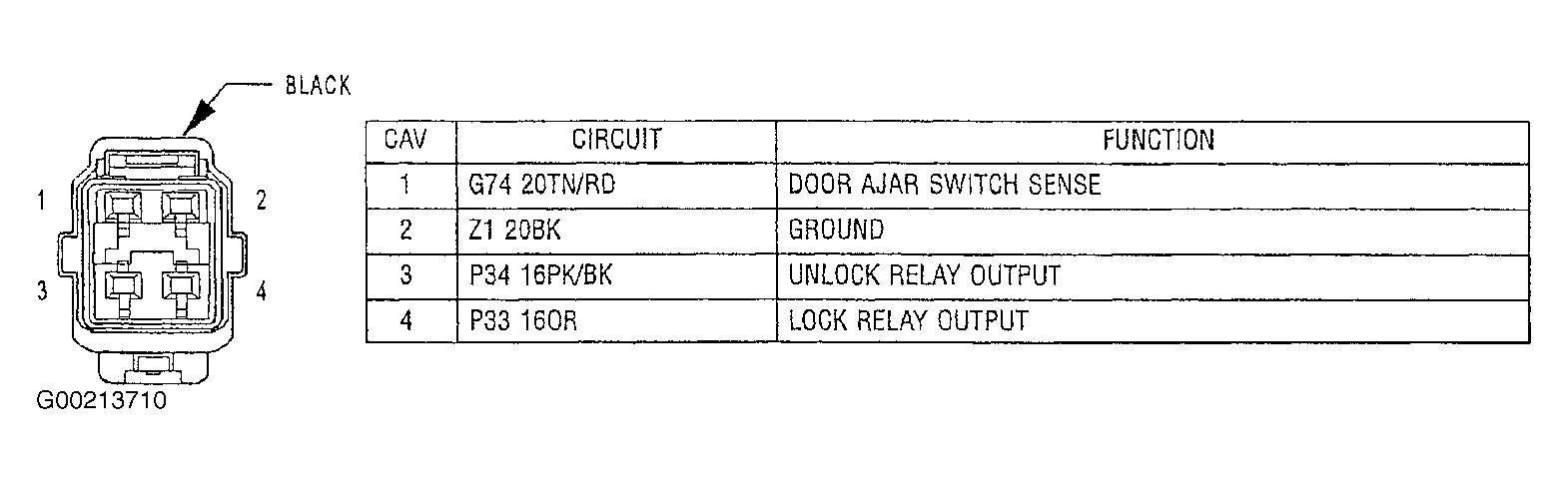

Fig 21: Identifying Driver Door Lock Motor/Ajar Switch Connector
Courtesy of CHRYSLER CORP.
Fig 22: Identifying Driver Heated Seat Back Connector
Courtesy of CHRYSLER CORP.
Fig 23: Identifying Driver Heated Seat Back (Seat Back Side) Connector
Courtesy of CHRYSLER CORP.
Fig 24: Identifying Driver Power Mirror Connector (Memory)
Courtesy of CHRYSLER CORP.
Fig 25: Identifying Driver Power Seat Front Riser Motor Sensor (Memory)
Courtesy of CHRYSLER CORP.

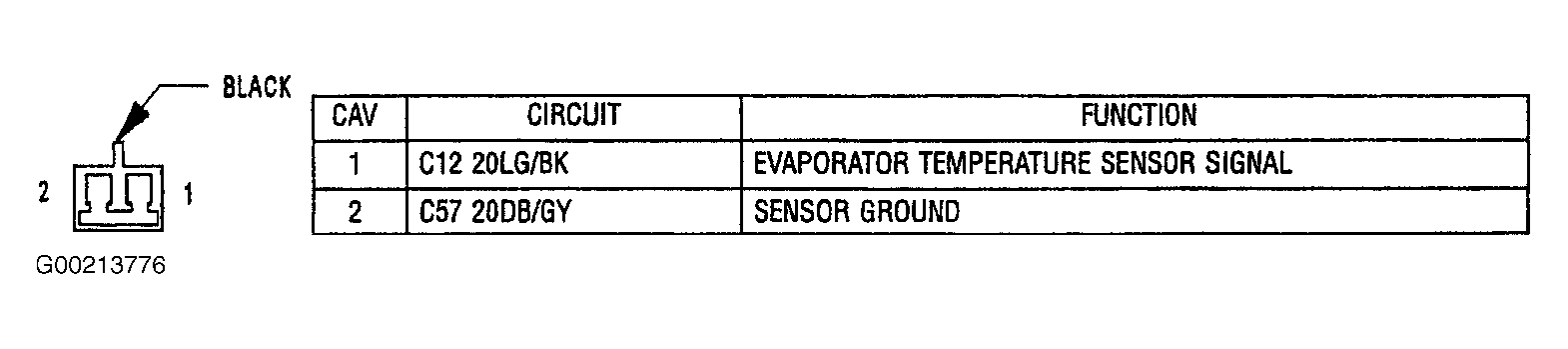

Fig 26: Identifying Evaporator Temperature Sensor Connector
Courtesy of CHRYSLER CORP.
Fig 27: Identifying Headlight Switch Connector
Courtesy of CHRYSLER CORP.

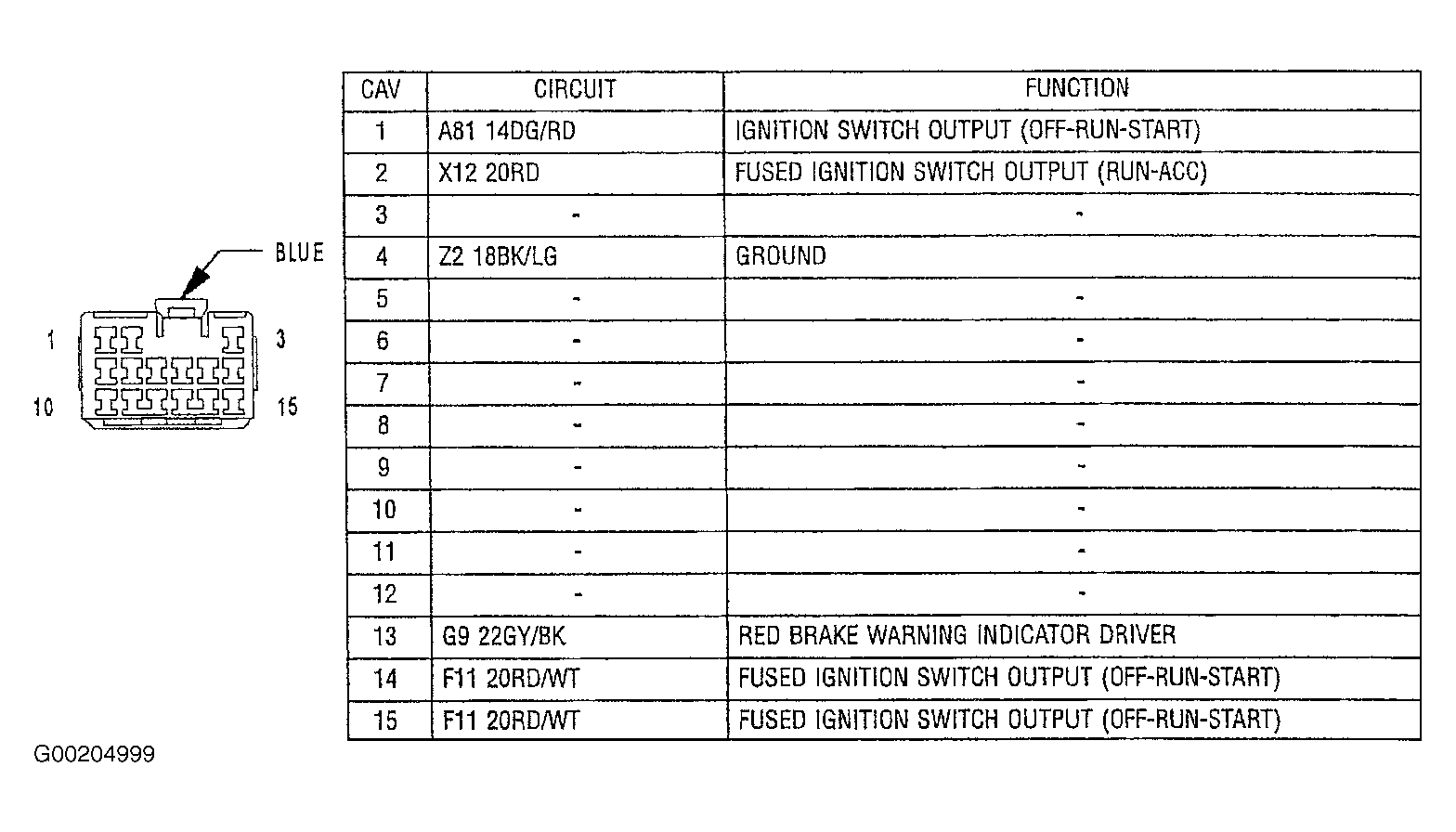

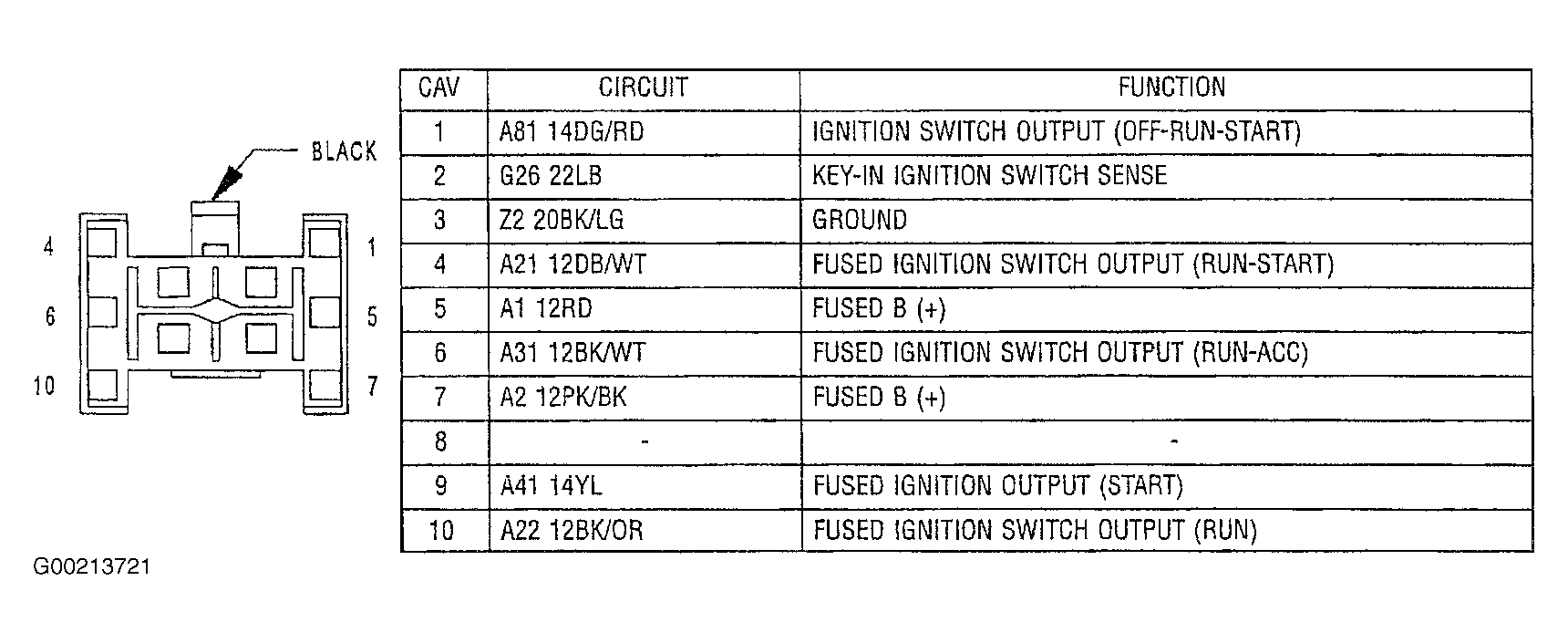

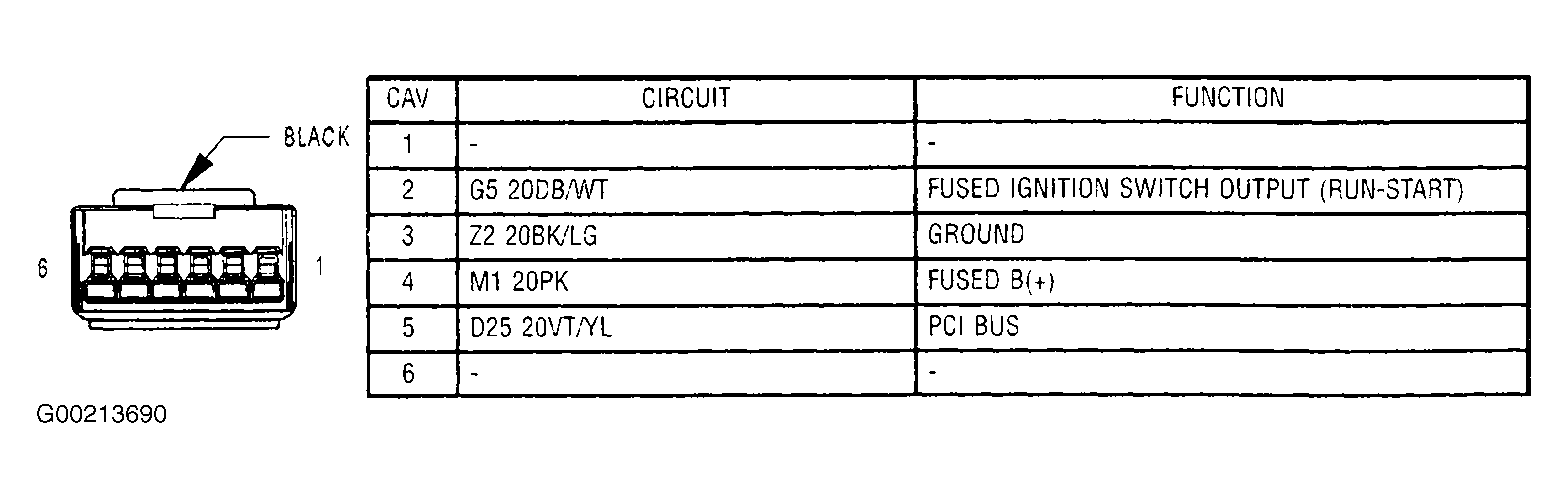

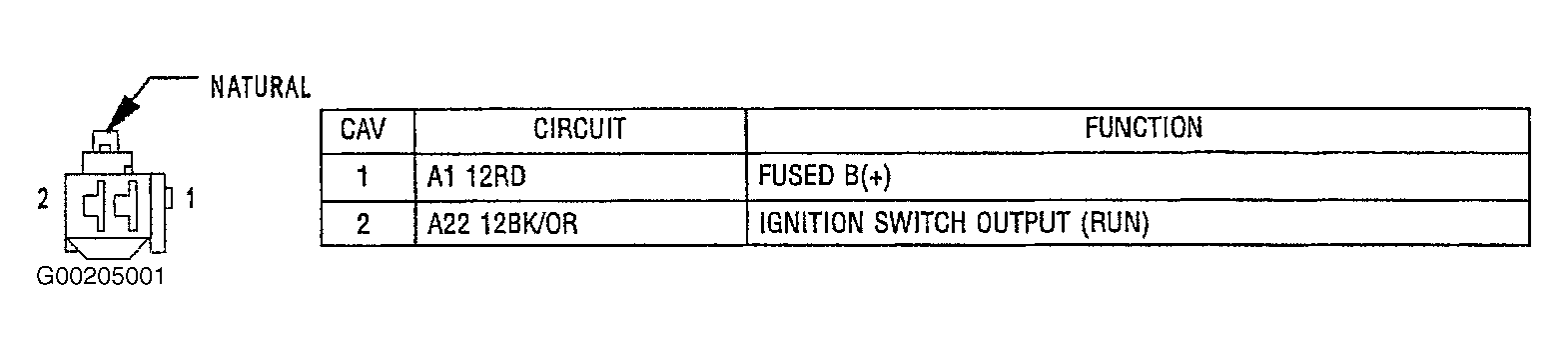

Fig 28: Identifying Ignition Switch Connector
Courtesy of CHRYSLER CORP.

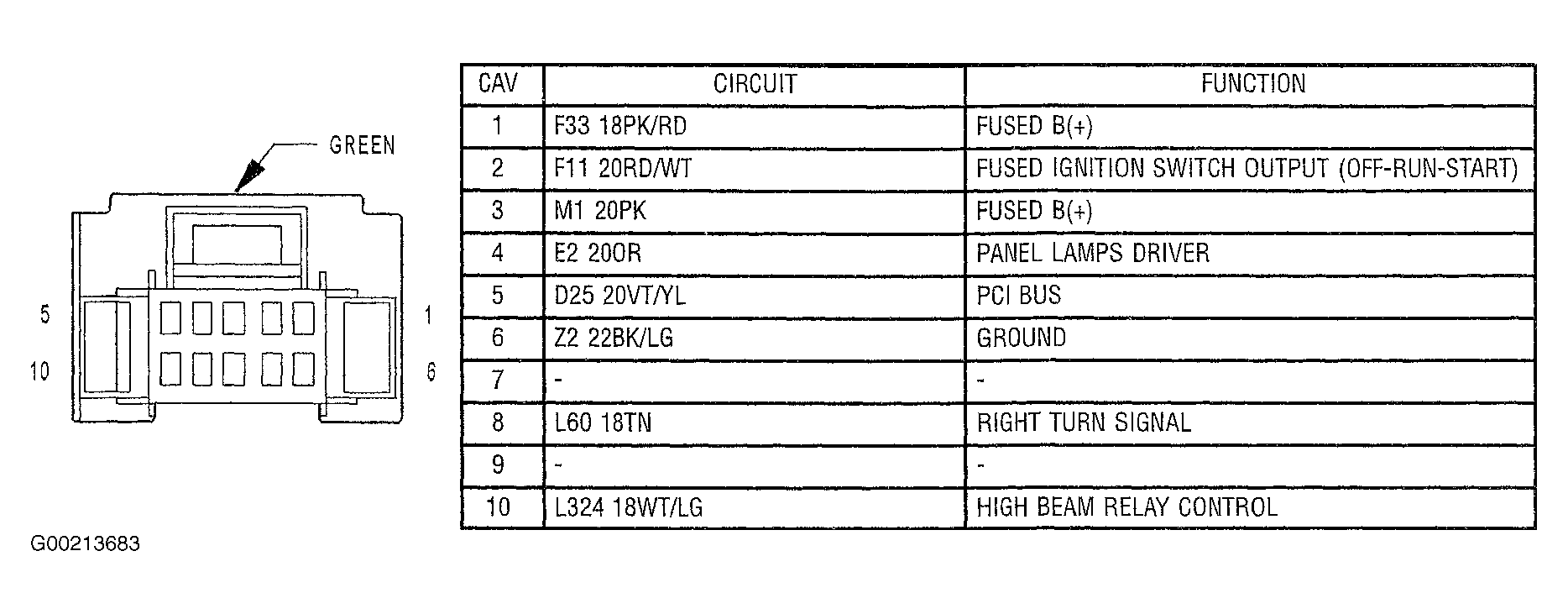

Fig 29: Identifying Instrument Cluster C1 Connector
Courtesy of CHRYSLER CORP.
Fig 30: Identifying Instrument Cluster C2 Connector
Courtesy of CHRYSLER CORP.

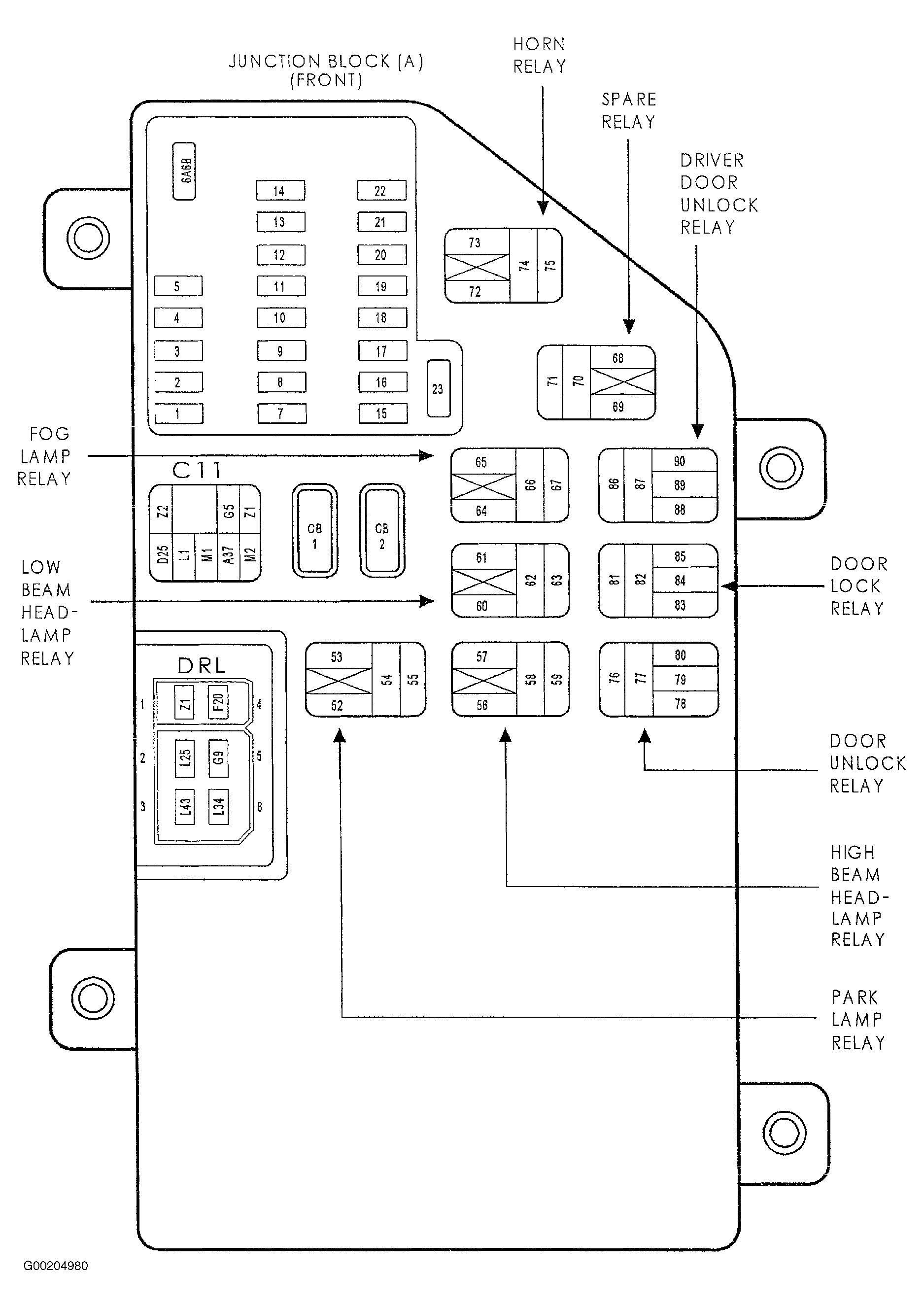

Fig 31: Identifying Junction Block (Front View)
Courtesy of CHRYSLER CORP.
Fig 32: Identifying Junction Block (Rear View)
Courtesy of CHRYSLER CORP.

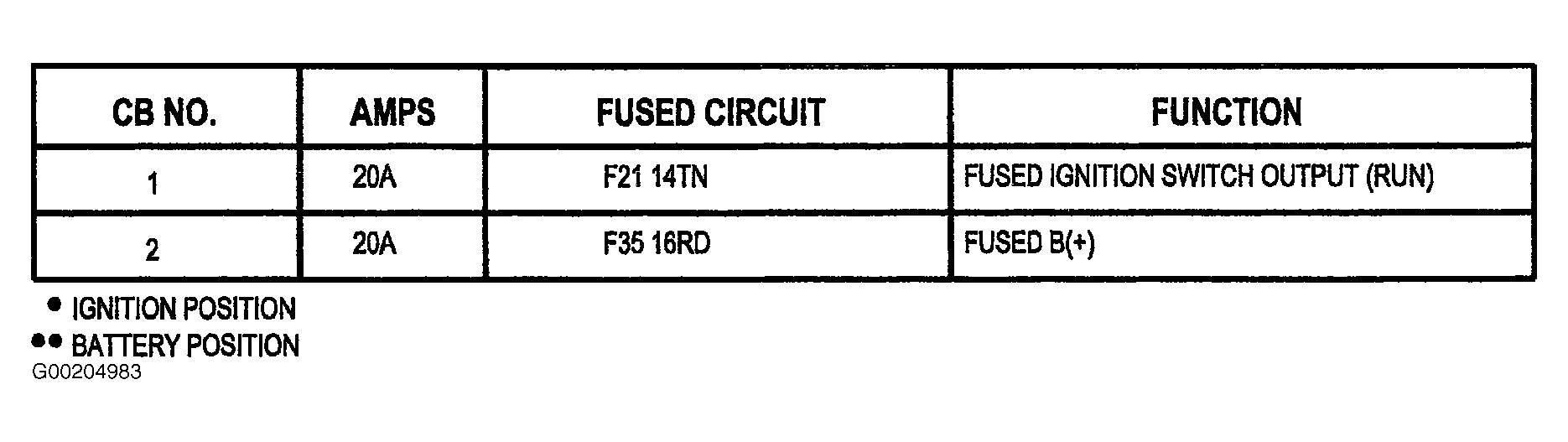

Fig 33: Identifying Junction Block Circuit Breakers
Courtesy of CHRYSLER CORP.

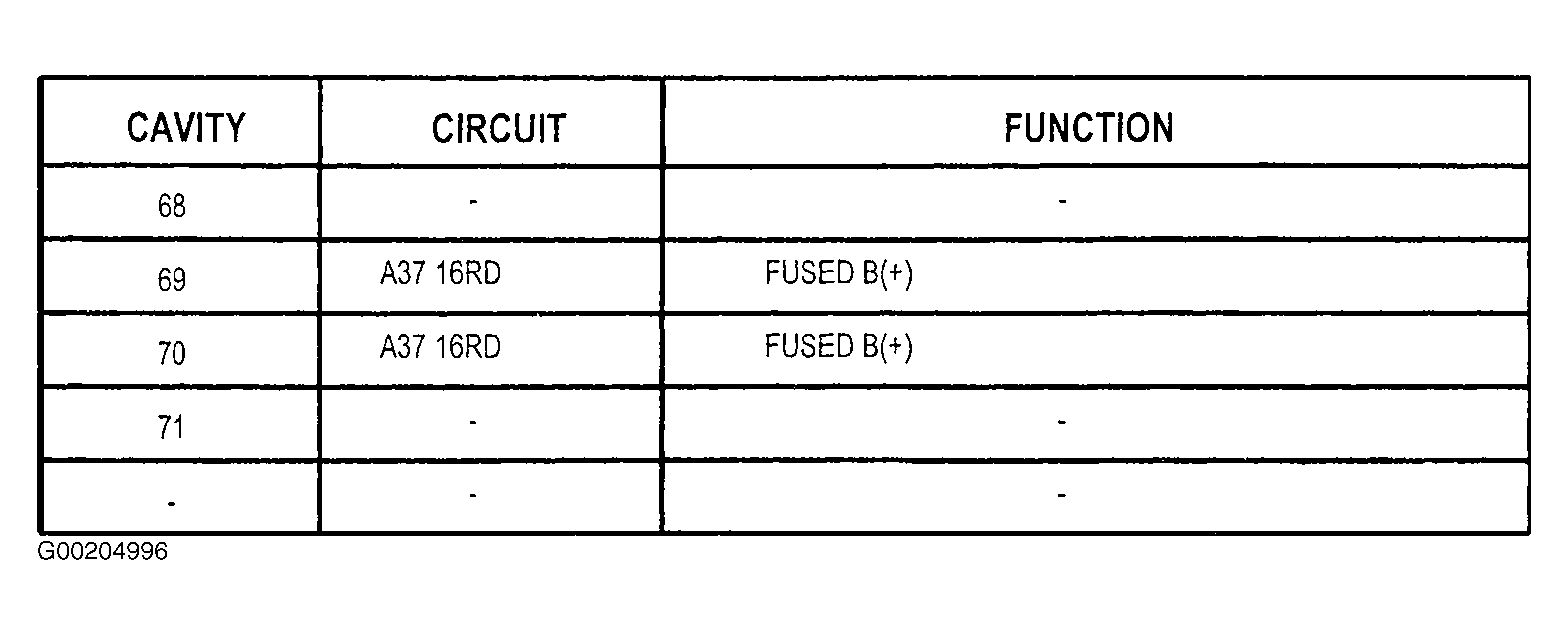

Fig 34: Identifying Junction Block Body Control Module Connector
Courtesy of CHRYSLER CORP.

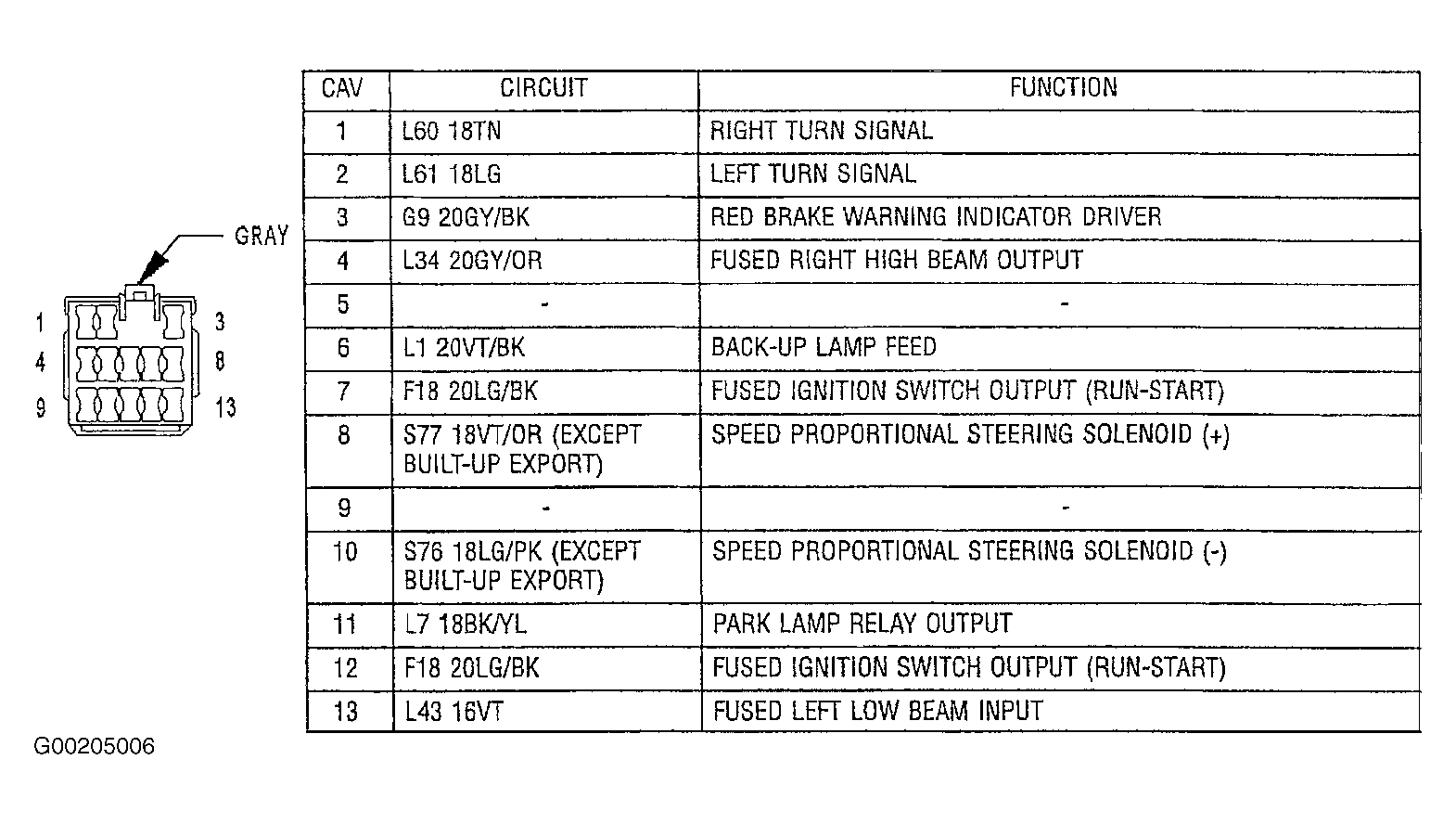

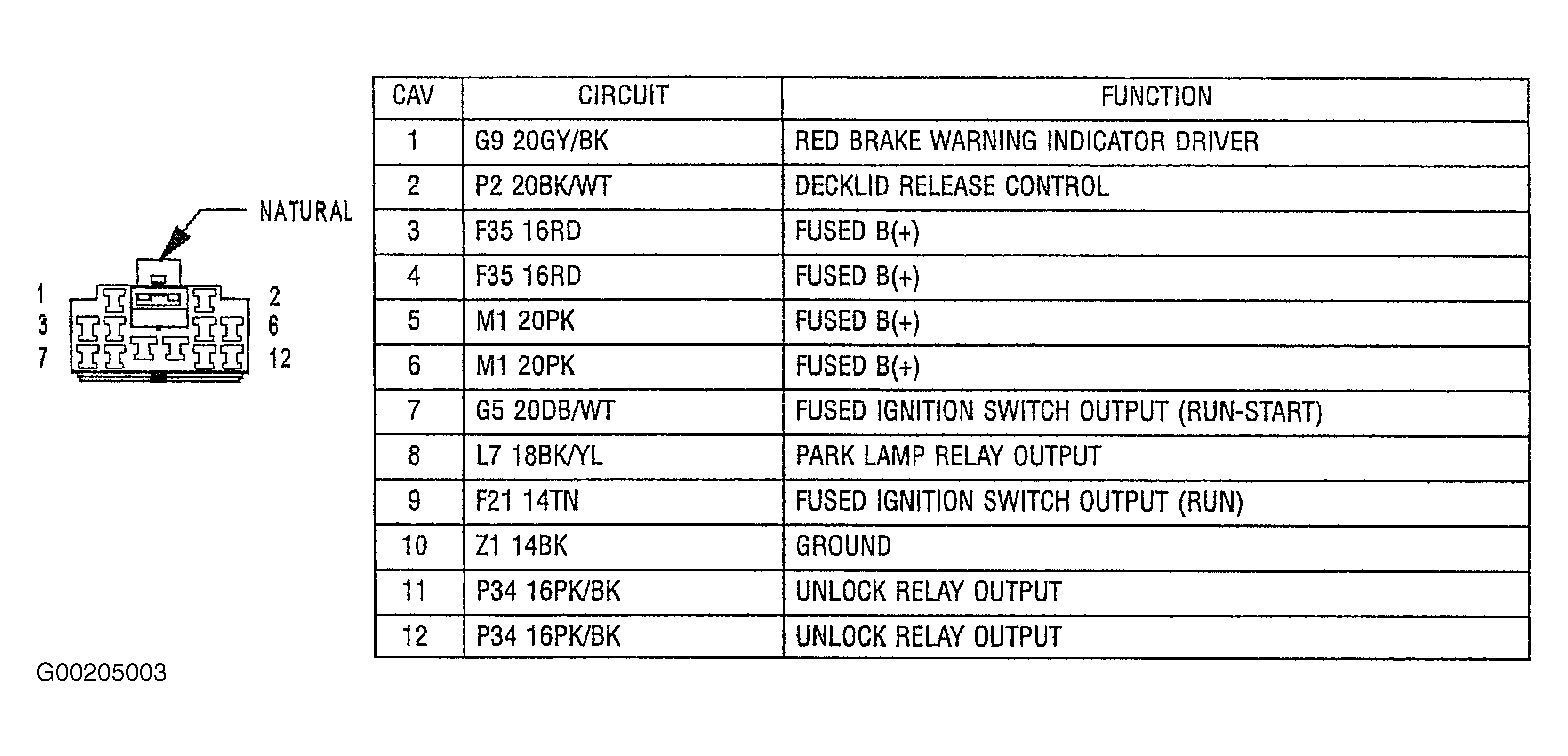

Fig 35: Identifying Junction Block C1 Connector
Courtesy of CHRYSLER CORP.
Fig 36: Identifying Junction Block C2 Connector
Courtesy of CHRYSLER CORP.

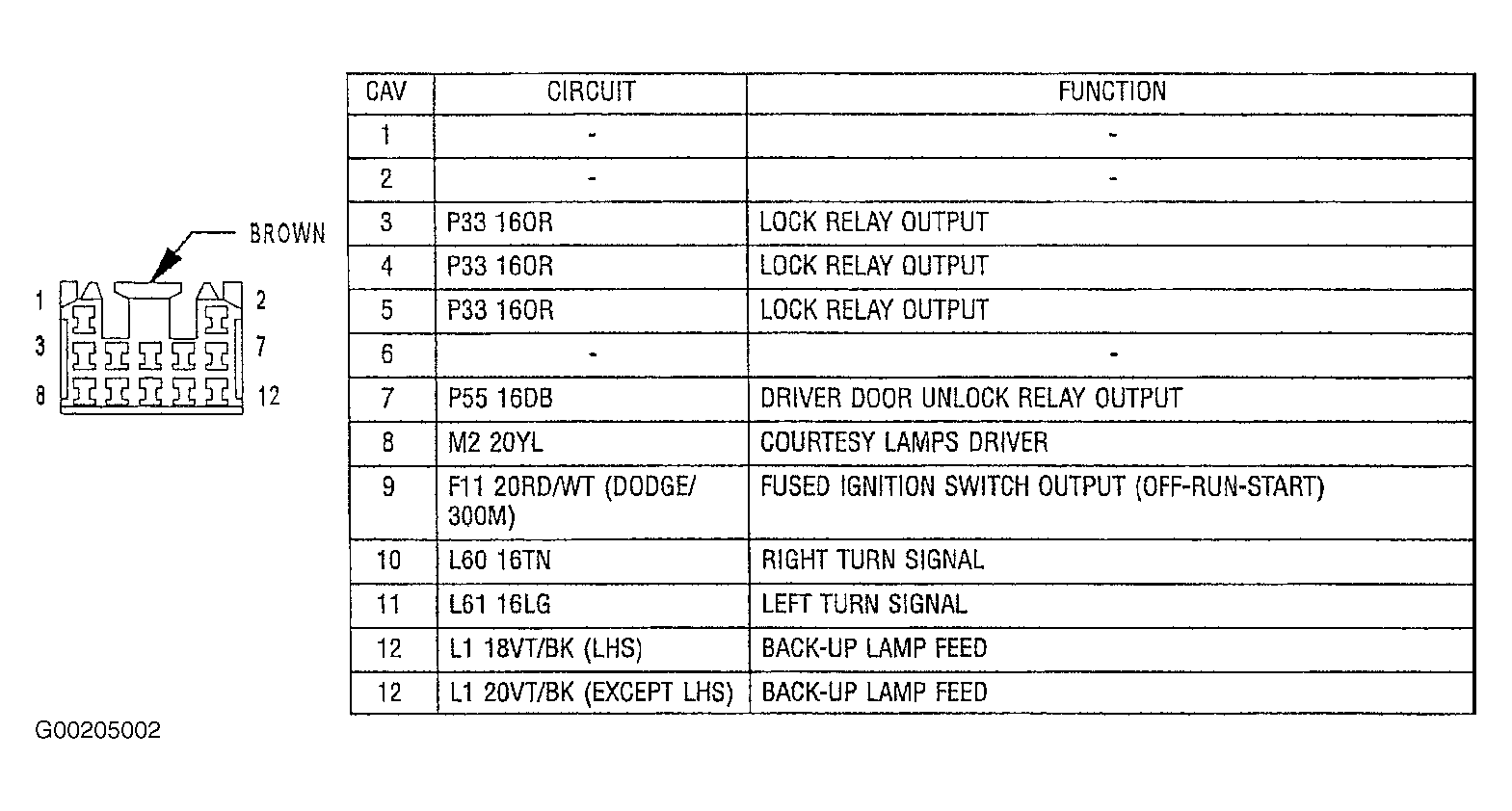

Fig 37: Identifying Junction Block C3 Connector
Courtesy of CHRYSLER CORP.
Fig 38: Identifying Junction Block C4 Connector
Courtesy of CHRYSLER CORP.
Fig 39: Identifying Junction Block C5 Connector
Courtesy of CHRYSLER CORP.
Fig 40: Identifying Junction Block C6 Connector
Courtesy of CHRYSLER CORP.
Fig 41: Identifying Junction Block C7 Connector
Courtesy of CHRYSLER CORP.
Fig 42: Identifying Junction Block C8 Connector
Courtesy of CHRYSLER CORP.
Fig 43: Identifying Junction Block C9 Connector
Courtesy of CHRYSLER CORP.
Fig 44: Identifying Junction Block C10 Connector
Courtesy of CHRYSLER CORP.
Fig 45: Identifying Junction Block C11 Connector
Courtesy of CHRYSLER CORP.

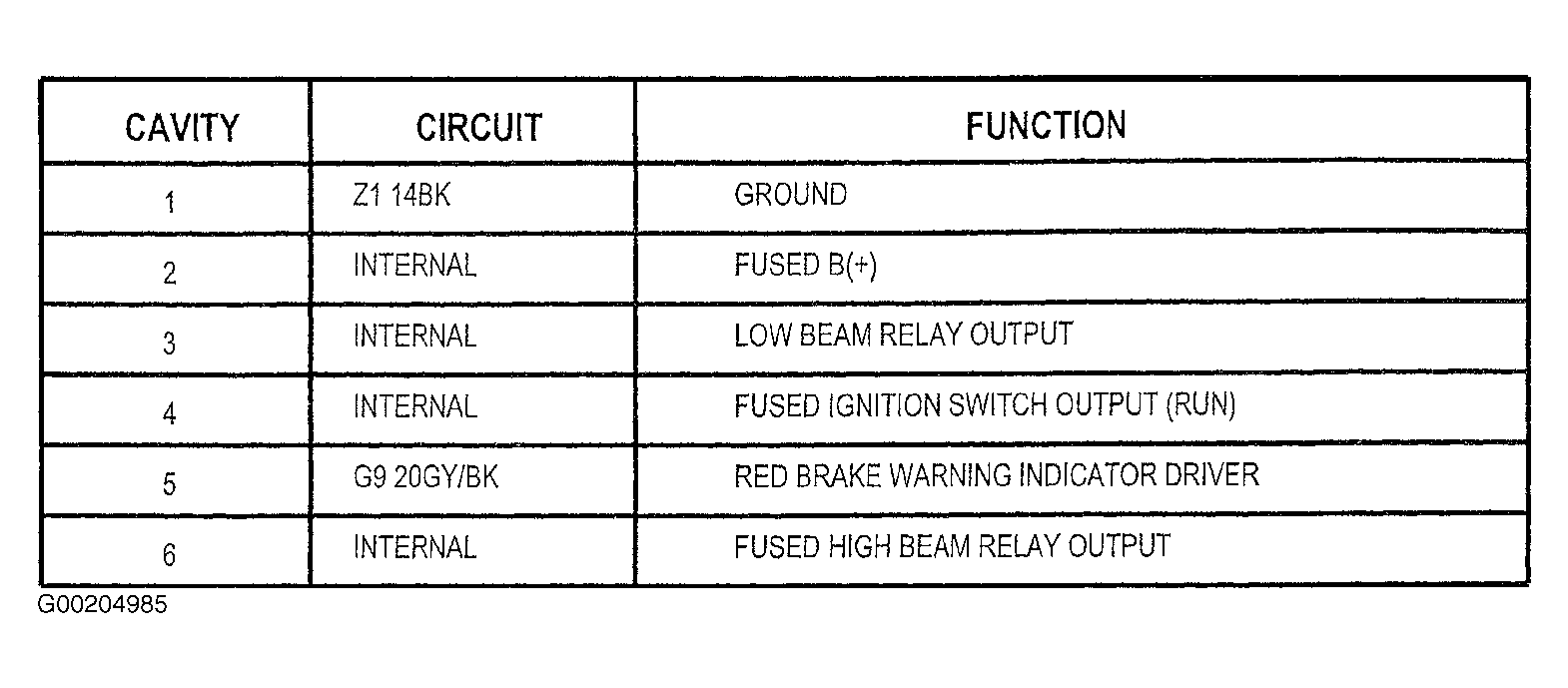

Fig 46: Identifying Junction Block Daytime Running Light Module Circuits
Courtesy of CHRYSLER CORP.

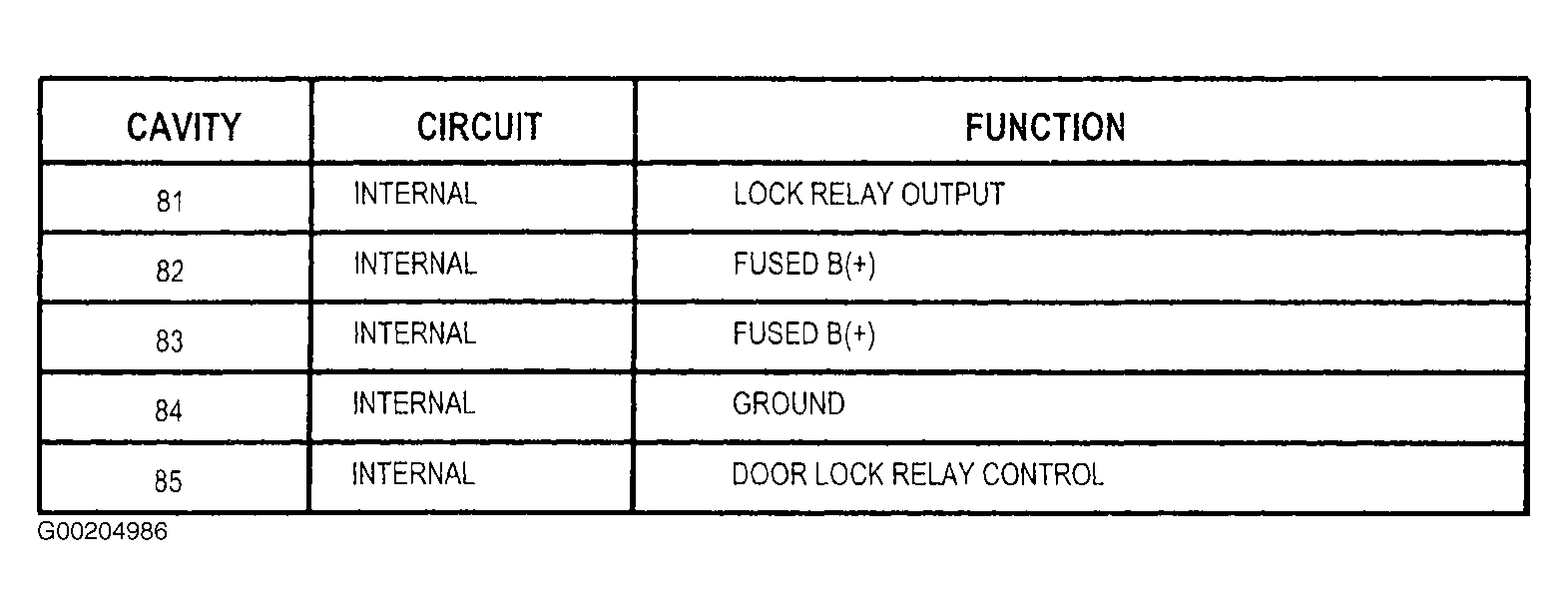

Fig 47: Identifying Junction Block Door Lock Relay Circuits
Courtesy of CHRYSLER CORP.

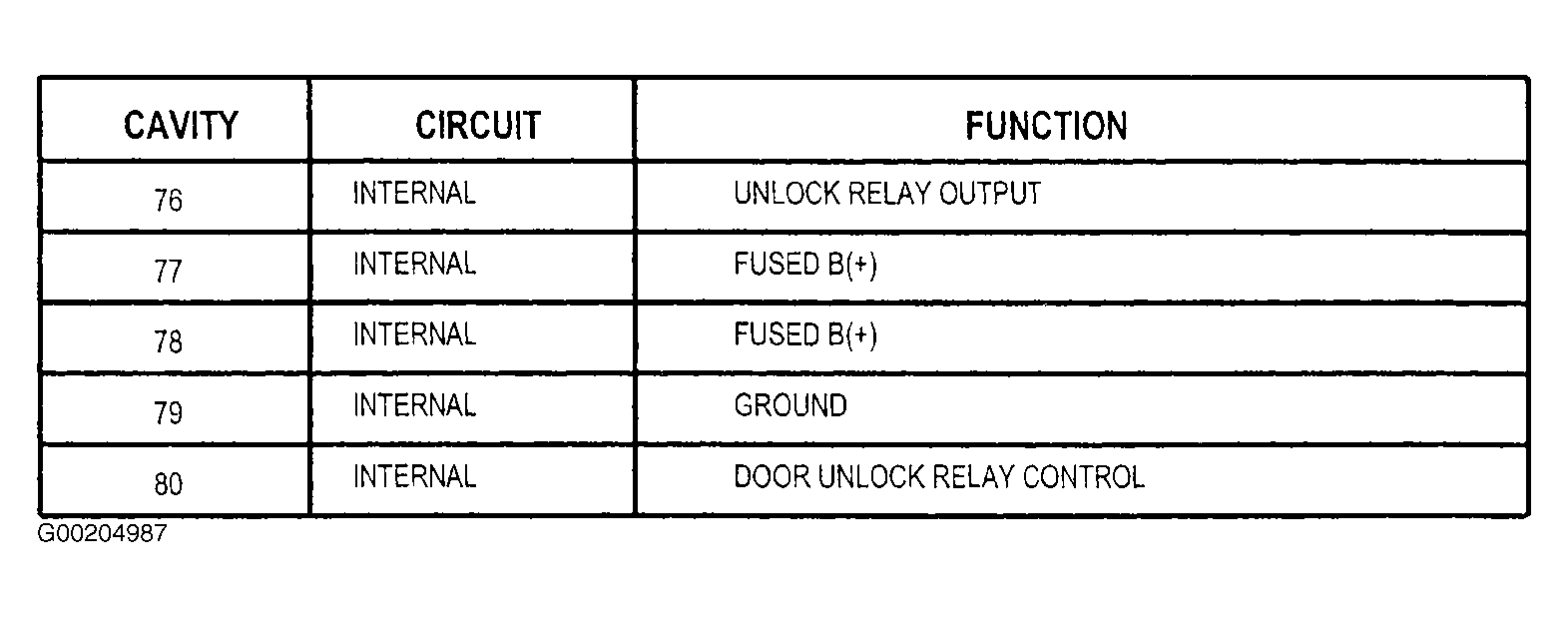

Fig 48: Identifying Junction Block Door Unlock Relay Circuits
Courtesy of CHRYSLER CORP.

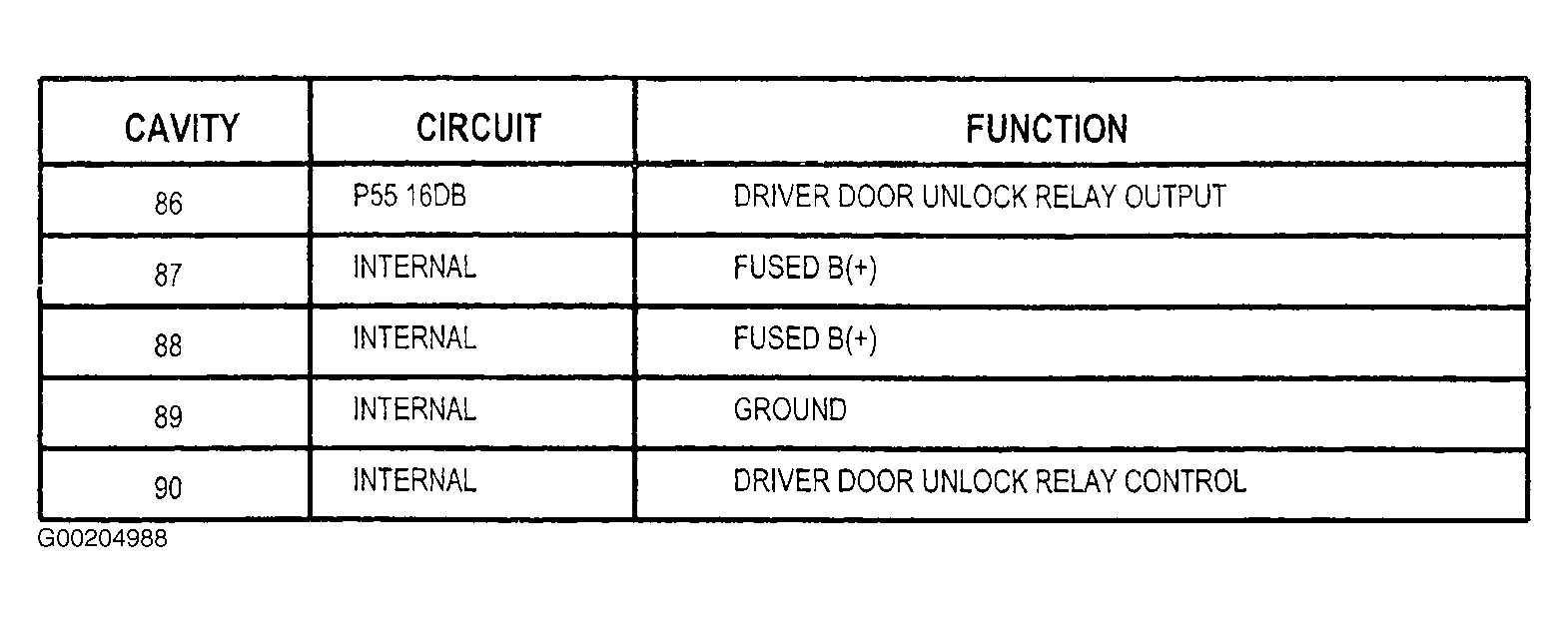

Fig 49: Identifying Junction Block Driver Door Unlock Relay Circuits
Courtesy of CHRYSLER CORP.

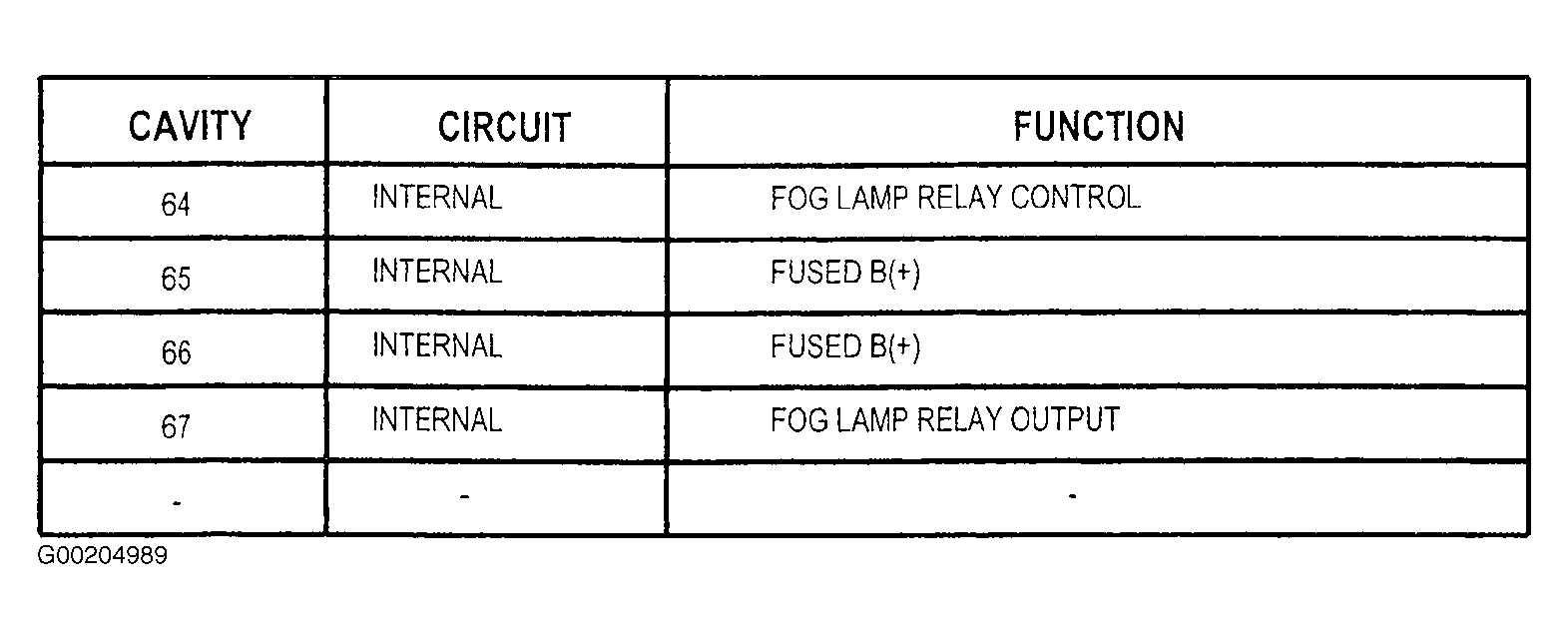

Fig 50: Identifying Junction Block Fog Light Relay Circuits
Courtesy of CHRYSLER CORP.

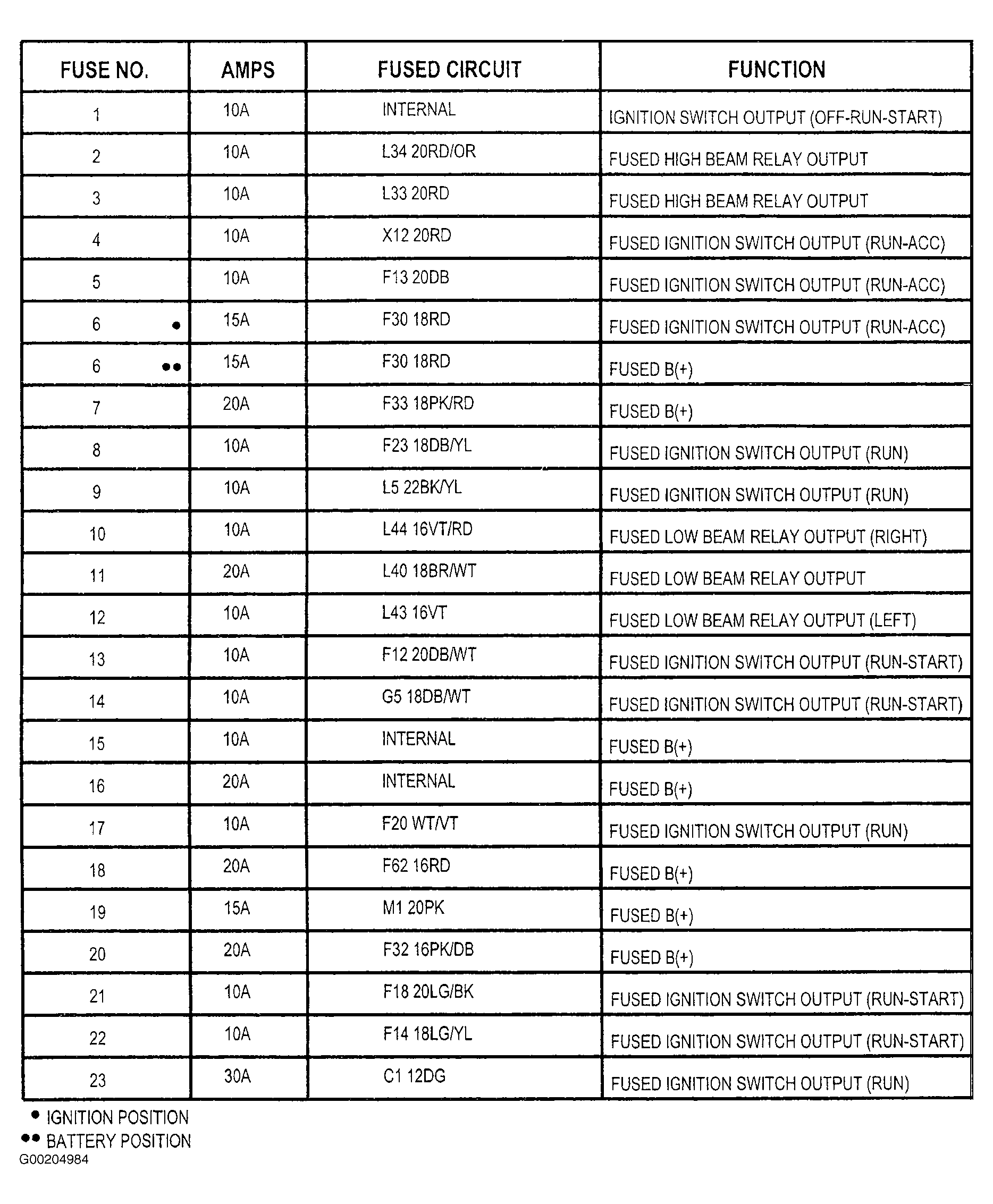

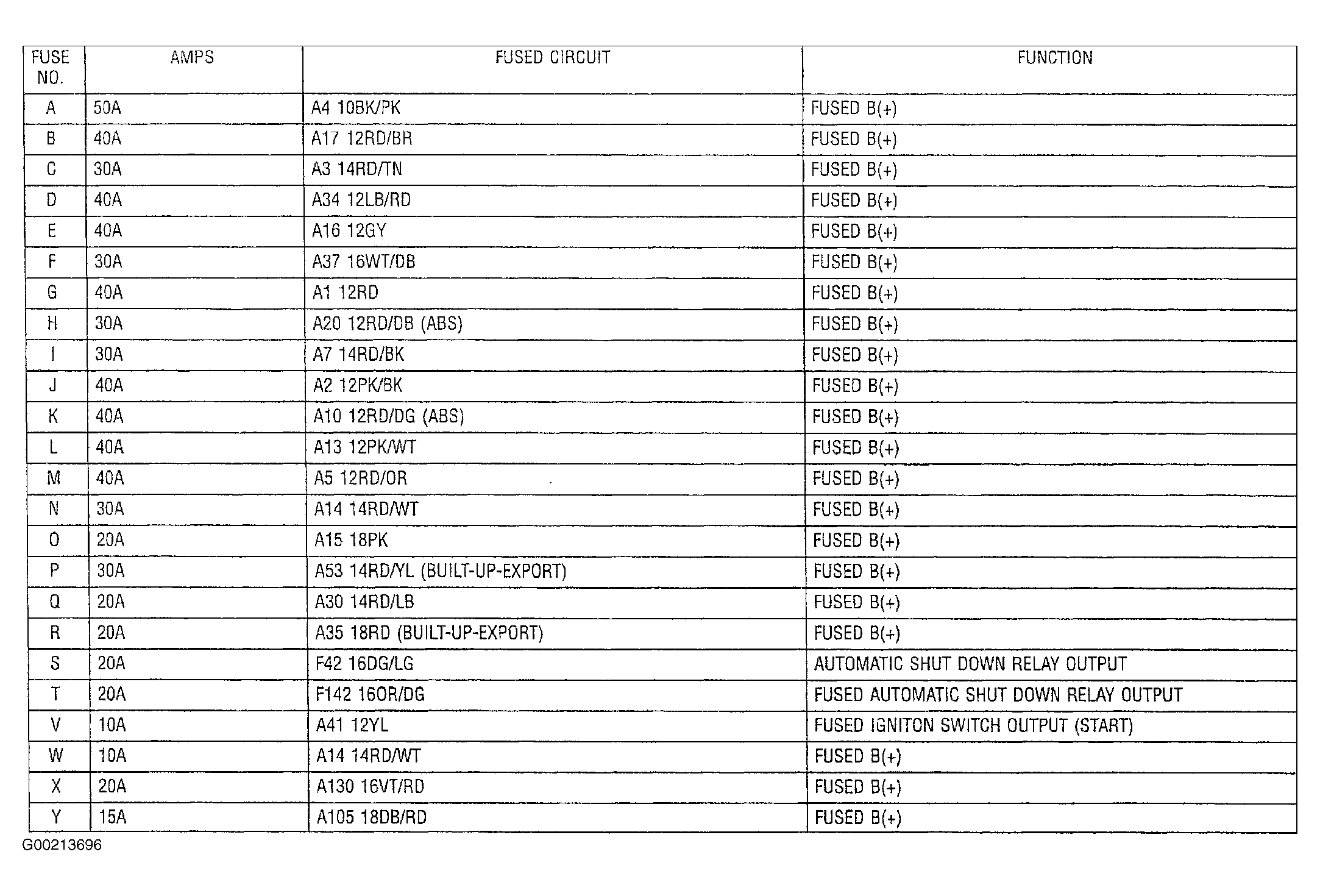

Fig 51: Identifying Junction Block Fuses
Courtesy of CHRYSLER CORP.

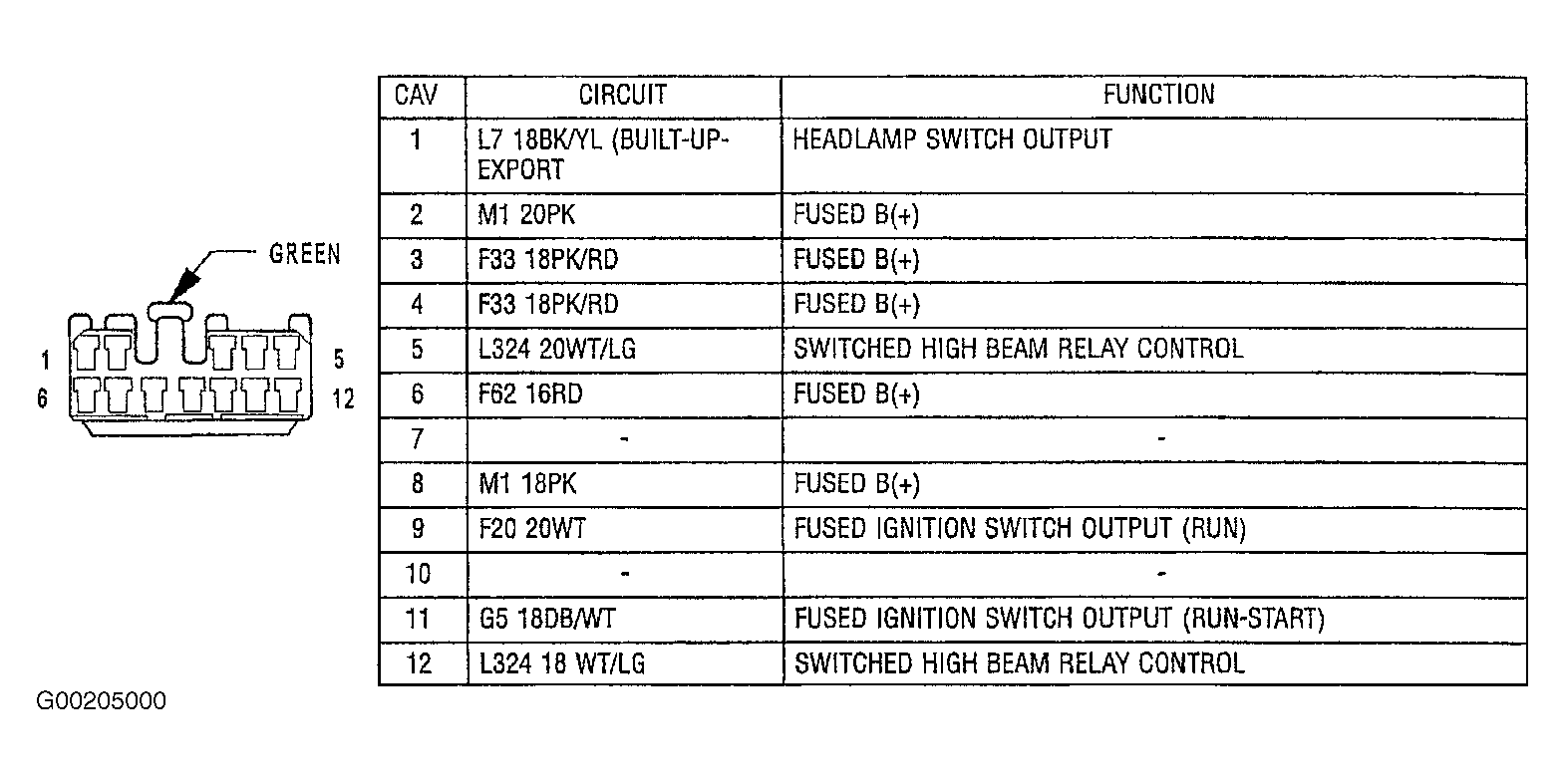

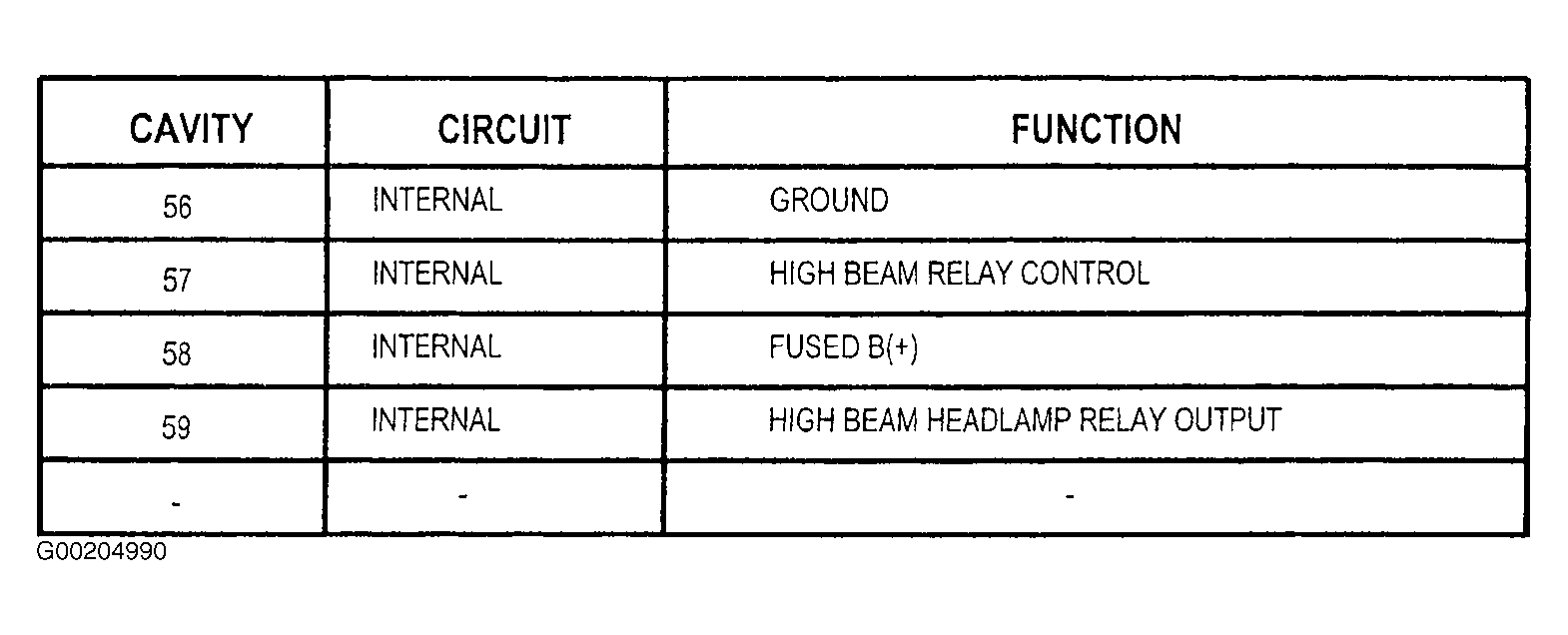

Fig 52: Identifying Junction Block High Beam Headlight Relay Circuits
Courtesy of CHRYSLER CORP.

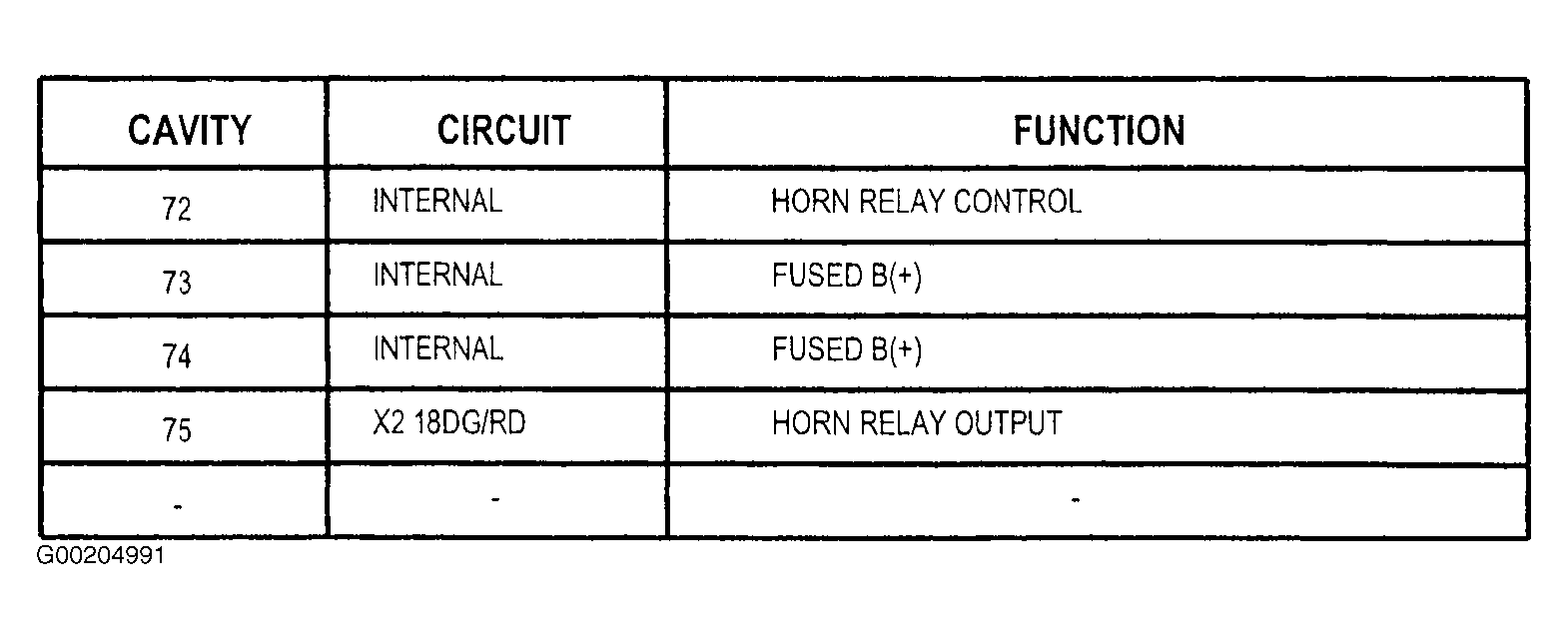

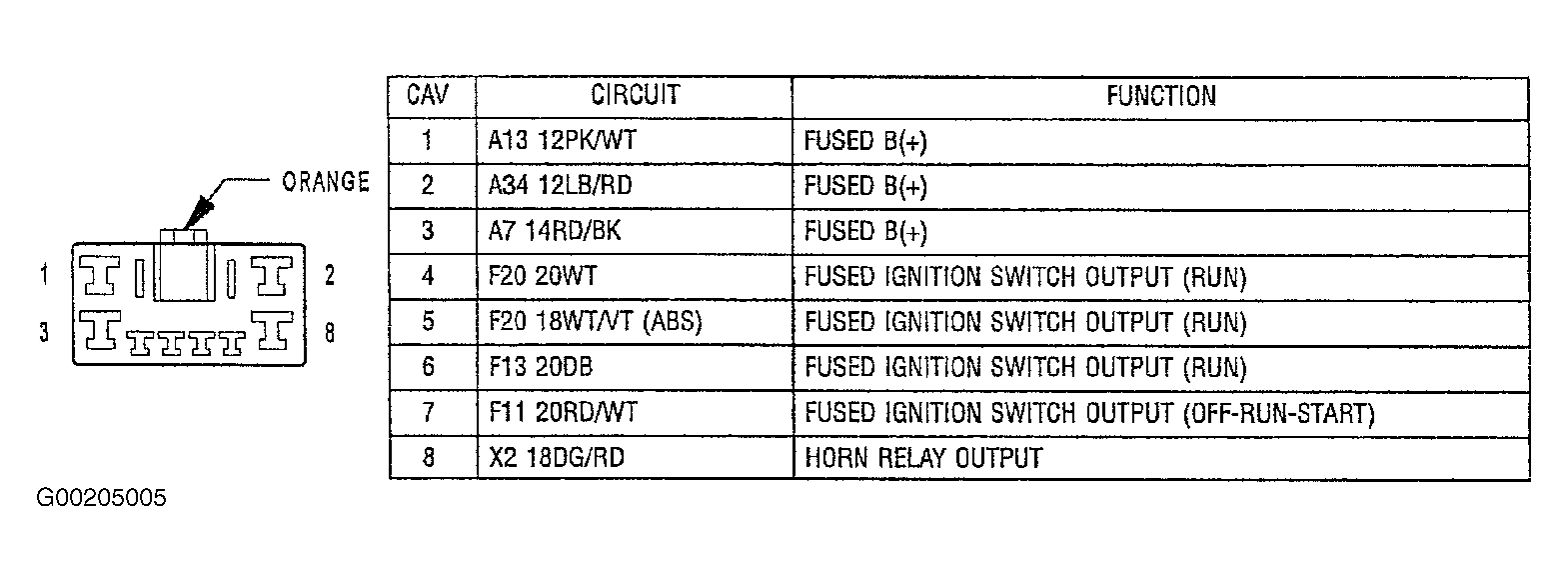

Fig 53: Identifying Junction Block Horn Relay Circuits
Courtesy of CHRYSLER CORP.

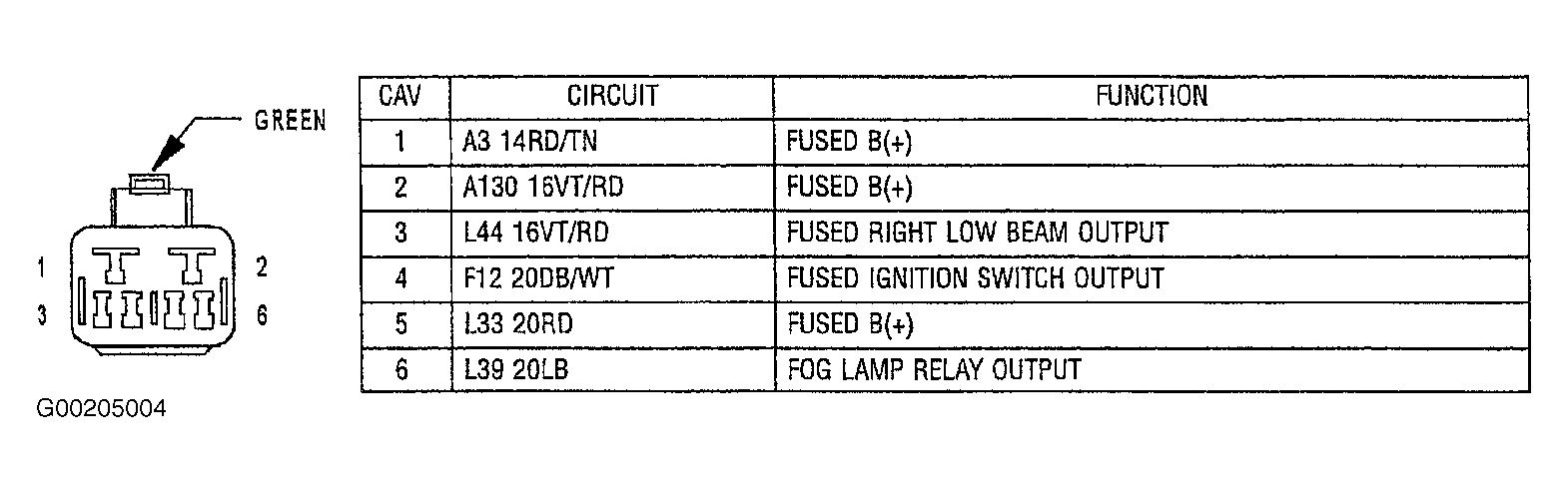

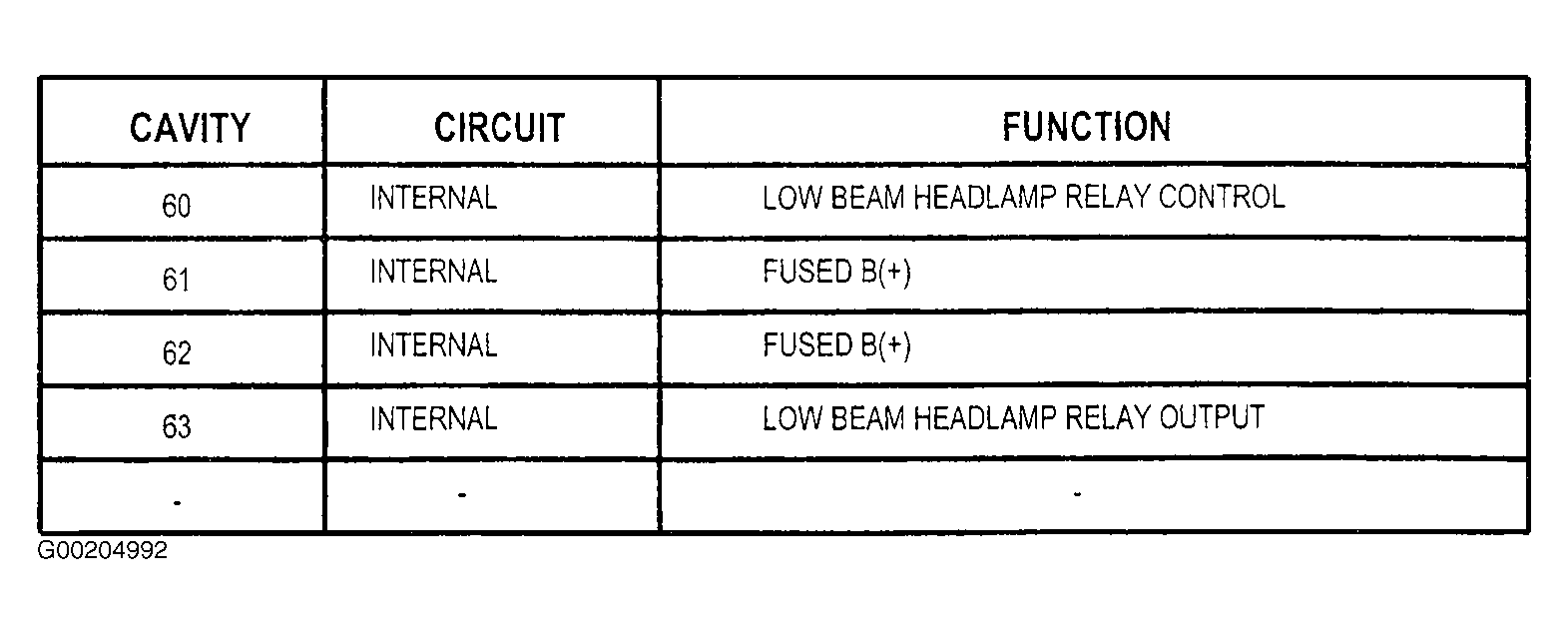

Fig 54: Identifying Junction Block Low Beam Headlight Relay Circuits
Courtesy of CHRYSLER CORP.

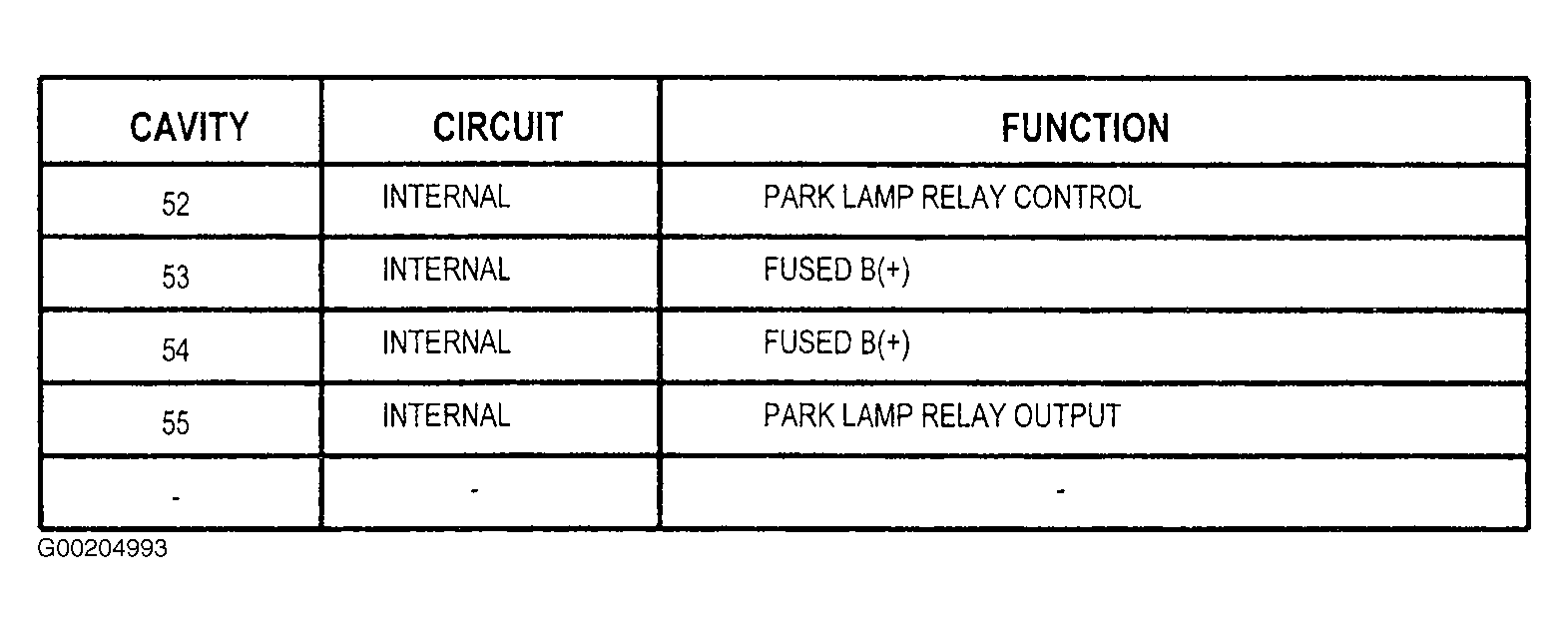

Fig 55: Identifying Junction Block Park Light Relay Circuits
Courtesy of DAIMLERCHRYSLER CORP.
Fig 56: Identifying Junction Block Spare Relay Circuits
Courtesy of CHRYSLER CORP.

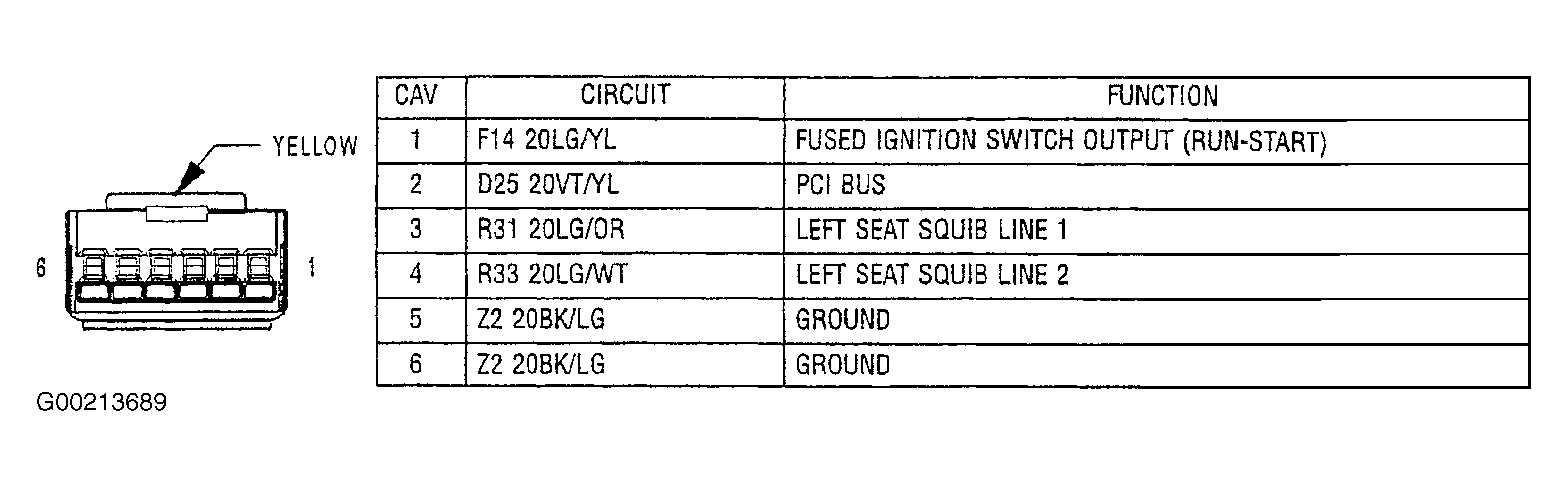

Fig 57: Identifying Left Side Impact Air Bag Control Module Connectors
Courtesy of CHRYSLER CORP.

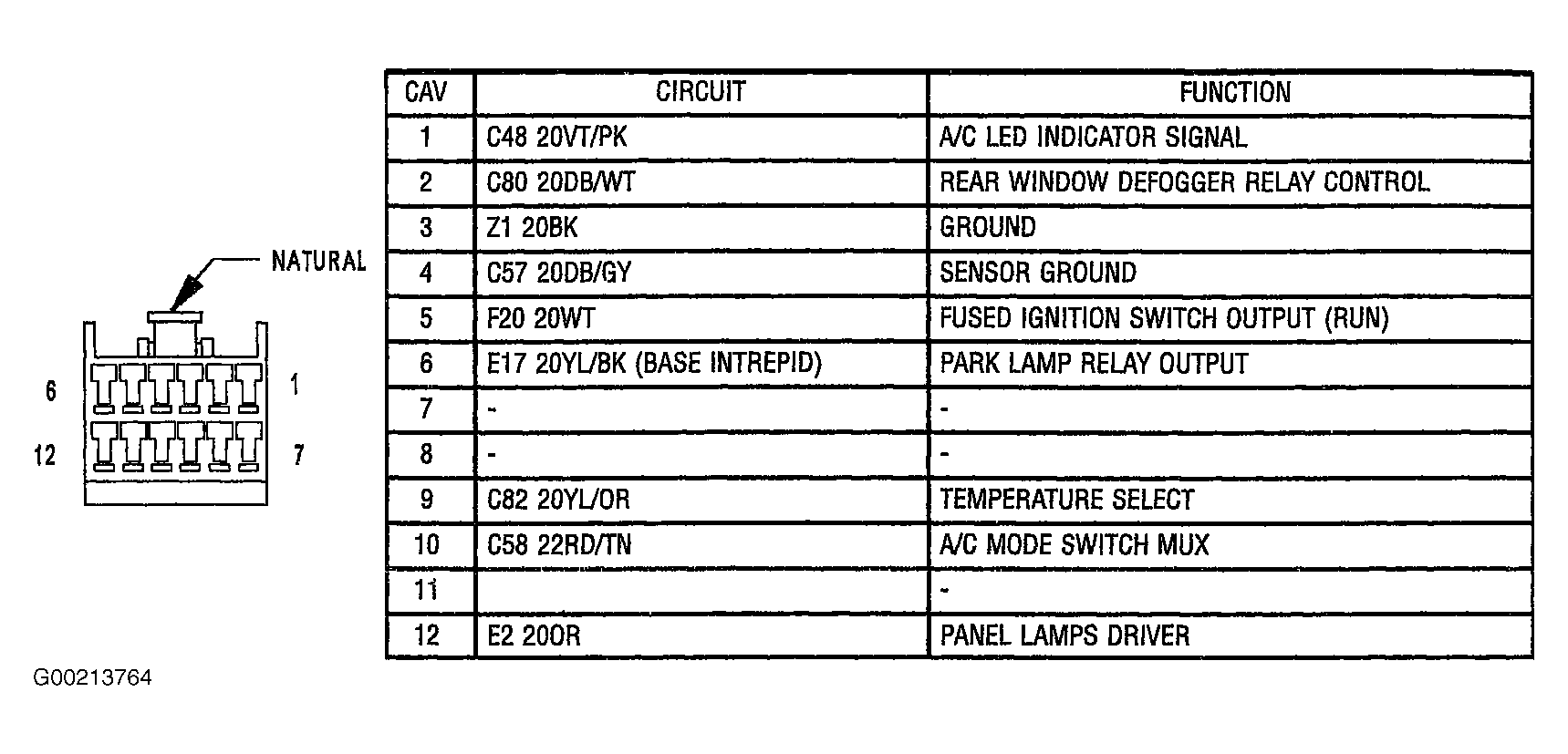

Fig 58: Identifying Manual Temperature Control Head C1 connector
Courtesy of CHRYSLER CORP.
Fig 59: Identifying Manual Temperature Control Head C2 Connector
Courtesy of CHRYSLER CORP.

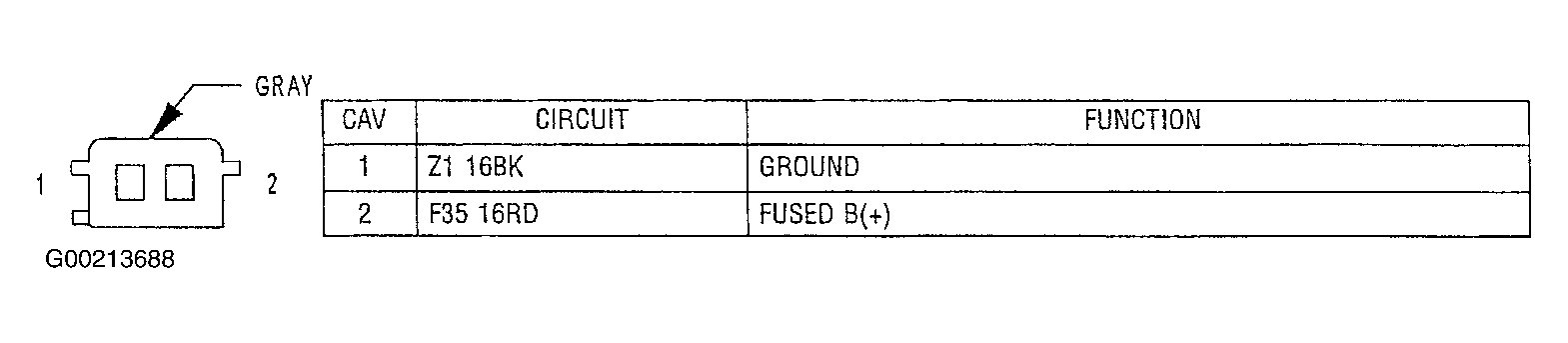

Fig 60: Identifying Memory Heated Seat/Mirror Module C1 Connector
Courtesy of CHRYSLER CORP.
Fig 61: Identifying Memory Heated Seat/Mirror Module C2 Connector
Courtesy of CHRYSLER CORP.
Fig 62: Identifying Memory Heated Seat/Mirror Module C3 Connector
Courtesy of CHRYSLER CORP.
Fig 63: Identifying Memory Heated Seat/Mirror Module C4 Connector
Courtesy of CHRYSLER CORP.
Fig 64: Identifying Memory Set Switch
Courtesy of CHRYSLER CORP.

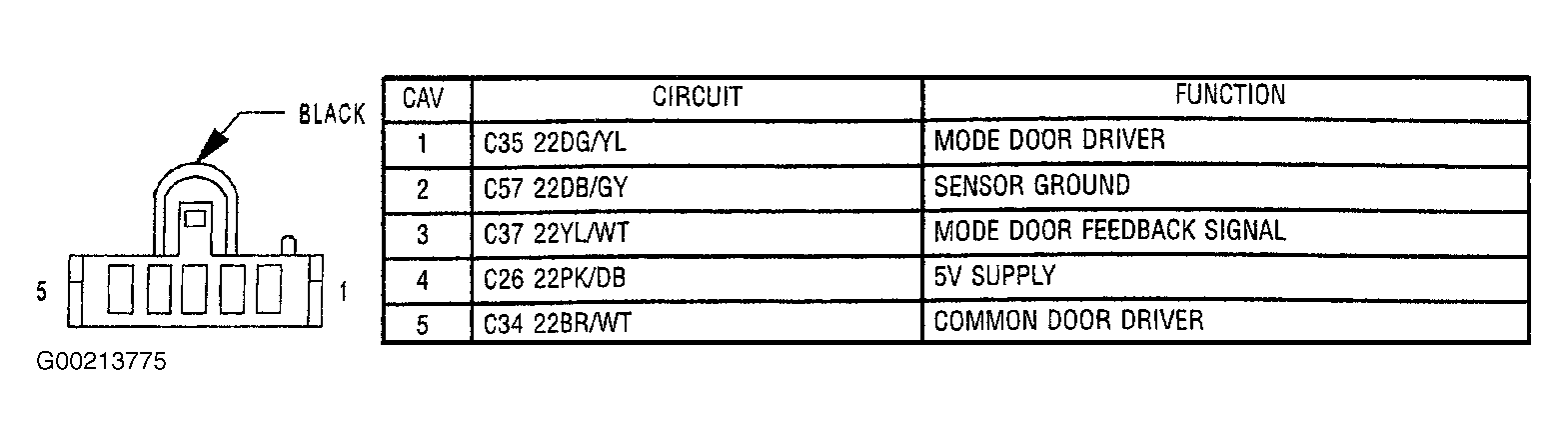

Fig 65: Identifying Mode Door Actuator Connector
Courtesy of CHRYSLER CORP.

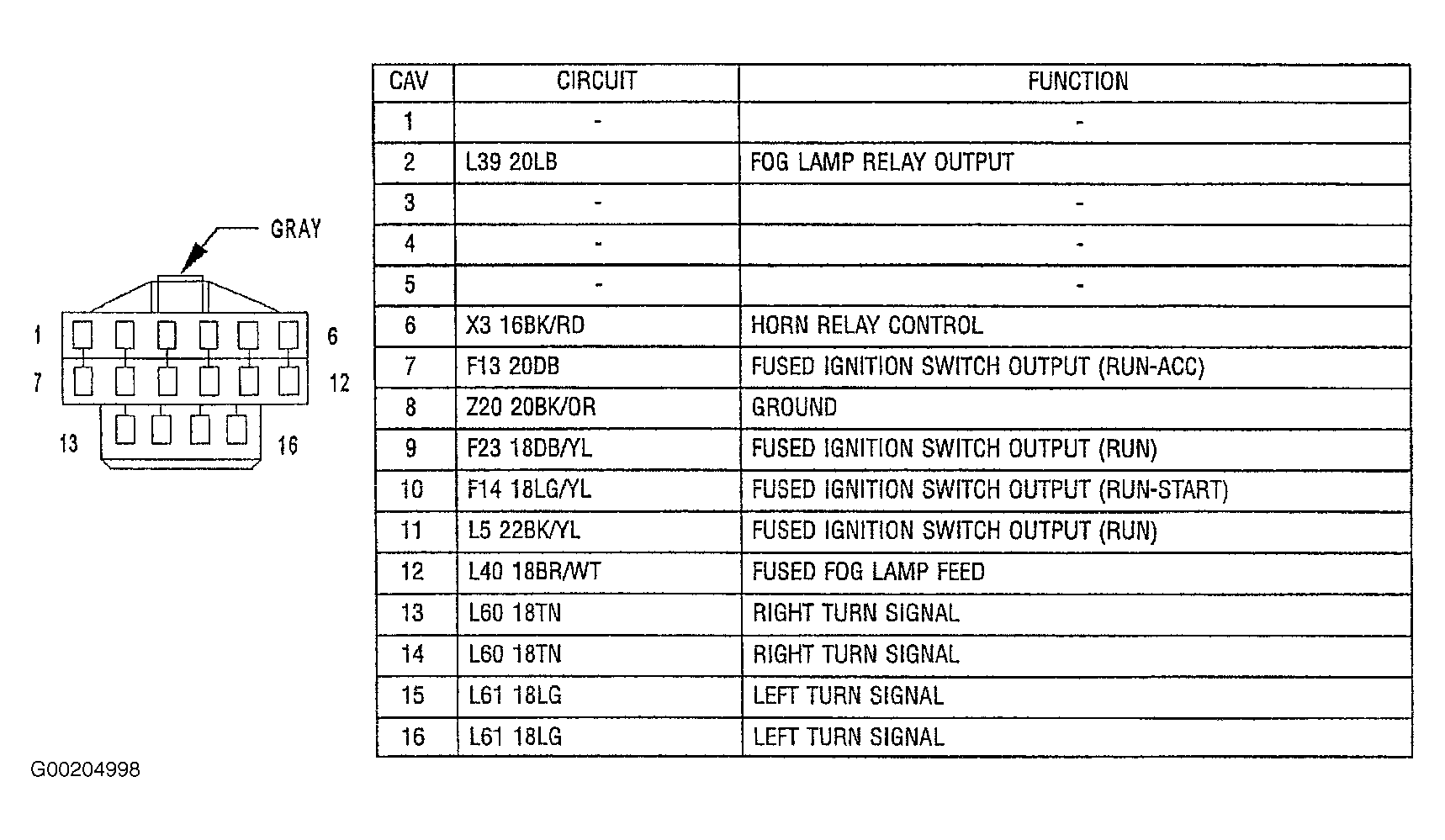

Fig 66: Identifying Multifunction Switch Connector
Courtesy of CHRYSLER CORP.

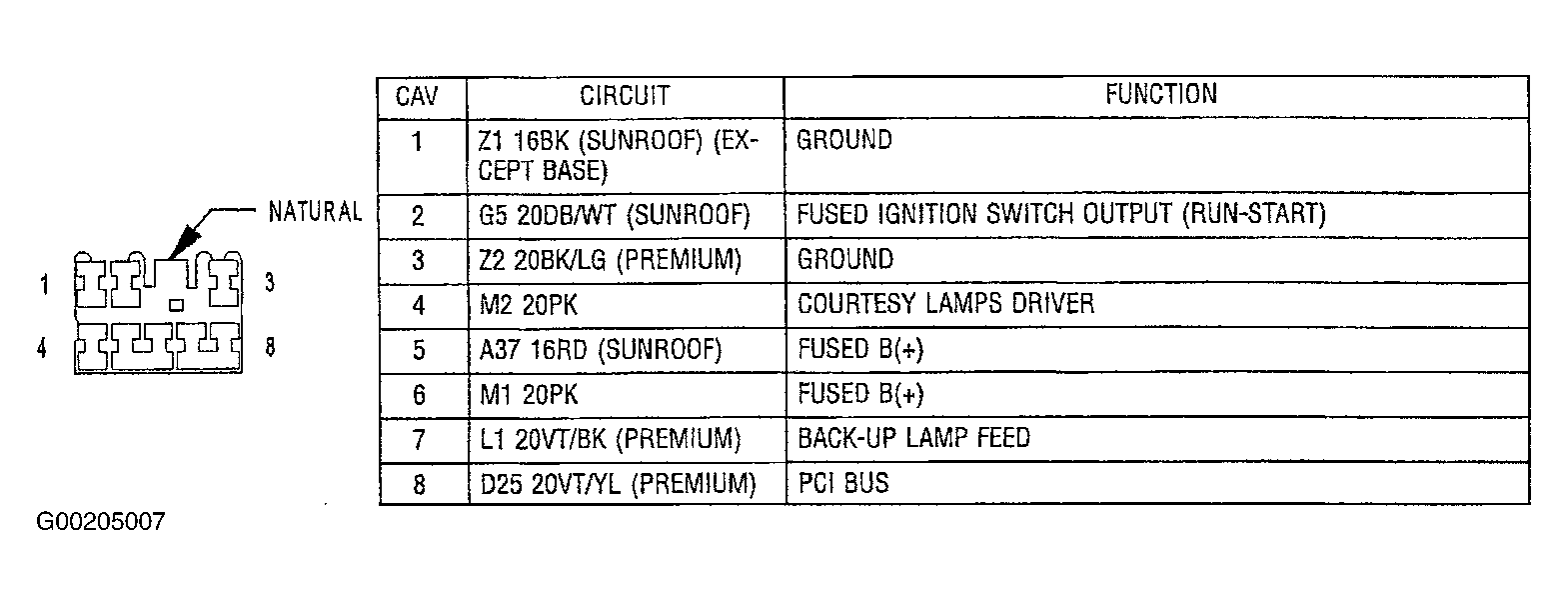

Fig 67: Identifying Overhead Travel Information System Control Module Connectors
Courtesy of CHRYSLER CORP.

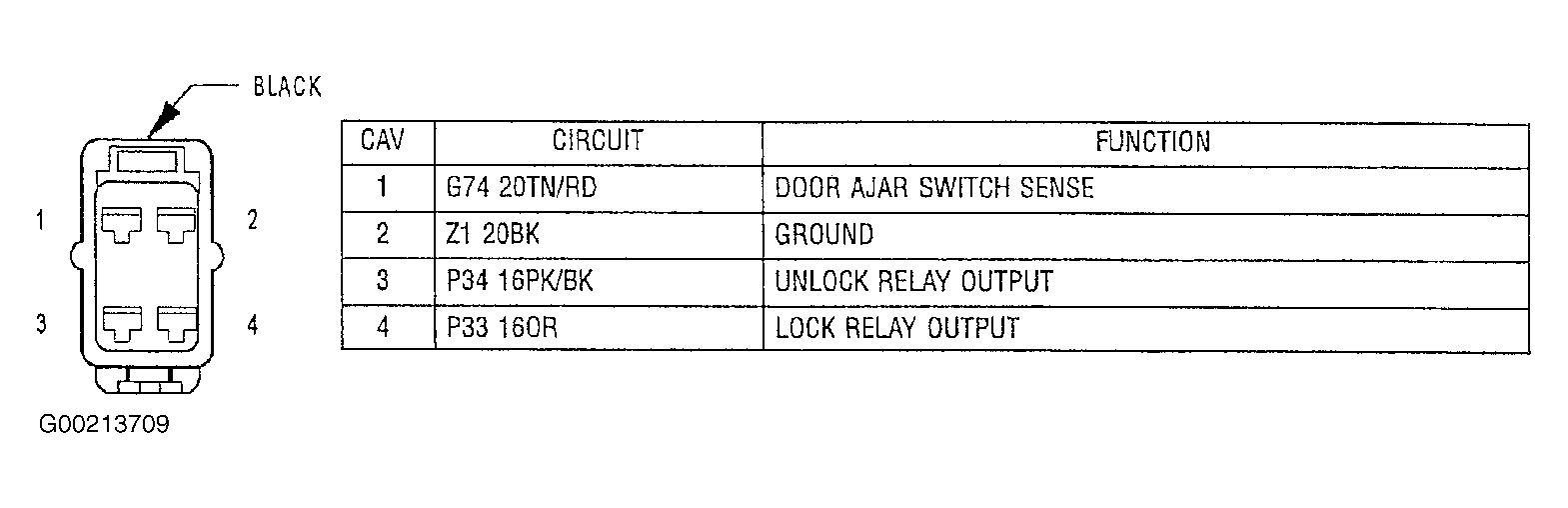

Fig 68: Identifying Passenger Door Lock Motor/Ajar Switch Connector
Courtesy of CHRYSLER CORP.
Fig 69: Identifying Passenger Heated Seat Back Connector
Courtesy of CHRYSLER CORP.
Fig 70: Identifying Passenger Heated Seat Back (Seat Back Side) Connector
Courtesy of CHRYSLER CORP.
Fig 71: Identifying Passenger Heated Seat Cushion Connector
Courtesy of CHRYSLER CORP.
Fig 72: Identifying Passenger Heated Seat Cushion (Cushion Side) Connector
Courtesy of CHRYSLER CORP.

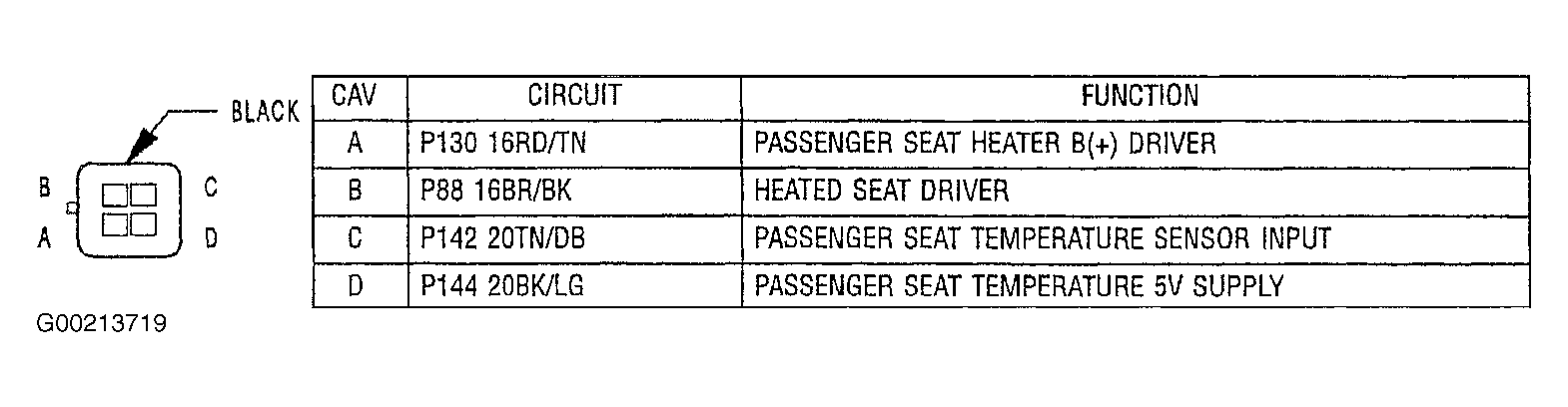

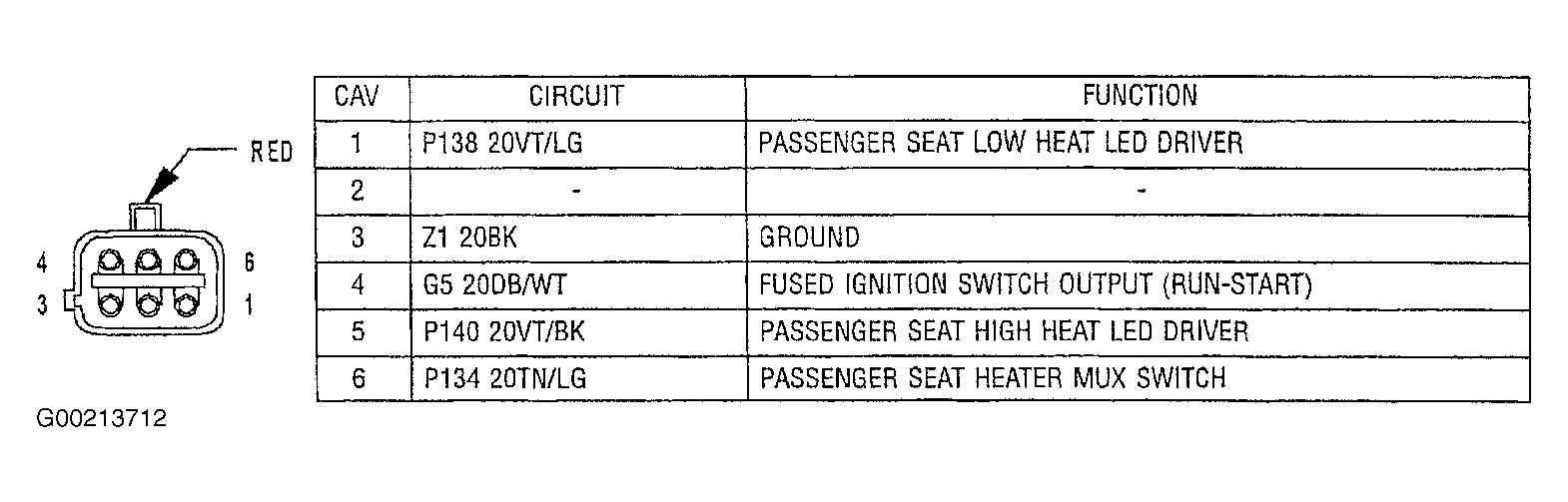

Fig 73: Identifying Passenger Heated Seat Switch Connector
Courtesy of CHRYSLER CORP.
Fig 74: Identifying Passenger Power Mirror Switch (Memory) Connector
Courtesy of CHRYSLER CORP.
Fig 75: Identifying Power Distribution Center
Courtesy of CHRYSLER CORP.
Fig 76: Identifying Power Distribution Center Fuses
Courtesy of CHRYSLER CORP.

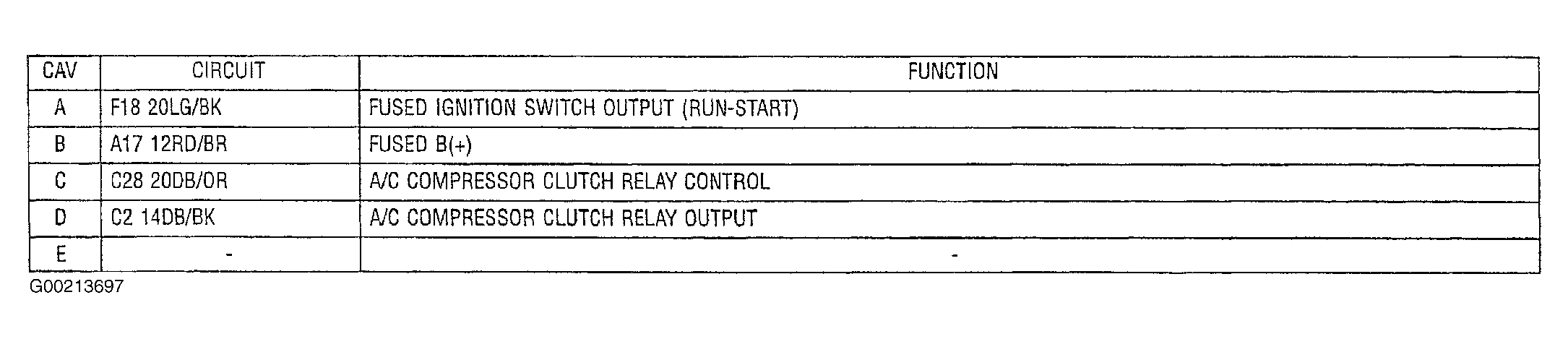

Fig 77: Identifying Power Distribution A/C Compressor Clutch Relay Circuits
Courtesy of CHRYSLER CORP.

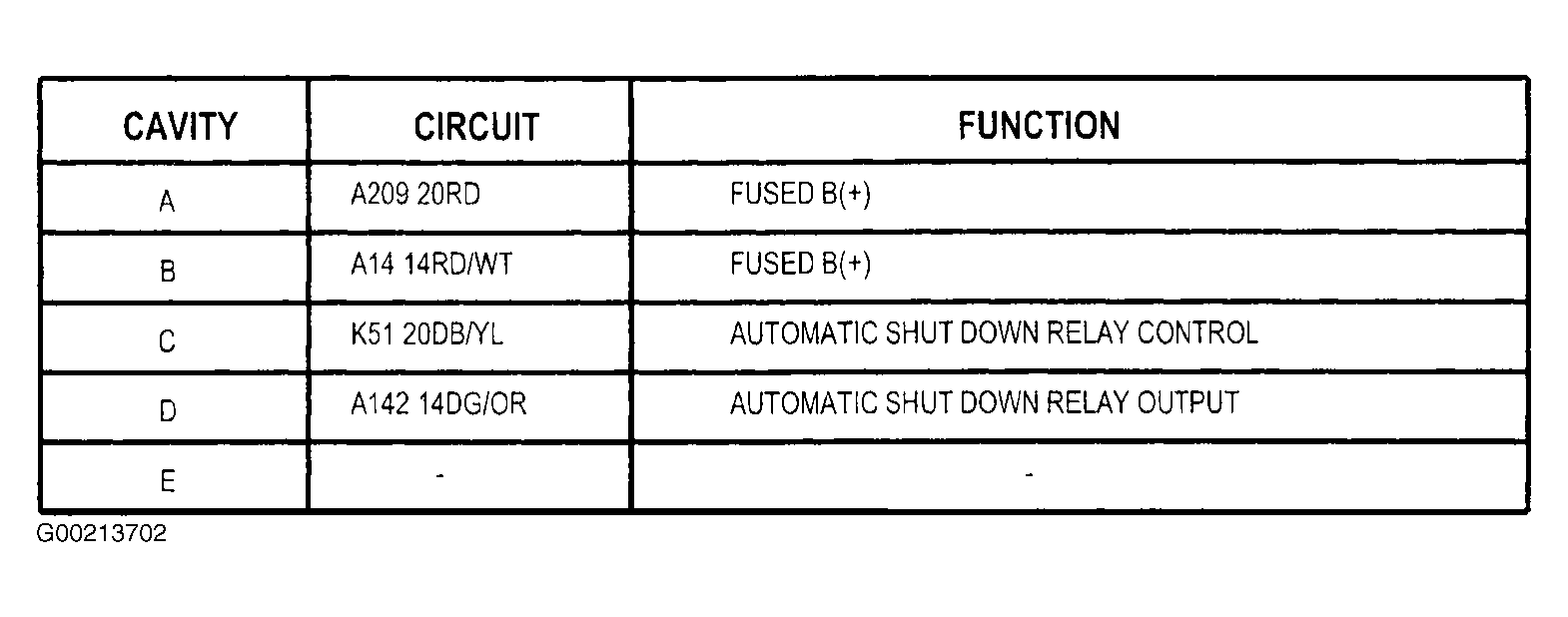

Fig 78: Identifying Power Distribution Auto Shut Down Relay Circuits
Courtesy of CHRYSLER CORP.

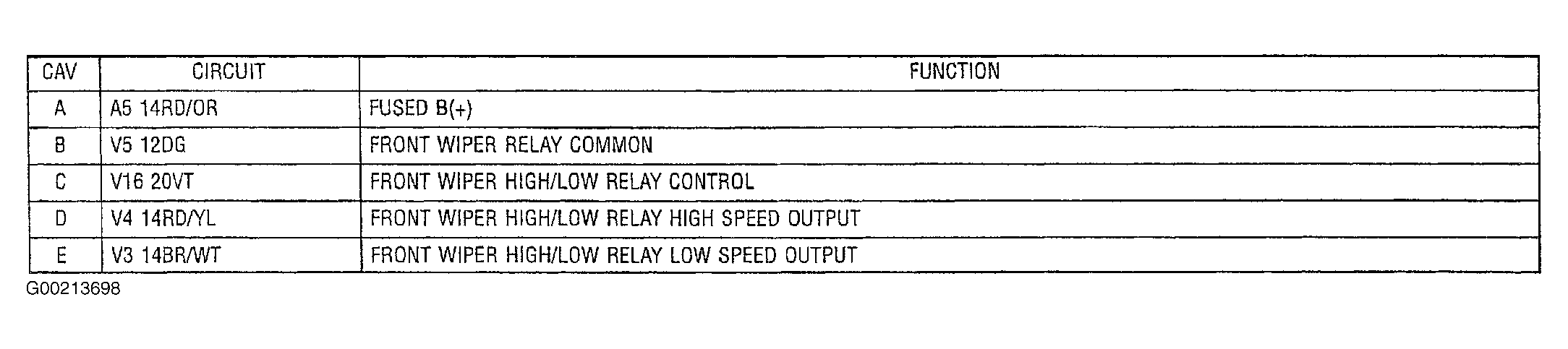

Fig 79: Identifying Power Distribution Front Wiper High/Low Relay Circuits
Courtesy of CHRYSLER CORP.

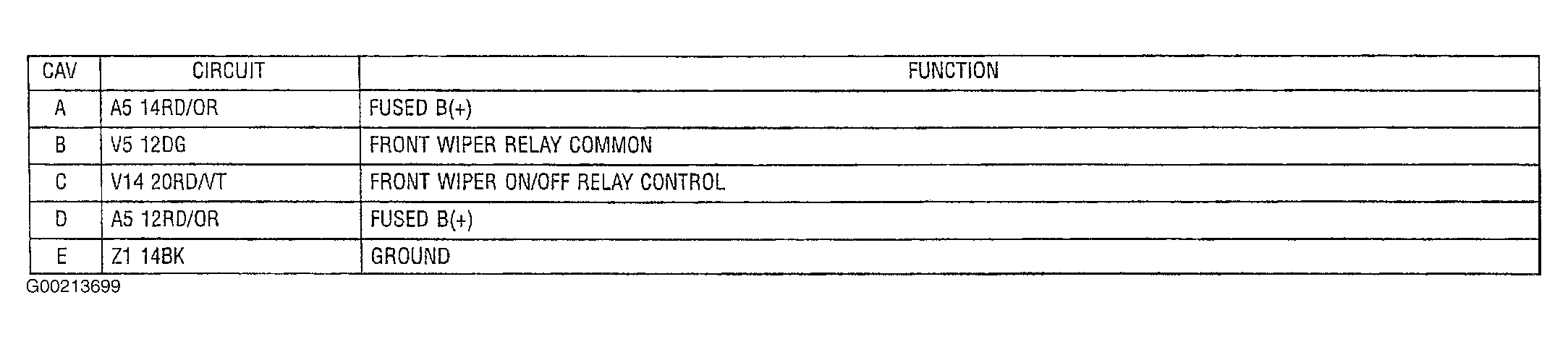

Fig 80: Identifying Power Distribution Front Wiper On/Off Relay Circuits
Courtesy of CHRYSLER CORP.

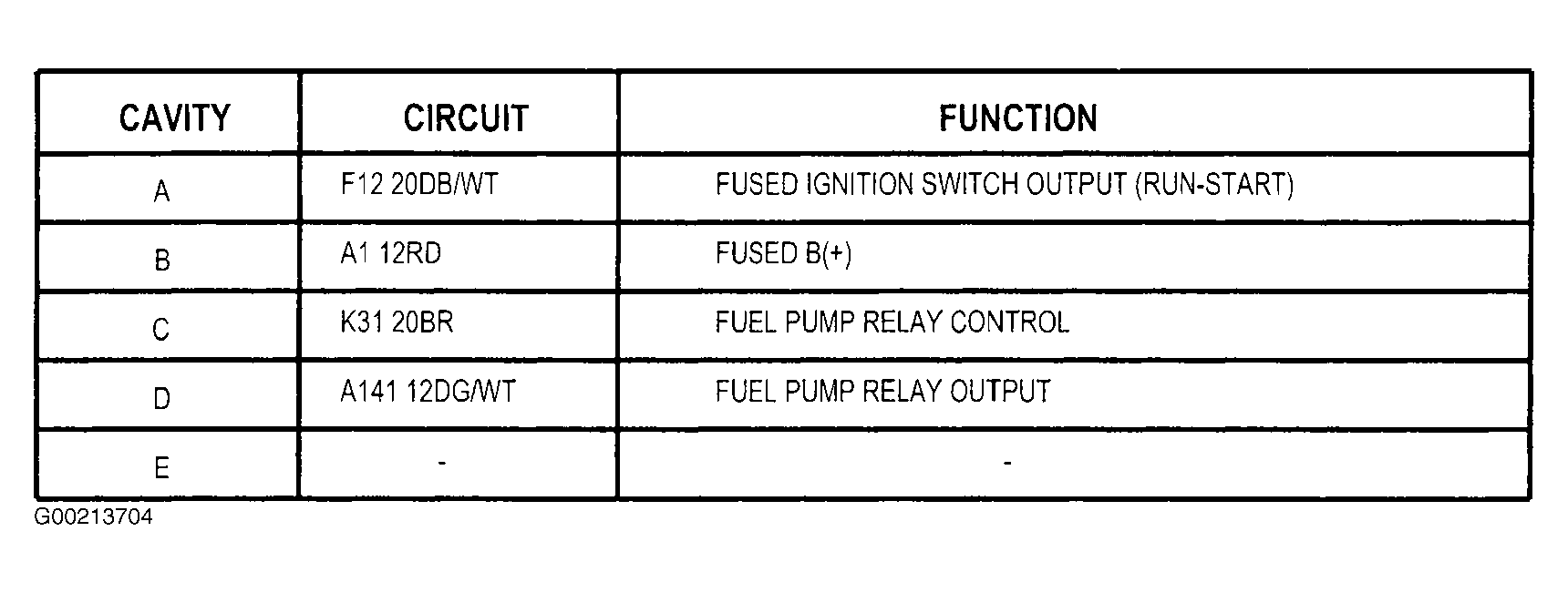

Fig 81: Identifying Power Distribution Fuel Pump Relay Circuits
Courtesy of CHRYSLER CORP.

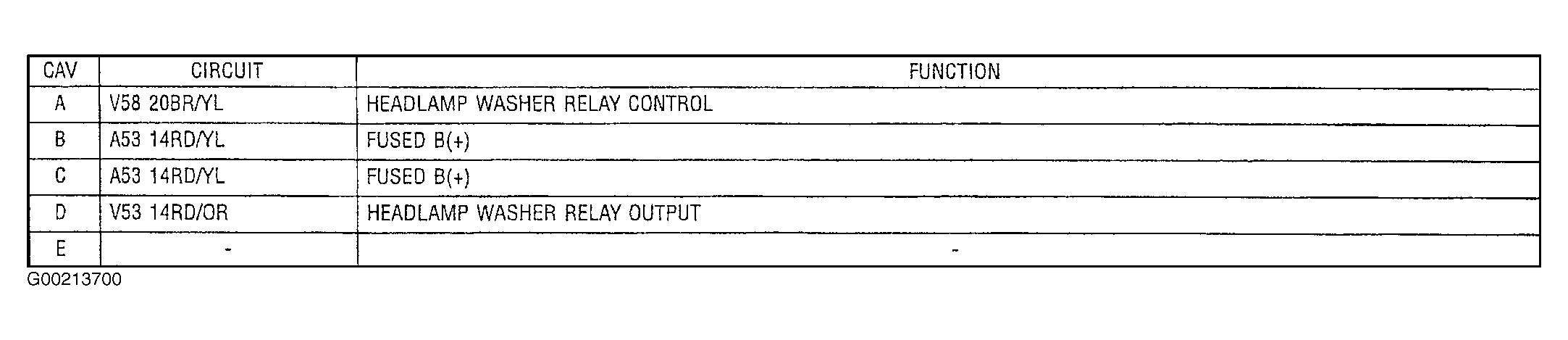

Fig 82: Identifying Power Distribution Headlight Washer Relay Circuits (Built-Up Export)
Courtesy of CHRYSLER CORP.

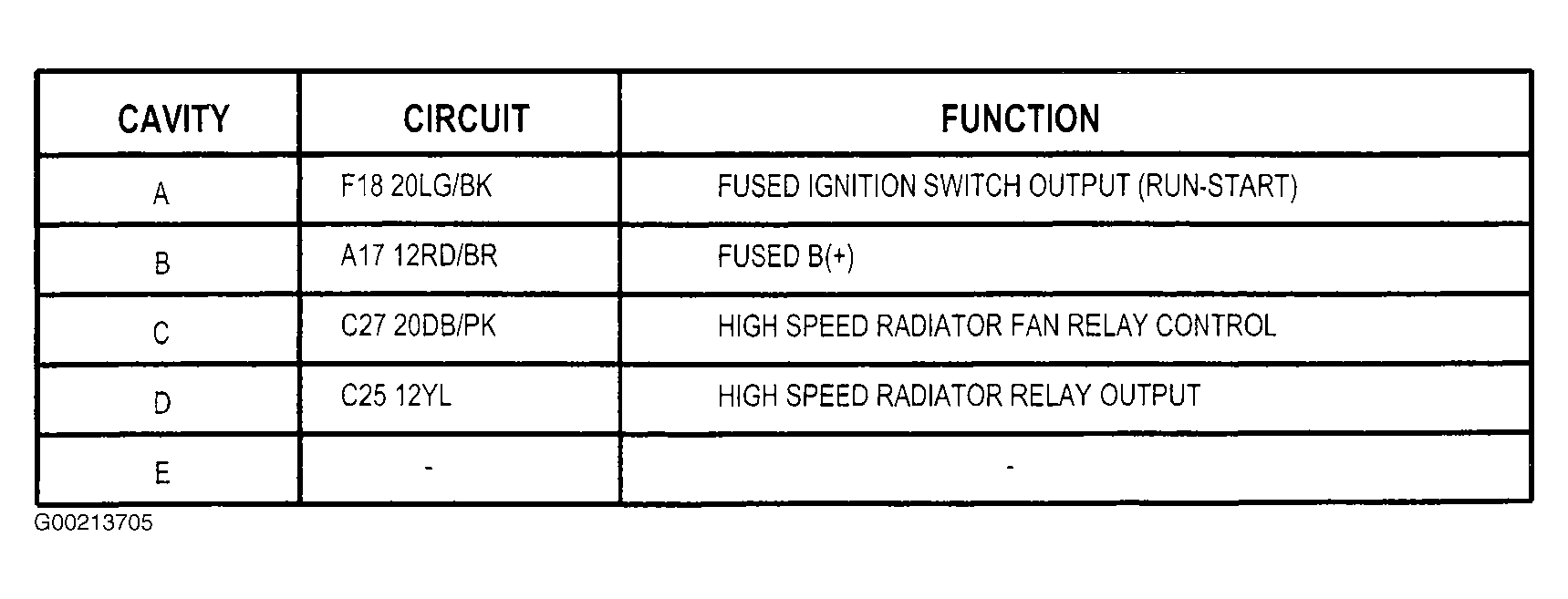

Fig 83: Identifying Power Distribution High Speed Radiator Fan Relay Circuits
Courtesy of CHRYSLER CORP.

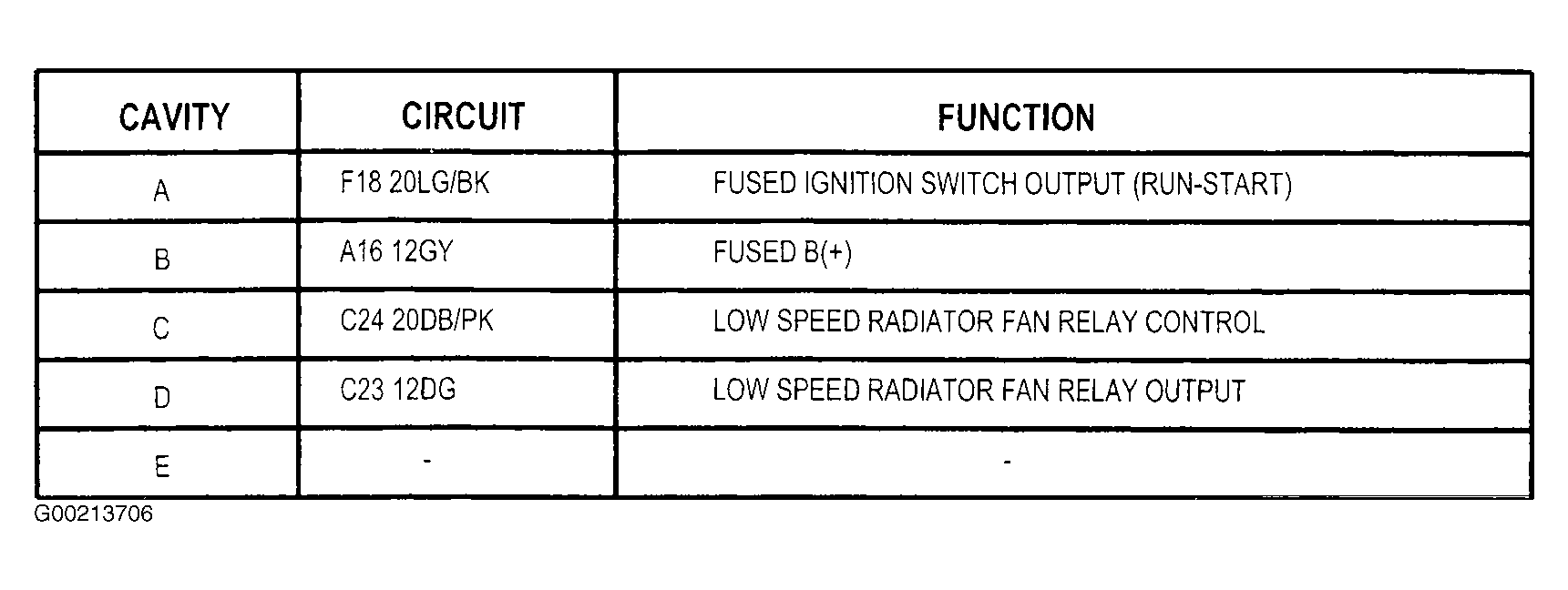

Fig 84: Identifying Power Distribution Low Speed Radiator Fan Relay Circuits
Courtesy of CHRYSLER CORP.

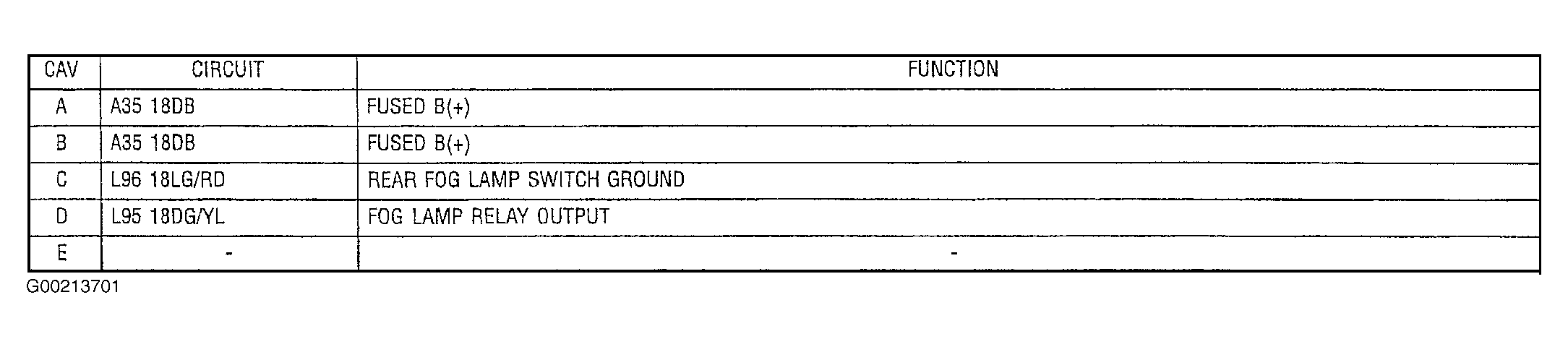

Fig 85: Identifying Power Distribution Rear Fog Light Relay Circuits (Built-Up Export)
Courtesy of CHRYSLER CORP.
Fig 86: Identifying Power Distribution Starter Motor Relay Circuits
Courtesy of CHRYSLER CORP.

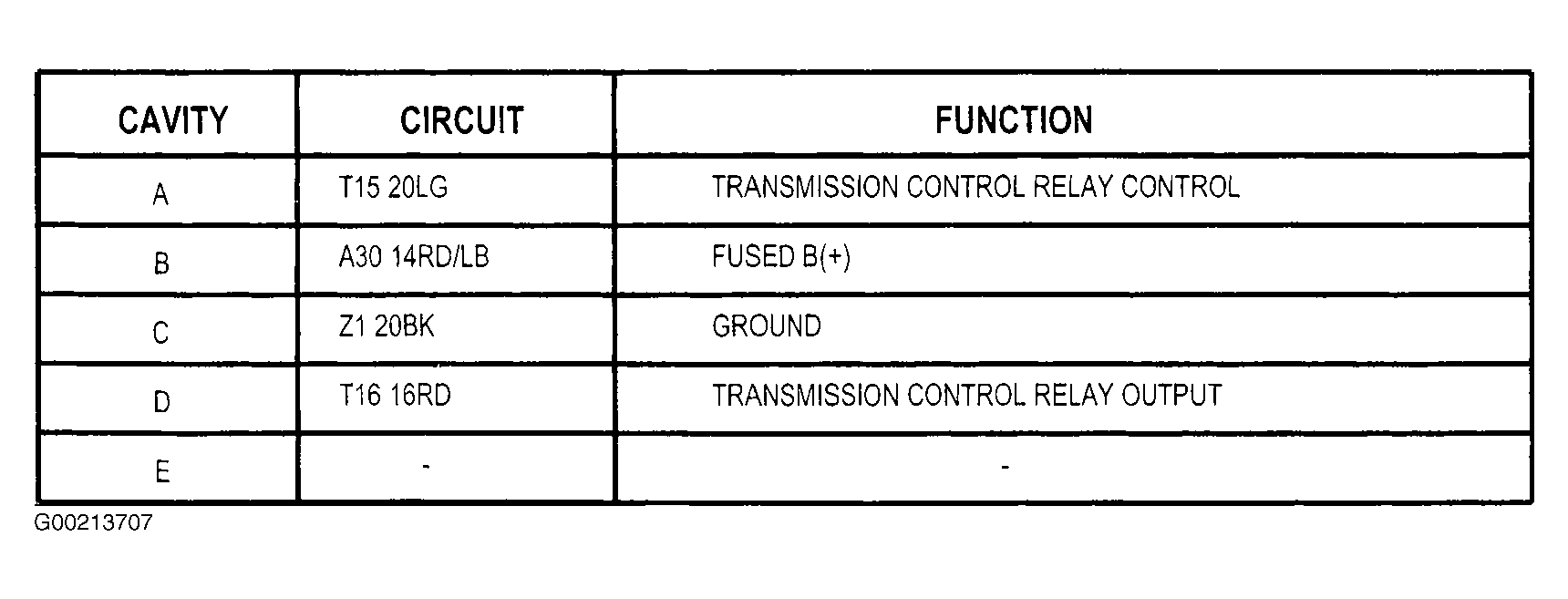

Fig 87: Identifying Power Distribution Transmission Control Relay Circuits
Courtesy of CHRYSLER CORP.

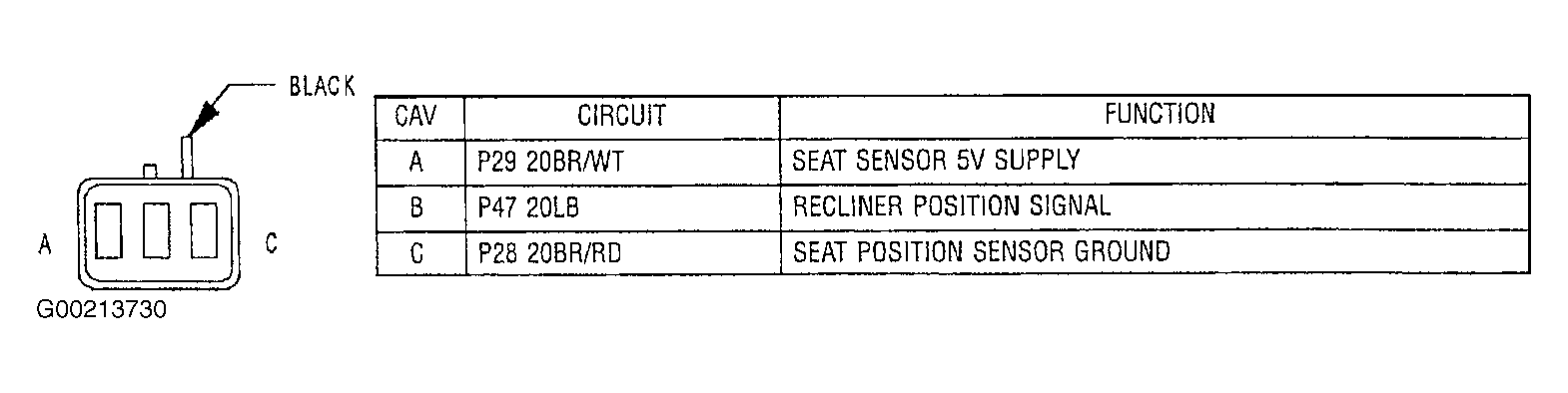

Fig 88: Identifying Power Seat Recliner Motor Sensor Connector (Memory)
Courtesy of CHRYSLER CORP.

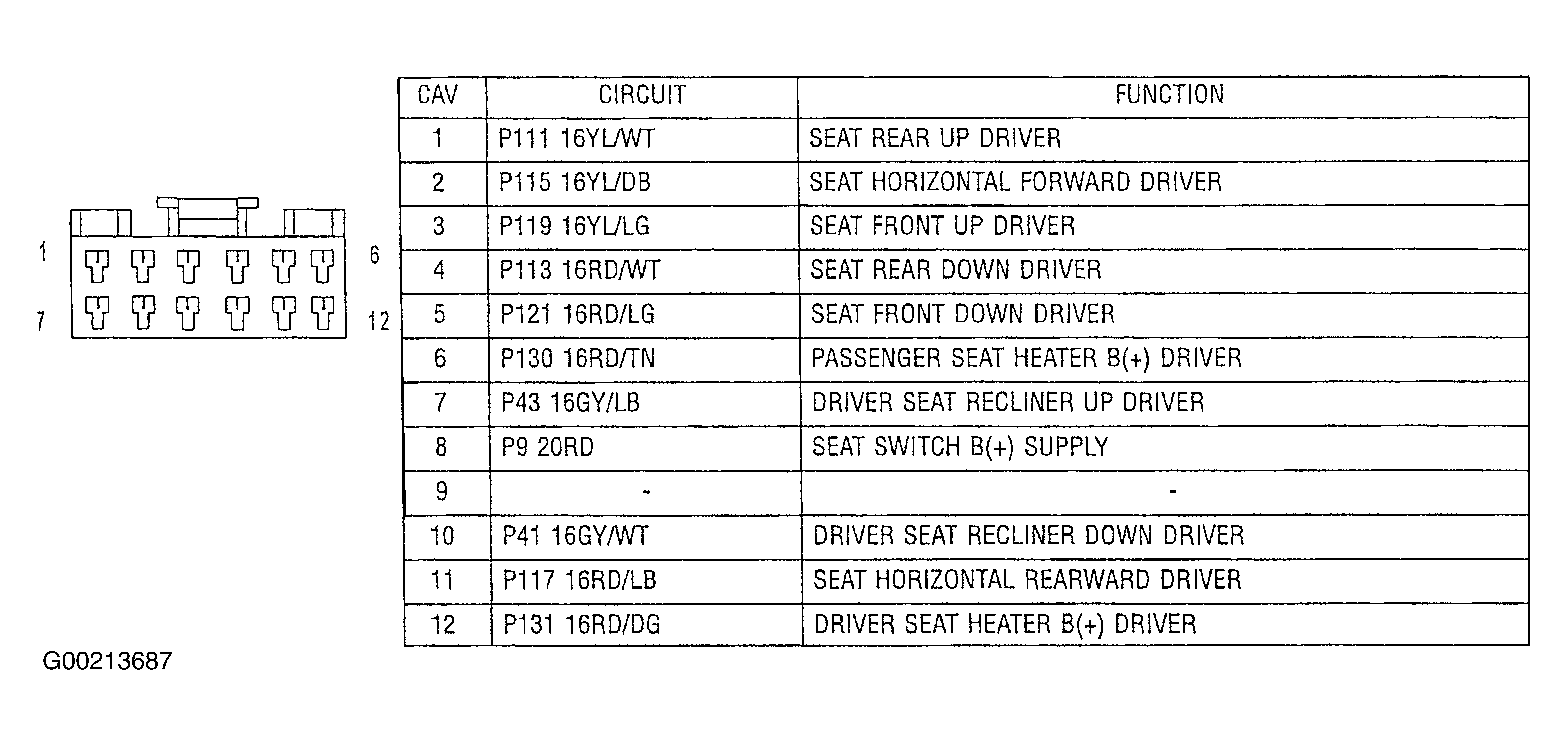

Fig 89: Identifying Power Seat Switch Connector
Courtesy of CHRYSLER CORP.

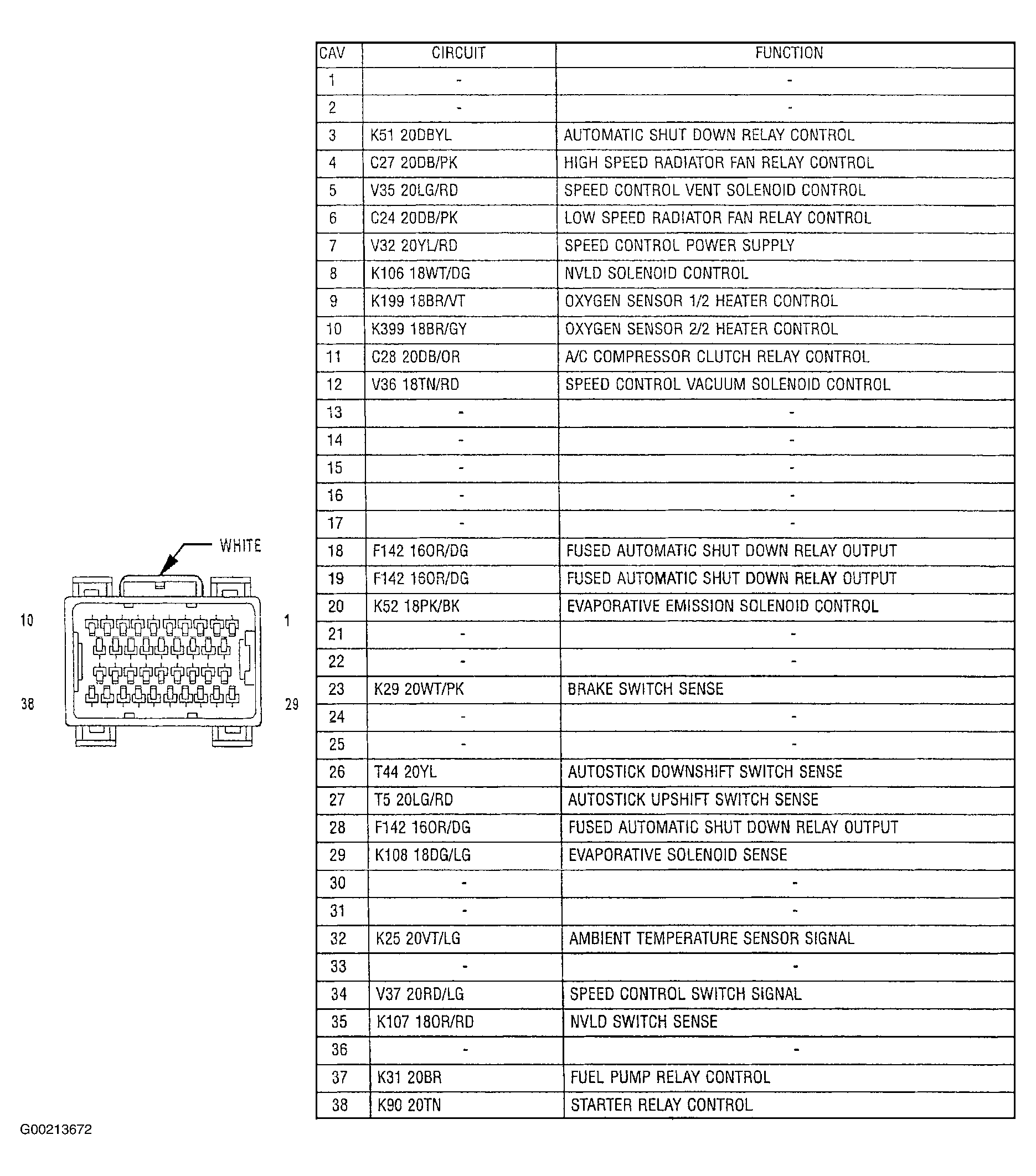

Fig 90: Identifying Powertrain Control Module C1 Connector
Courtesy of CHRYSLER CORP.
Fig 91: Identifying Powertrain Control Module C2 Connector
Courtesy of CHRYSLER CORP.
Fig 92: Identifying Powertrain Control Module C3 Connector
Courtesy of CHRYSLER CORP.

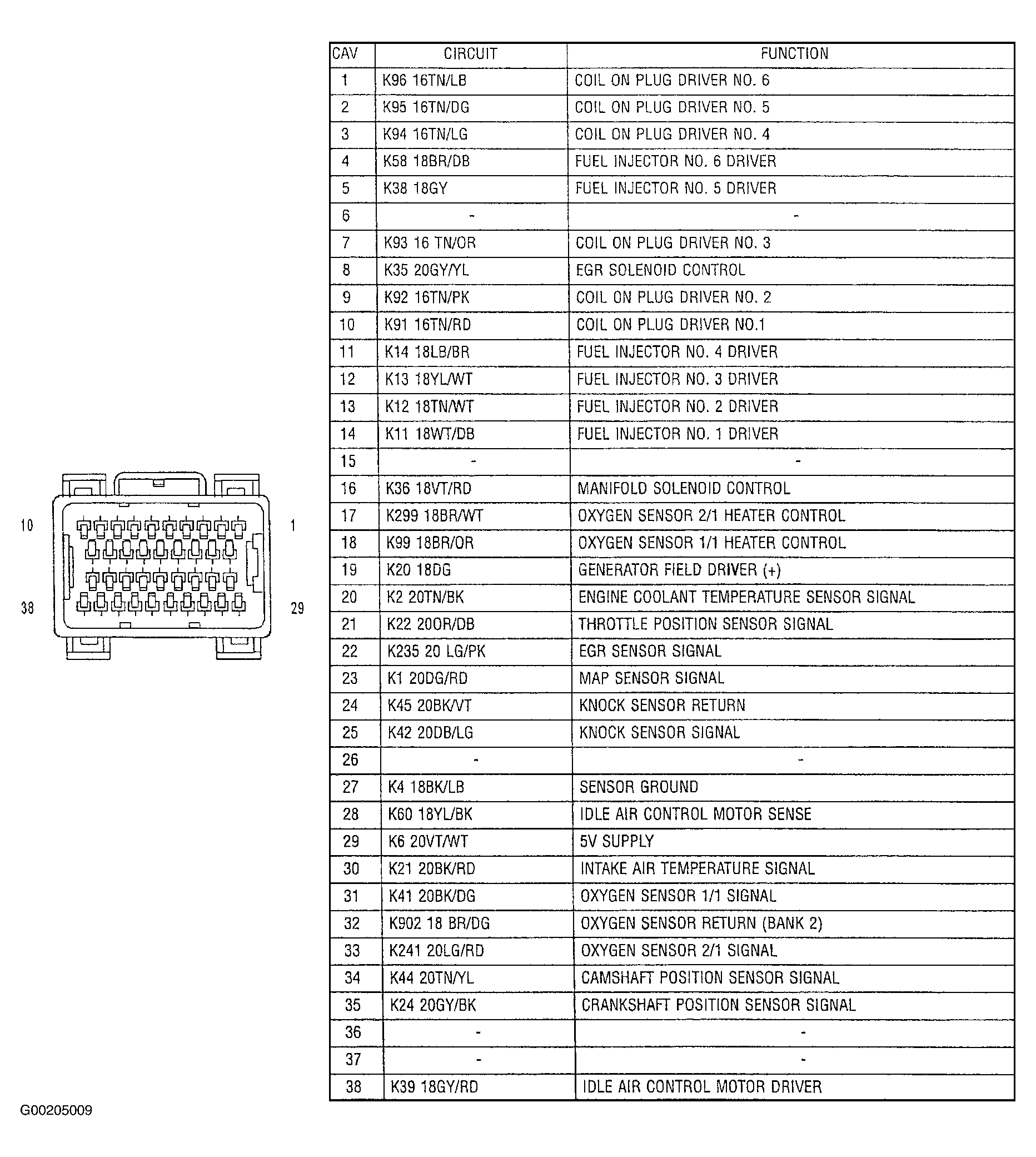

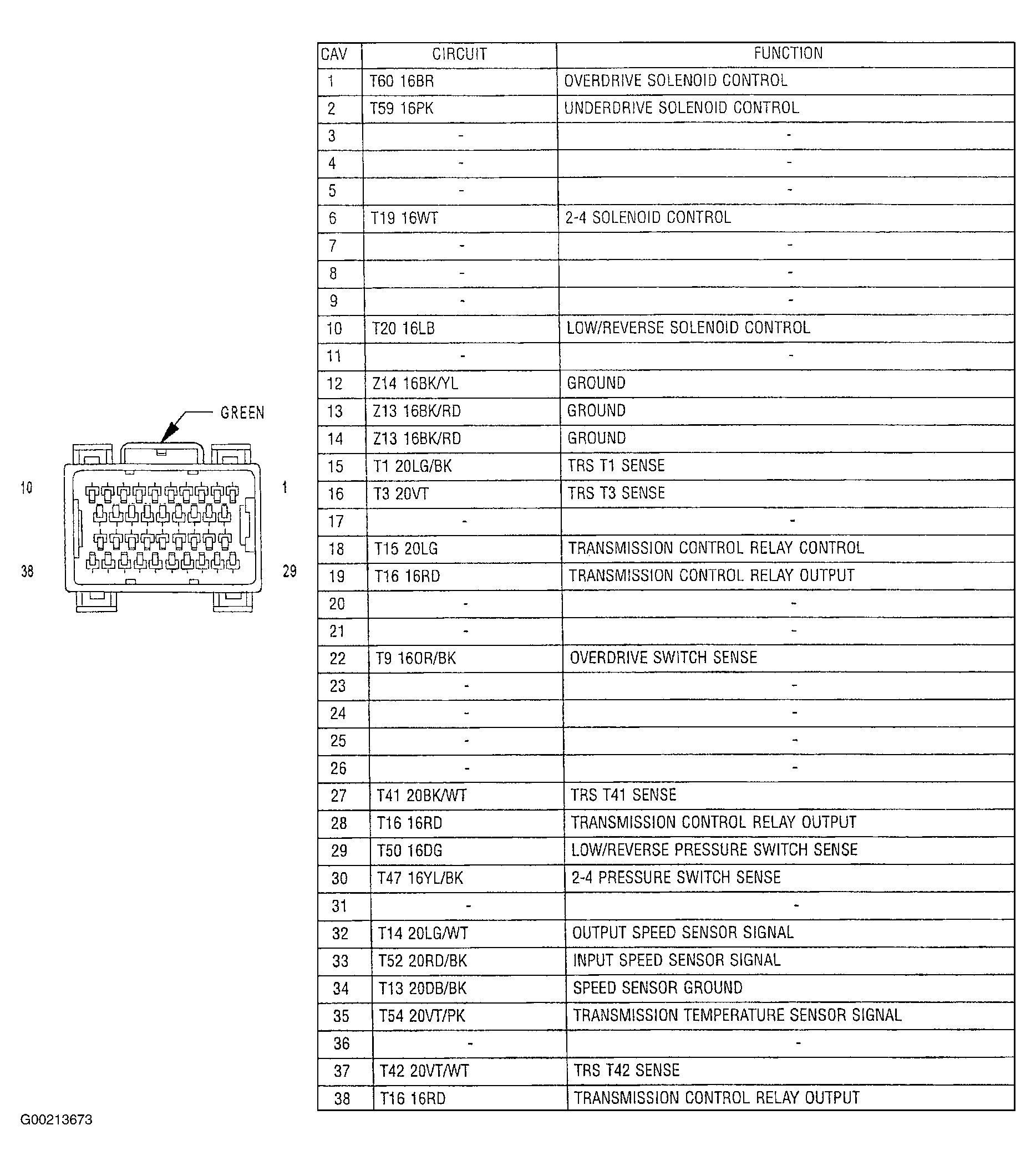

Fig 93: Identifying Powertrain Control Module C4 Connector
Courtesy of CHRYSLER CORP.

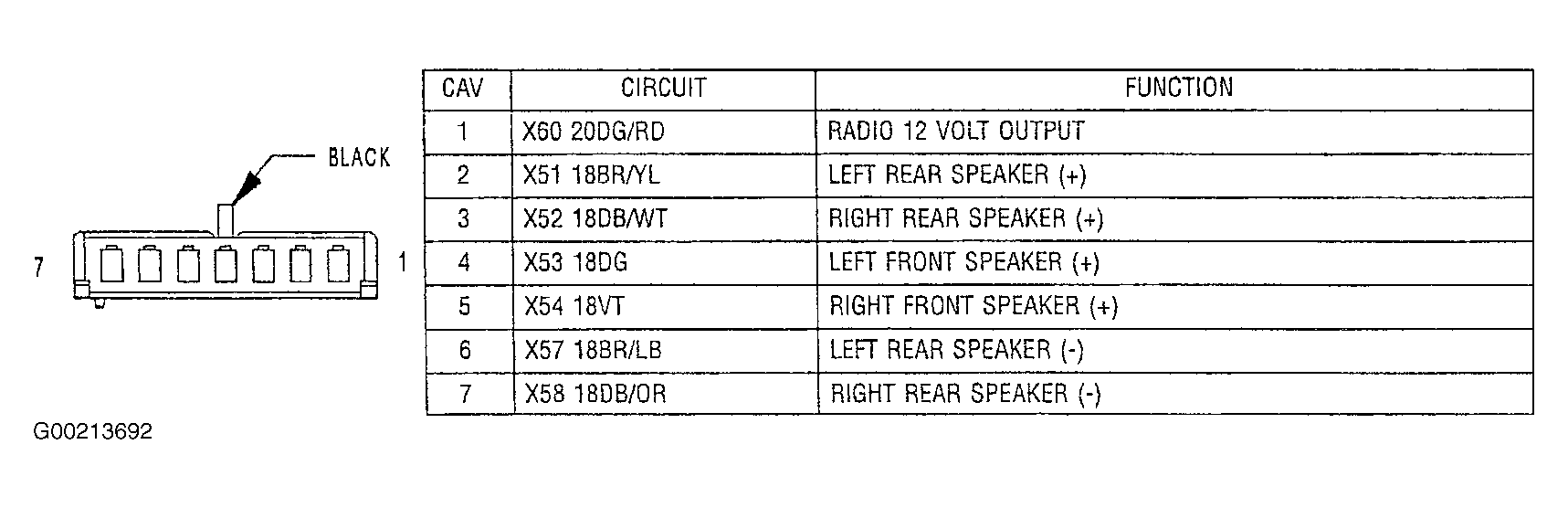

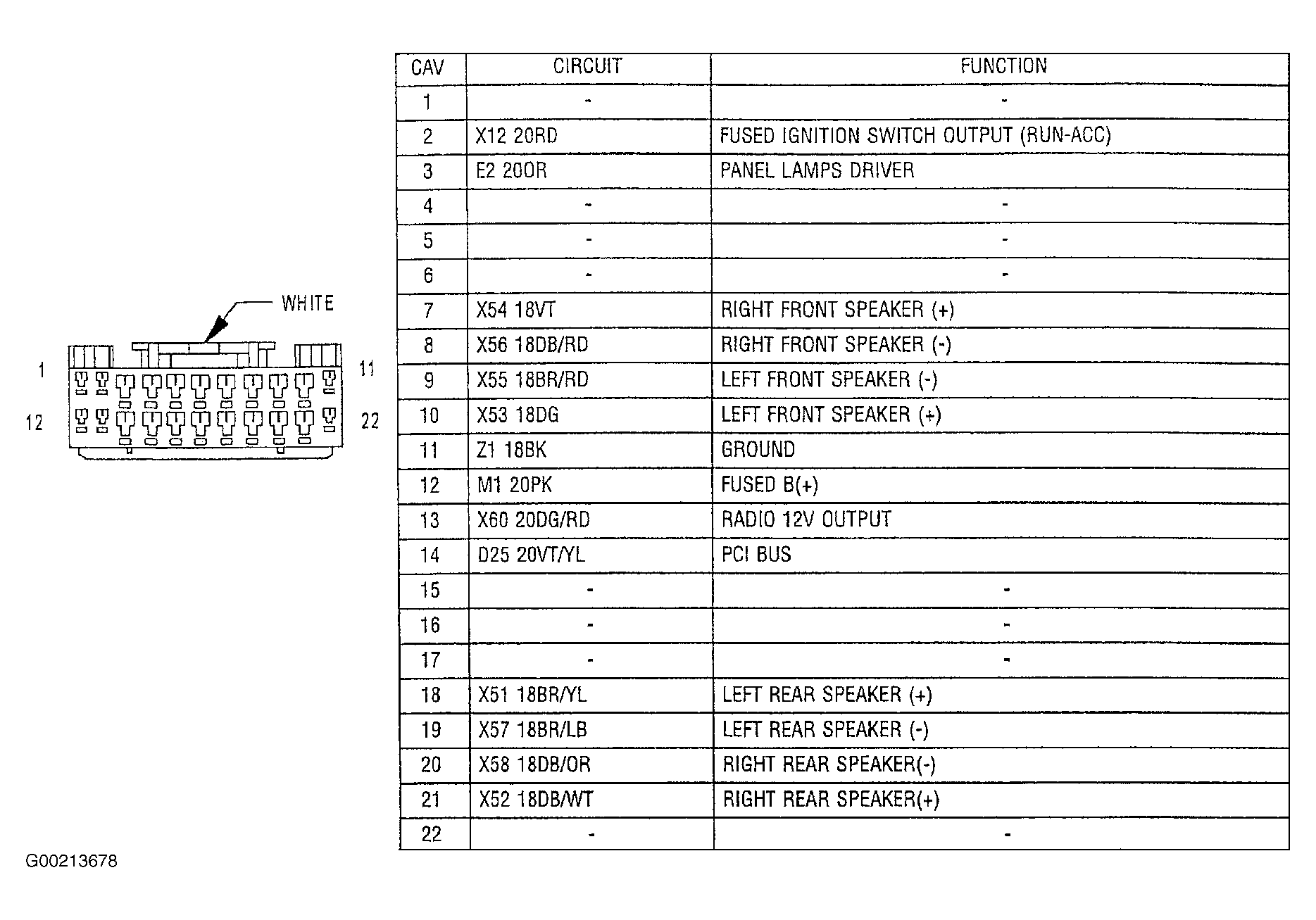

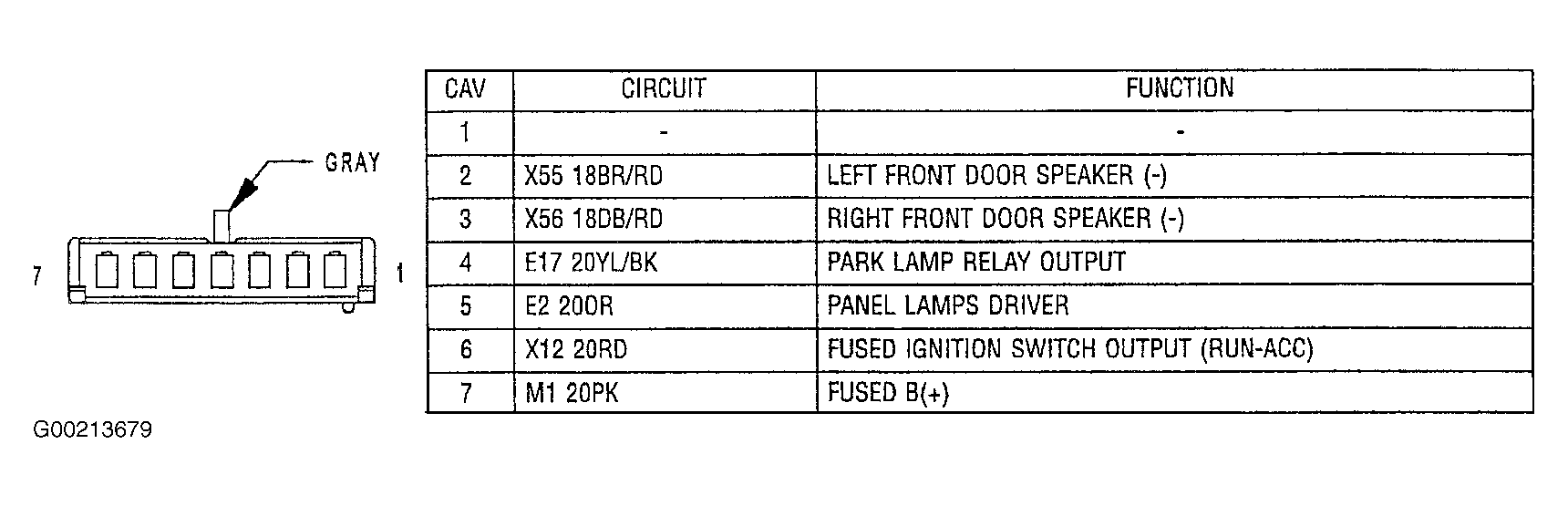

Fig 94: Identifying Radio C1 Connector (Base)
Courtesy of CHRYSLER CORP.
Fig 95: Identifying Radio C1 Connector (Except Base)
Courtesy of CHRYSLER CORP.

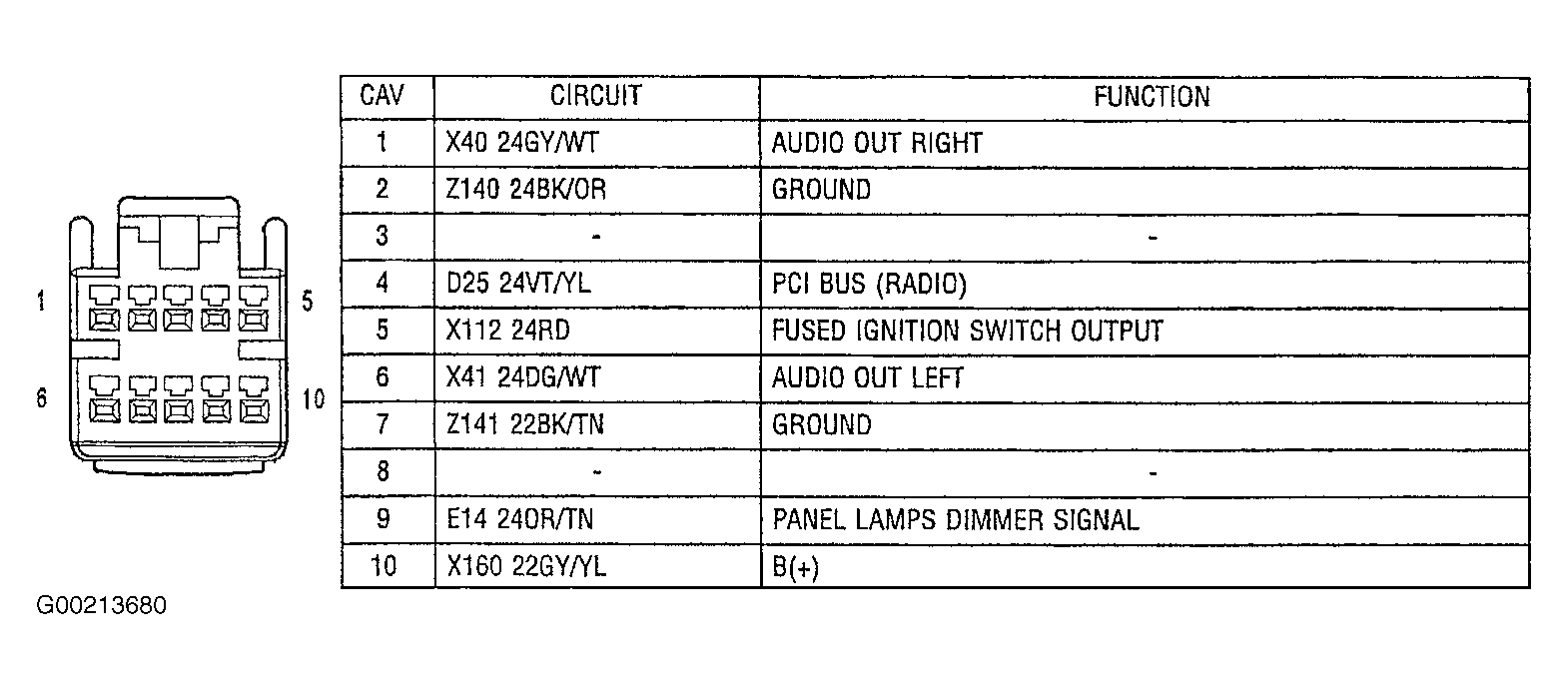

Fig 96: Identifying Radio C2 Connector (Base)
Courtesy of CHRYSLER CORP.
Fig 97: Identifying Radio C2 Connector (Except Base)
Courtesy of CHRYSLER CORP.
Fig 98: Identifying Rear Door Lock Motor/Ajar Switch Connector
Courtesy of CHRYSLER CORP.

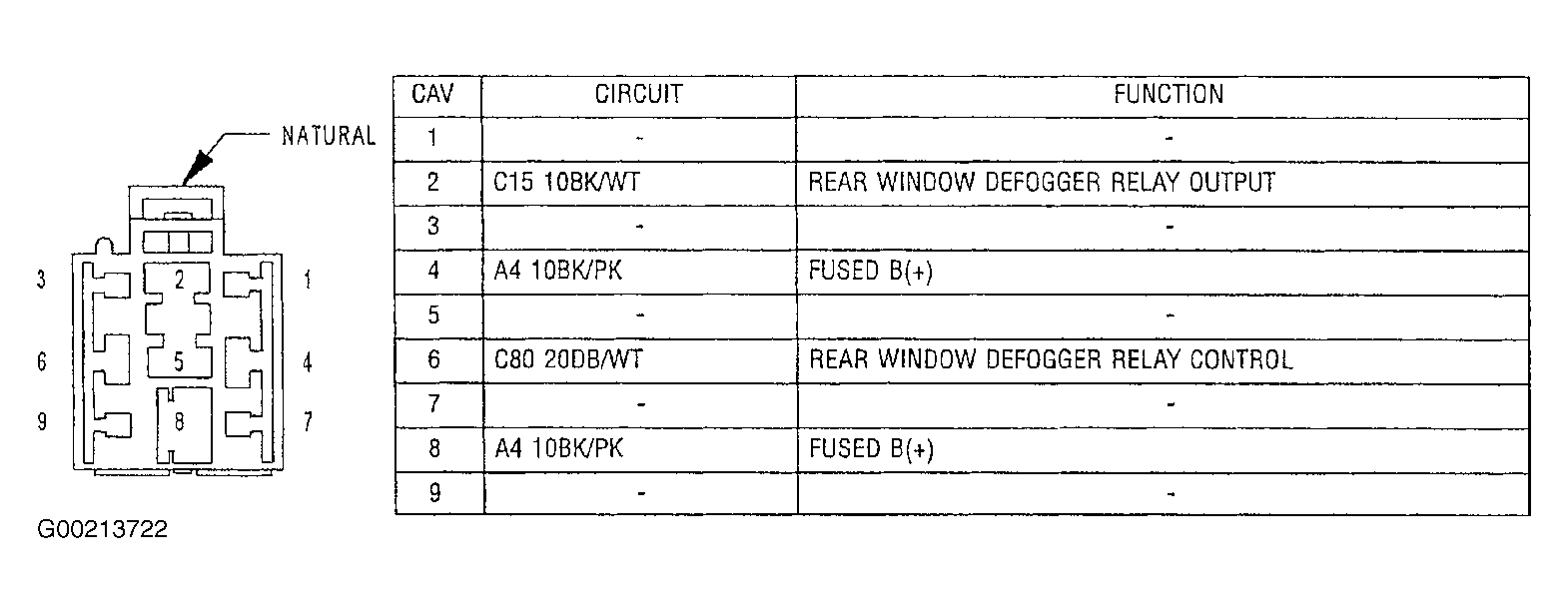

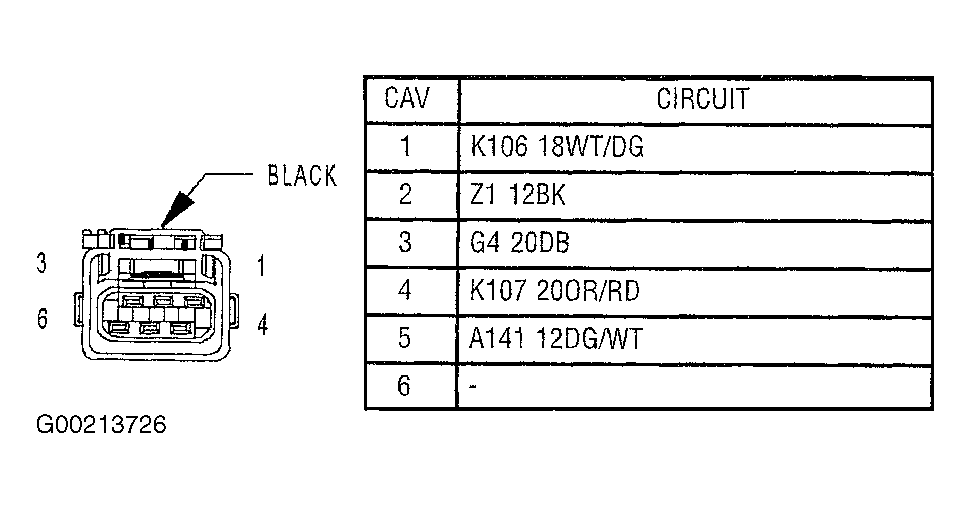

Fig 99: Identifying Rear Window Defogger Relay Connector
Courtesy of CHRYSLER CORP.

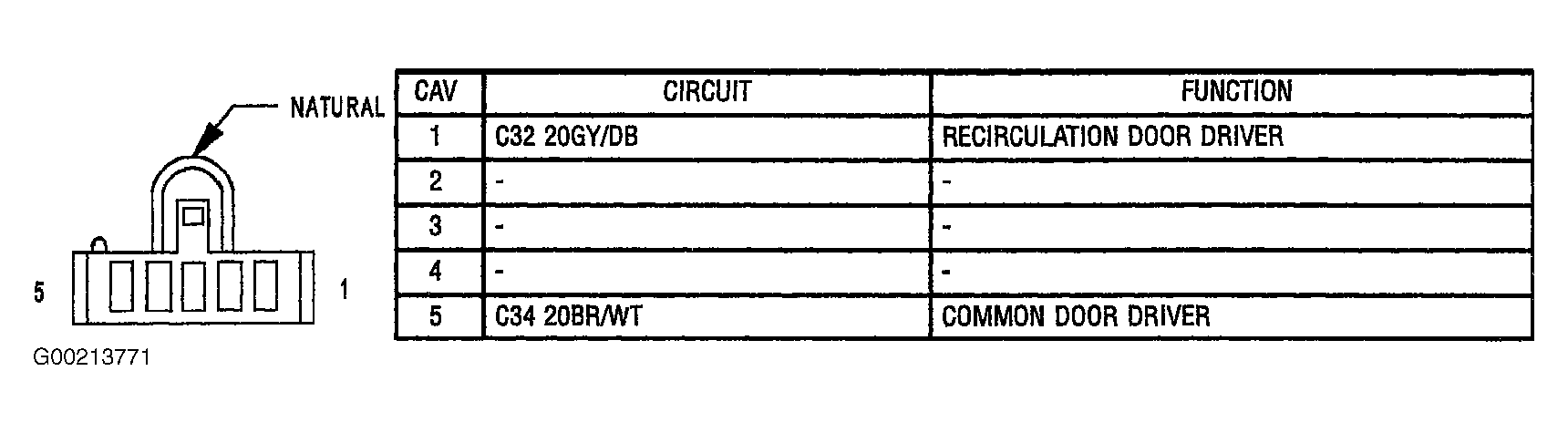

Fig 100: Identifying Recirculation Door Actuator Connector
Courtesy of CHRYSLER CORP.

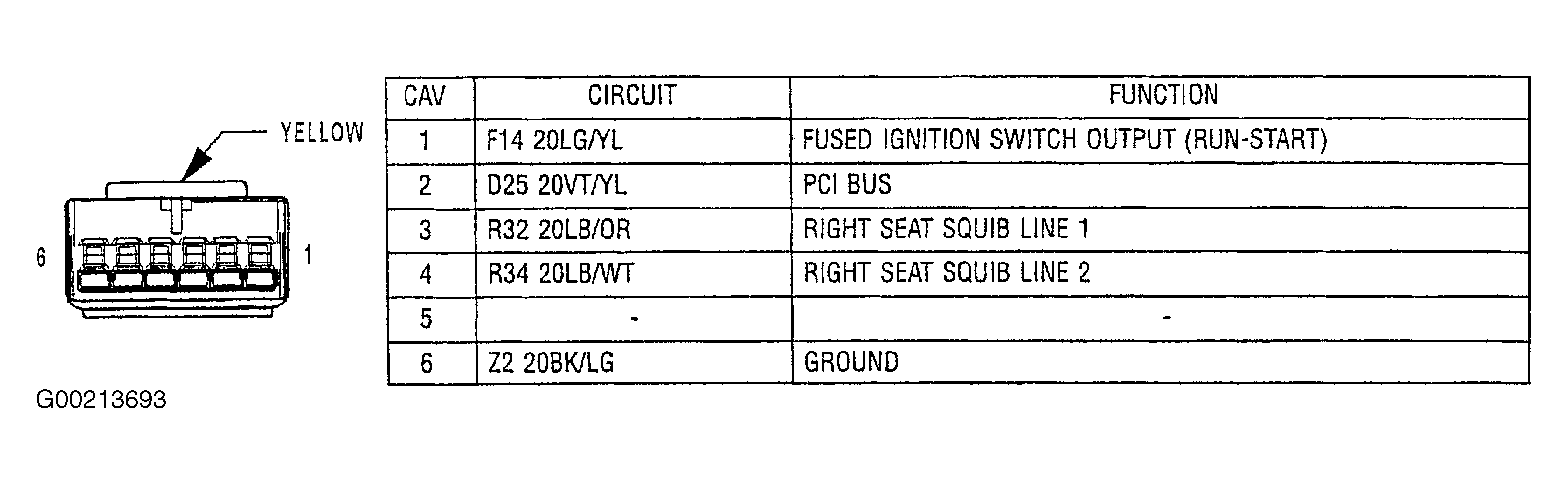

Fig 101: Identifying Right Side Impact Air Bag Control Module Connectors
Courtesy of CHRYSLER CORP.

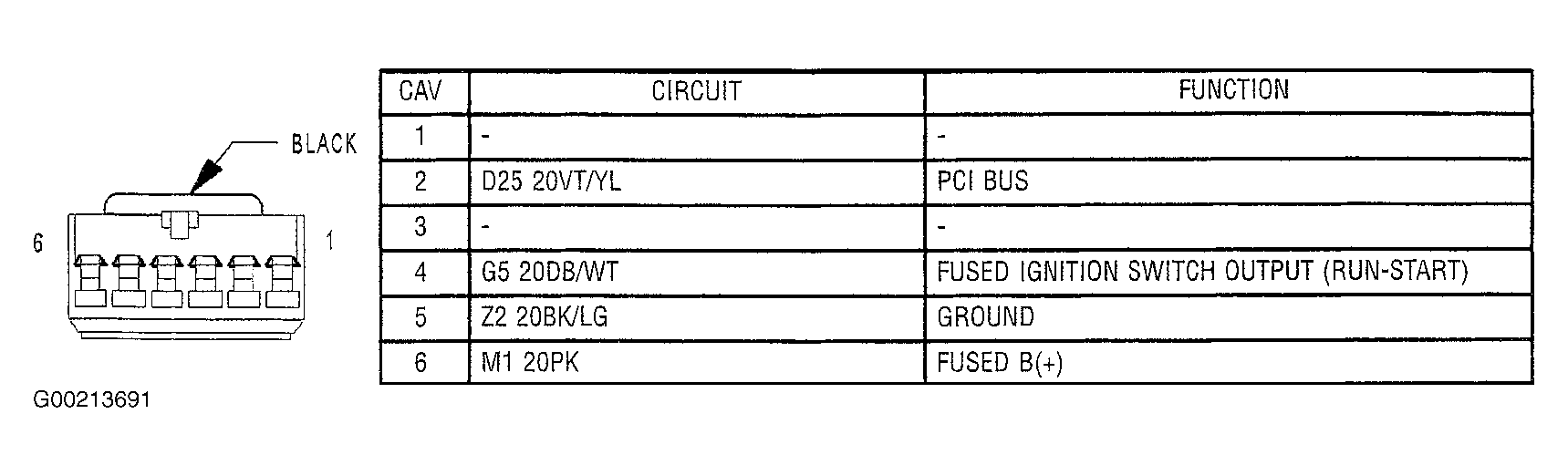

Fig 102: Identifying Sentry Key Immobilizer Module Connectors
Courtesy of CHRYSLER CORP.
Fig 103: Identifying Sun Sensor/VTSS LED Connector
Courtesy of CHRYSLER CORP.
Fig 104: Identifying Typical PCI Bus Square Wave
Courtesy of DAIMLERCHRYSLER CORPORATION

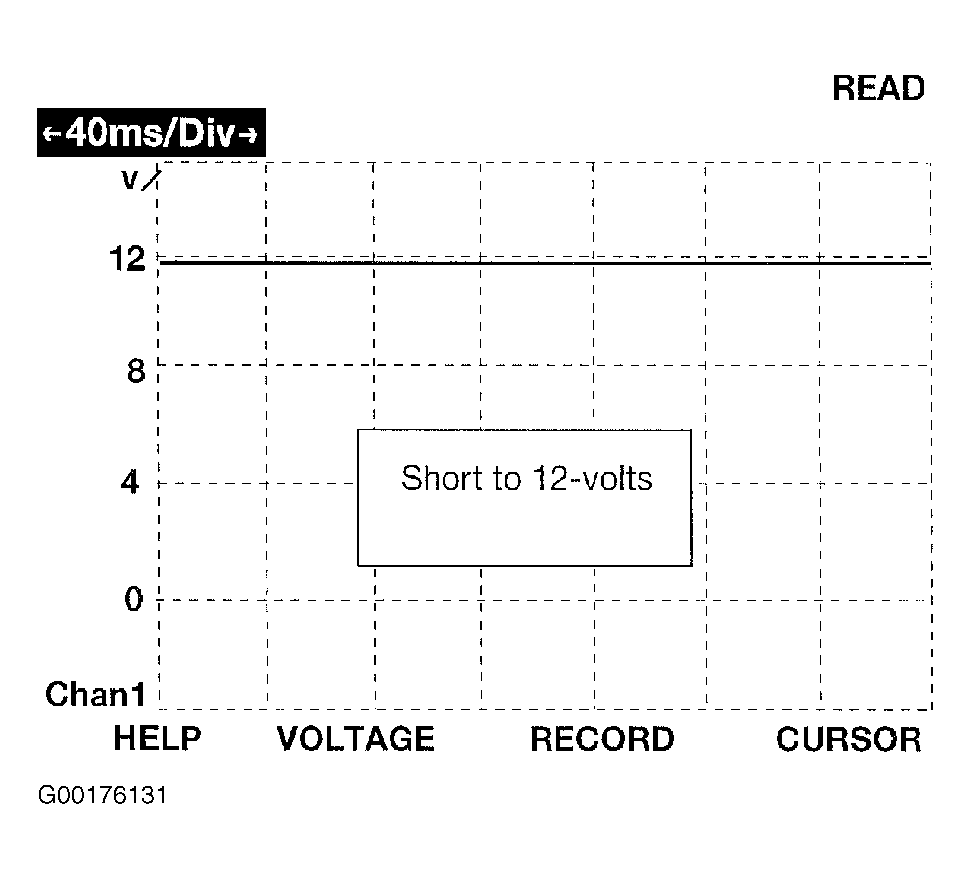

Fig 105: Identifying PCI Bus Short To 12 Volts Waveform
Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 106: Identifying PCI Bus Short To Ground Or Open Circuit Waveform
Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 107: Identifying Windshield Wiper Motor Connector
Courtesy of CHRYSLER CORP.
