Home >> Chrysler >> 2002 >> Intrepid Base >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Body Control Module C3 Connector End View

Body Control Module C3 Connector End View

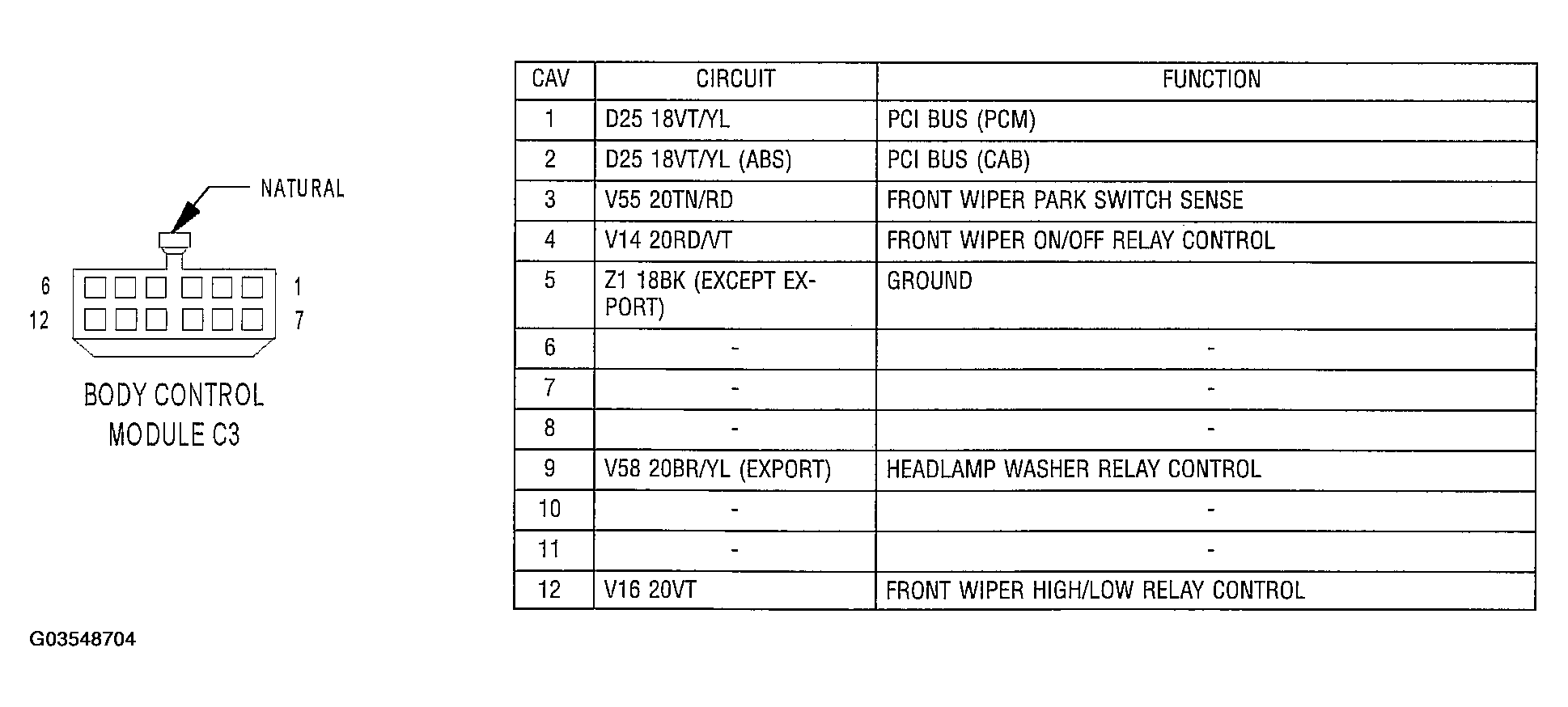

Fig 1: Body Control Module C3

G03548704

Courtesy of CHRYSLER GROUP, LLC
