Brake Transmission Shift Interlock Solenoid Harness Connector End View

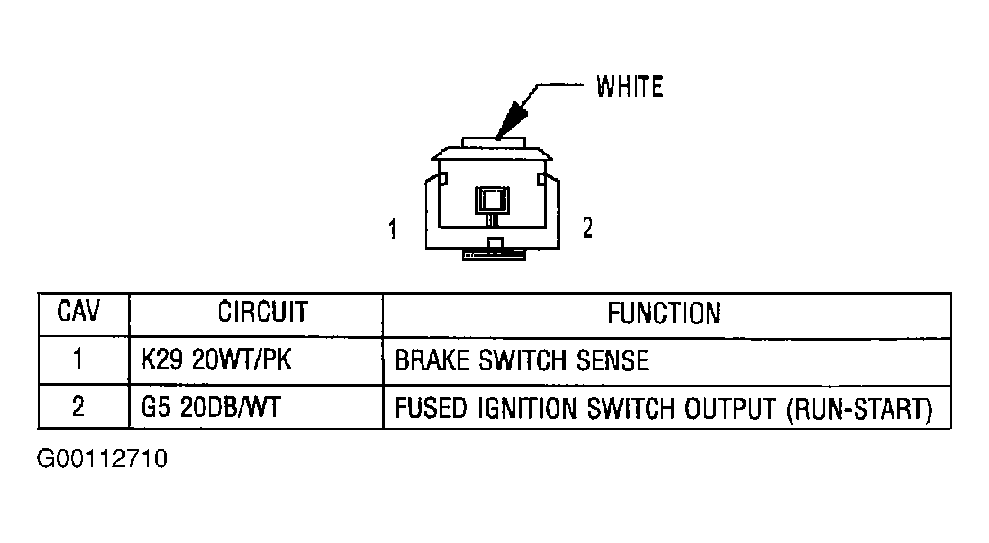

Fig 1: Identifying Brake Transmission Shift Interlock Solenoid Harness Connector

G00112710

Courtesy of DAIMLERCHRYSLER CORPORATION
