Connector Identification
>>
IAT Sensor Harness Connector End View
IAT Sensor Harness Connector End View

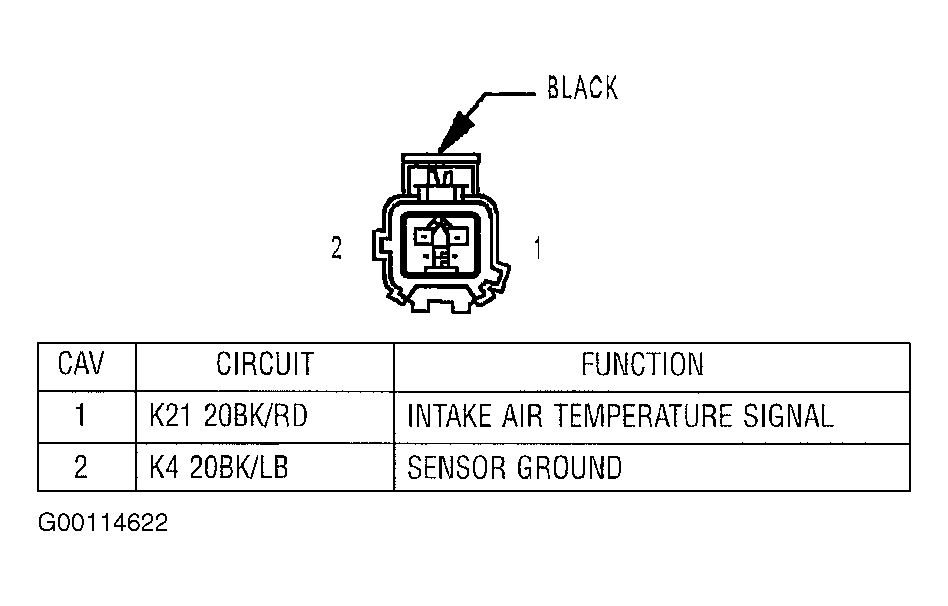

Fig 1: Identifying IAT Sensor Harness Connector
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
