Instrument Cluster Harness Connector End View

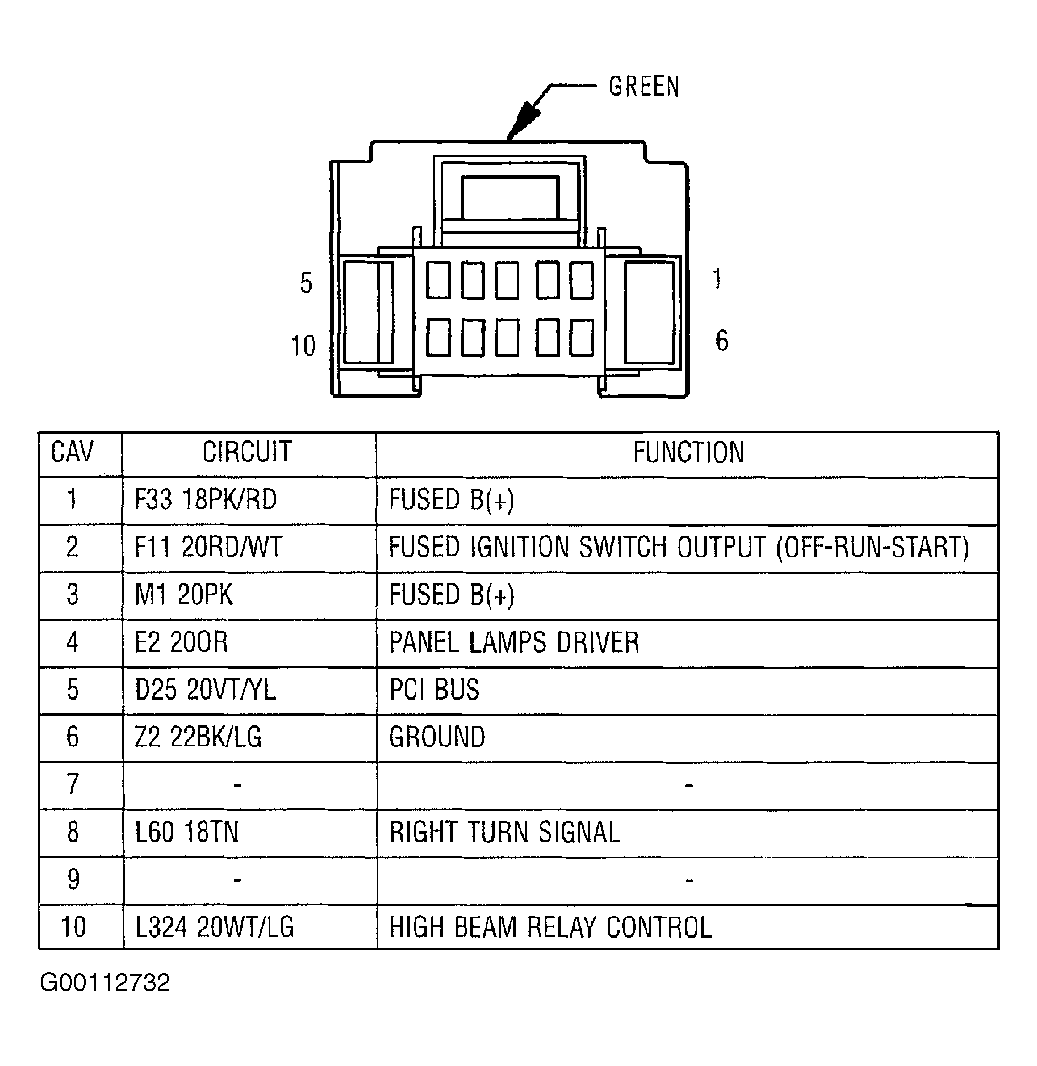

Fig 1: Identifying Instrument Cluster C1 Harness Connector
G00112732Courtesy of DAIMLERCHRYSLER CORPORATION

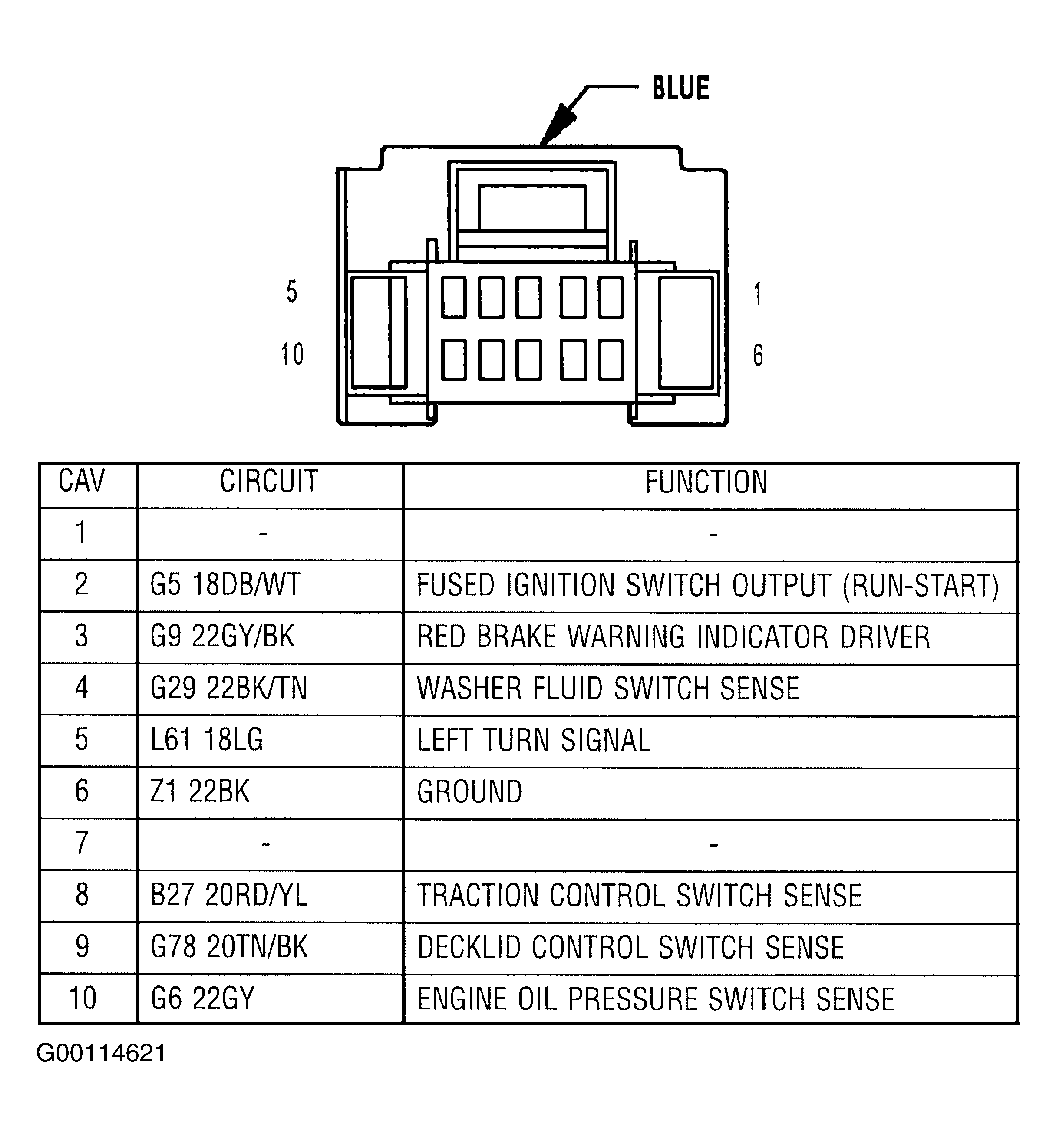

Fig 2: Identifying Instrument Cluster C2 Harness Connector
G00114621Courtesy of DAIMLERCHRYSLER CORPORATION
