Leak Detection Pump Harness Connector End View

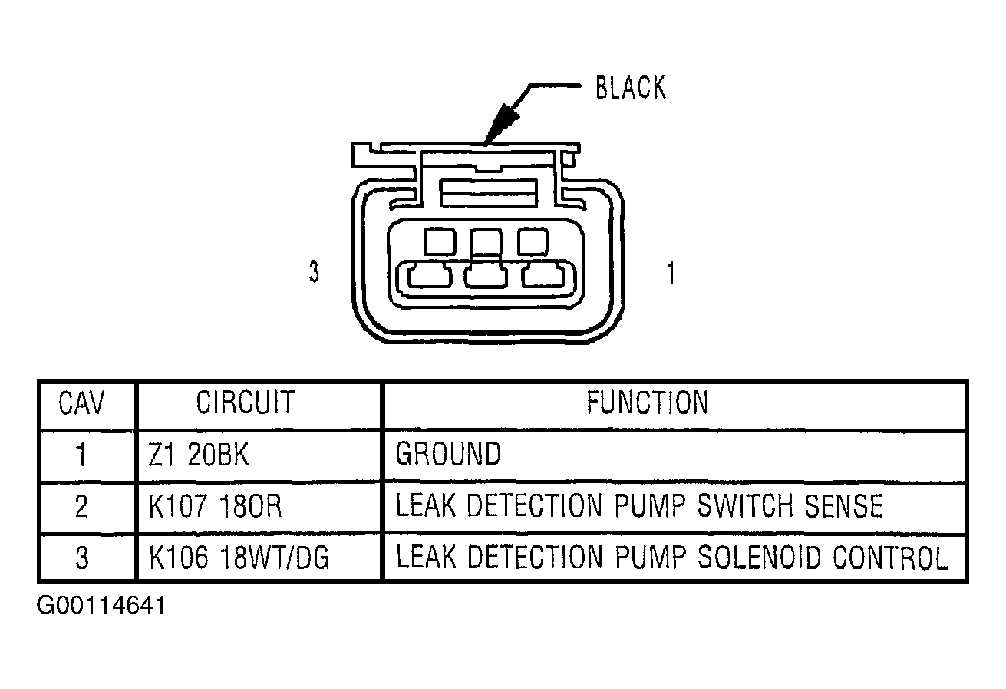

Fig 1: Identifying Leak Detection Pump Harness Connector

G00114641

Courtesy of DAIMLERCHRYSLER CORPORATION
