Speed Control Servo Harness Connector End View

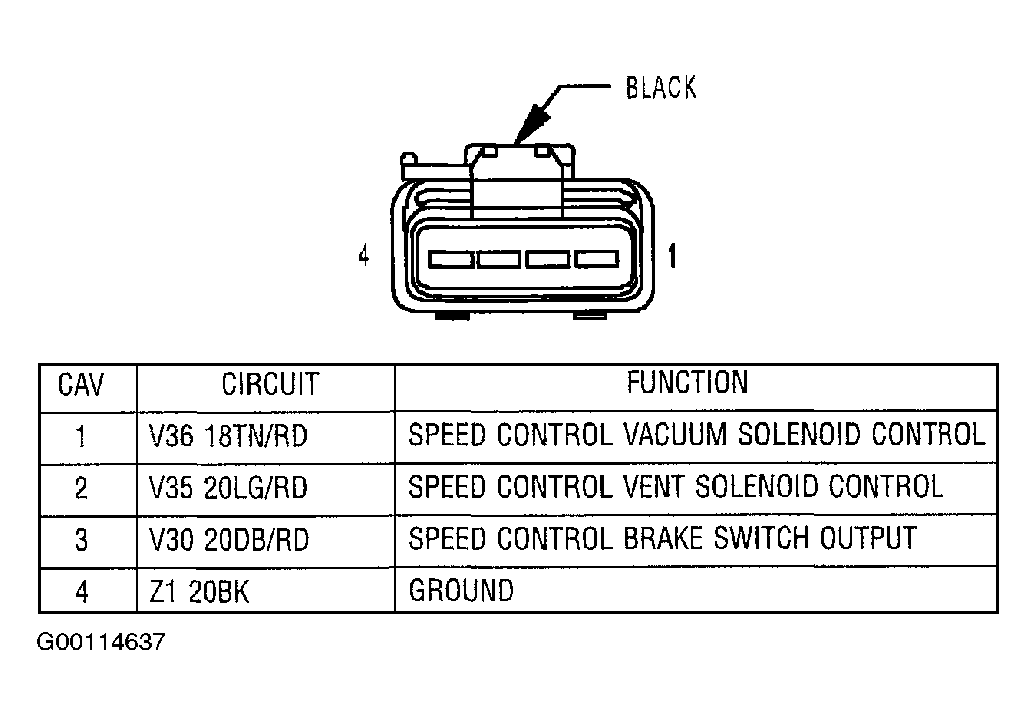

Fig 1: Identifying Speed Control Servo Harness Connector

G00114637

Courtesy of DAIMLERCHRYSLER CORPORATION
