Chrysler
>>
2002
>>
Intrepid Base
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Self-Diagnostics
>>
Connector Identification
>>
TP Sensor Harness Connector End View (2.7L)
TP Sensor Harness Connector End View (2.7L)

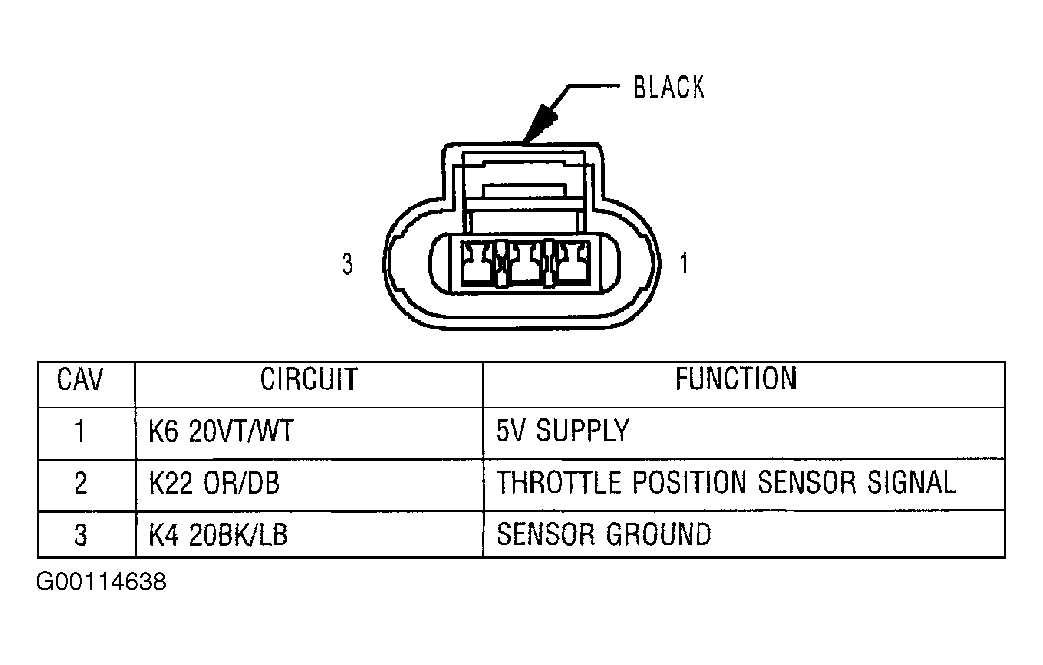

Fig 1: Identifying TP Sensor Harness Connector (2.7L)
Courtesy of DAIMLERCHRYSLER CORPORATION
Courtesy of DAIMLERCHRYSLER CORPORATION
