Checking Fluid Levels: Differential

Remove differential filler plug from differential side cover. See Fig 1 . Fluid level should be even with bottom of fill hole. Add appropriate type of differential fluid, if necessary. See RECOMMENDED FLUIDS  . Install and tighten differential filler plug to specification. See TORQUE SPECIFICATIONS  .

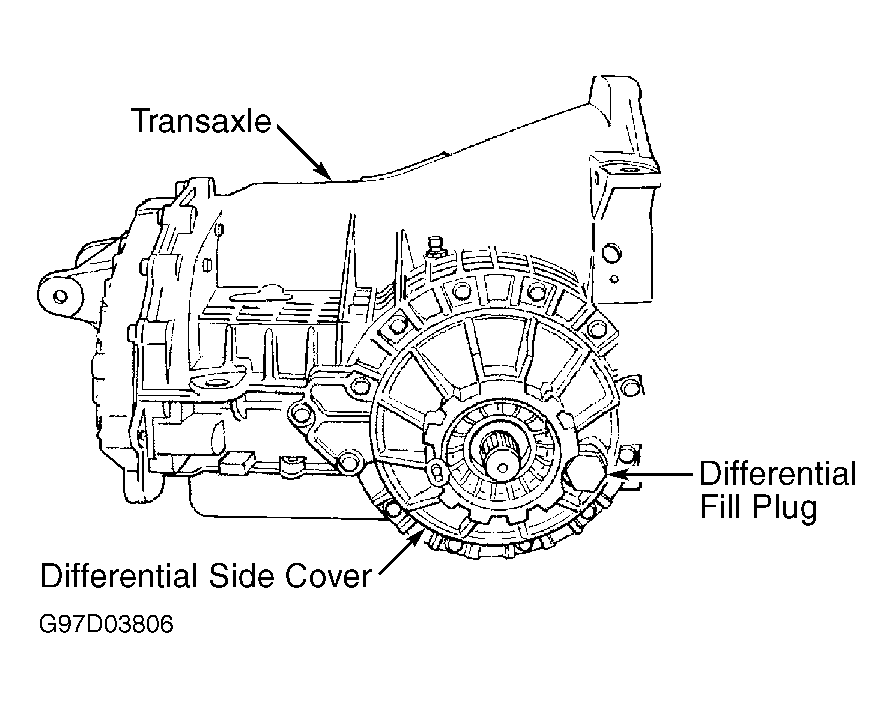

Fig 1: Locating Differential Filler Plug (42LE)

Courtesy of CHRYSLER CORP.
