Component Locations

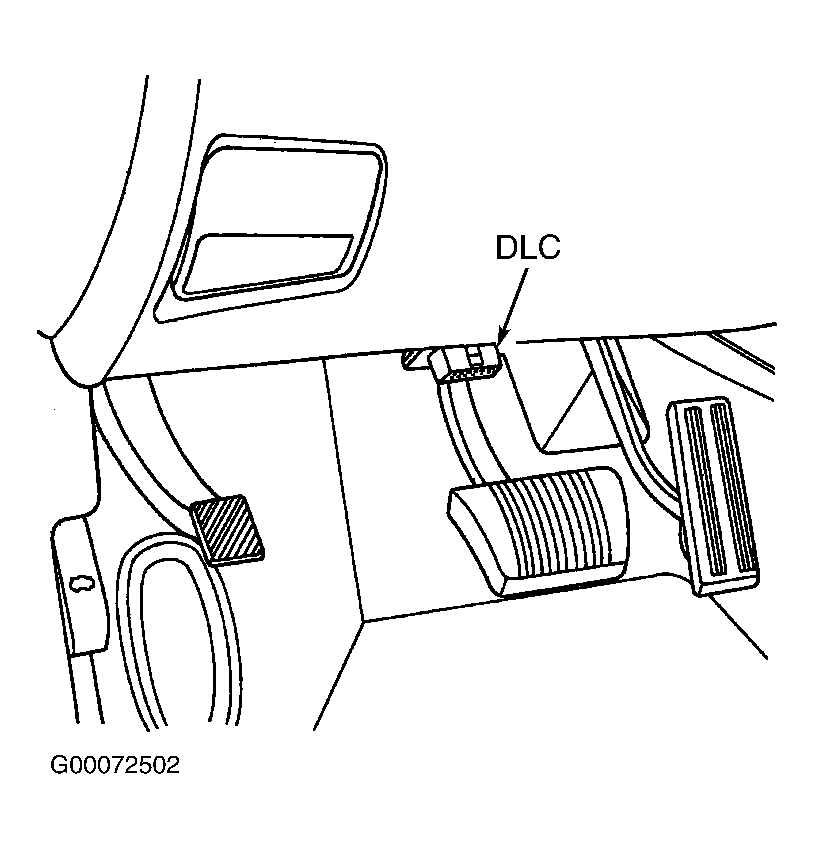

Fig 1: Locating Data Link Connector
G00072502Courtesy of DAIMLERCHRYSLER CORPORATION

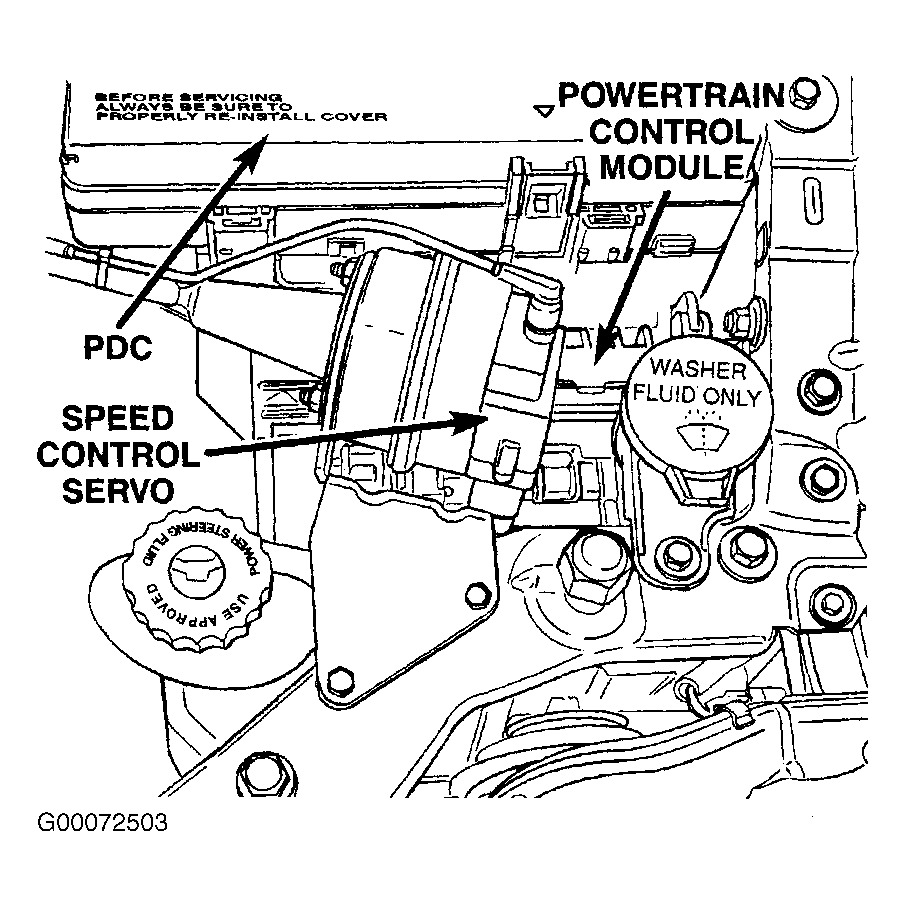

Fig 2: Locating Powertrain Control Module & Power Distribution Center
G00072503Courtesy of DAIMLERCHRYSLER CORPORATION

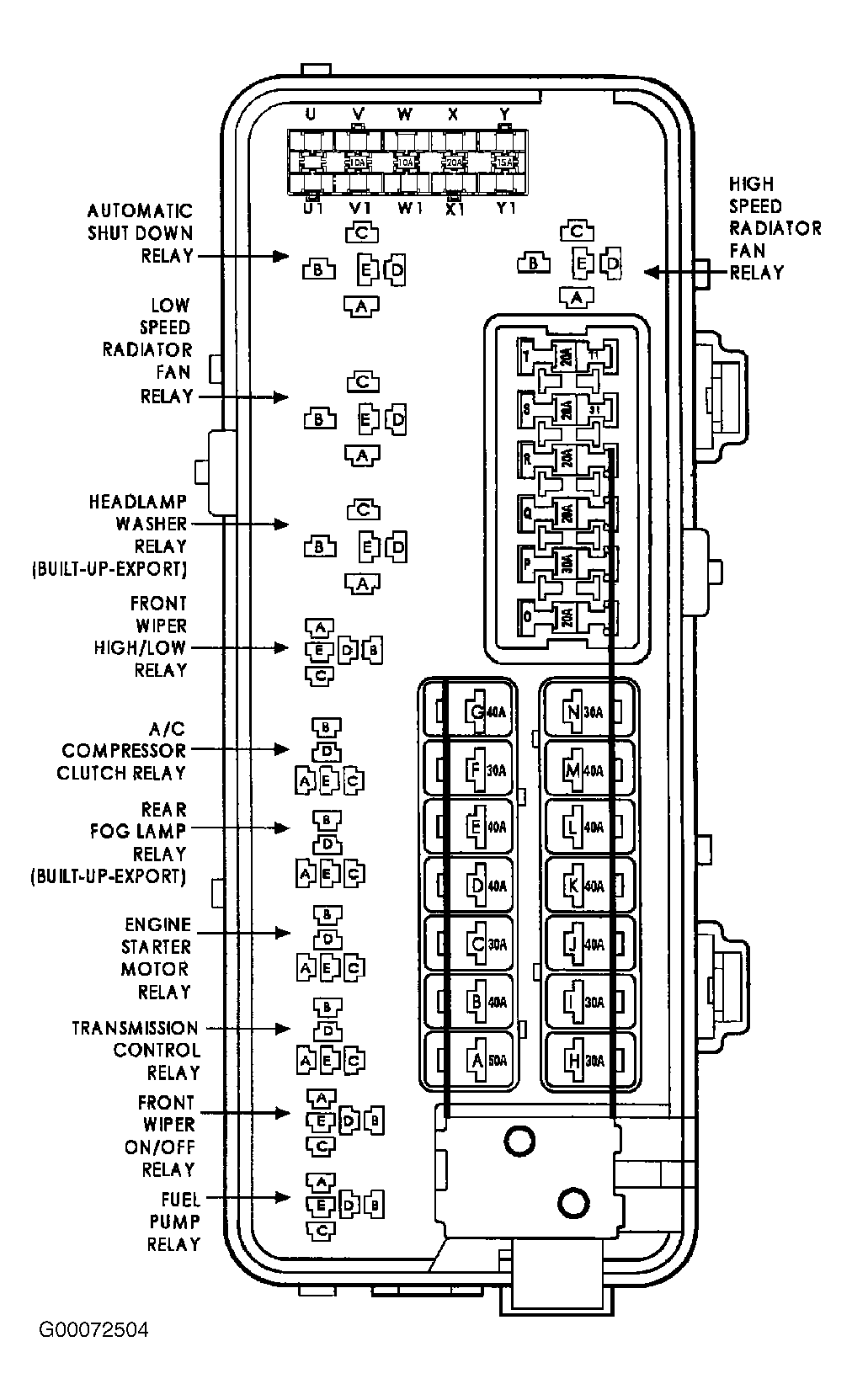

Fig 3: Locating Power Distribution Center Components
G00072504Courtesy of DAIMLERCHRYSLER CORPORATION
