Automatic Overrides

For safety, durability, and driveability, some shifts are executed automatically or prevented.

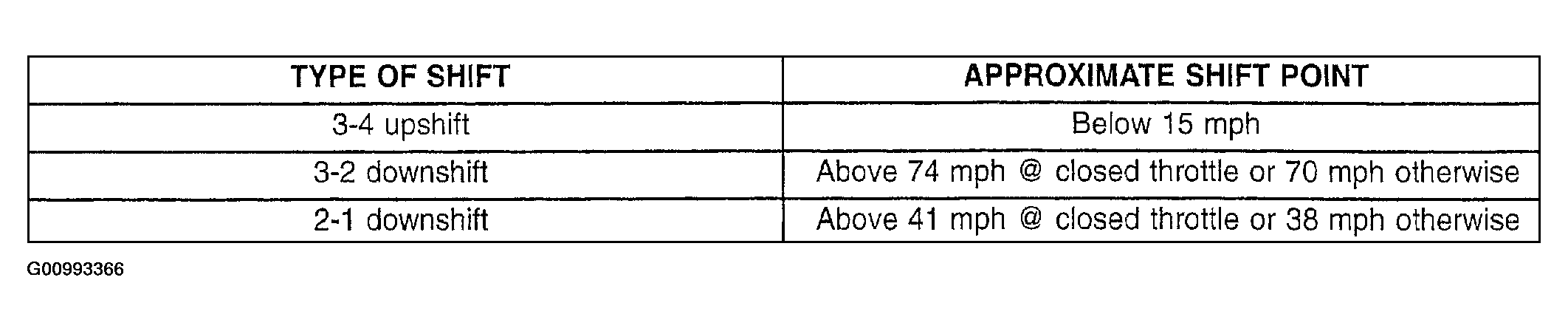

Fig 1: Automatic Shifts Will Occur Under The Following Conditions

Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: Manual Shifts Are Not Permitted Under The Following Conditions

Courtesy of DAIMLERCHRYSLER CORP.
