Oil Pump: Assembly

  1. Assemble oil pump as shown in Fig 1.
  2. Install and torque reaction shaft support-to-oil pump housing bolts to 28 N.m (20 ft. lbs.) torque.

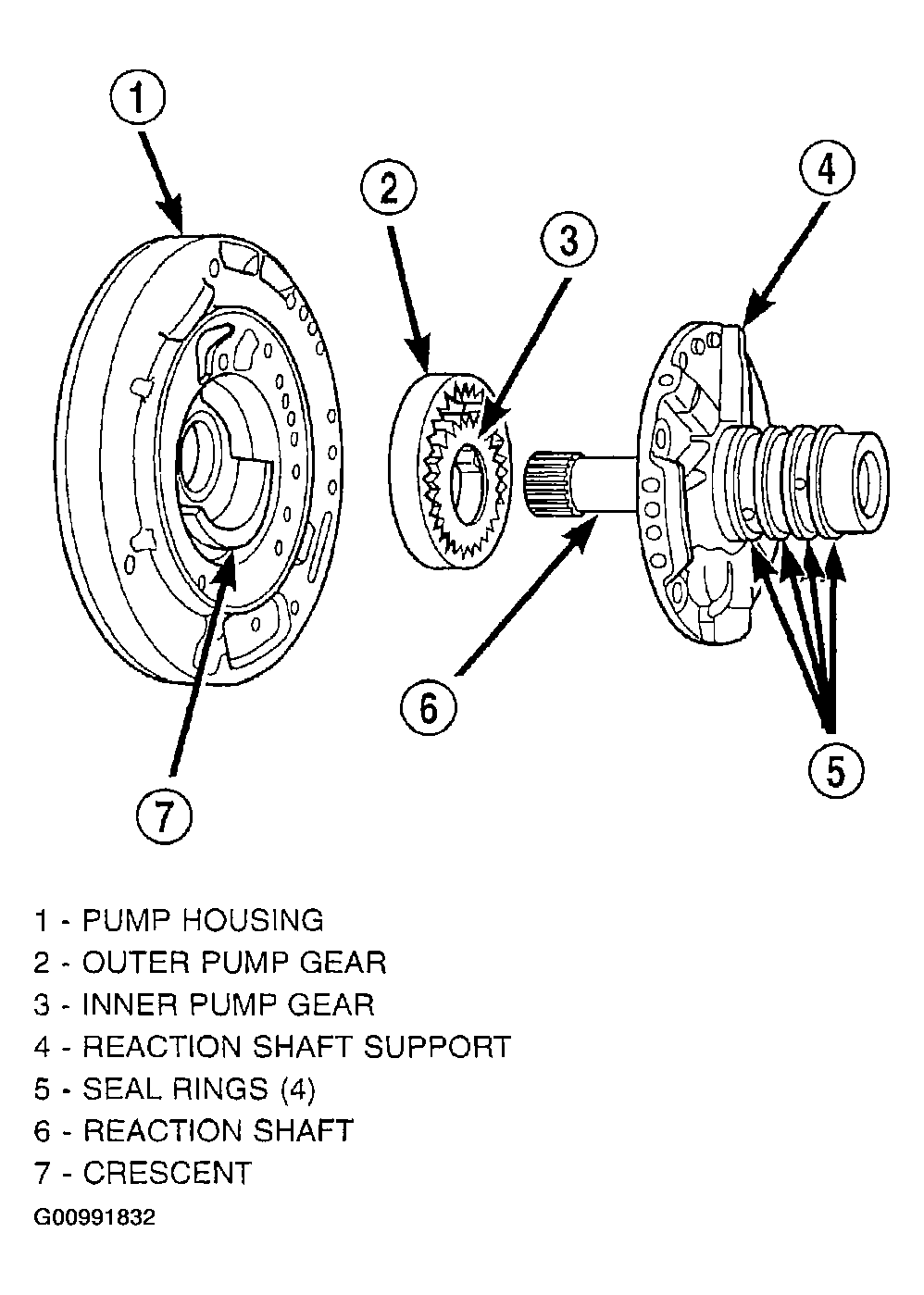

    Fig 1: Exploded View Of Oil Pump Assembly
    G00991832Courtesy of DAIMLERCHRYSLER CORP.
